FEELWORLD S7
Monitor your 4K HDR signals with clarity in the field with the S7 7" 12G-SDI/HDMI 2.0 Camera Field Monitor from Feelworld. This compact, 7" touchscreen field monitor with a durable aluminum chassis features 12G-SDI and HDMI 2.0 inputs and outputs so you can view your 4K footage without the need for down-res. The LCD panel features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and 1600 cd/m² brightness for a crisp viewing experience, even in sunlight.

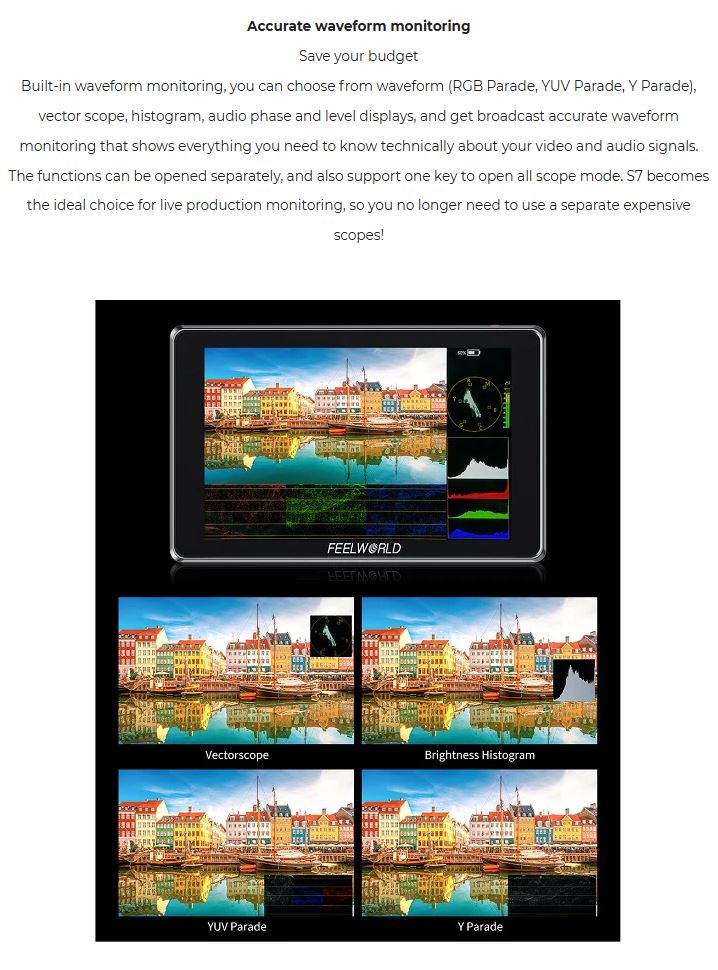

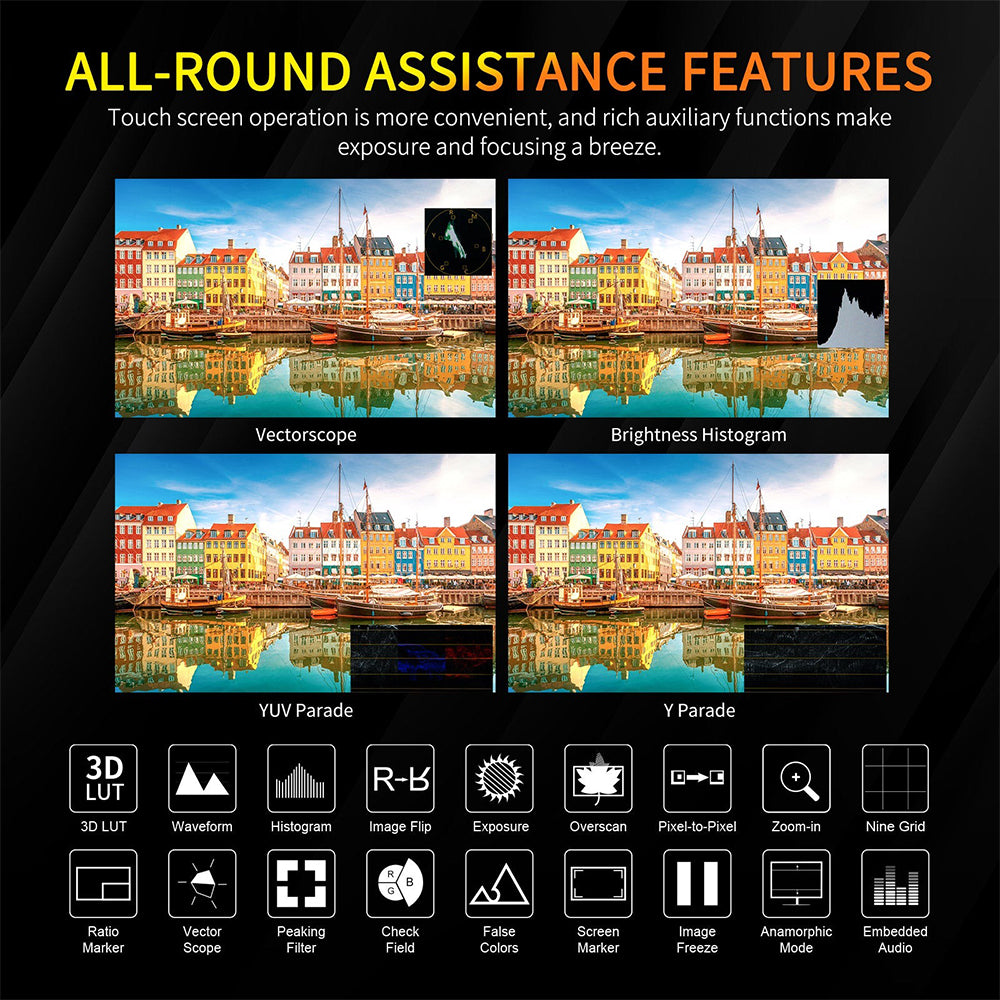

Other features include HDMI/SDI cross conversion to eliminate the need for external converters, a 16-channel audio meter, 10-bit color depth, HDR HLG support, applying 3D LUTs on loop output, a 3-color tally light, cooling fans, and support for 11 languages. Numerous professional imaging tools are built-in for accurate monitoring, including waveform, vectorscope, histogram, and more. It is powered using a power adapter or the rear dual L-series battery mount.
Specifications:
Panel Type: IPS-Type LCD
Display Size: 7.0" / 17.8 cm
Native Resolution: 1920 x 1200
Aspect Ratio: 16:10
Contrast Ratio: 1200:1
Viewing Angle:
• Horizontal: 160° (80/80)
• Vertical: 160° (80/80)
Touchscreen: Yes
Maximum Brightness: 1600 nits / cd/m2
HDR Support: No

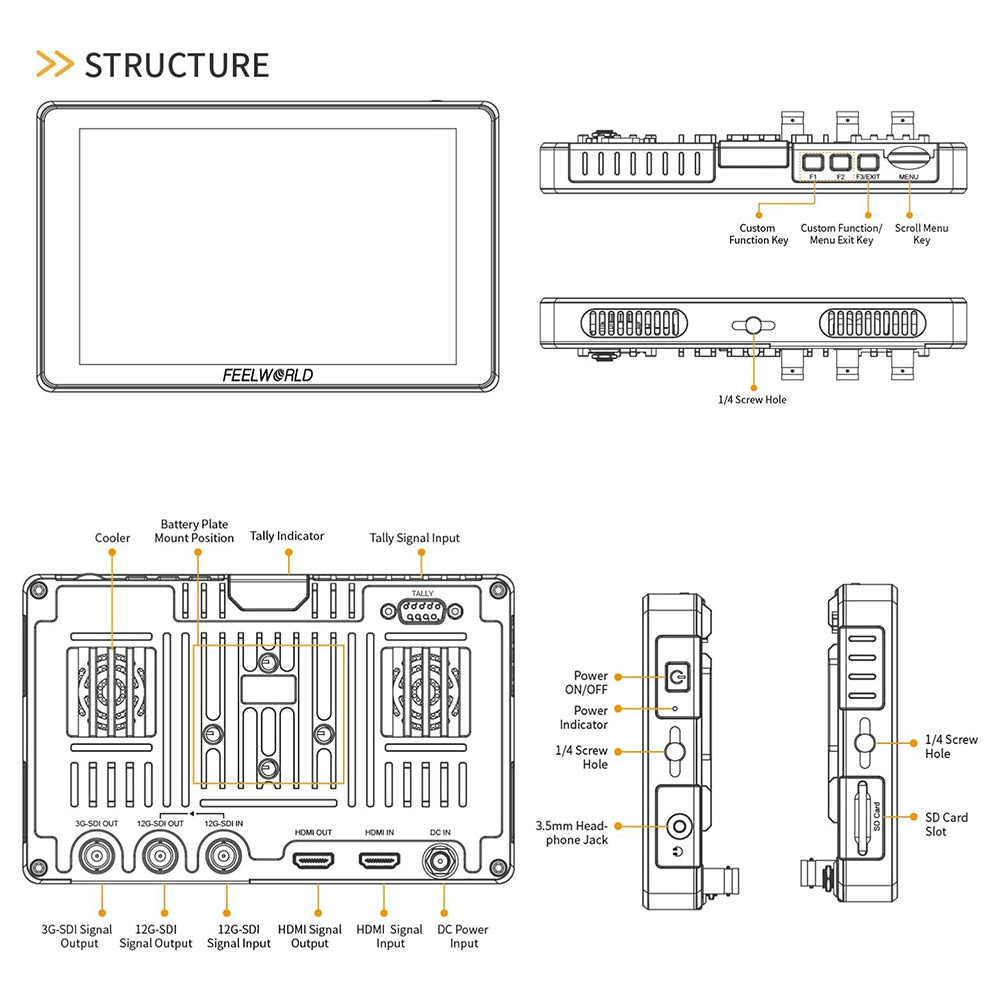

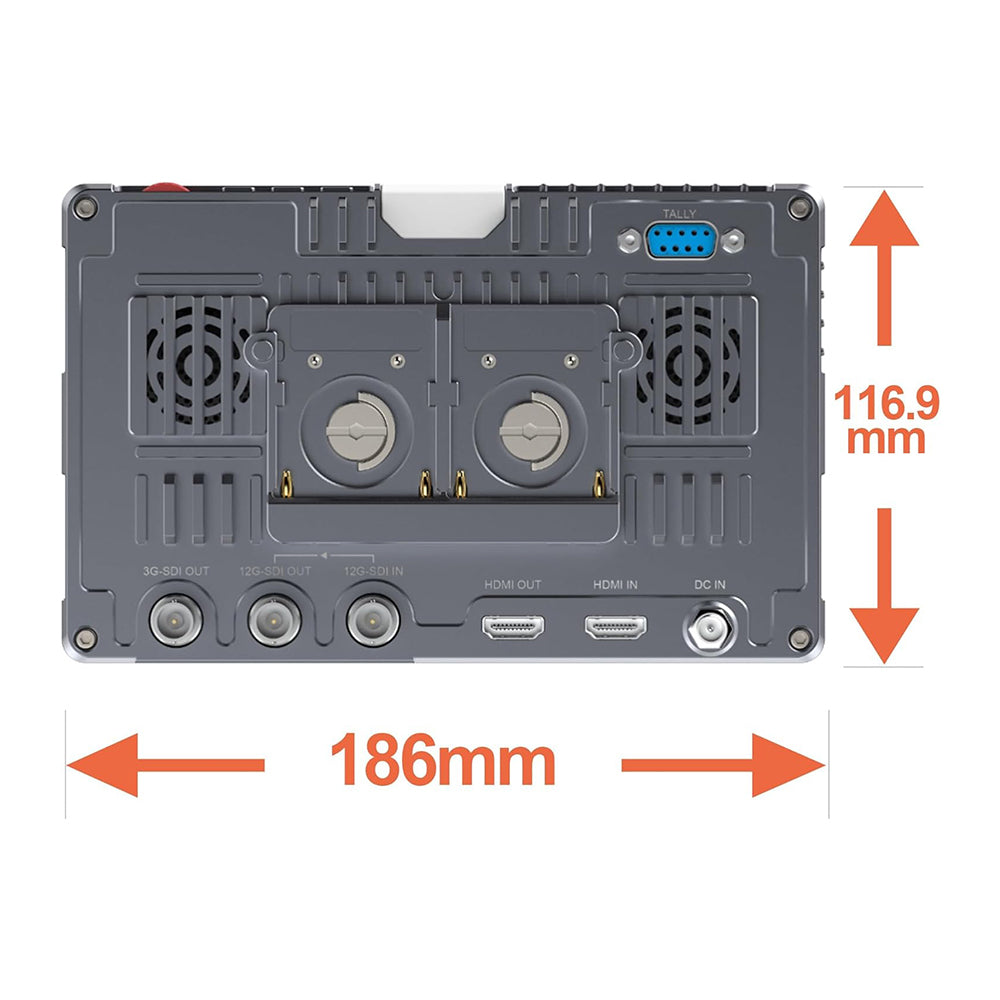

Video I/O:
• 1x HDMI 2.0 Input
• 1x HDMI 2.0 Output
• 1x BNC (12G-SDI) Input
• 1x BNC (3G-SDI) Output
• 1x BNC (12G-SDI) Output
Media/Memory Card Slot: Single Slot: SD (Unspecified Type)
Video Format:
• HDMI
• SDI

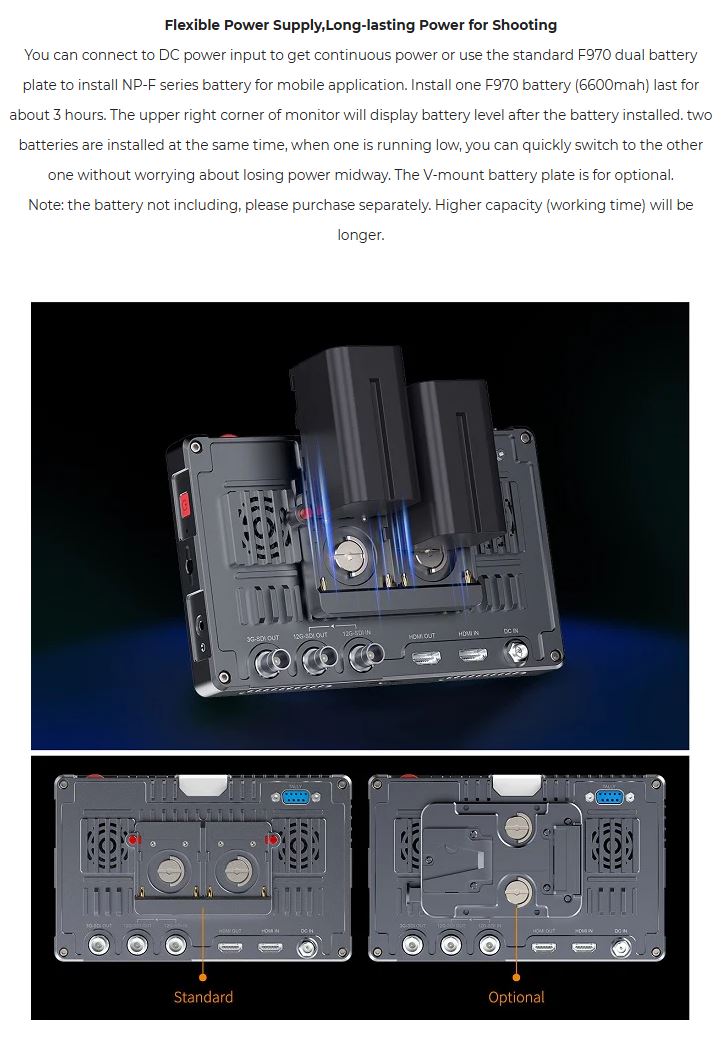

Battery Type: 2x L-Series (Interchangeable Mount)
Power Consumption: 16 W
Mounting: 3x 1/4"-20 Female
Material of Construction: Aluminum
Features:
-
7" 1920 x 1200 IPS LCD Monitor
-

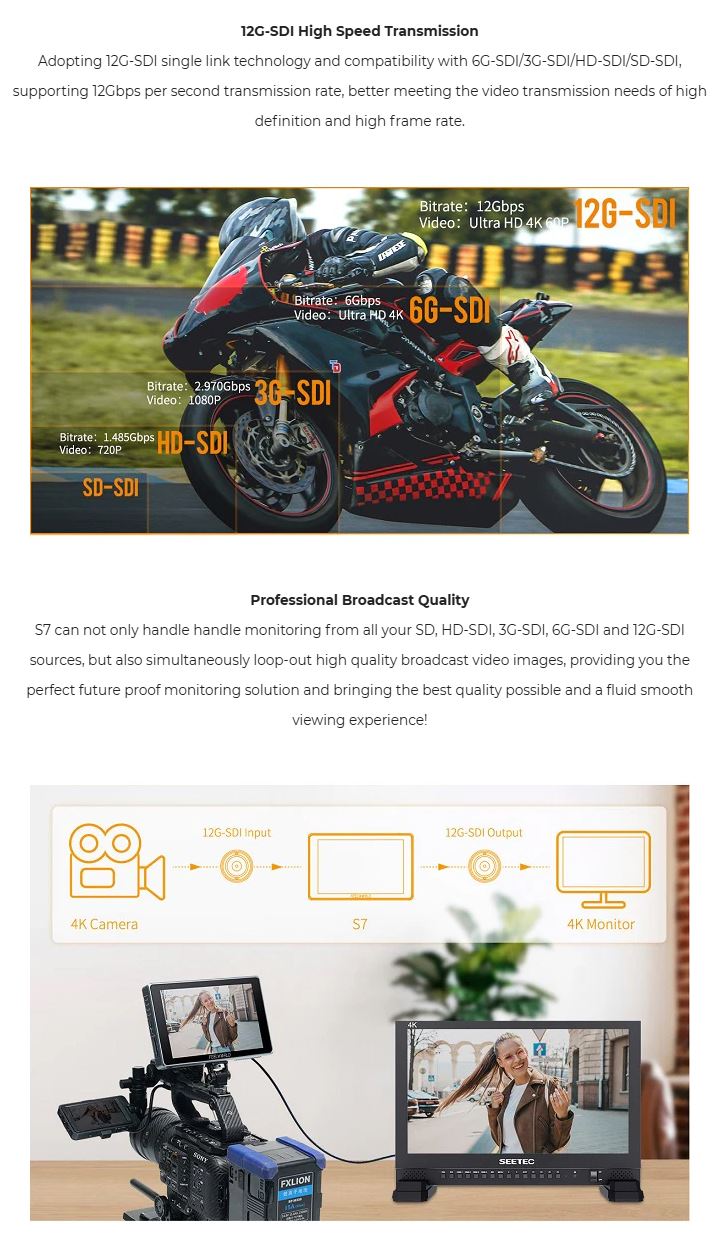

HDMI 2.0 and 12G-SDI Input/Output
-

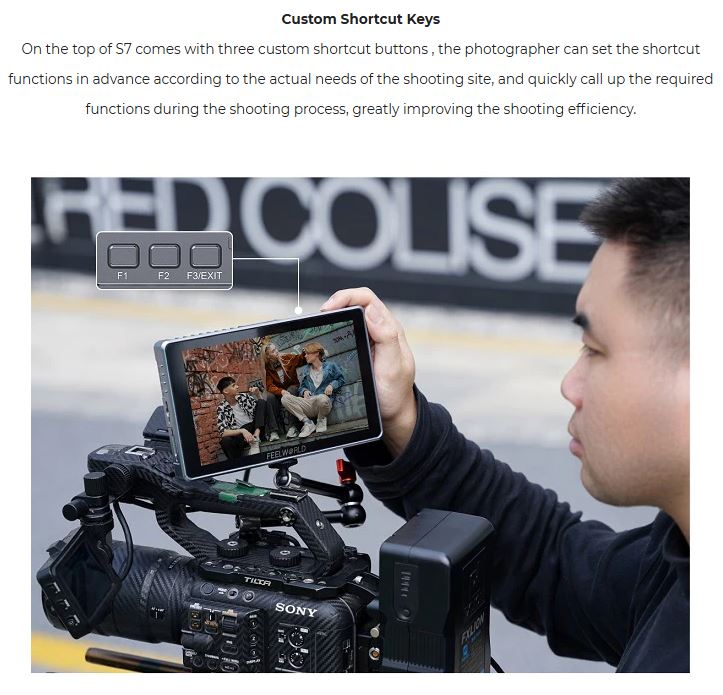

Touch screen menu operation, improve shooting efficiency
-
1600 cd/m² Brightness, Touchscreen
-
Up to DCI 4K I/O, 10-Bit, HDR Support
-
Dual L-Series/NP-F Battery Plate
-

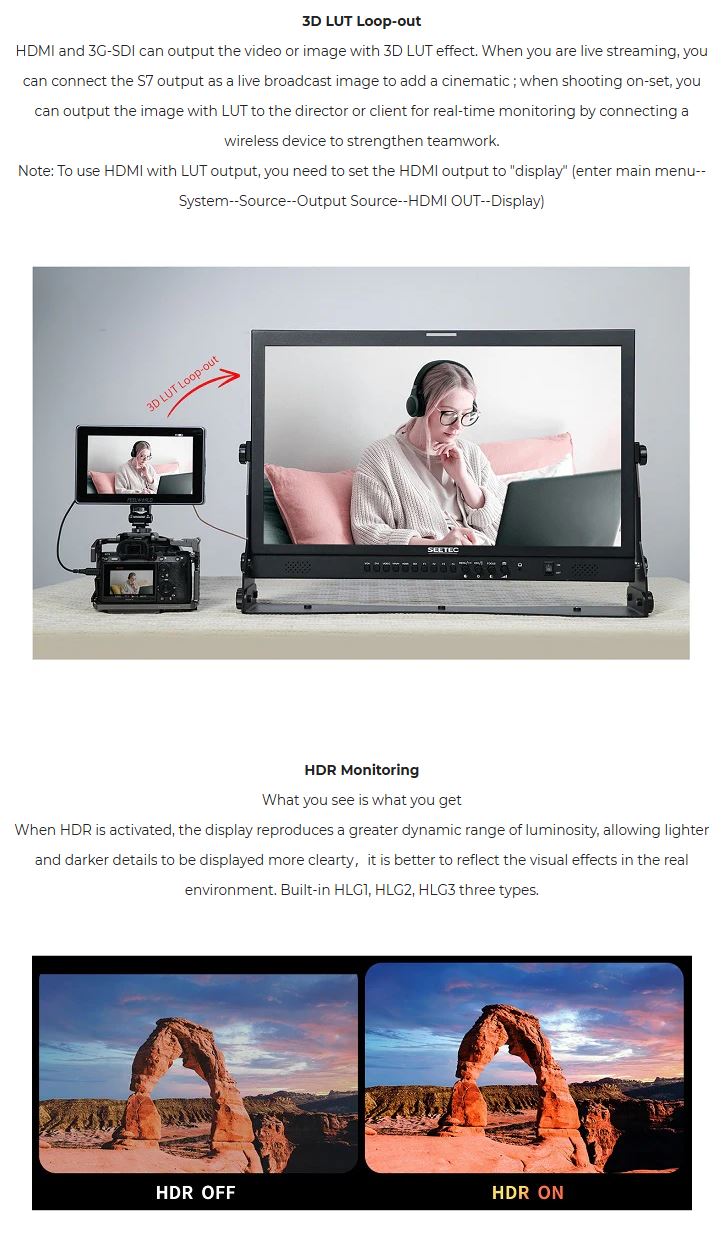

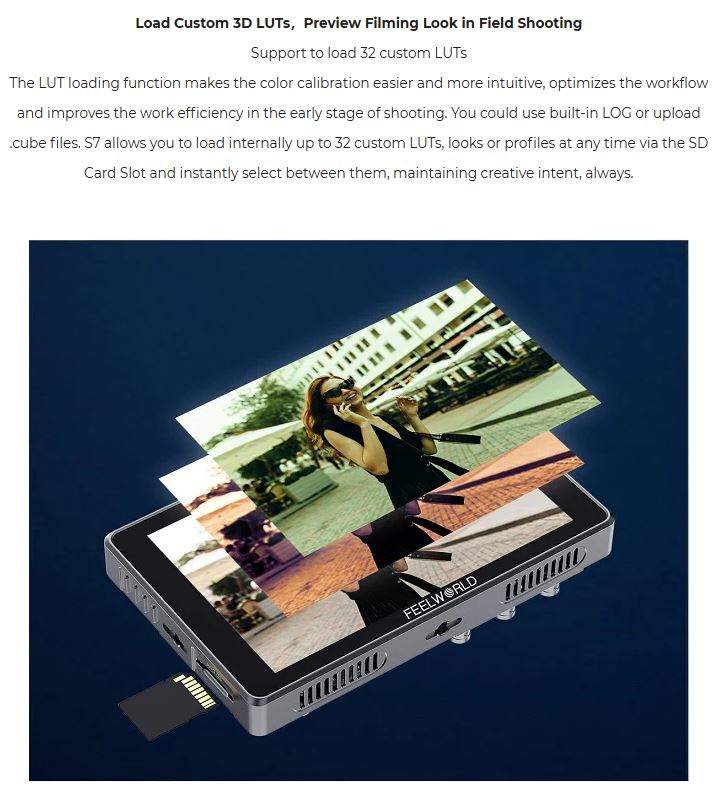

1200:1 Contrast Ratio, 3D LUT Support
-
160° Viewing Angle
-

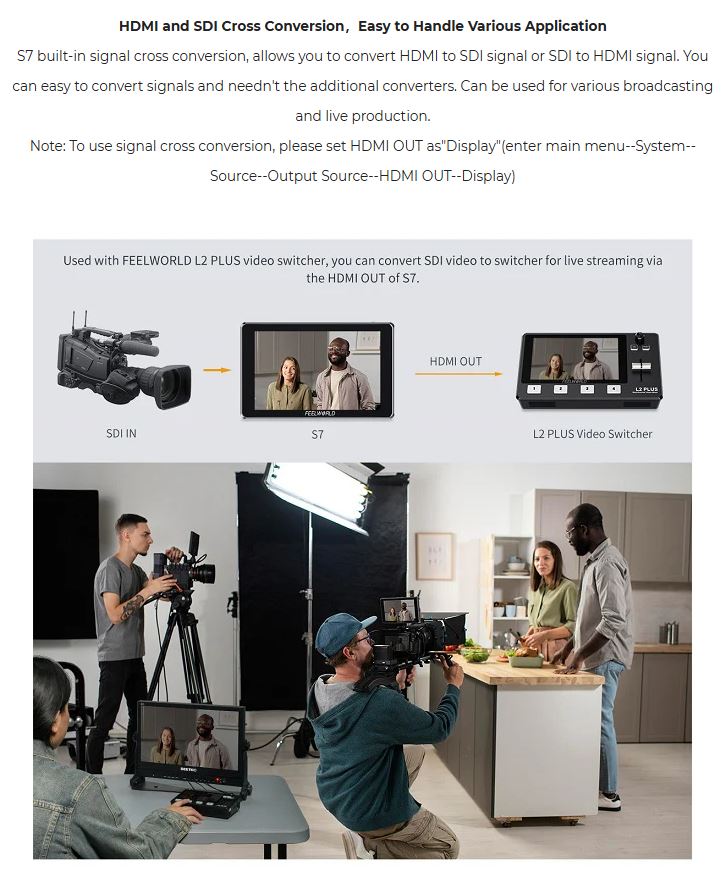

HDMI/SDI Cross Conversion Support

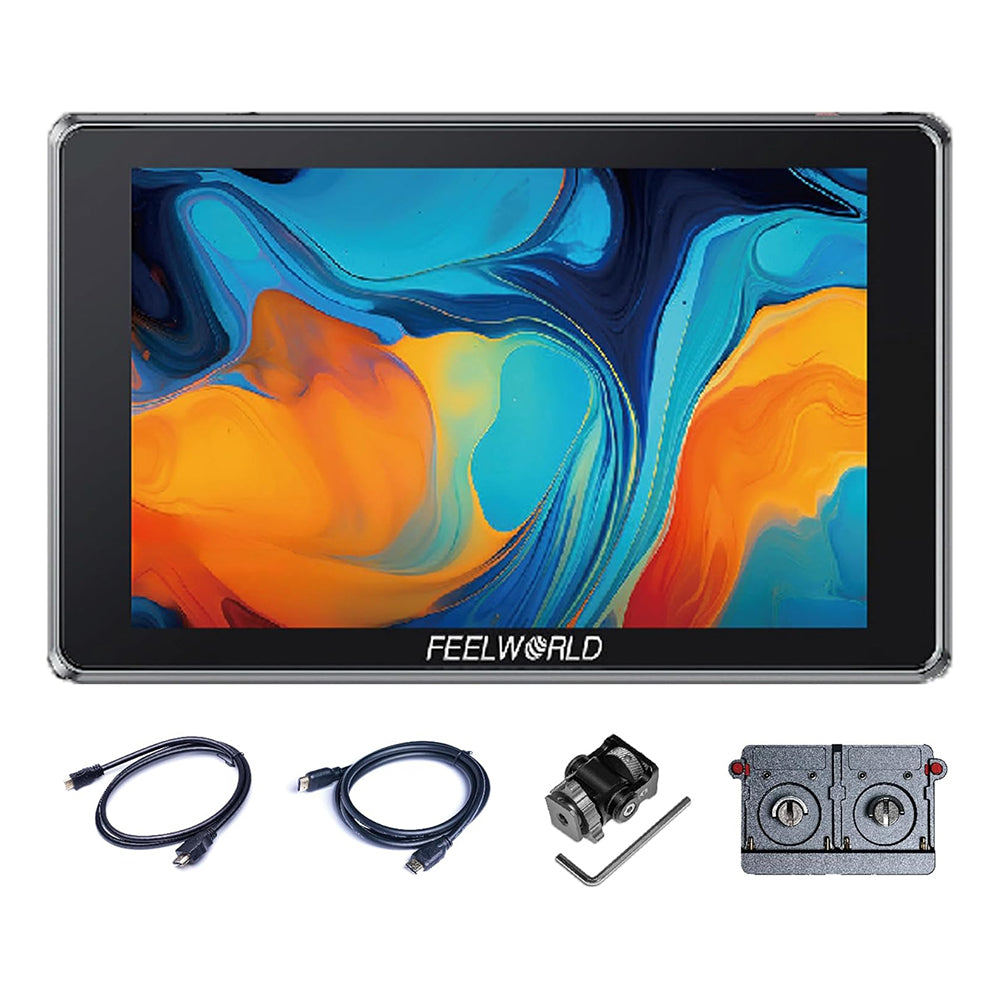

What's in the box:
-
FeelWorld S7 7" 12G-SDI/HDMI 2.0 Camera Field Monitor
-
Mini-HDMI Cable
-
HDMI Cable
-
Tilting Shoe Mount
-
L-Series Dual-Battery Plate
