SKU:FEELWORLD T10

FEELWORLD T10 (10.1") 500nit IPS On-Camera Field Monitor with Touch Screen Control, HDMI In & Out with 4K 60Hz Support, HDR, 3D LUT, Waveform, and NP-F970 Battery Slot and Exterl Install Plate for Camcorders, DSLRs, and Mirrorless

₱15,000.00
₱15,000.00 ₱19,575.00
Sale Sold out
Tax included. Shipping calculated at checkout.
View Product Details

 FEELWORLD T10





The T10 10.1" 12G-SDI/HDMI Touchscreen Monitor from FeelWorld provides both an on-camera or field monitoring solution for your production needs thanks to its 1920 x 1200 native resolution, 1500:1 contrast ratio, 160° viewing angle, 1200 cd/m² high brightness, and integrated video assist functions. The monitor features one HDMI and one 12G-SDI input, as well as one HDMI, one 12G-SDI, and one 3G-SDI output port. The HDMI and 12G-SDI ports support up to 4K video resolutions, and the 3G-SDI port supports up to 1080p video. Upload up to 32 custom 3D LUTs to customize the look of your footage.





A multitude of video assist functions are embedded in the monitor's UI and easily accessed using the touchscreen and onboard buttons.

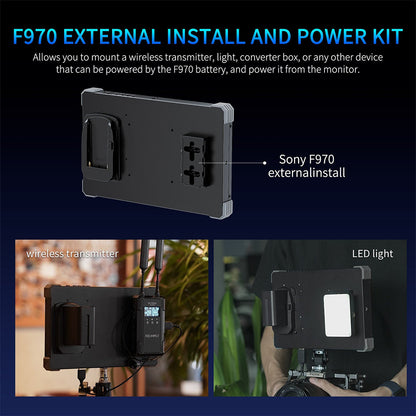

A 16-channel audio meter level allows you to keep track of your audio sources and avoid clipping. The color-calibrated monitor covers 95% of the DCI-P3 color gamut for improved visual monitoring. An integrated tally light helps your talent visually identify when you are recording. Power the monitor using the DC input port or dual NP-F battery plate. Three 1/4"-20 threads can accommodate the included U-shaped bracket for a standalone solution or integrate additional accessories.





Specifications:

Panel Type: IPS-Type LCD

Display Size: 10.1" / 25.7 cm

Native Resolution: 1920 x 1200

Aspect Ratio: 16:10

Viewing Angle:

• Horizontal: 160° (80/80)

• Vertical: 160° (80/80)

Touchscreen: Yes

Maximum Brightness: 1200 nits / cd/m2

Contrast Ratio: 1500:1

HDR Support: Yes, Hybrid Log Gamma

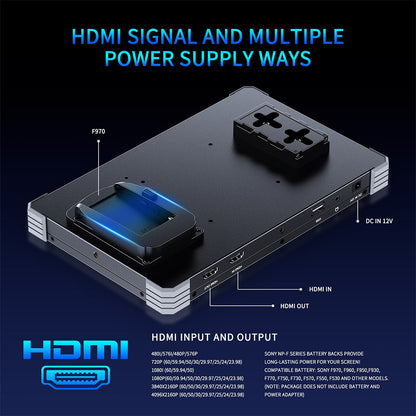

Video I/O:

• 1x BNC (12G-SDI) Input

• 1x BNC (12G-SDI) Output

• 1x BNC (3G-SDI) Output

• 1x HDMI 2.0 Input

• 1x HDMI 2.0 Output

Media/Memory Card Slot: Single Slot: SD (Unspecified Type)

Video Format:

• SDI

• HDMI

Input Power: 7 to 24 VDC

Battery Type: 2x L-Series

Power Consumption: 25 W

Mounting:

• 1x 1/4"-20 Female (Right)

• 1x 1/4"-20 Female (Left)

• 1x 1/4"-20 Female (Bottom)



Features:

  • 10.1" 1920 x 1200 Resolution Display
  • 1200 cd/m² Brightness, 1500:1 Contrast
  • 4K 12G-SDI and HDMI Inputs
  • 12G/3G-SDI and HDMI Outputs
  • 160° Viewing Angle, DCI-P3 Color Gamut
  • Up to 32 Custom 3D LUTs
  • 16-Channel Audio Meter Level
  • Tally Light, Dual NP-F Battery Plate
  • DC Power Input, Three 1/4"-20 Threads
  • U-Shaped Mounting Bracket



What's in the box:

  • FeelWorld S10 10.1" 12G-SDI/HDMI Touchscreen Monitor
  • Mini-HDMI Cable
  • HDMI Cable
  • NP-F Dual Battery Plate
  • U-Shaped Mounting Bracket
