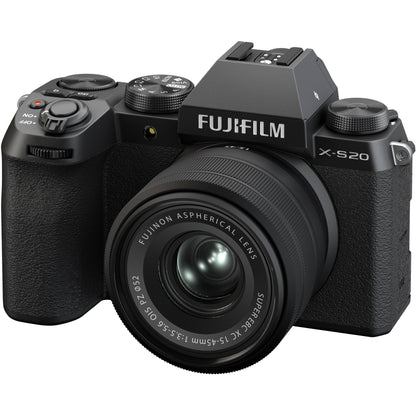

26.1MP APS-C X-Trans BSI CMOS 4 Sensor and X-Processor 5
The X-S20 combines the versatile and proven APS-C-format 26.1MP X-Trans CMOS 4 sensor with the X-Processor 5, allowing the camera to render its smooth tones and colors at a higher speed for a longer time. The improved low-light performance, and a wide native sensitivity range of ISO 160-12800, are further improved by the in-body image stabilization. As an X-Trans sensor, it utilizes a randomized pixel array, too, which provides a high degree of image quality and sharpness due to the omission of an optical low-pass filter. Versus conventional pixel patterns, the X-Trans design more closely mimics the organic nature of film in order to produce nuanced colors and tonal transitions, while also reducing moiré and aliasing. The continuous shooting's faster performance tops out at 30 fps with the electronic shutter and a 1.25x crop and full-resolution 8 fps shooting rate with the mechanical shutter.
6K, 4K, and Full HD Video Recording

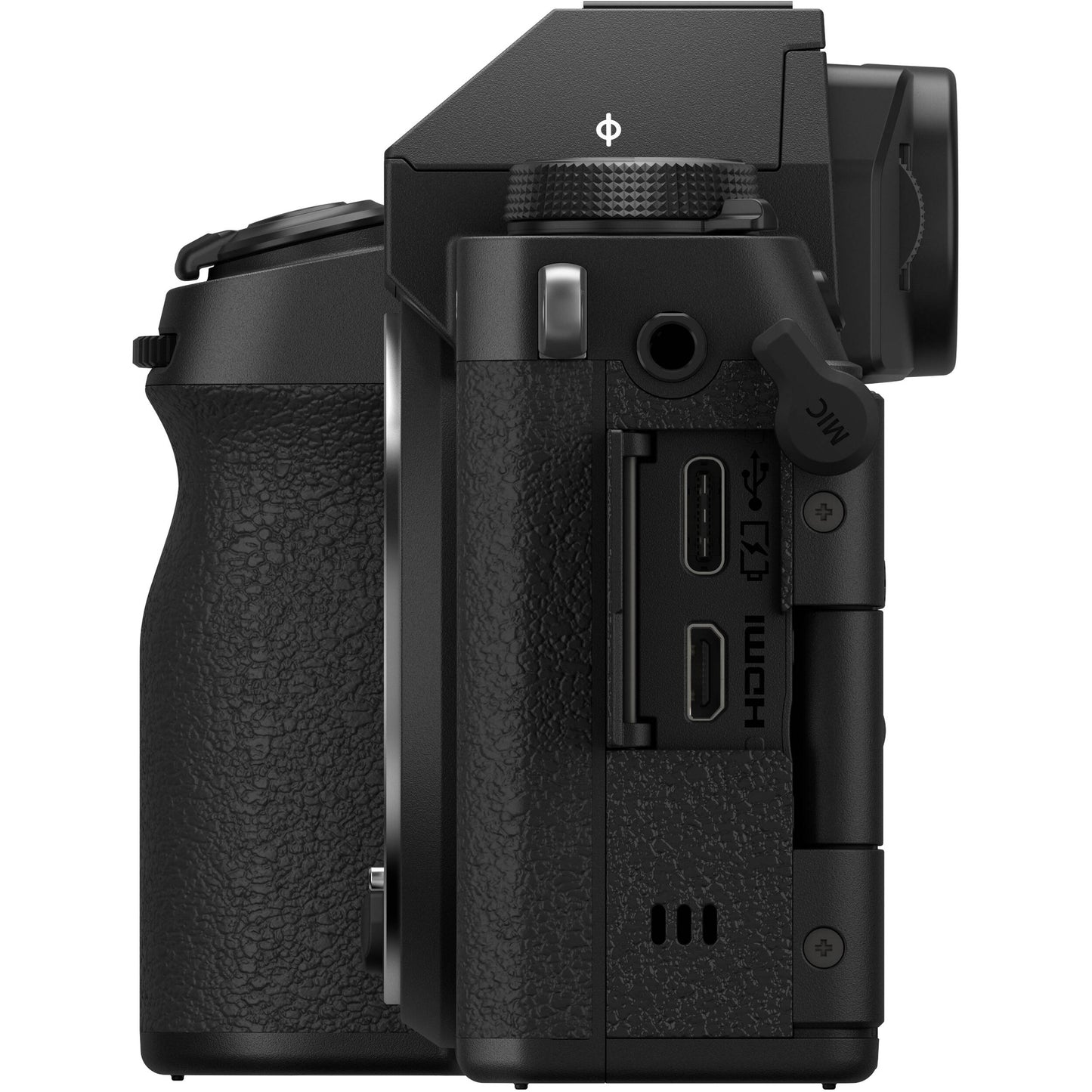

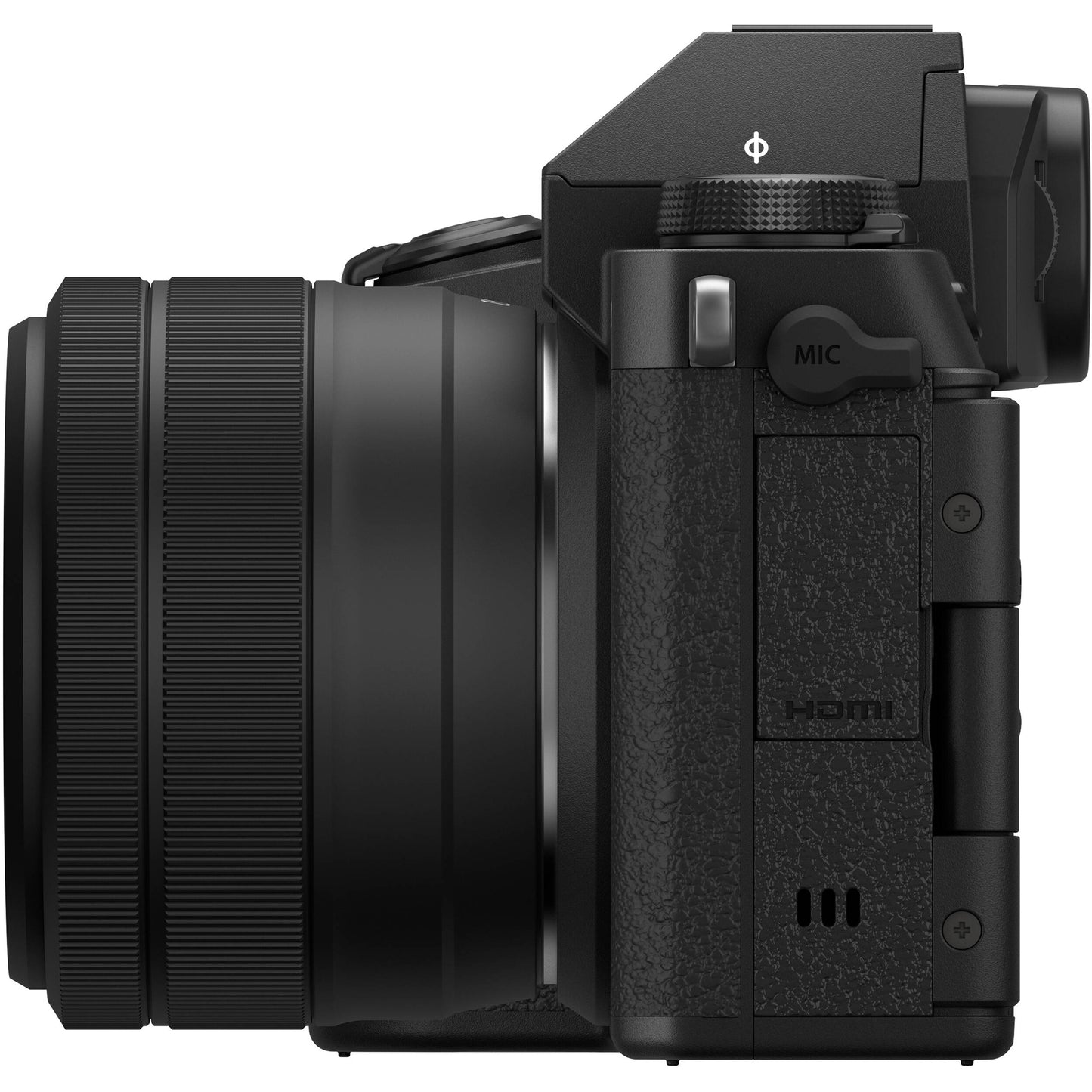

The X-S20 also offers a versatile array of video capabilities, including internal 6K recording at up to 30 fps and Full HD recording up to 240 fps for ultra slow-motion playback. Greatly benefitting overall video performance, the speed of the X-Processor 5 enables fast read speeds when recording video and helps to reduce rolling shutter distortion when filming moving subjects. Also, a micro-HDMI port enables 12-bit 4:2:2 recording to an optional external recorder for improved quality and the camera features a 3.5mm microphone jack for more advanced audio recording and another 3.5mm headphone jack for audio monitoring.
User-Friendly Video Modes
The X-S20 offers a range of shooting modes tailored to different needs. The new Vlog mode, etched into the camera's mode dial, allows for easy adjustment of camera settings using the touchscreen while recording videos. In Product Priority mode, the focus naturally transitions from your face to the subject in front of you, making it ideal for product videos or unboxing content. Additionally, the Background Defocus mode allows you to effortlessly blur out the background, achieving that cinematic look with a simple touch.
Improved Autofocus
Powered by the X-Processor 5 and Deep-Learning AI Technology, its subject-detection AF tracks and detects human faces and eyes, along with a wide range of subjects, from animals and birds to cars, motorcycles, and even drones. The X-S20 also incorporates an improved auto-focus prediction algorithm, ensuring stable focusing even when capturing continuously moving subjects. This improvement is particularly noticeable in Zone AF and low-contrast situations, and to ensure you never miss a crucial moment, the camera's AUTO mode combines the autofocus with subject detection to keep everything sharp. This allows photographers to focus on composition and creativity, confident that the X-S20 will deliver precise focus every time.
Body Design

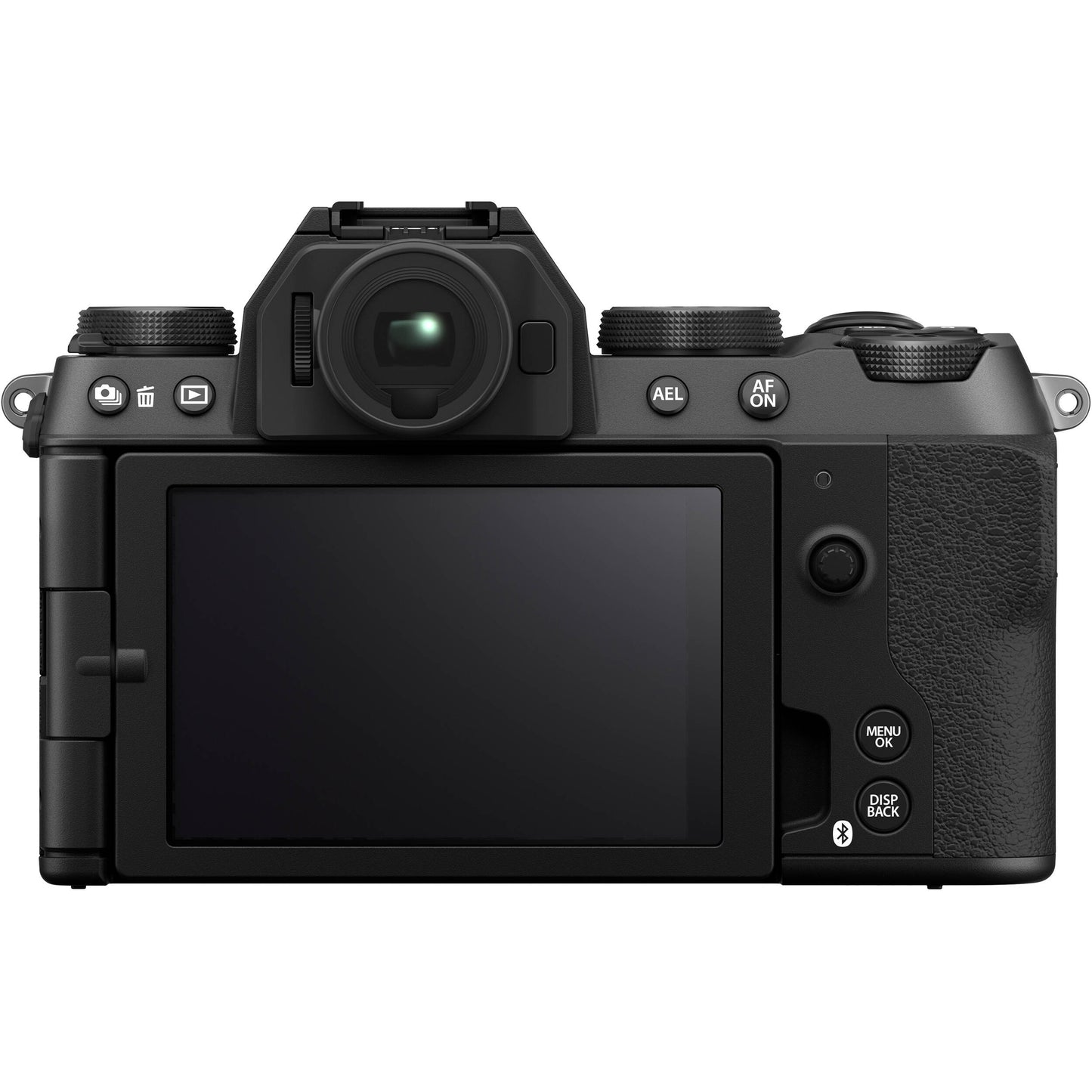

High-resolution 2.36m-dot OLED electronic viewfinder has a 0.62x magnification for bright and clear eye-level viewing.

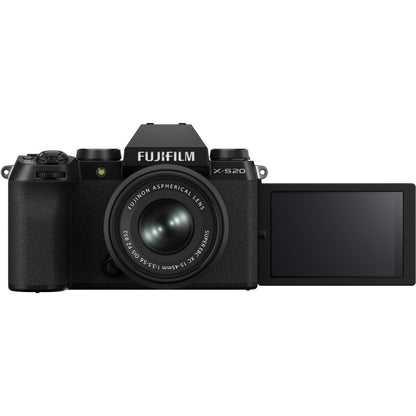

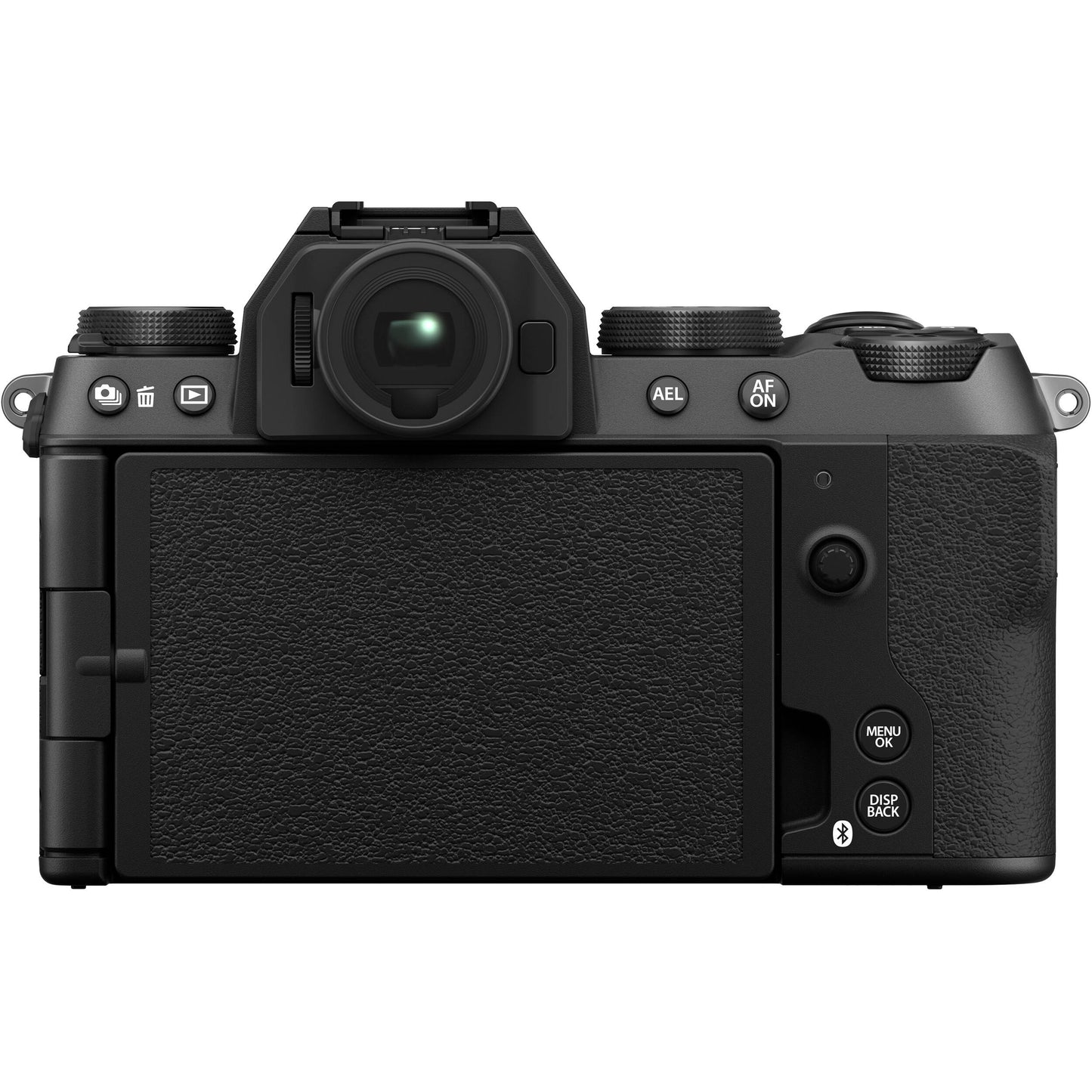

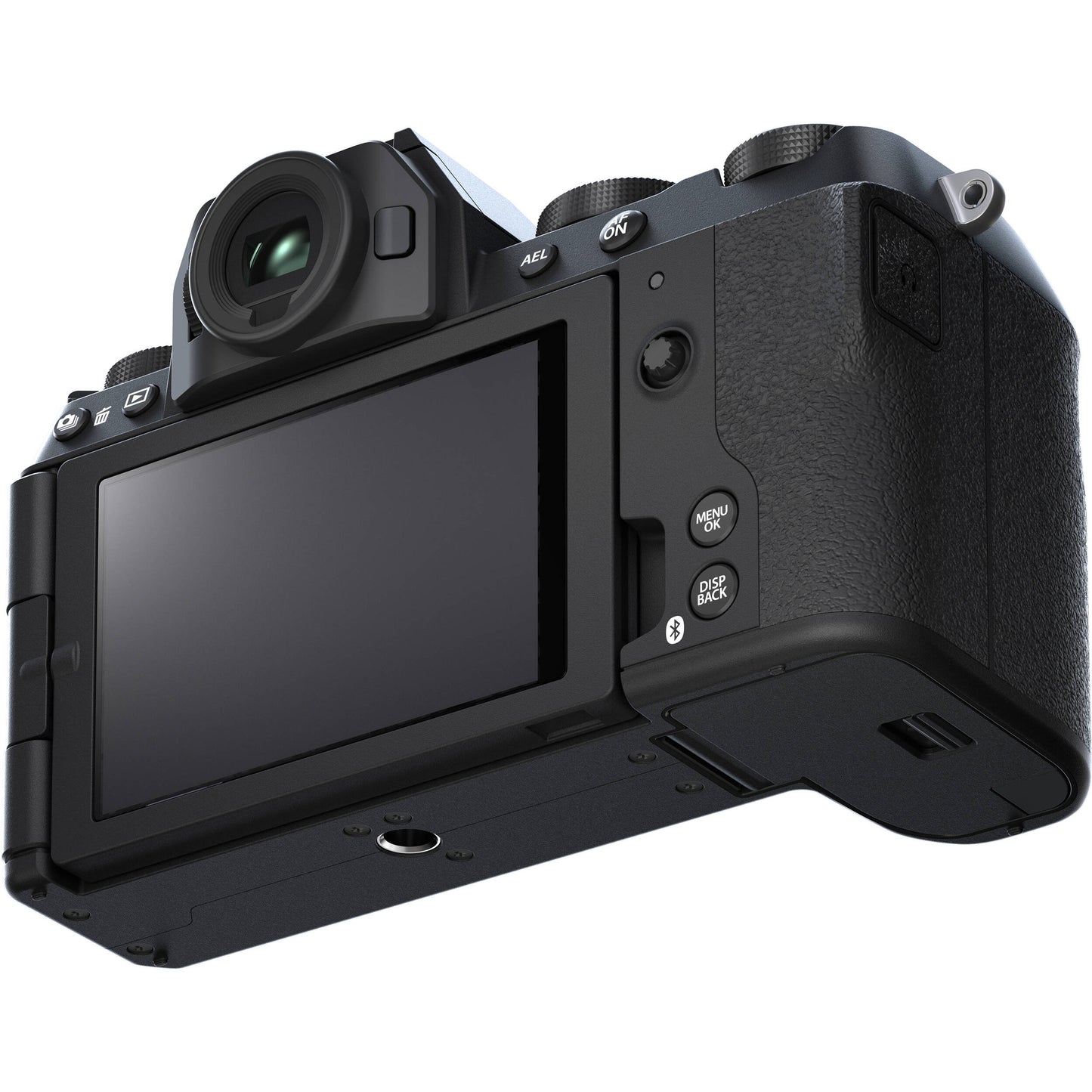

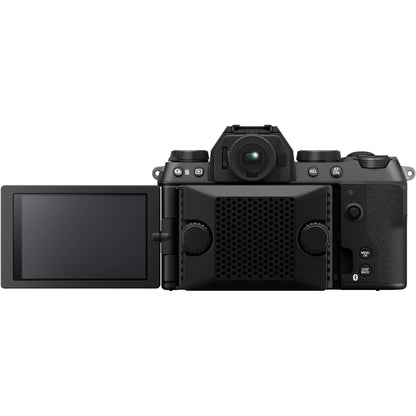

Vari-angle 3.0" 1.84m-dot LCD has a touchscreen design for intuitive operation and playback, and the articulating design greatly benefits working from high and low shooting angles. This vari-angle design also means you can close the screen against the camera body, hiding it from view for distraction-free shooting.

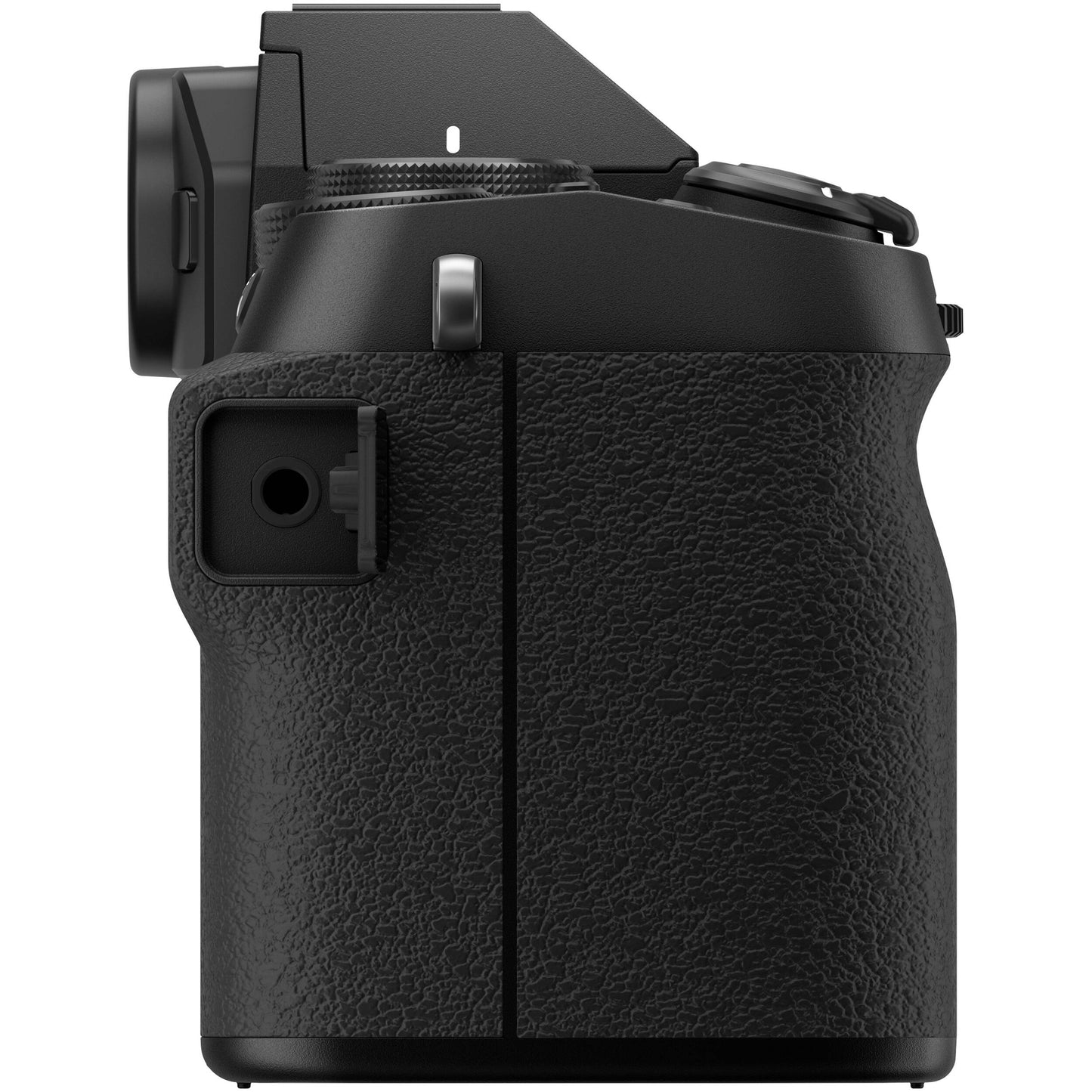

Despite the compact design, a large righthand grip enables solid and stable handling for comfortable all-day use.

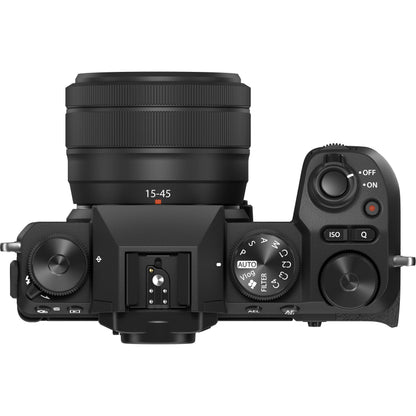

The top plate incorporates a series of physical controls, including a dedicated exposure mode dial and two additional top dials, for fast, intuitive control over camera and exposure settings.
Rear joystick is available for intuitive selecting and switching of AF points as well as menu navigation and image playback.
Integrated Bluetooth and Wi-Fi connectivity allows for wirelessly sharing images to a mobile device using the FUJIFILM XAPP or to use the device to remotely control the camera.
Single SD memory card slot supports up to the UHS-I standard for fast and flexible file storage.

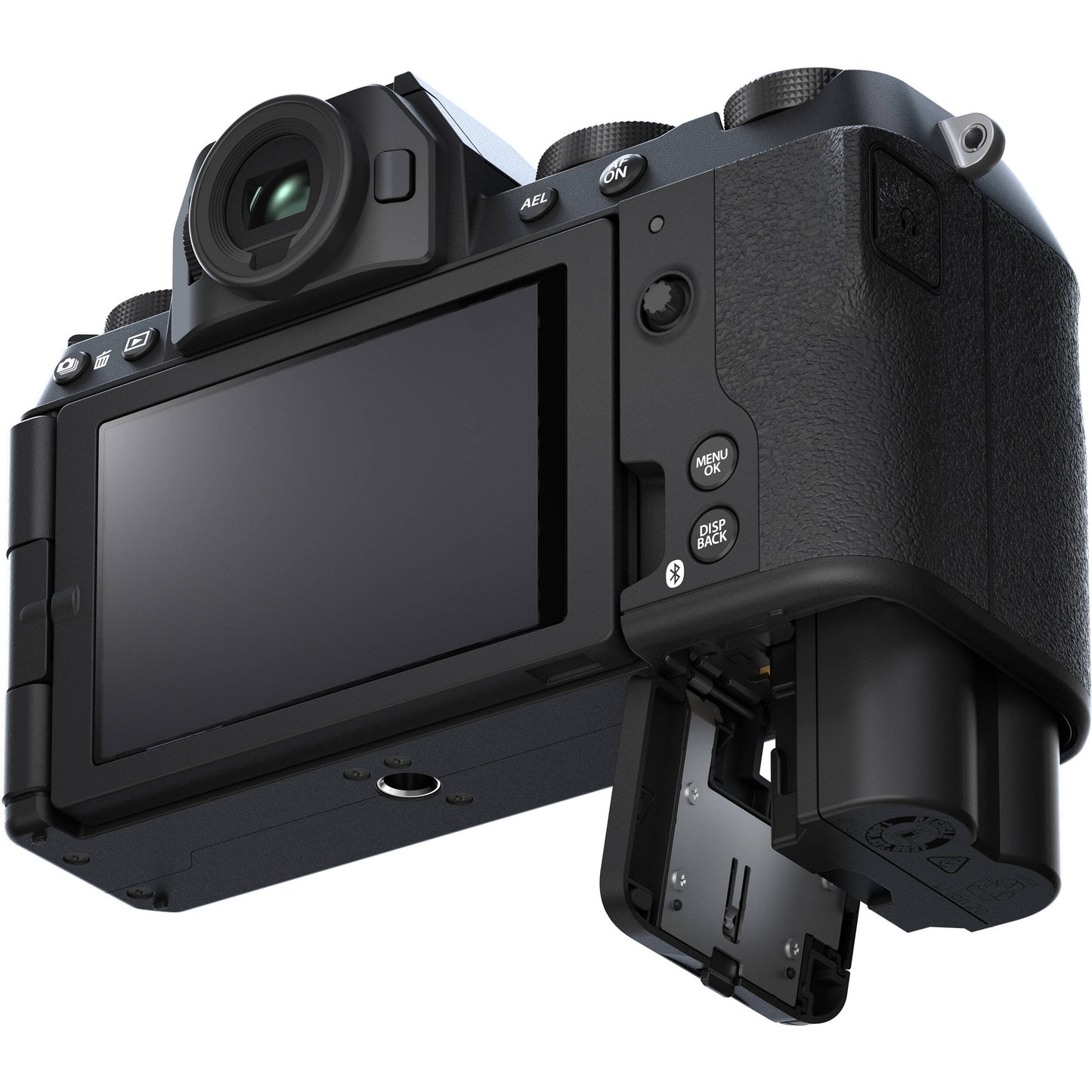

Included NP-W126S battery provides approximately 750 frames per charge.
Film Simulation Modes
Taking advantage of FUJIFILM's vast history in traditional film-based photography, the X-S20 integrates several Film Simulation modes, which mimic the look and feel of some of FUJIFILM's classic film types:
-
Provia: The standard contrast and normal saturation color transparency film
-
Velvia: High contrast, high color saturation, and vivid color transparency film
-
Astia: Subdued contrast and color saturation with a look that is ideal for portraits
-
Classic Chrome: Delivers muted tones and deep color reproduction, similar to a dated slide film
-
Classic Neg: Muted contrast but vibrant colors with a vintage filmic feel
-
PRO Neg: Available with both Hi and Std. contrast options, this mimics the punchy-but-natural feeling of their professional-grade color negative film
-
Eterna: For a cinematic look, this provides a flat color, low saturation look well-suited to post-production color grading
-
Eterna Bleach Bypass: Refines the standard Eterna look with a higher key, higher contrast feeling while maintaining the overall desaturated look
-
Acros: Based on the popular B&W film, this monochrome mode has a distinct tonality and graininess and can be used along with Yellow, Red, and Green contrast filter effects
-
B&W: Straightforward and classic black and white effect with Yellow, Red, and Green contrast filter options
-
Sepia: Everyone's favorite old-timey look mimicking the popular alternative process
In addition to simulating specific film types, a Grain Effect mode is also available to replicate the look of old film photos with an organic textured appearance, which is especially noticeable when printing. Color Chrome and Color Chrome Blue effects are also available to deepen color, tonal response, and gradation with higher saturation colors.
Product Specifications
Imaging
Lens Mount |
FUJIFILM X |
Sensor Resolution |
Effective: 26.1 Megapixel |
Image Sensor |
23.5 x 15.6 mm (APS-C) CMOS |
Image Stabilization |
Sensor-Shift, 5-Axis |
Built-In ND Filter |
None |
Capture Type |
Stills & Video |
Exposure Control
Shutter Type |
Electronic Shutter, Mechanical Focal Plane Shutter |
Shutter Speed |
Mechanical Shutter 1/4000 to 900 Seconds in Manual Mode 1/4000 to 900 Seconds in Shutter Priority Mode 1/4000 to 30 Seconds in Program Mode 1/4000 to 30 Seconds in Aperture Priority Mode 0 to 60 Minutes in Bulb Mode Electronic Shutter 1/32000 to 900 Seconds in Manual Mode 1/32000 to 900 Seconds in Shutter Priority Mode 1/32000 to 30 Seconds in Program Mode 1/32000 to 30 Seconds in Aperture Priority Mode Fixed 1 Second in Bulb Mode |
Bulb/Time Mode |
None |
ISO Sensitivity |
Photo 160 to 12,800 in Manual, Auto Mode (Extended: 80 to 51,200) Video 125 to 12,800 in Manual, Auto Mode (Extended: 25,600) |
Metering Method |
Average, Center-Weighted Average, Multi, Spot, TTL 256-Zones |
Exposure Modes |
Aperture Priority, Manual, Program, Shutter Priority |
Exposure Compensation |
-5 to +5 EV (1/3 EV Steps) |
White Balance |
2500 to 10,000K Presets: Auto, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater |
Continuous Shooting |
Electronic Shutter Up to 20 fps at 26.1 MP for up to 256 Frames (JPEG) / 28 Frames (Raw) Electronic Shutter Up to 10 fps at 26.1 MP for up to 341 Frames (JPEG) / 32 Frames (Raw) Electronic Shutter Up to 8 fps at 26.1 MP for up to 35 Frames (Raw) Electronic Shutter Up to 30 fps at 20.9 MP for up to 407 Frames (JPEG) / 28 Frames (Raw) Electronic Shutter Up to 20 fps at 20.9 MP for Unlimited Frames (JPEG) / 30 Frames (Raw) Electronic Shutter Up to 10 fps at 20.9 MP for Unlimited Frames (JPEG) / 40 Frames (Raw) Mechanical Shutter Up to 8 fps at 26.1 MP for Unlimited Frames (JPEG) / 35 Frames (Raw) |
Interval Recording |
Yes |
Self-Timer |
2/3/5/10-Second Delay |
Still Image Capture
Image Sizes |
3:2 6240 x 4160 4416 x 2944 3120 x 2080 16:9 6240 x 3512 4416 x 2488 3120 x 1760 1:1 4160 x 4160 2944 x 2944 2080 x 2080 |
Aspect Ratio |
1:1, 3:2, 16:9 |
Image File Format |
HEIF, JPEG, Raw, TIFF |
Bit Depth |
16-Bit |
Video Capture
Internal Recording Modes |
H.264 ALL-Intra/H.264 Long GOP/H.265/H.265 Long GOP/MOV/MP4/MPEG-4 AVC 4:2:2/4:2:0 8/10-Bit 6240 x 4160 at 23.98/24.00/25/29.97 fps [50 to 360 Mb/s] DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [50 to 360 Mb/s] 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps [50 to 360 Mb/s] 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps [360 Mb/s] |
External Recording Modes |
Raw/ProResRAW 12-Bit via HDMI 6240 x 4160 up to 29.97 fps |
Fast-/Slow-Motion Support |
Yes |
Recording Limit |
None |
IP Streaming |
Yes |
Built-In Microphone Type |
Stereo |
Audio Recording |
MOV: 2-Channel 24-Bit 48 kHz LPCM Audio MP4: AAC Audio |
Interface
Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC (UHS-I) [2 TB Maximum] |
Video I/O |
1 x Micro-HDMI Output |
Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
Other I/O |
1 x USB-C Control/Monitor/Tether |
Wireless |
2.4 GHz Wi-Fi (802.11a/b/g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Mobile App Compatible |
Yes: Android & iOS App Name: FUJIFILM XApp Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed |
Global Positioning (GPS, GLONASS, etc.) |
None |
Monitor
Size |
3" |
Resolution |
3 x 2 (1,840,000 Dot) |
Display Type |
180° Tilting LCD |
Viewfinder
Type |
Built-In Electronic (OLED) |
Size |
0.39" |
Resolution |
2,360,000 Dot |
Eye Point |
17.5 mm |
Coverage |
100% |
Magnification |
Approx. 0.62x |
Diopter Adjustment |
-4 to +2 |
Focus
Focus Type |
Auto and Manual Focus |
Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF |
Autofocus Points |
Contrast Detection, Phase Detection: 117 |
Flash
Built-In Flash |
Yes |
Guide Number |
16.4' / 5 m at ISO 100 |
Maximum Sync Speed |
1/180 Second |
External Flash Connection |
Hot Shoe, Proprietary |
Environmental
Operating Temperature |
32 to 104°F / 0 to 40°C |
Operating Humidity |
10 to 80% (Non-Condensing) |
General
Battery Type |
1 x NP-W235 Rechargeable Lithium-Ion |

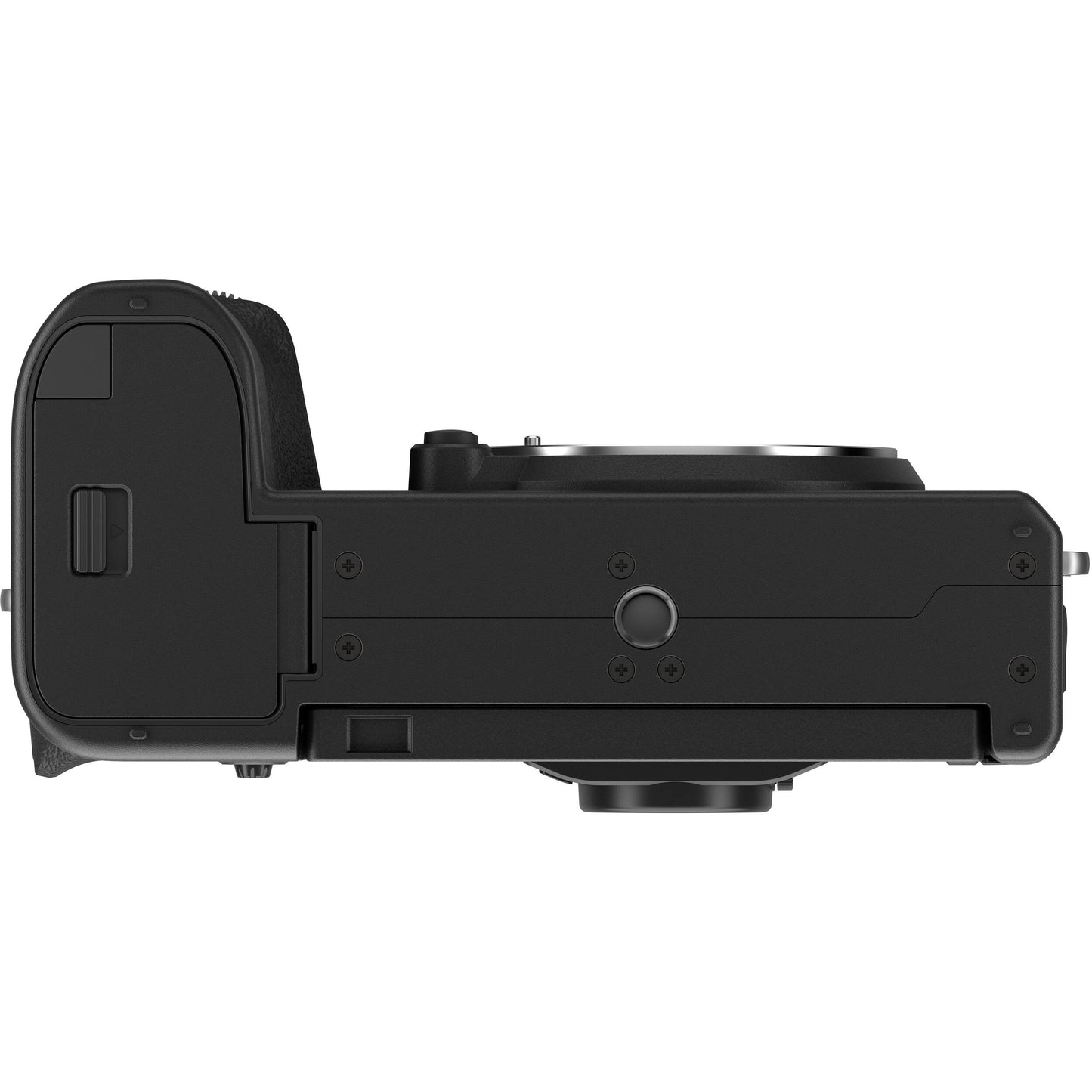

Tripod Mounting Thread |
1/4" |
Dimensions (W x H x D) |
5 x 3.4 x 2.6" / 127.7 x 85.1 x 65.4 mm |
Weight |
1.1 lb / 491 g (With Battery, Recording Media) 0.9 lb / 410 g (Body Only) |

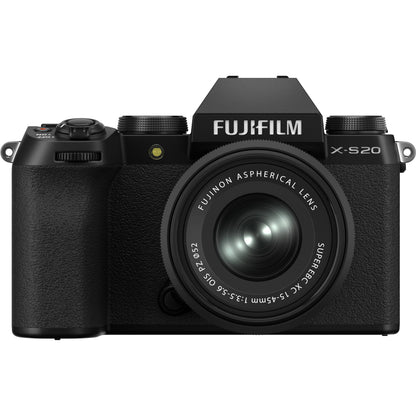

FUJIFILM XC 15-45mm f/3.5-5.6 OIS PZ Lens (Black) Specs
Focal Length |
15 to 45mm (35mm Equivalent Focal Length: 23 to 69mm) |
Maximum Aperture |
f/3.5 to 5.6 |
Minimum Aperture |
f/22 |
Lens Mount |
FUJIFILM X |
Lens Format Coverage |
APS-C |
Angle of View |
86.9° to 35° |
Minimum Focus Distance |
5.12" / 13 cm |
Maximum Magnification |
0.24x |
Optical Design |
10 Elements in 9 Groups |
Diaphragm Blades |
7, Rounded |
Focus Type |
Autofocus |
Image Stabilization |
Yes |
Filter Size |
52 mm (Front) |
Dimensions (ø x L) |
2.46 x 1.74" / 62.6 x 44.2 mm |
Weight |
4.76 oz / 135 g |

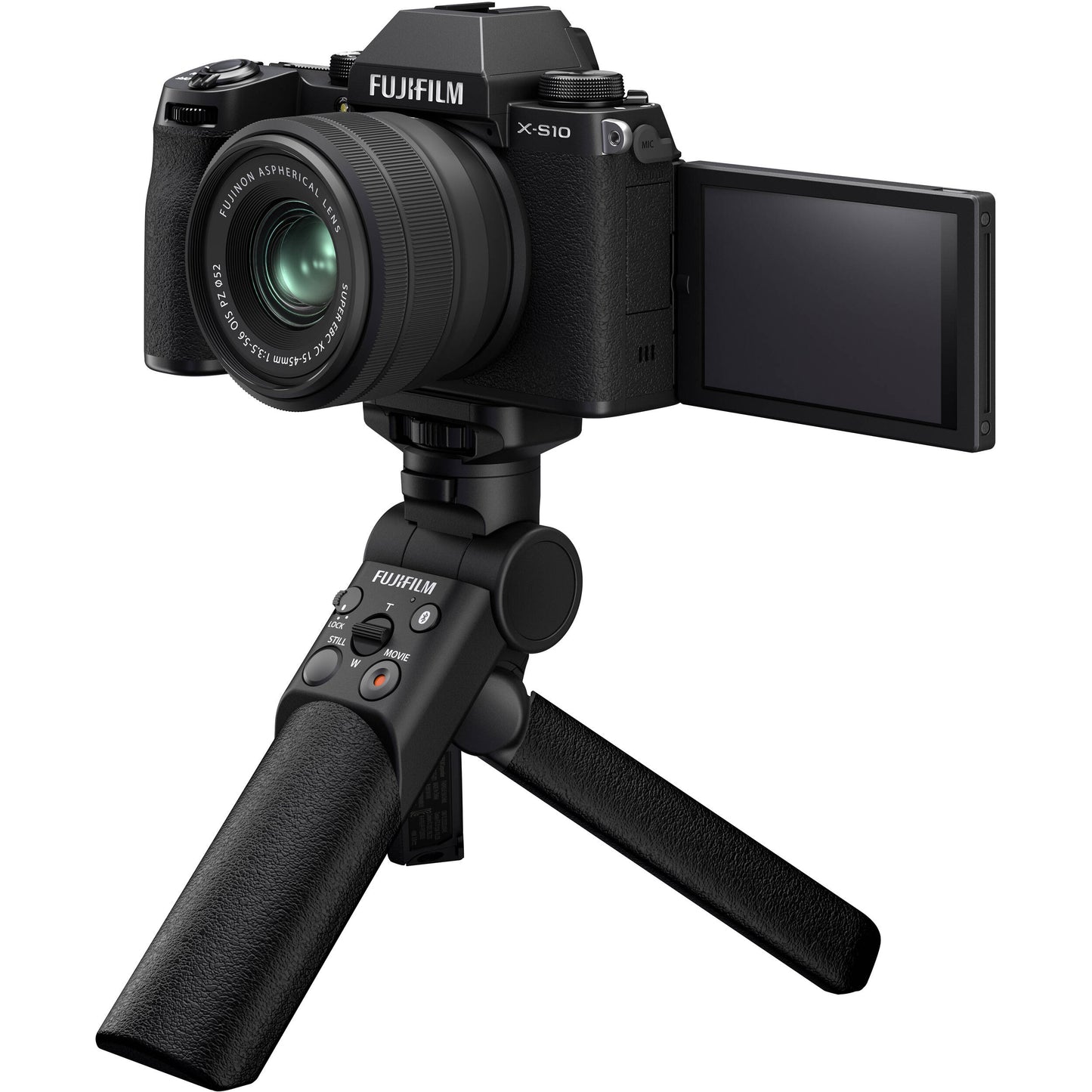

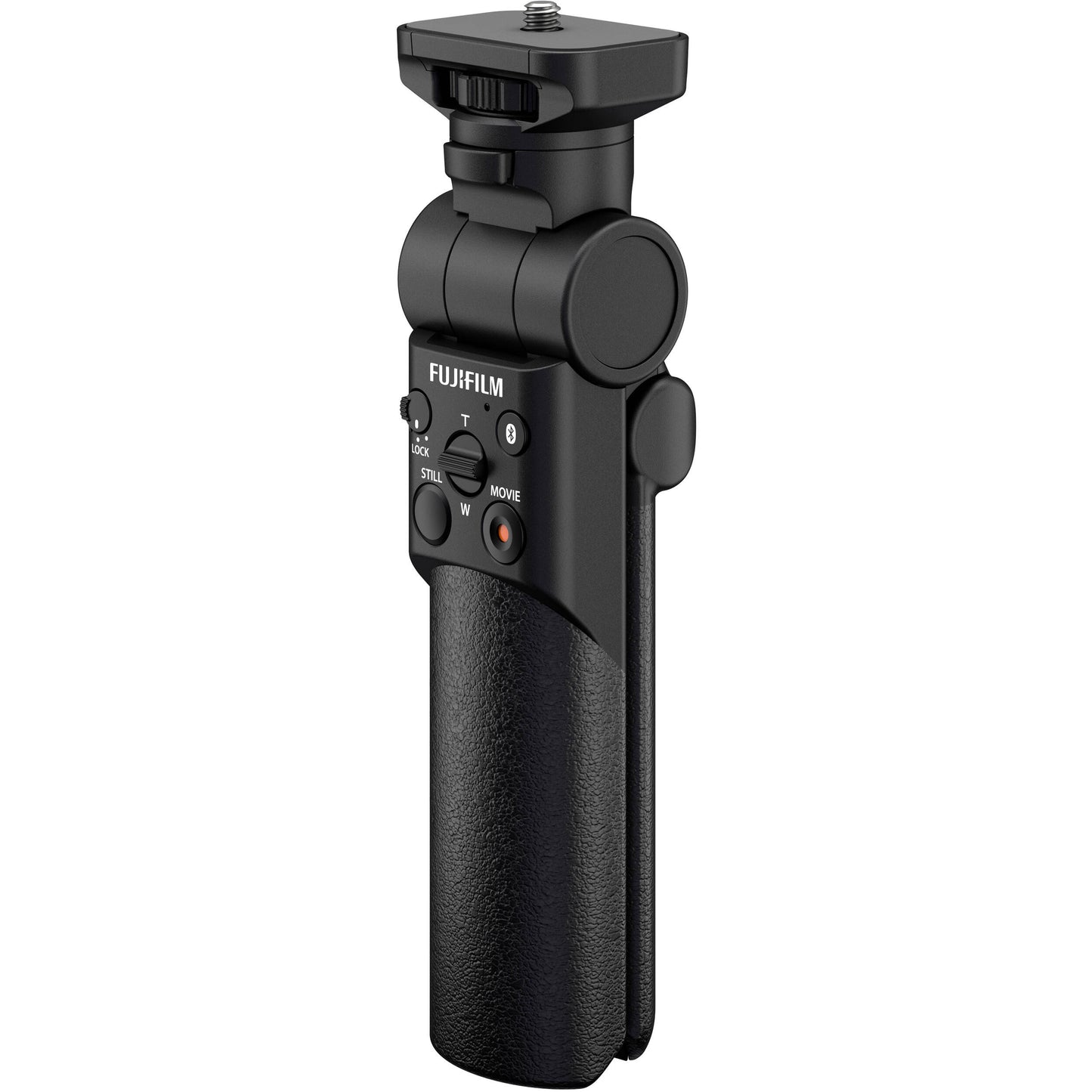

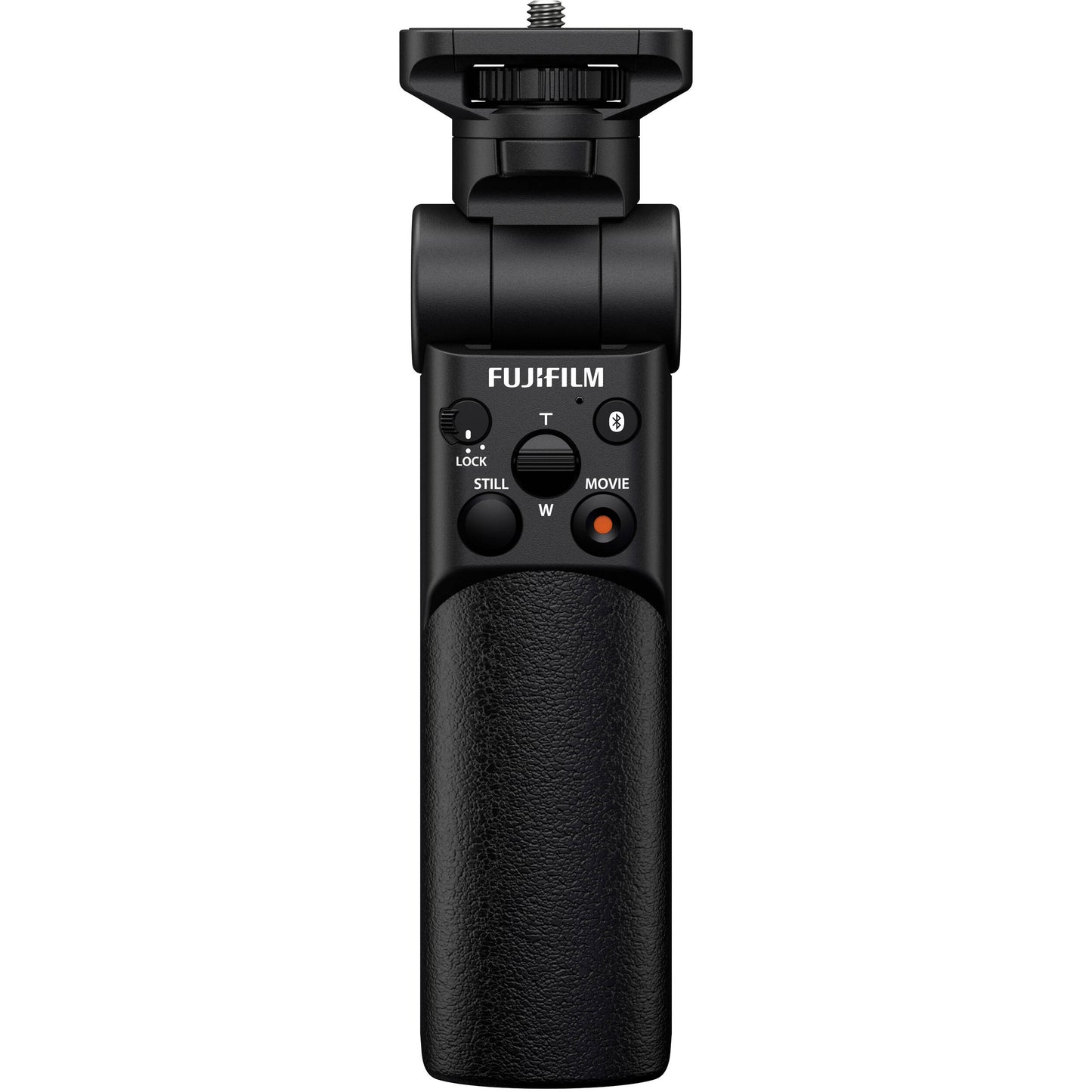

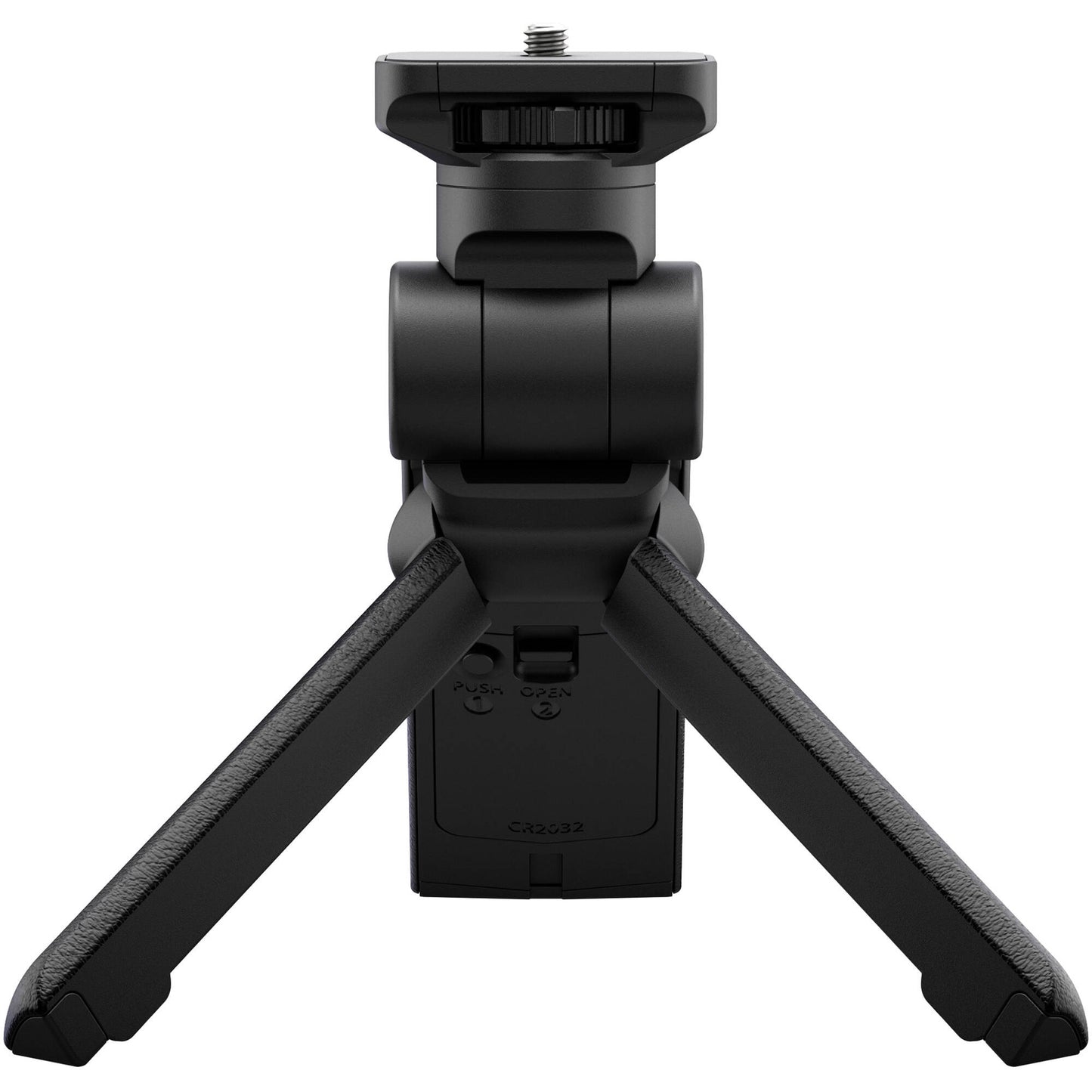

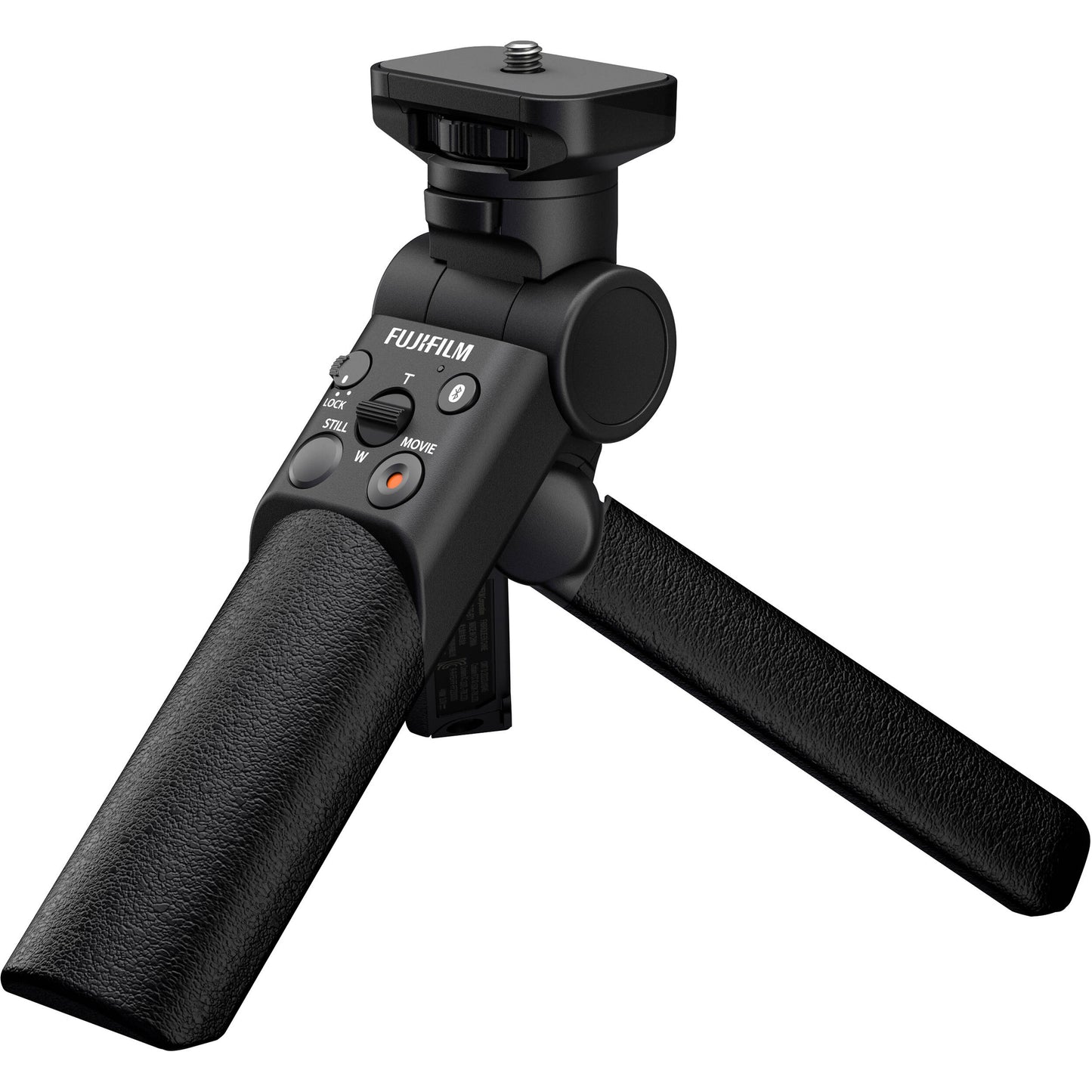

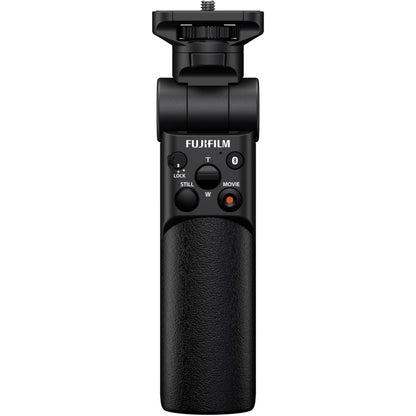

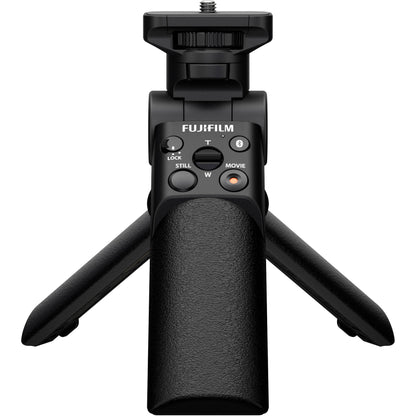

FUJIFILM TG-BT1 Specs
Accessory Mount |
None |
Camera Attachment |
1/4"-20 Male |
Arca-Type |
No |
