Features:
Motorized Diffusion Control: Transform between hard shadows and soft diffusion instantly via electronic adjustment.
Dual Modes (Level & Light Reduction): Use "Level Mode" for intuitive 0–100% diffusion control, or "Light Reduction Mode" for precise EV adjustments (–0.1 to –2.0 EV).
Flicker-Free Operation: Supports five frequency levels to adapt to frame rates (up to 300 fps) and prevent flicker in video shoots.
Multiple Control Methods: Operable via onboard controller, Bluetooth app, or DMX (with CRMX in K2 kits).
Flexible Power Options: Can be powered by USB-C, NP-F, or V-Mount batteries for up to ~20 hours from a 100Wh cell.

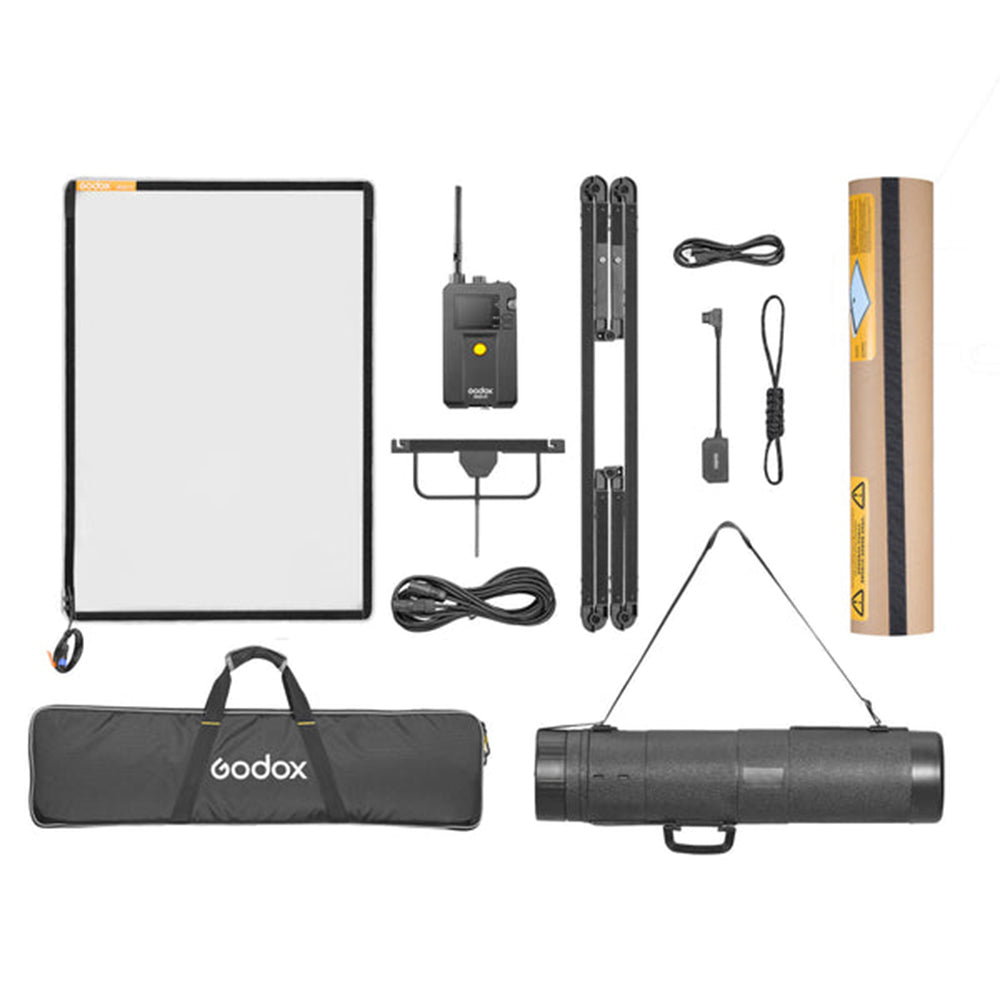

What's in the box:

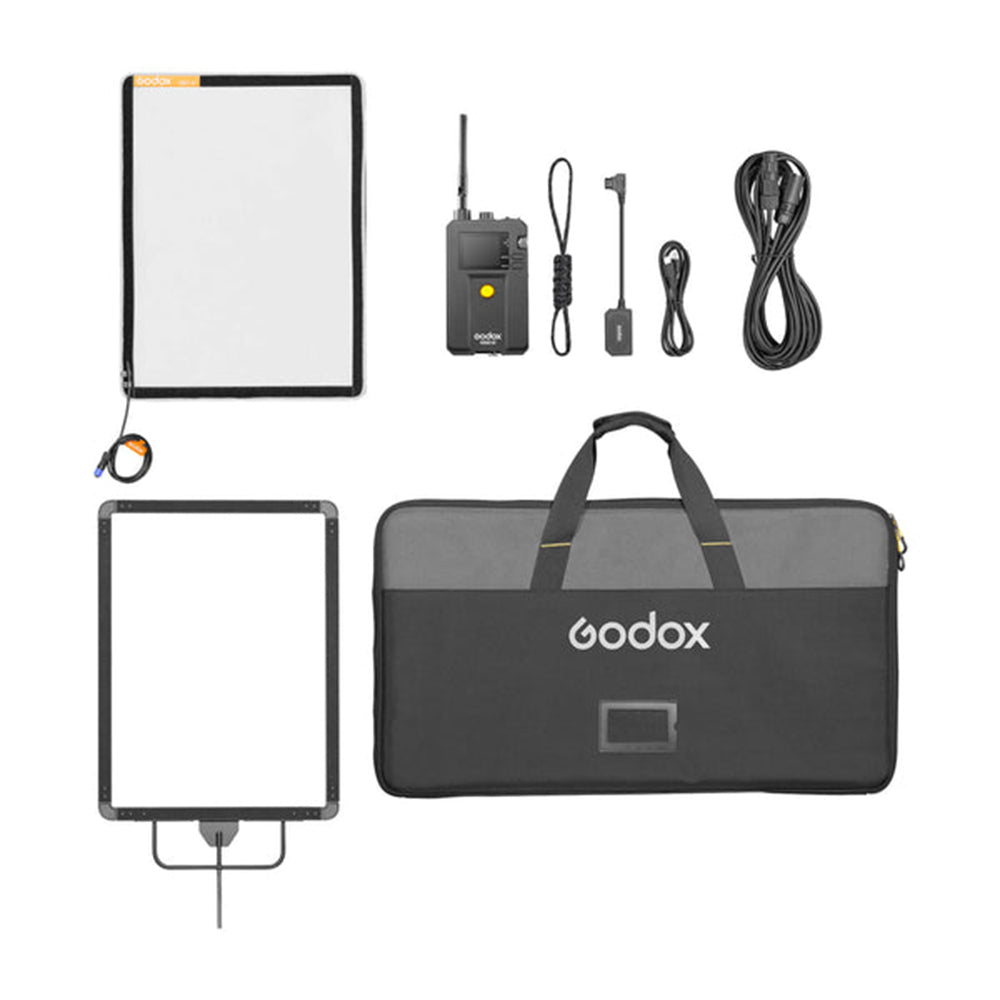

AD21 K2
1x Adjustable Diffusion
1x Bracket
1x Controller
1x AC Signal Control Cable
1x USB-C Data Cable
1x D-TAP to USB-C Adapter Cable
1x Storage Bag
AD32 K2
1x Adjustable Diffusion
1x Bracket
1x Controller
1x AC Signal Control Cable
1x USB-C Data Cable
1x D-TAP to USB-C Adapter Cable
1x Reel
1x Tube
1x Storage Bag

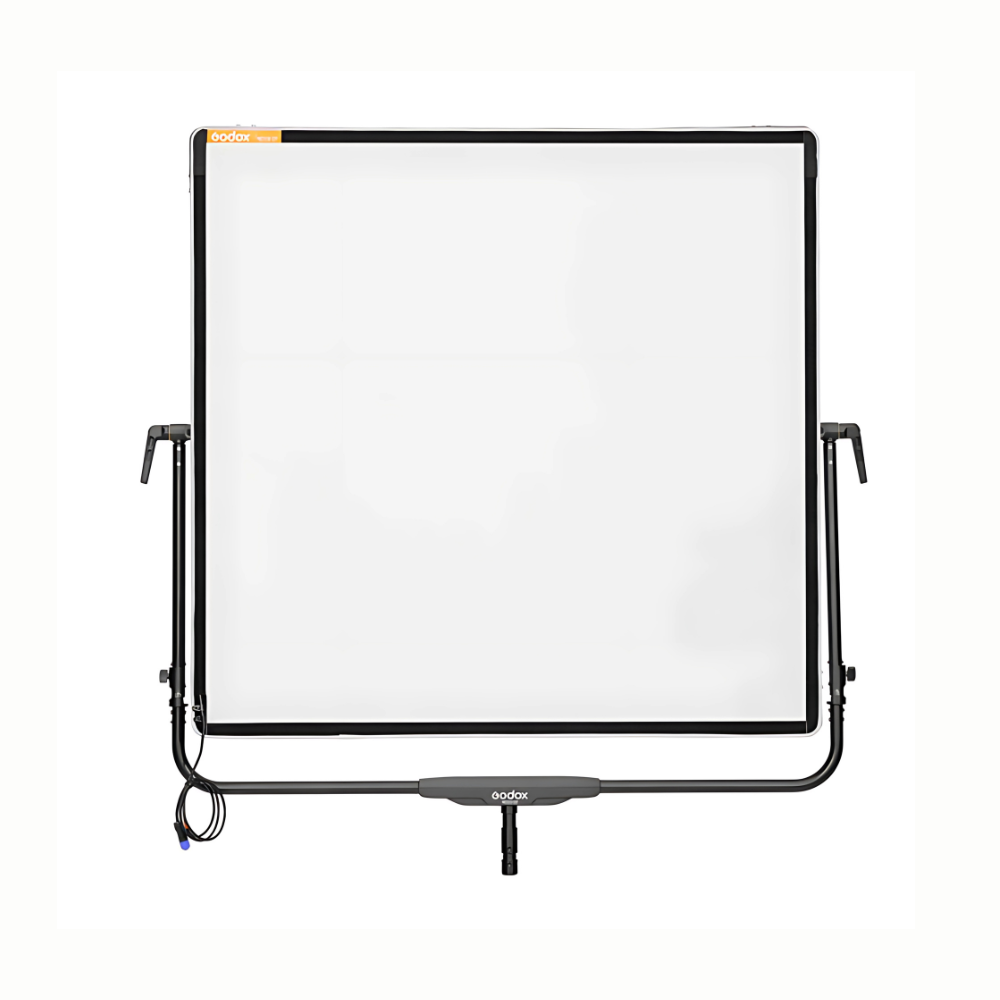

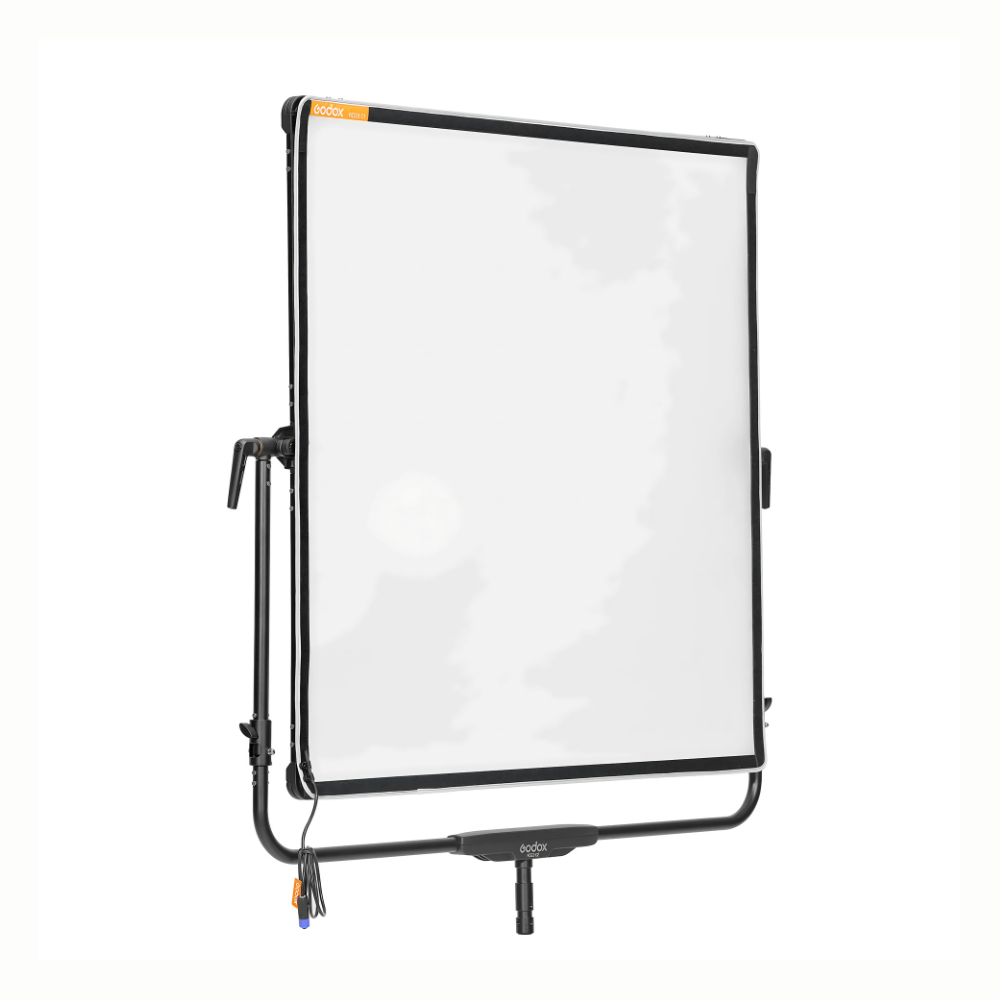

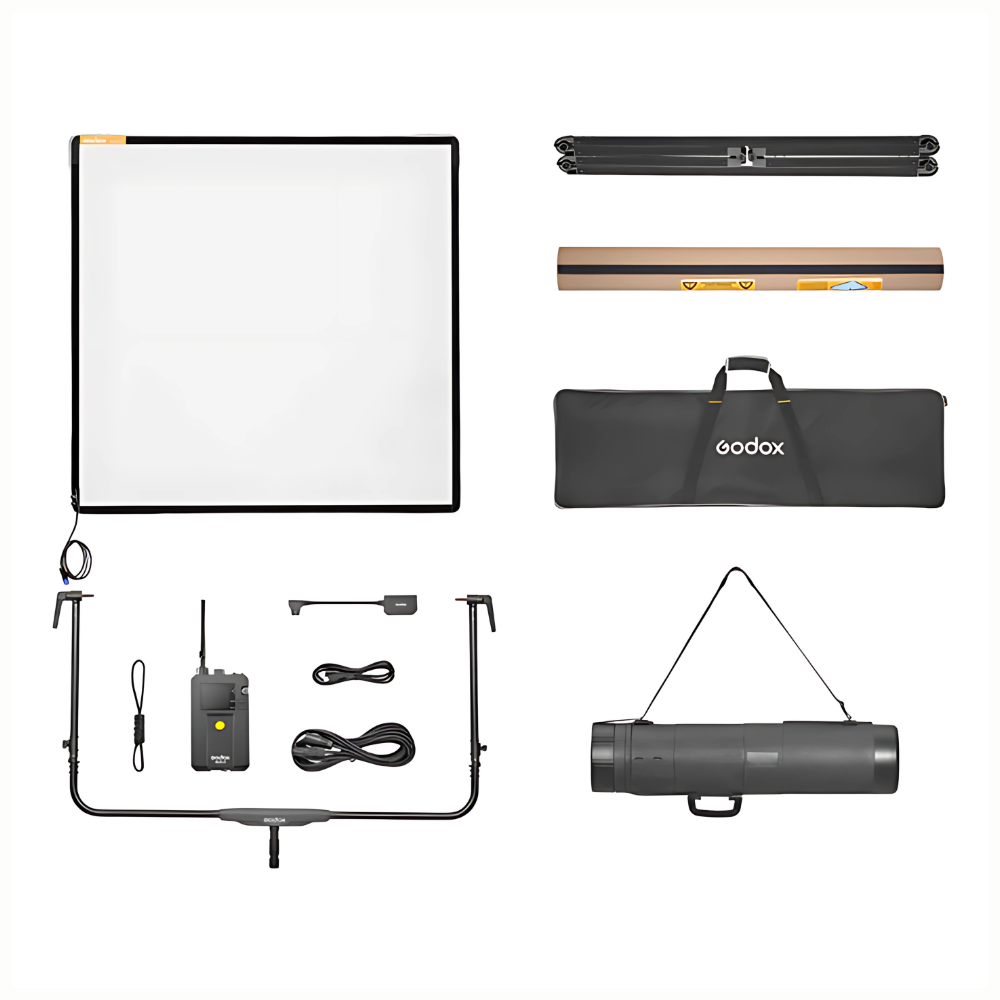

GODOX AD33 K2
The Godox KNOWLED AD33 Electronic Diffusion Panel enables you to dynamically change the amount of diffusion, whenever and however you need it. Featuring precise electronic controls, the AD33 Adjustable Diffuser enables you to switch between hard shadows to ultra-soft illumination with a simple turn of a dial Powered by a V-Lock Battery, and the ability to be controlled via DMX, CRMX or via a Bluetooth app, the AD33 Electronic diffuser will enable you to work in ways never before possible. The creative possibilities are virtually endless.

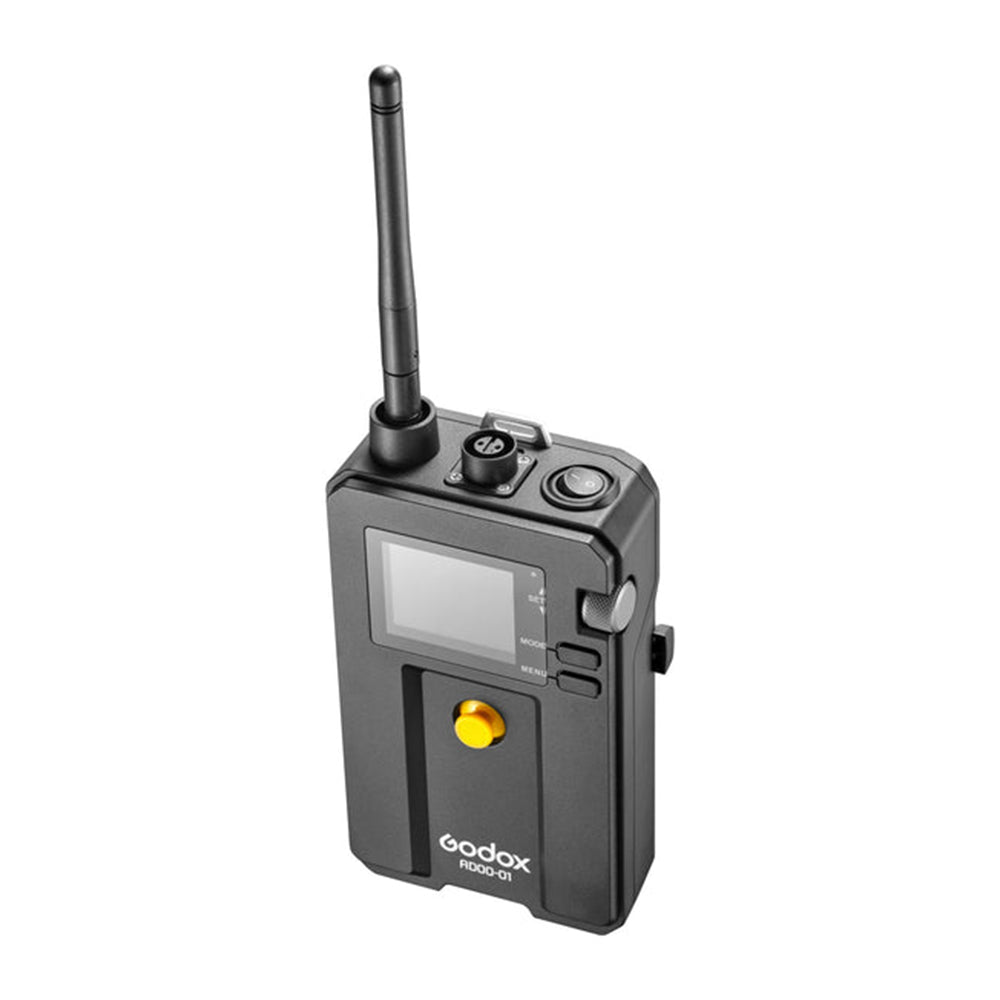

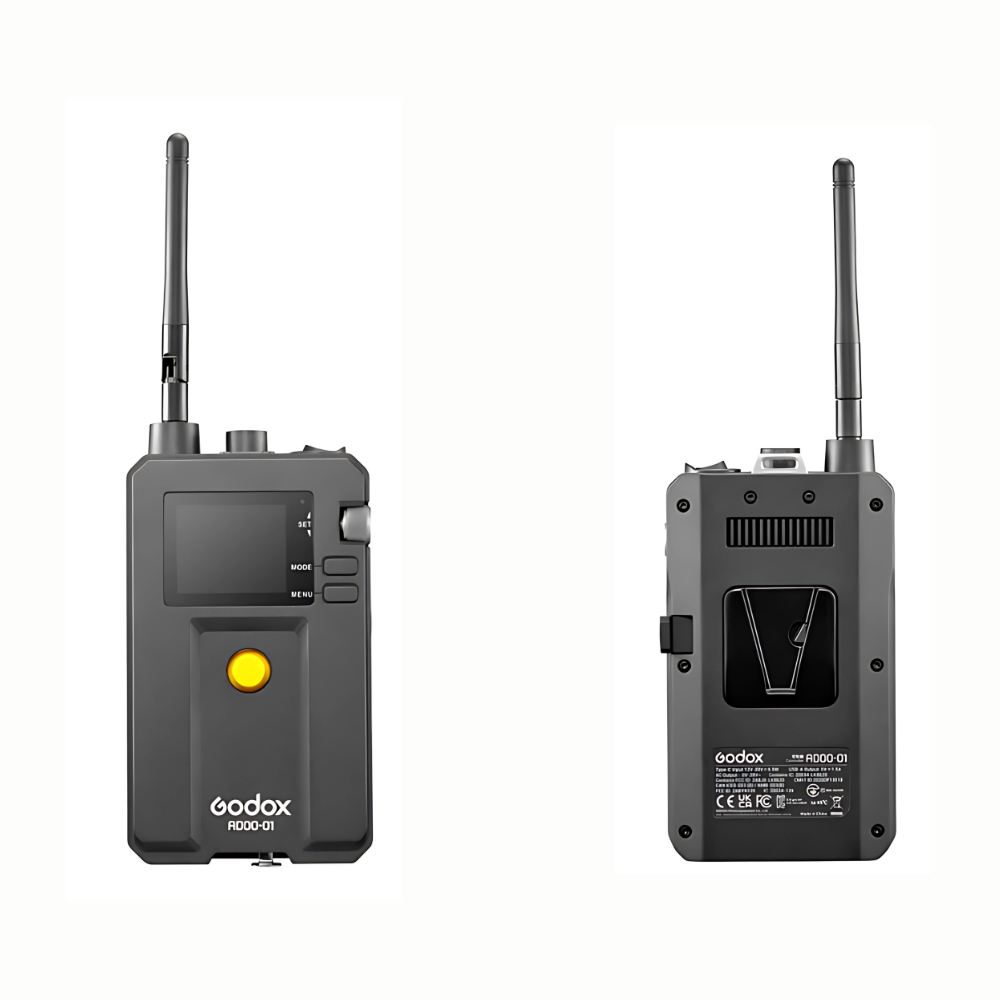

Controller Specifications
- USB-C Port: Input: 12V-20V⎓6.5A
- AC Output Port: Output: 0V-28V ~
- USB-A Port: Firmware Upgrade/5V⎓1.5A Power Supply
- Control Methods: DMX/RDM, CRMX, Bluetooth app, controller control
- Bluetooth Transmission Distance: 30m
- Working Environment Temperature: -20°C~40°C
- Dimension: ≈8.3cm x ≈4.6cm x ≈ 15cm
Diffusion Specifications
- AC Input: 0V-28V~, 5W
- Dimensions: ≈105.3cm x ≈100.5cm
- Net. Weight: ≈0.8kg
