WEC-S (2TX + 1RX) WIRELESS MICROPHONE
with Sony Multi-Interface Shoe
Specifications:

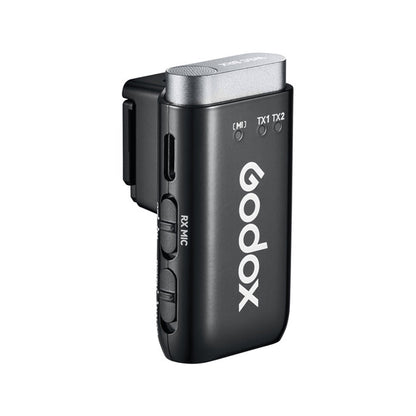

Transmitter:
-
Model: WEC TX
-
Transmission Type: 2.4GHz Frequency Hopping System
-
Pickup Pattern: Omnidirectional
-
Frequency Range: 20Hz-20KHz
-
Max SPL: 110dB
-
Dynamic Range: 86dB
-
Max. Wireless Distance: 200m (sight distance)
-
Lithium Battery Parameters: 3.7V ⎓ 140mAh, 0.518Wh
-
USB-C Input: 5V ⎓ 160mA
-
Working Time: Approx. 8h
-
Charging Time: Approx. 2h
-
Working Environment Temperature:10~50°℃
-
Dimensions:1.89""×0.87""×0.63""
-
Net Weights: 12g

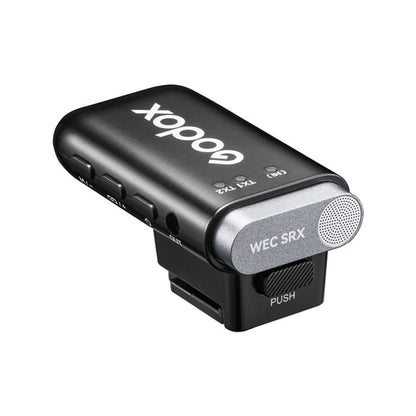

Receiver:
-
Model: WEC SRX
-
Transmission Type: 2.4GHz Frequency Hopping System
-
Lithium Battery Parameters: 3.8V ⎓ 200mAh, 0.76Wh
-
USB-C Input: 5V ⎓ 200mA
-
Working Time: Approx. 8h
-
Charging Time: Approx. 2h
-
Working Environment Temperature: -10~50°℃
-
Dimensions: 2.05""×0.94""×1.18""
-
Net Weights: 19g
Charging Case:
-
Model: WEC-S
-
Lithium Battery Parameters: 3.7V ⎓ 1400mAh, 5.18Wh
-
USB-C Input: 5V ⎓ 1.3A
-
Working Time: Charge 3 devices for about twice
-
Charging Time: Approx. 2h
-
Working Environment Temperature: -10~50°℃
-
Dimensions: 2.48""×3.35""×1.42”
-
Net Weights: 87g

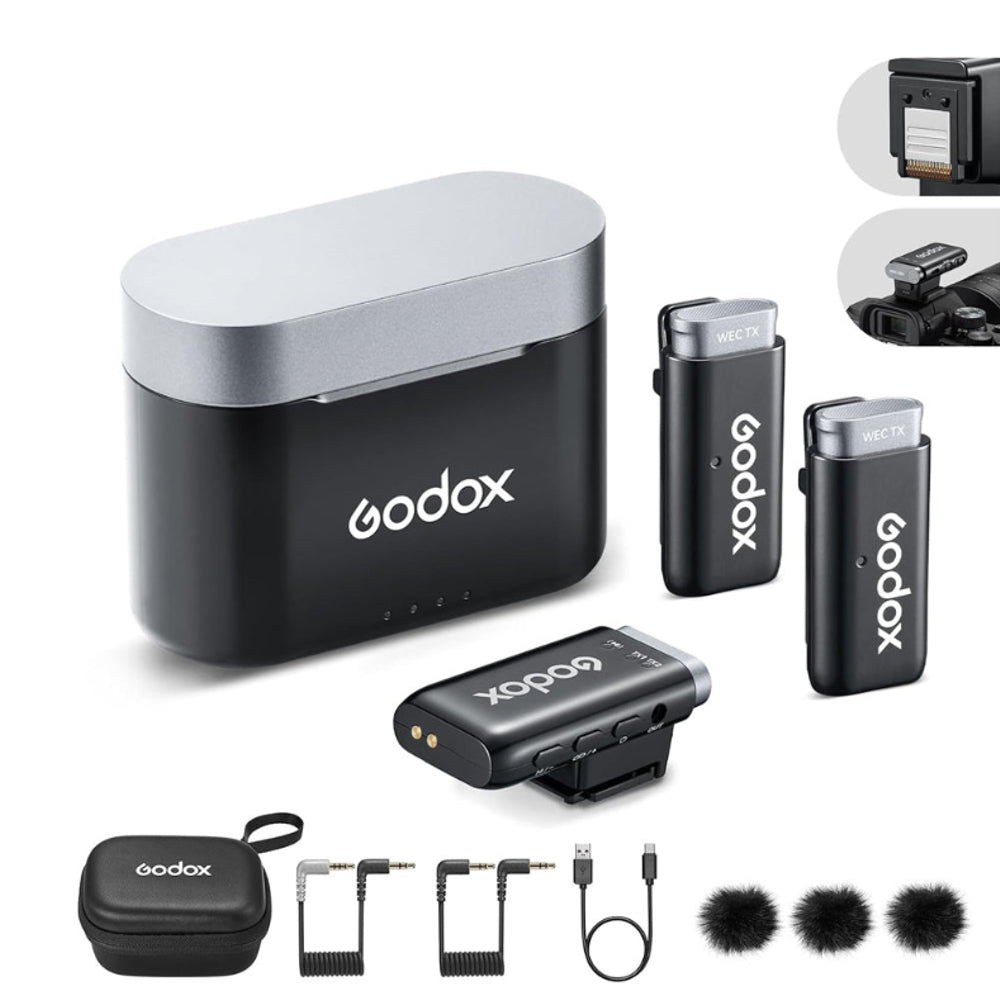

GODOX WEC-S KIT1
Godox WEC-S Overview
Record single-person vlogs or interviews with the Godox WEC-S Wireless Microphone System using its clip-on transmitter with built-in microphone and dual-channel receiver with Multi-Interface shoe. Attach your transmitter to your talent's lapel and secure your receiver to the MI shoe of your compatible Sony camera. A USB-C port and 3.5mm TRS port provide additional compatibility with other camera models and mobile devices of your choice. Both the receiver and transmitter can communicate from up to 656.2' away via 2.4 GHz frequency.
An additional integrated microphone on the receiver allows you to capture audio from your interviewer behind the camera to make editing more efficient. LED indicators on the components allow you to monitor power and mode status. Onboard controls toggle between digital and analog record, mono and stereo modes, activate dynamic noise reduction, or pair the devices to one another. Internal batteries power the components for up to 8 hours at a time and can be recharged using the USB-C charging ports in just 2 hours.
Features
- 2.4 GHz frequency, 656' transmission distance
- Dual-channel receiver with built-in omnidirectional microphone
- LED indicators and onboard controls
- Dynamic noise reduction for improved vocals
- 3.5mm TRS audio output, MI shoe output, USB-C audio output
- 140mAh transmitter battery, 200mAh receiver battery, 8-hour battery life

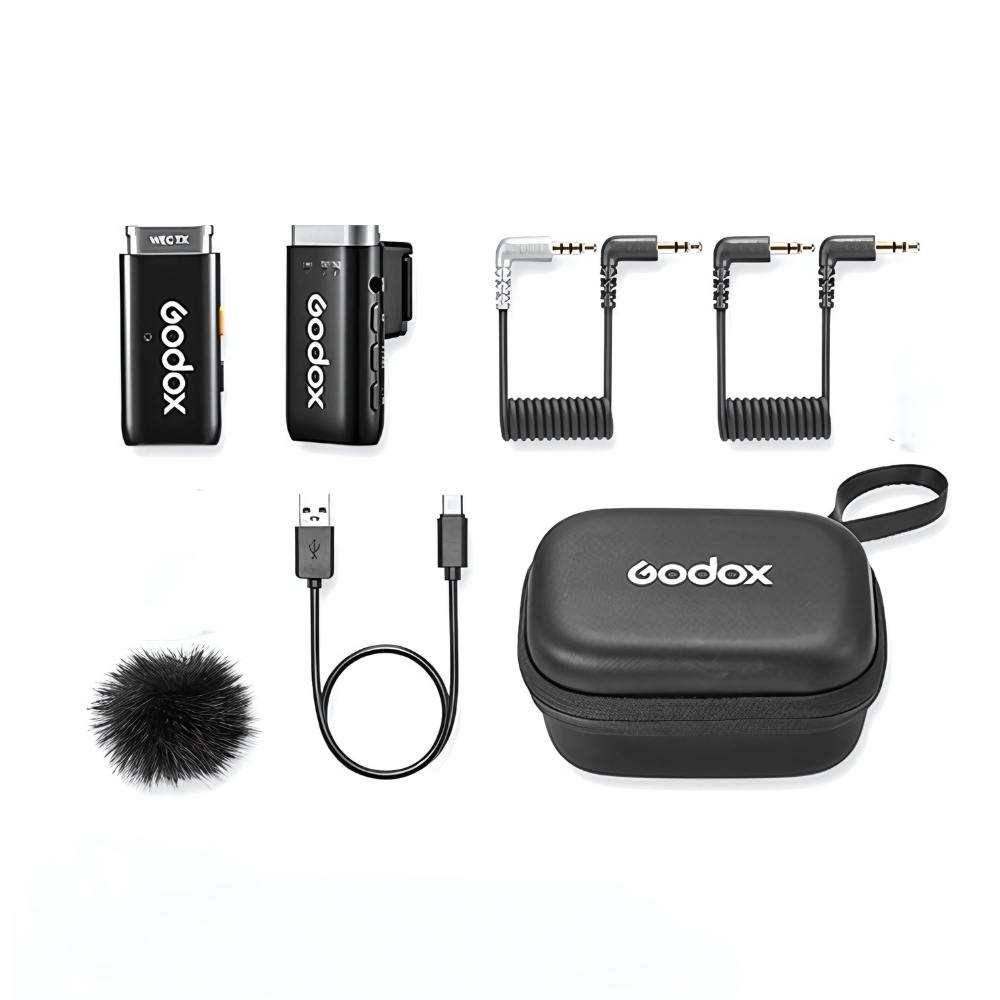

- 3.5mm TRS cable, 3.5mm TRS to TRRS cable, furry windscreens, storage box
Specification
Godox WEC-S Specs
KEY SPECS
- Wireless Technology: Digital 2.4 GHz
- Diversity: Non-Diversity
- Max Operating Range: 656.2' / 200 m (Line of Sight)
- Receiver Type: 1x Camera-Mount
- Number of Audio Channels: 2
- Included Transmitters: 1x Clip-On
- Microphone Type
- 1x Built-In (Receiver)
- 1x Built-In (Clip-On Transmitter)
System
- Wireless Technology: Digital 2.4 GHz
- Diversity: Non-Diversity
- Max Operating Range: 656.2' / 200 m (Line of Sight)
- Max Transmitters per Band: 2
- Encryption: No
- Built-In Recorder: No
- Timecode Support: No
- Mobile App Compatible: No
Receiver
- Network I/O: No
- Antenna: 1x Internal
- Number of Audio Channels: 2
- Receiver Type:1x Camera-Mount
- USB/Lightning Connectivity
- 1x USB-C Female
- USB Class Compliant
- Power Requirements: Battery
- Frequency Response: 20 Hz to 20 kHz
- Display: Single-LED Indicators Only
- Audio I/O
- 1x Intelligent Hot Shoe
- 1x 1/8" / 3.5 mm TRS Unbalanced Output
- Mounting Options: Shoe-Mount (with Included Hardware)
Transmitters
- Input Level: Line
- Antenna: Internal
- Auto-Level/Gain: Yes
- Muting: Off/On Switch
- Sync Method: 2.4 GHz QPSK
- USB I/O: 1x USB-C (Charging)
- Included Transmitters: 1x Clip-On
- Frequency Response: 20 Hz to 20 kHz
- Display: Single-LED Indicators Only
- Bias/Plug-In & Phantom Power: Bias/Plug-In Power is Unspecified by Manufacturer No Phantom Support
Microphones
- Microphone Type
- 1x Built-In (Receiver)
- 1x Built-In (Clip-On Transmitter)
- Polar Pattern: Omnidirectional
- Frequency Response:0 Hz to 20 kHz
- Maximum SPL: 110dB
- Color: Black
Power
- Receiver Battery Type
- 1x Built-In Rechargeable - 200 mAh
- Receiver Battery Life
- 8 Hours
- Transmitter Battery Type
- 1x Built-In Rechargeable - 140 mAh
- Transmitter Battery Life
- 8 Hours
- Battery Charging Time
- 2 Hours
- Input Power
- 5 VDC at 200 mA
