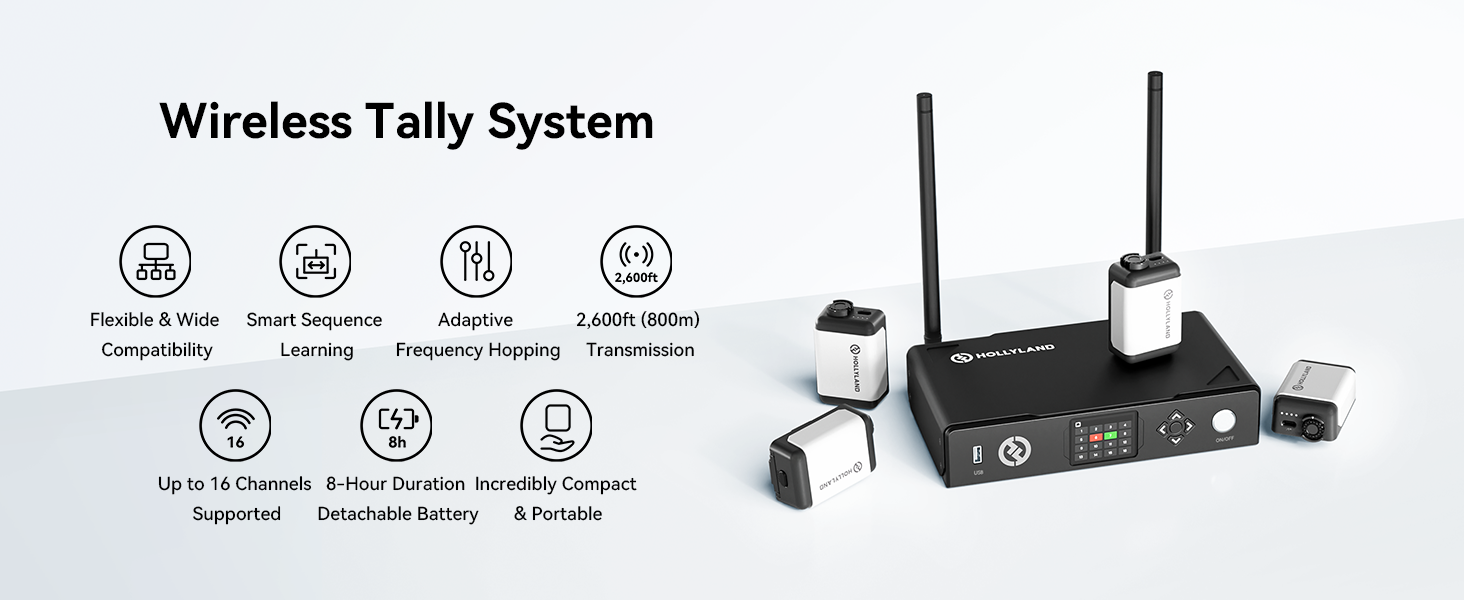

Wireless Tally System

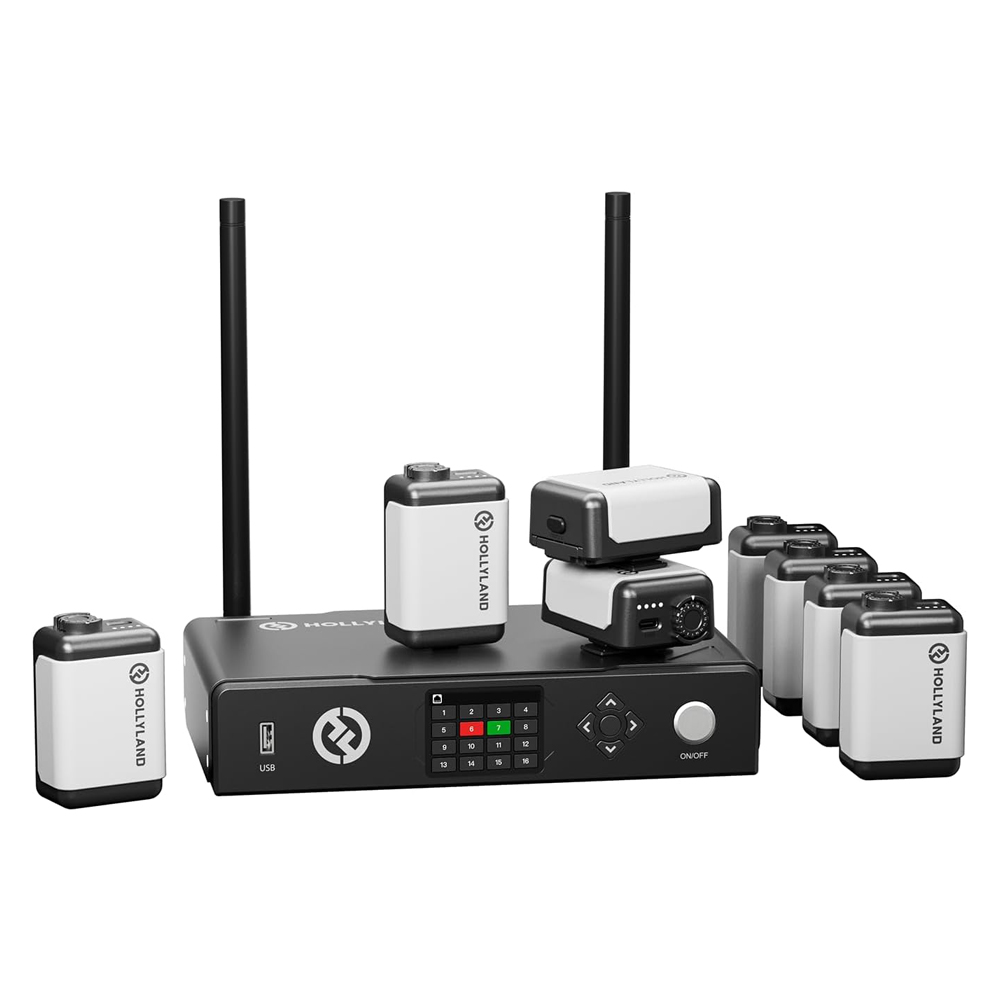

This Wireless Tally System from Hollyland is a portable, complete tally solution that includes four tally lights that can be connected up to 2600' away from the wireless host unit. Equipped with multiple ports that provide DB25, RJ45, and USB-C connectivity for compatibility with a wide range of switchers, the system boasts a powerful smart sequence learning function, adaptive frequency hopping, and support for up to 16 channels for future expansion of the system.
Description:

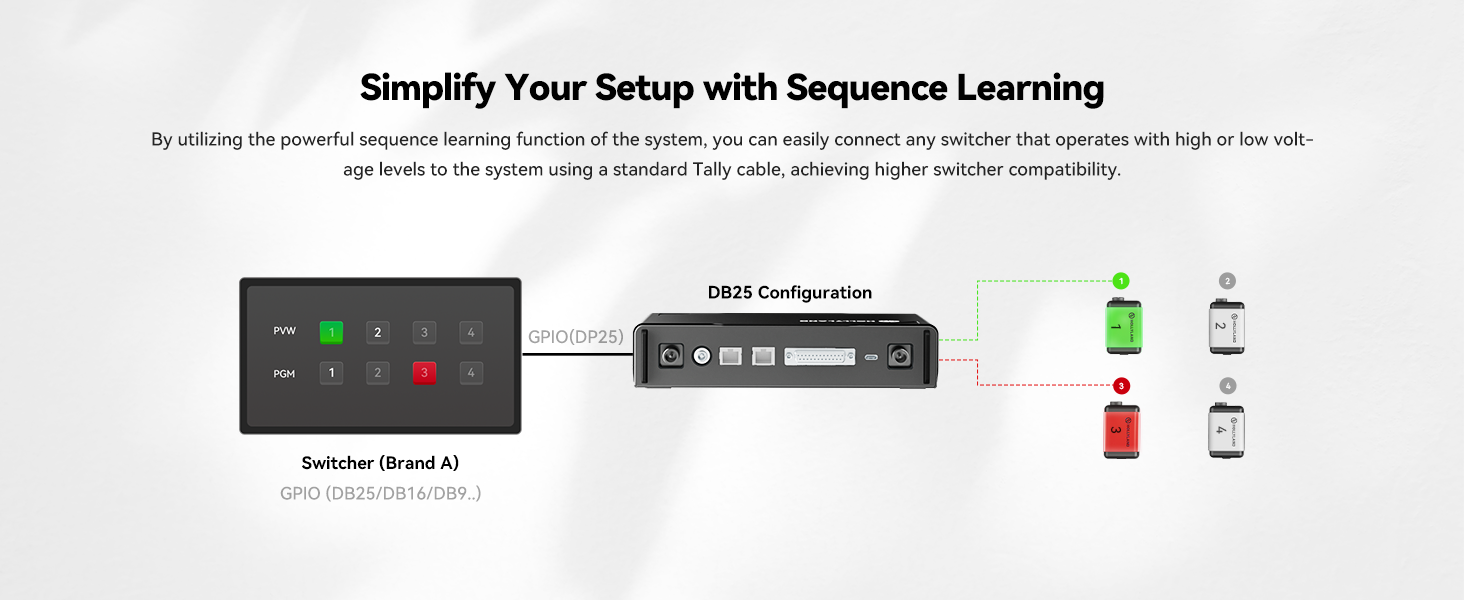

Simplify Your Setup with Sequence Learning:
By utilizing the powerful sequence learning function of the system, you can easily connect any switcher that outputs voltage-level signals to the system using a standard Tally cable, achieving higher switcher compatibility.

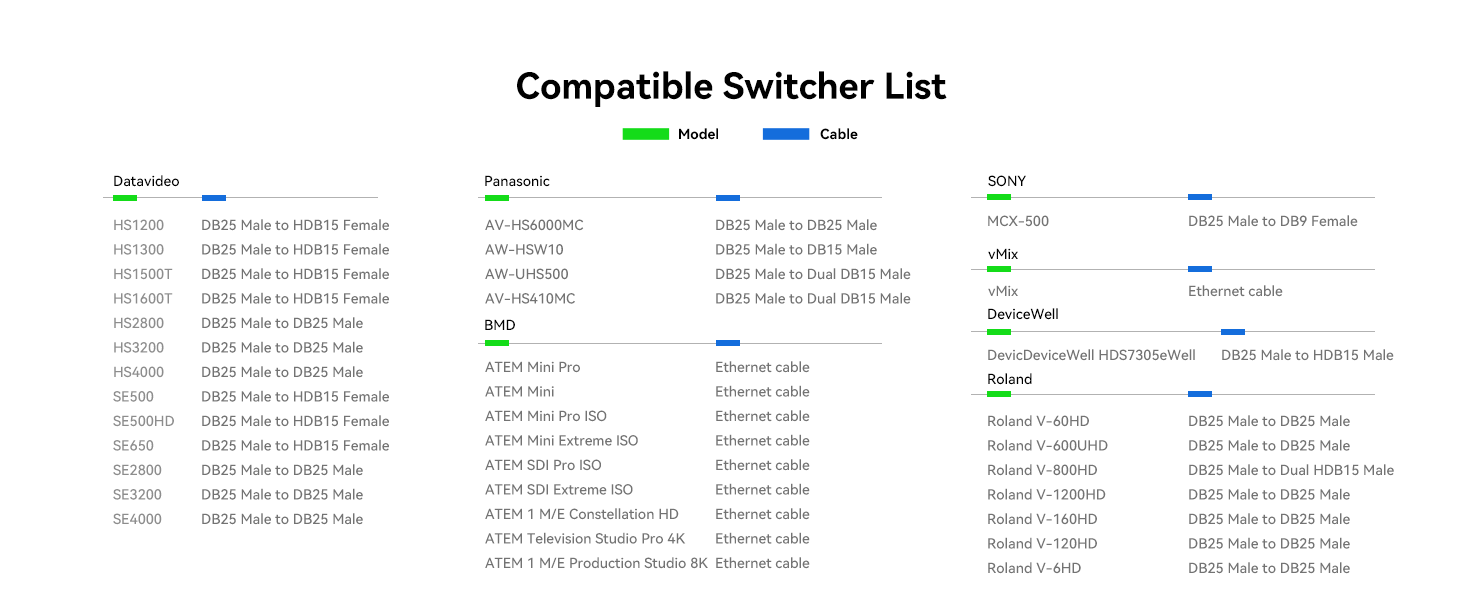

Wide Compatibility with Various Switchers:
Hollyland Tally System offers multiple port options, including DB25, RJ45, and USB-C, to support the connection to various switchers.
Adaptive Frequency Hopping for Seamless Shooting:
With the adaptive frequency hopping feature, this Wireless Tally system can detect the interference in complicated scenarios, and hop to the channel with less interference to ensure stable signal transmission.
Ultra-Long 2600ft (800m) Stable Transmission:
With a stable transmission capability over a line of sight range of 800 meters, this Wireless Tally System can meet your needs for shooting in long-distance scenarios.

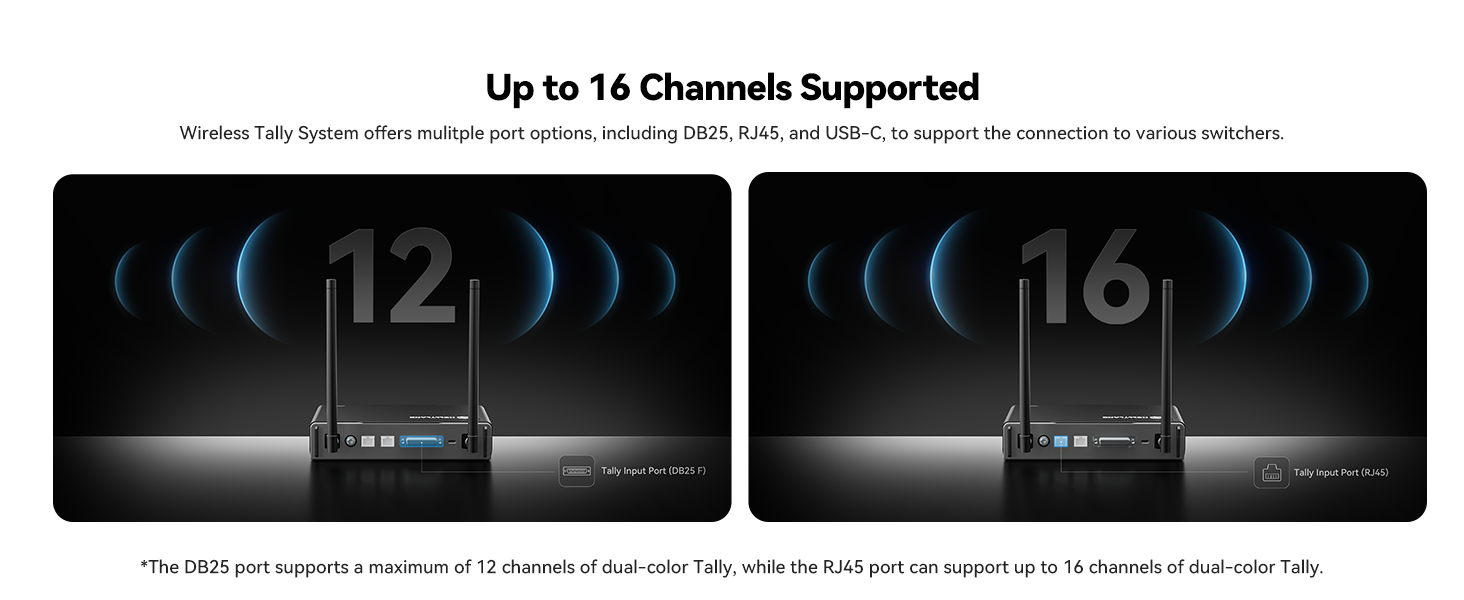

Up to 16 Channels Supported:
The wireless Tally box supports up to 16 channels. This allows for easy expansion or reduction in the number of Tally lights to accommodate projects of varying scales or complexities. *The DB25 port supports a maximum of 12 channels of dual-color Tally, while the RJ45 port can support up to 16 channels of dual-color Tally.
Features:
Specifications:
-
Tally Light Specifications
-
Transmission Range: Up to 2,600ft (800m) for LOS
-
Wireless Frequency: 2.4 GHz
-
Modulation Mode: LORA
-
Receiver Sensitivity: <-115 dBm
-
Transmission Delay: < 150ms
-

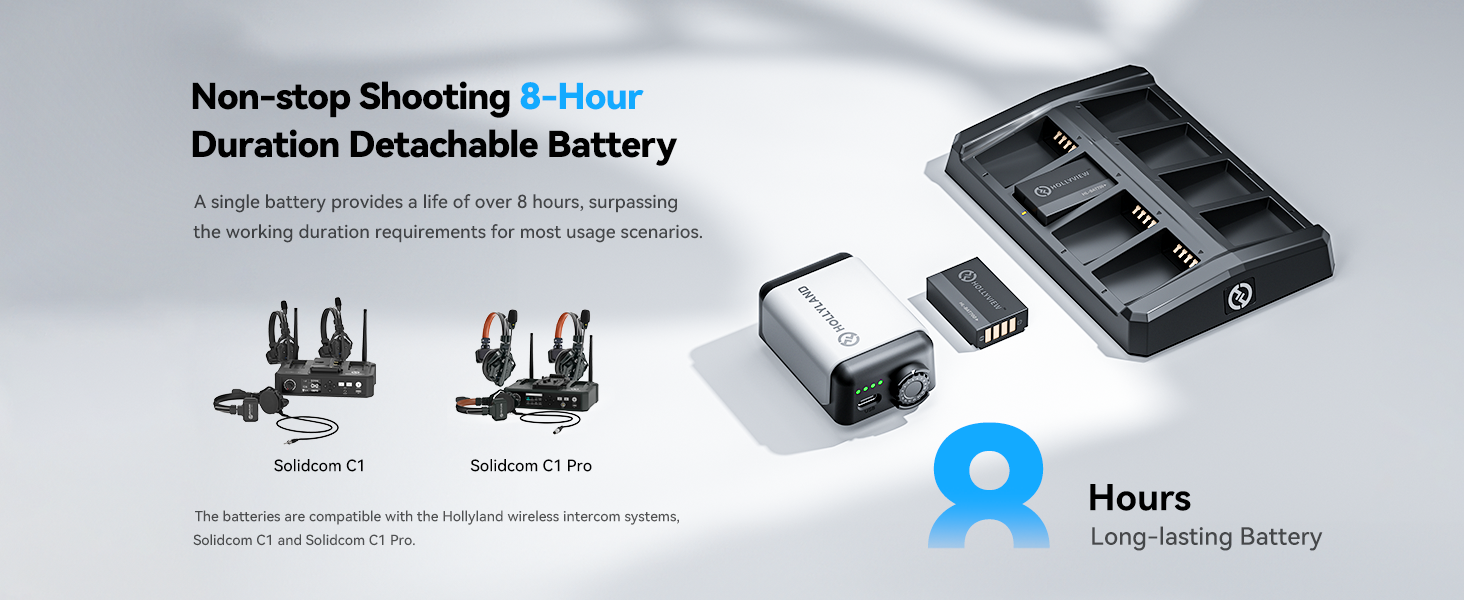

Battery Life: > 8 hours
-

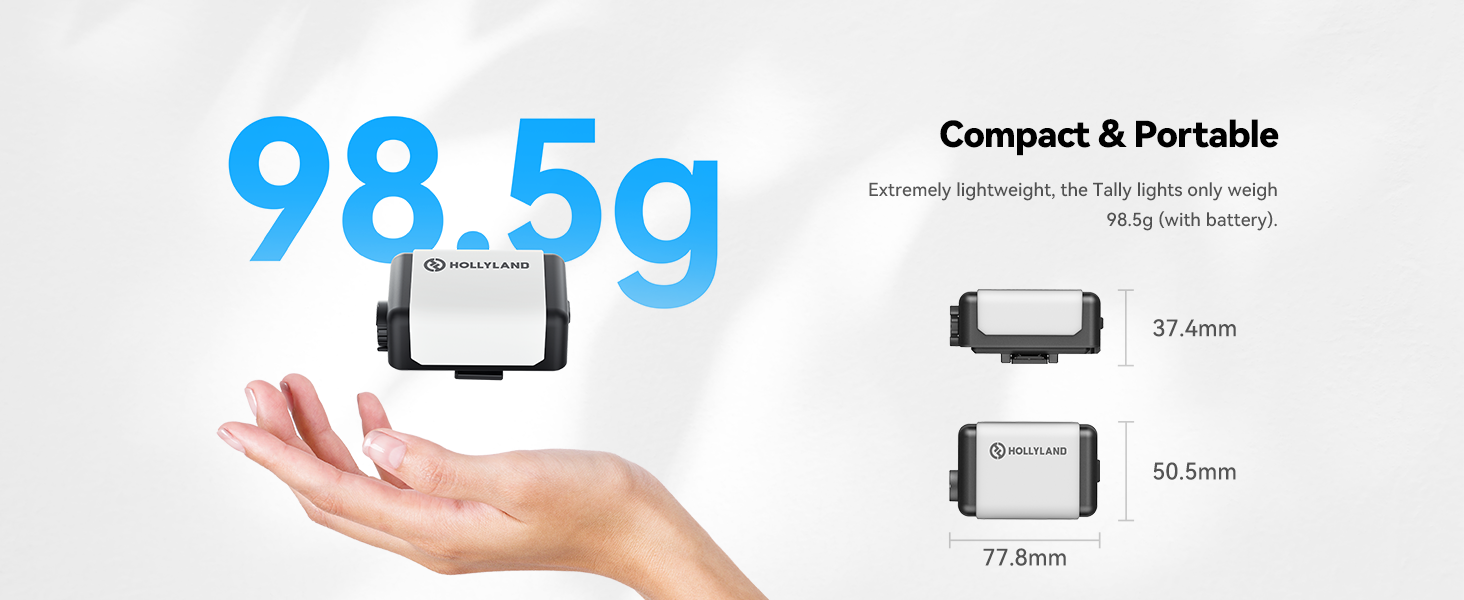

Dimensions (L*W*H): 77.8 × 50.5 × 37.4mm
-
Weight: About 85g
-
Temperature: Working: 32℉ to 113℉ (0℃ to 45℃ ) & Storage: 14℉ to 140℉ (-10℃ to 60℃ )
Inclusions:

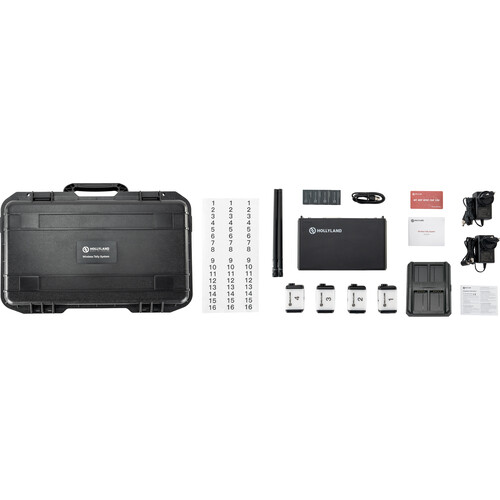

4 Lights Set

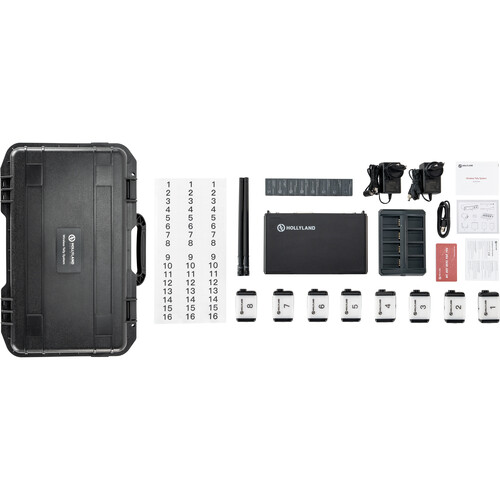

8 Lights Set
