COSMO C2
Video Transmission System

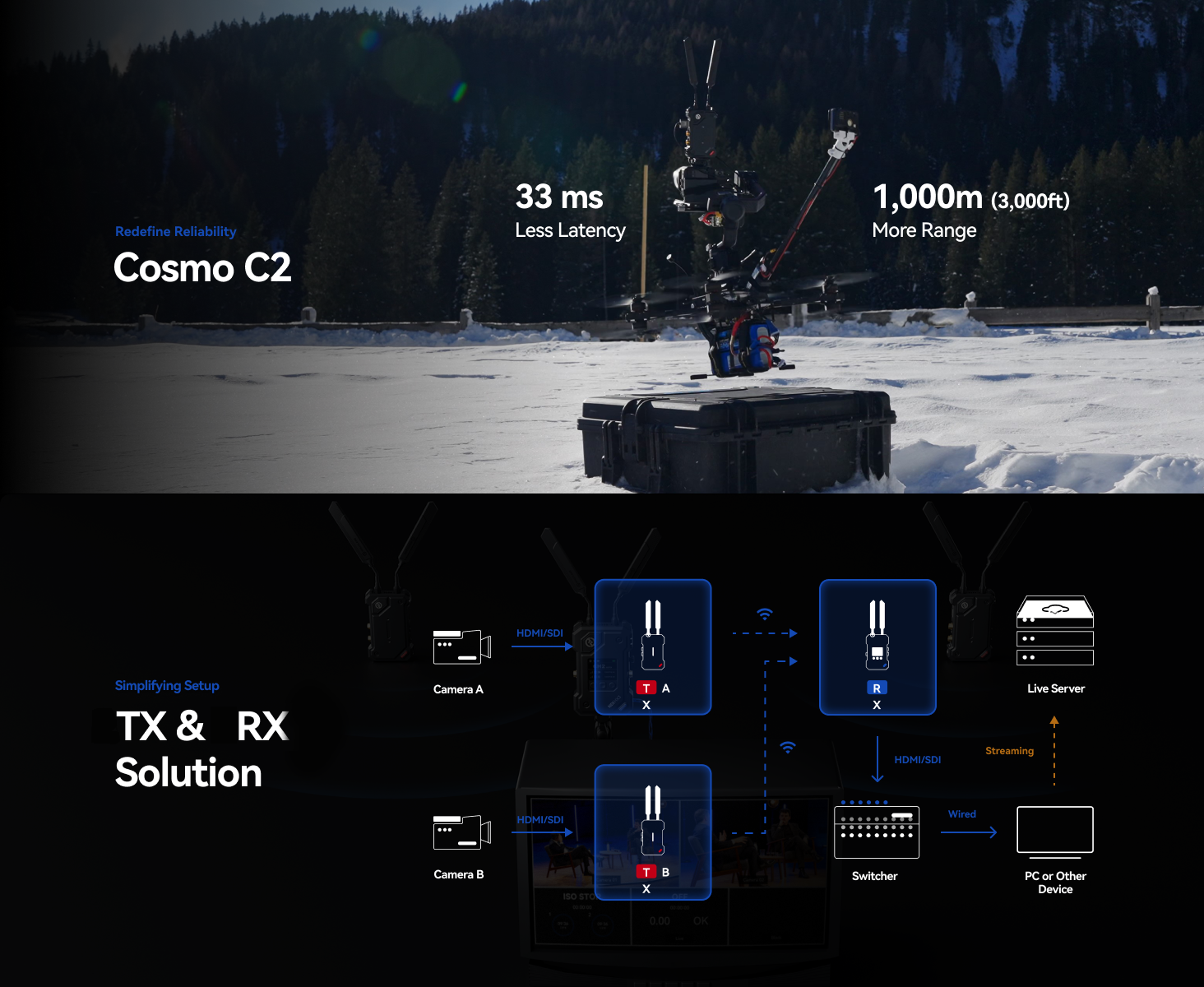

The Cosmo C2 HDMI/SDI Wireless Video Transmitter System from Hollyland allows you to wirelessly transmit high-resolution video up to 1080p60 over long distances up to 3000' using transmitters to a receiver, allowing flexible video monitoring and distribution for your studio or field production. This comprises transmitters and a receiver that communicate over the 5.1 to 5.85 GHz wireless frequency range. Additional improvements to the series include HEVO 2.0 technology, UVC/RTMP/NDI|HX streaming support, and expanded power options.
Features:
-

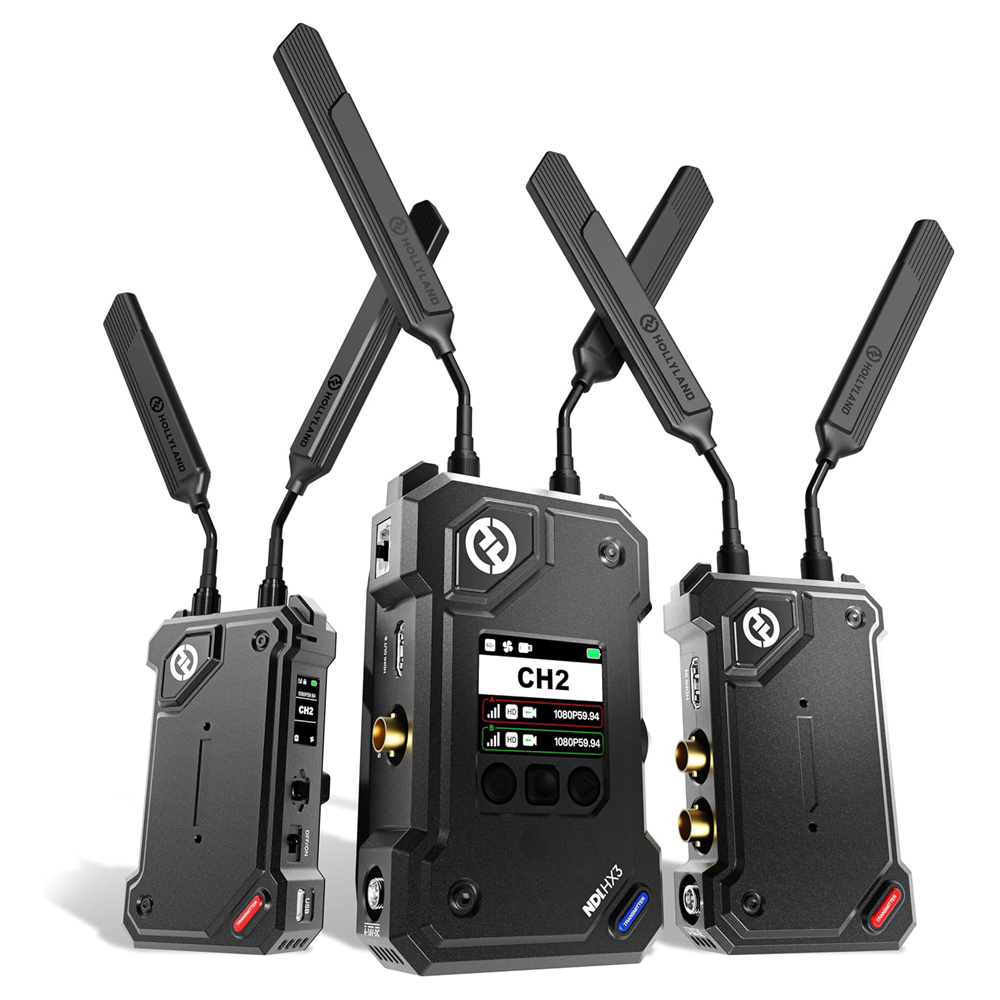

Wireless Video Transmitter/Receiver Set
-
Transmitters: HDMI/SDI In, SDI Loop Out
-
Receiver: 2 HDMI/SDI Outputs
-
3000' Line-of-Sight 1080p60 Transmission
-
5.1 to 5.85 GHz Frequency Bands
-

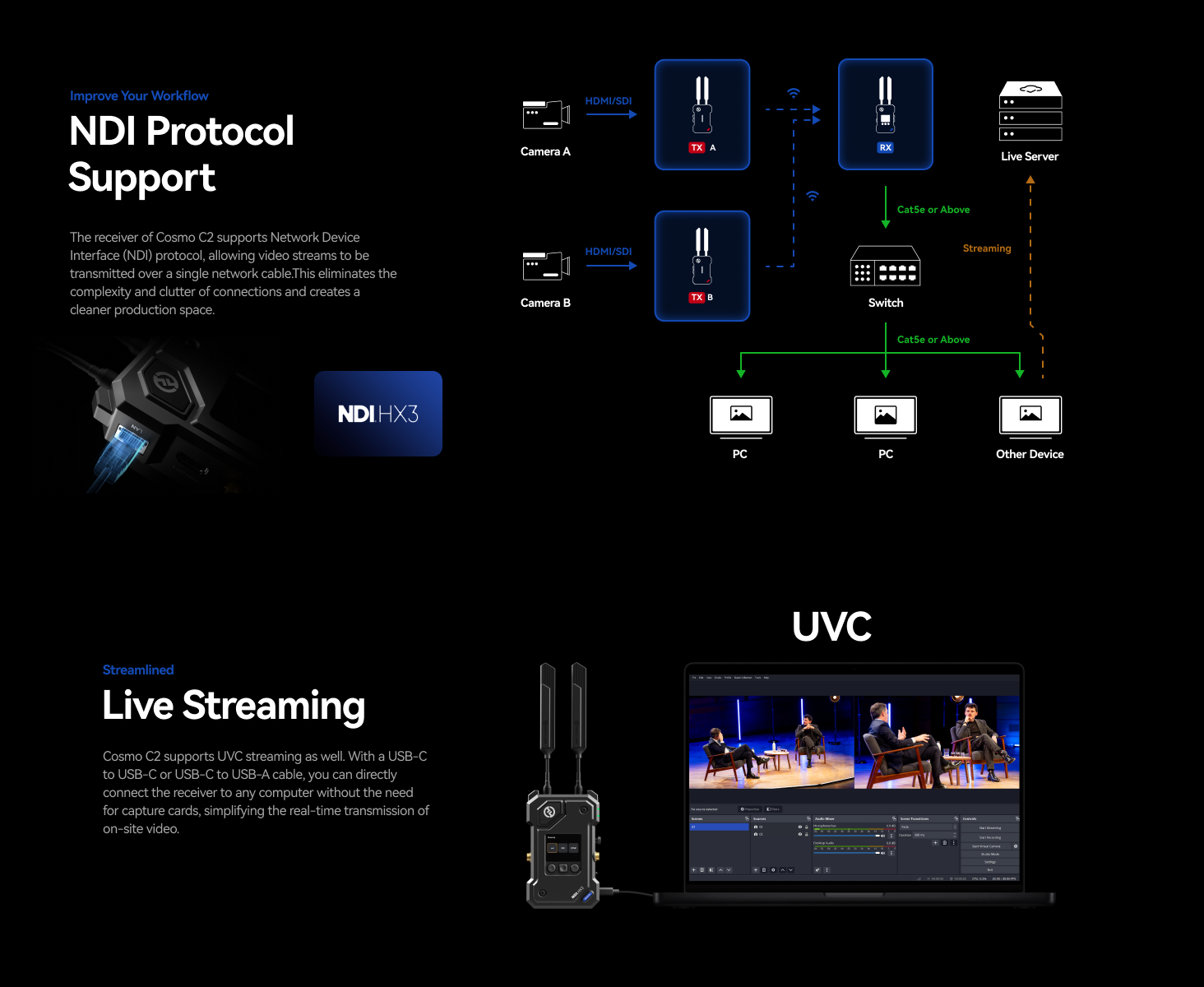

Supports UVC, RTMP & NDI|HX Streaming
-
FPS Booster Converts Frame Rates
-
HEVO 2.0 Technology, 33 ms Latency
-

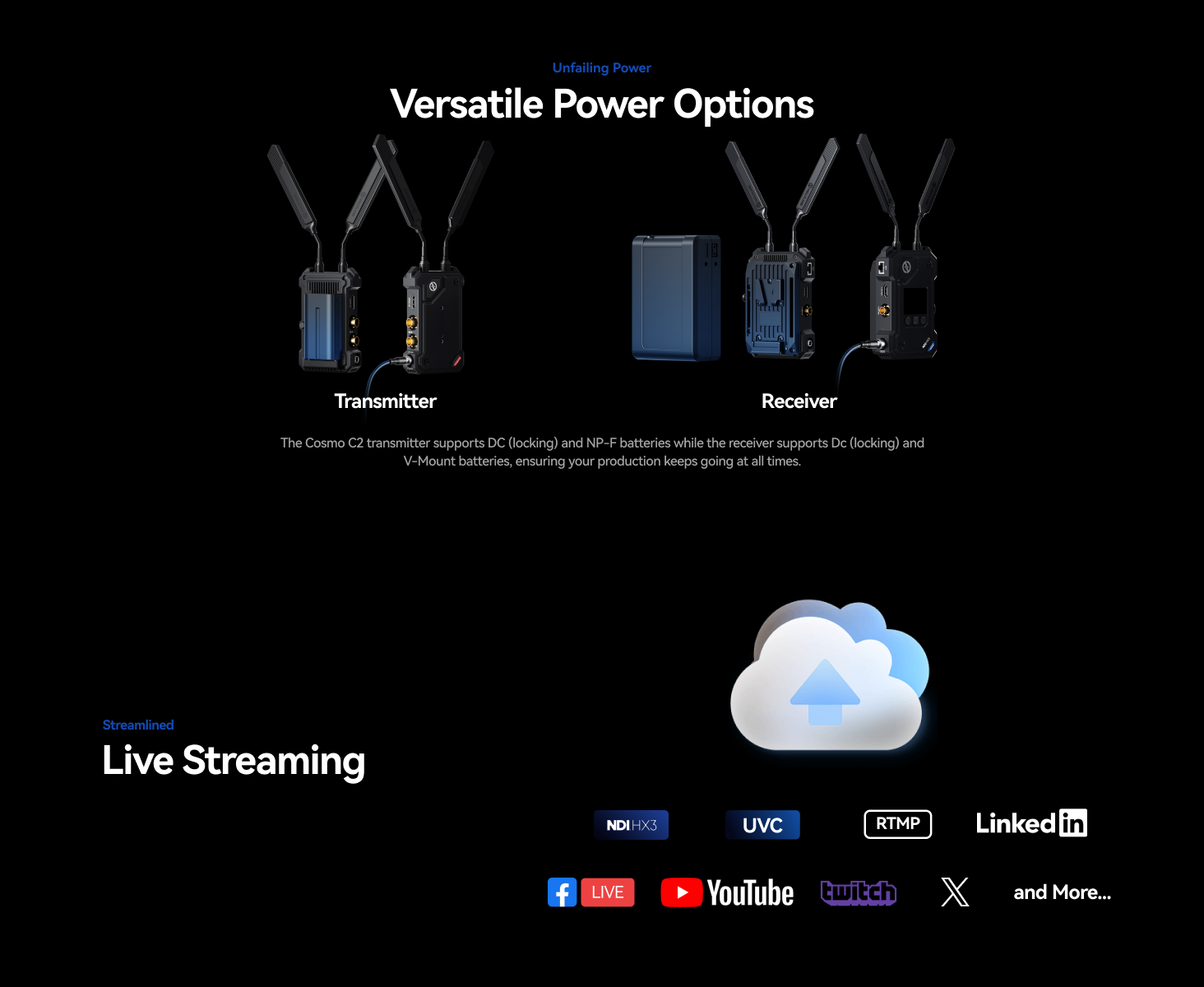

DC Input, L-Series/V-Mount Battery Plate
Specifications:
-
Brand: Hollyland
-
Model: Cosmo C2
-
Type: Video Transmitter
-
Ports:
-

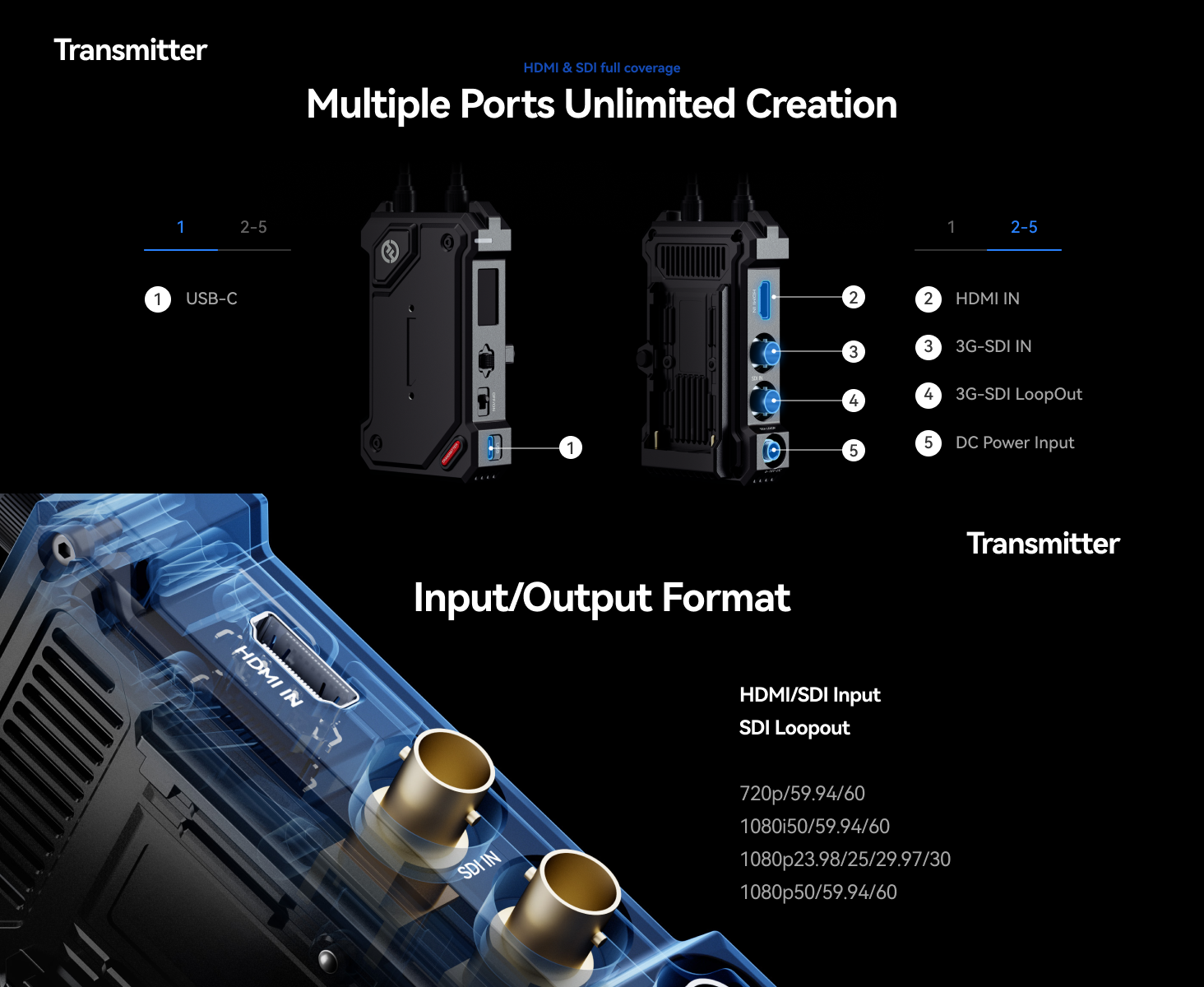

Transmitter
-
DC Input: 2.0mm Core Socket
-
HDMI Input: HDMI 1.4b
-
SDI Input: 3G SDI
-
SDI Loopout: 3G SDI
-
USB-C: USB 2.0 OTG
-
Antenna: SMA Male
-
-

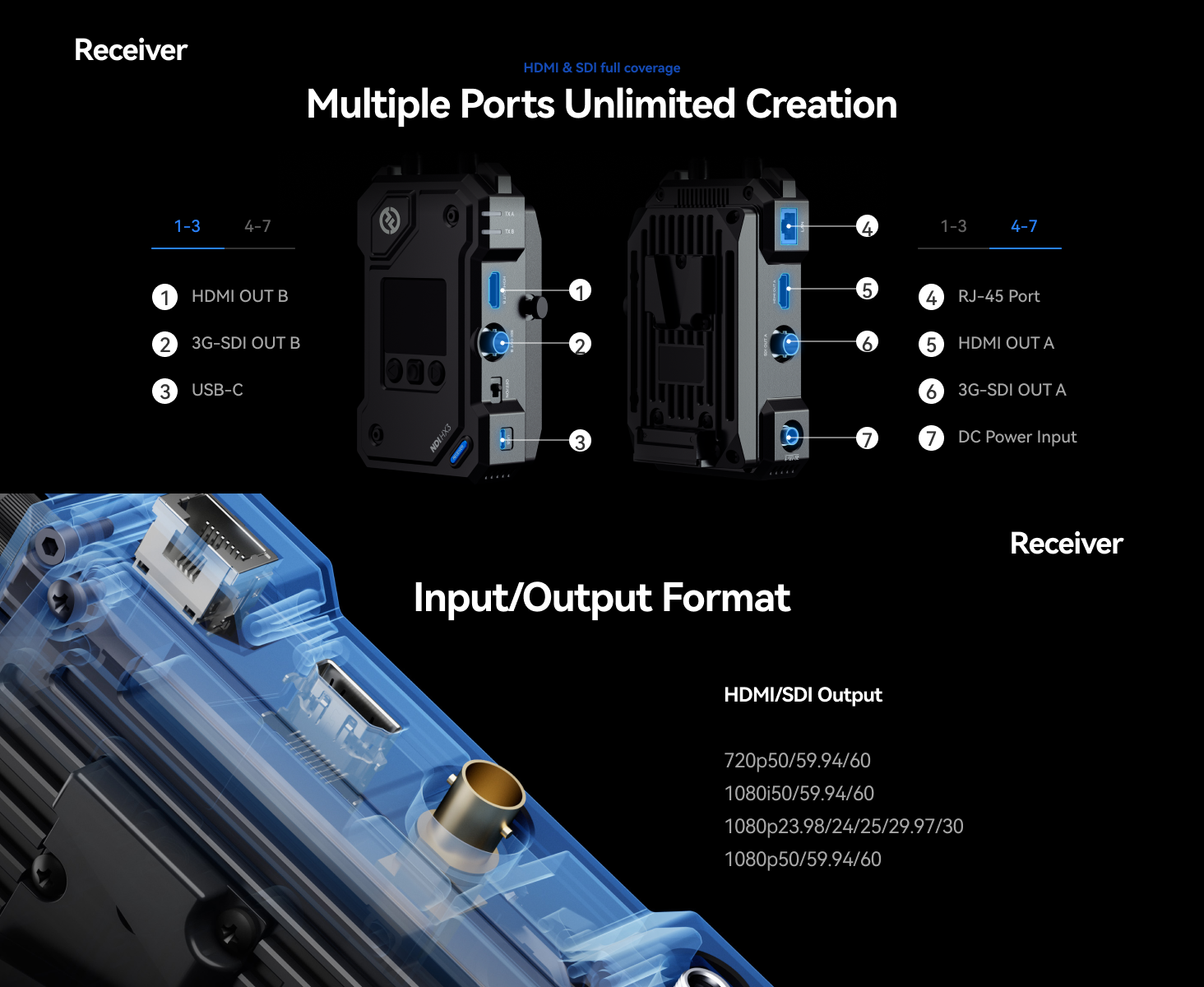

Receiver
-
DC Input: 2.0mm Core Socket
-
HDMI Output: HDMI 1.4b × 2
-
SDI Output: 3G SDI × 2
-
USB-C: USB 2.0 OTG
-
Antenna: SMA Male
-
Ethernet Port: RJ45,100 Mbps
-
-
Power Supply:
-
Transmitter
-
NP-F Battery Voltage Range: 6.8 – 8.4V
-
DC Voltage Range: 6 – 16V
-
-
Receiver
-
V-Mount Battery Voltage Range: 11.8 – 16.8V
-
DC Voltage Range: 6 – 16V
-
-
Power Consumption: <11W
-
Operating Frequency: 5.15 – 5.85 GHz
-
Transmit Power: <23dBm
-
Receiver Sensitivity: -90dBm
-
Latency: ≥33ms
-
Bandwidth: 40MHz
-

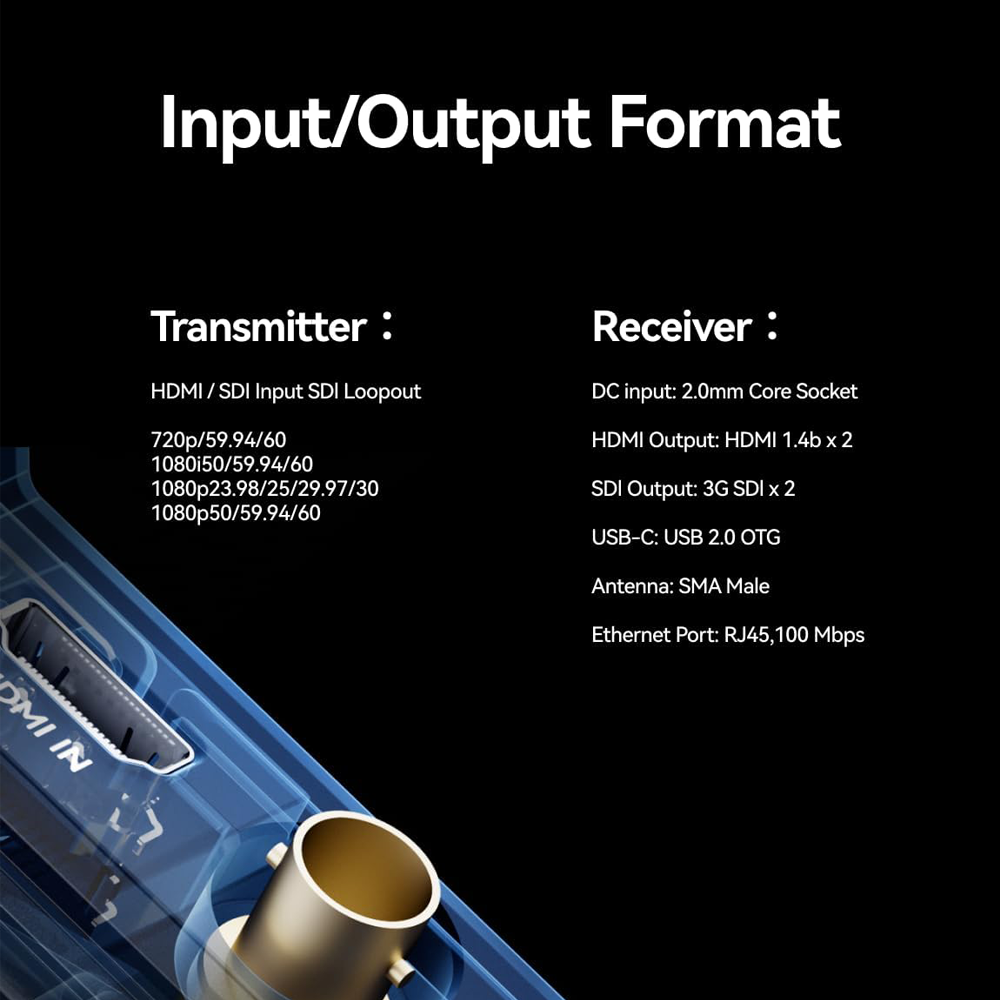

I/O Format: HDMI, SDI
What's inside the box?
-
2x Transmitter
-
1x Receiver
-
7x Blade Antenna
-
1x USB-C Adapter
-
1x Power Adapter
-
2x Cold Shoe
-
2x Expansion Accessory
-
1x Carry Case
