Features:
► Wireless Transmitter and Receiver Set
► Transmit UHD 4K30 Video up to 1300ft (400M) LOS Range
► HDMI and SDI Inputs and Outputs
► 2.4 and 5 GHz Frequency Bands
► Supports UVC and RTMP for Streaming
► 650ft Transmission in Broadcast Mode
► Smart Channel Scanning, Bright LCD
► Low 50 ms Latency, 12 Mb/s Bit Rate
► UVC & RTMP Streaming
► DC, L-Series, and USB-C Power Supply Options
What's in the box: Transmitter x1 | Receiver x1 | Paddle Antenna (2.4GHz & 5GHz) x7 | Rotatable Cold Shoe Mount x1 | USB-C OTG Adapter x1 | 12V/2A DC Power Adapter x1 | Quick Guide x1
Specifications:
● Brand: HOLLYLAND
● Model: PYRO-S

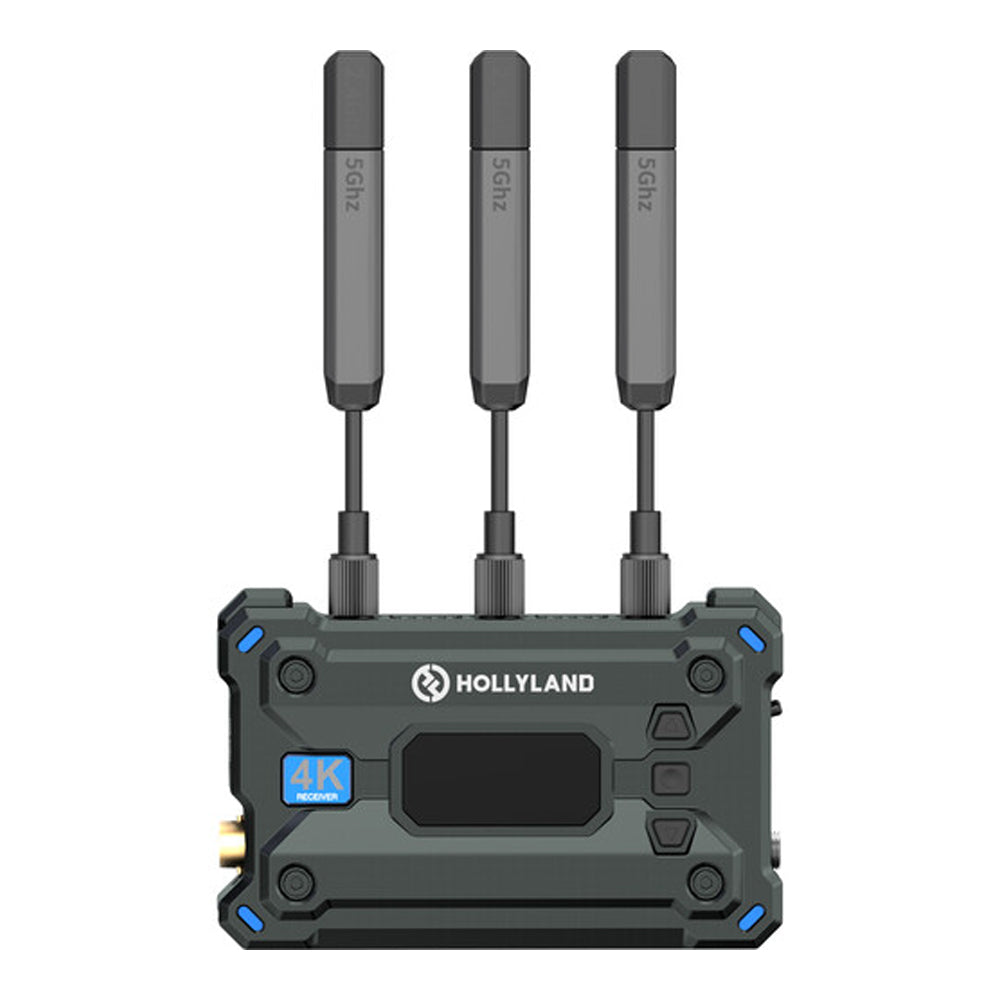

● Type: Wireless Video Transmission System TX + RX
● Panel Display Type: Transmitter/Receiver: LCD
● Touchscreen: No
● Video I/O
► Transmitter: 1x HDMI 1.4b Input
► Transmitter: 1x BNC (3G-SDI) Input
► Receiver: 1x HDMI 1.4b Output
► Transmitter: 1x BNC (3G-SDI) Output
► Embedded Audio: HDMI / SDI
► Power I/O: Transmitter / Receiver: 1x Barrel Input
► Other I/O: Transmitter / Receiver: 1x USB-C
● Wireless Range
► 1300ft / 396.2m (Line-of-Sight)
► 650ft / 198.1m (Line-of-Sight)
► Channel Bandwidth: 40 MHz, 20 MHz
● Frequency Range
► 5.15 to 5.25 GHz
► 5.25 to 5.35 GHz
► 5.47 to 5.725 GHz
► 5.725 to 5.85 GHz
► 2.412 to 2.484 GHz
► Latency: 50 ms
● Video Format
● HDMI
► UHD 4K: 30/29.97/25/24/23.98
► 1080p: 60/59.94/50/30/29.97/25/24/23.98
► 1080i: 60/59.94/50
► 720p: 60/59.94/50
● SDI
► 1080p: 60/59.94/50/30/29.97/25/24/23.98
► 1080i: 60/59.94/50
► 720p: 60/59.94/50
● Video Signal Conversion: No
● Wireless Video Compression: Uncompressed
● Timecode Support: Yes
● RF Sensitivity: -85 dBm
● Wi-Fi: Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)
● Bluetooth: No
● Mobile App Compatible? Yes: Android & iOS
● Cellular Support: No
● Input Power: 6 to 16 VDC
● Power Consumption
► Transmitter: 11 W
► Receiver: 8 W"
