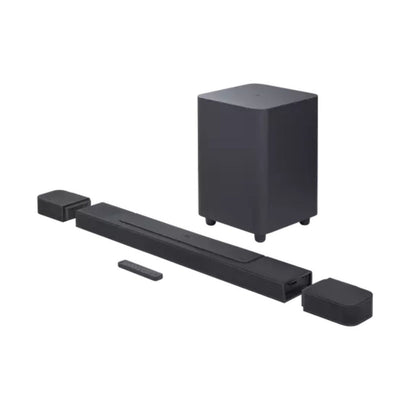

JBL BAR 1000
7.1.4-channel soundbar with detachable surround speakers, MultiBeam™, Dolby Atmos®, and DTS:X®
Panoramic 3D surround sound without limits
-
Experience movies, music and games with sound that puts you right in the middle of the action, thanks to 880W of total output power and thunderous bass from the 10” subwoofer. The JBL Bar 1000 has MultiBeam™ and four up-firing drivers—two in the bar and two in the detachable battery-powered surround speakers—to envelop you in a sphere of Dolby Atmos® and DTS:X 3D surround sound with a wide, spacious soundstage with no need to draw extra cables. You’ll never miss a word with our PureVoice technology, which makes sure the dialogue is clear even when other sounds are at their loudest. When you’re ready for some music, stream your favorite playlist from AirPlay, Alexa Multi-Room Music (MRM), and Chromecast built-in™ and it’ll feel like the band is right there. Have a great night out without leaving your living room.
Features:
Technical Specifications:
General Specification:
-
Model: BAR 1000 (soundbar unit), BAR 1000 SURROUND (detachable speaker) BAR 1000 SUB (subwoofer unit)
-
Sound system: 7.1.4 channel
-
Power supply: 100 - 240V AC, ~ 50/60Hz
-
Total speaker power output (Max @THD 1%): 880W
-
Soundbar output power (Max @THD 1%): 440W
-
Surround speaker output power (Max @THD 1%): 2x 70W
-
Subwoofer output power (Max @THD 1%): 300 W
-

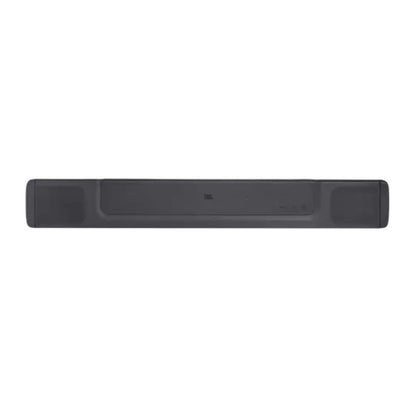

Soundbar transducer: 5 x (46x90)mm racetrack drivers, 3x 0.75” (20mm) tweeters, 2 x 2.75” (70mm) up-firing full-range drivers
-

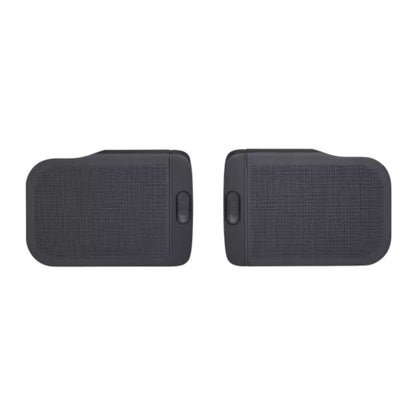

Surround speaker transducer: 0.75” (20mm) tweeters, 2.75” (70mm) up-firing full-range drivers
-

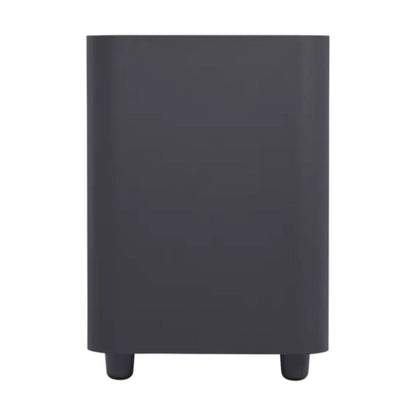

Subwoofer transducer: 10” (260mm)
-
Networked standby power: < 2.0W
-
Operating temperature: 0°C - 45°C
-
Lithium battery: 3.635V, 3283mAh
-
Detachable surround speaker playtime: up to 10 Hours (may vary according to content type and volume level)
HDMI specification
-
HDMI video input: 3
-
HDMI video output (with Enhanced Audio Return Channel, eARC): 1
-
HDMI HDCP version: 2.3
-
HDR pass-through: HDR10, Dolby Vision
Audio Specification
-
Frequency response: 33Hz - 20kHz (-6dB)
-
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
USB Specification (Audio playback is for US version only):
-
USB port: Type A
-
USB rating: 5V DC, 0.5A
-
Supported file format: MP3 MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
-
MP3 sampling rate: 16 - 48 kHz
-
MP3 bitrate: 80 - 320 kpbs
Wireless specification
-
Bluetooth version: 5.0
-
Bluetooth profile: A2DP 1.2, AVRCP 1.5
-
Bluetooth transmitter frequency range: 2400MHz - 2483.5MHz
-
Bluetooth transmitter power: <15dBm (EIRP)
-
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) 2.4G
-
Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels) 2.4G
-
Wi-Fi transmitter power: < 20dBm (EIRP) 5G
Dimensions
-
Main soundbar dimensions (W x H x D): 884 x 56 x 125 mm / 34.8” x 2.2” x 4.9”
-
Detachable surround speaker dimensions (each) (W x H x D): 155 x 56 x 125 mm / 6.1” x 2.2” x 4.9”
-
Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12” x 17.3” x 12”
-
Soundbar weight: 3.7 kg / 8.2 lbs
-
Detachable surround speaker weight (each): 0.7kg / 1.55 lbs
-
Subwoofer weight: 10 kg / 22 lbs
