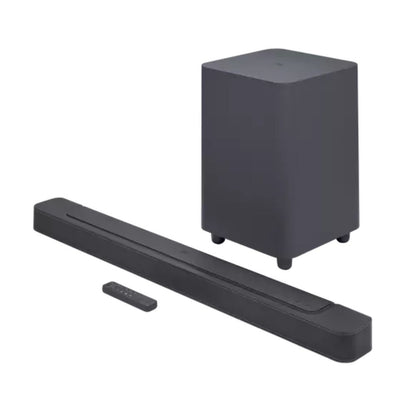

JBL BAR 500
5.1-Channel Soundbar with Multibeam™ and Dolby Atmos®
Amazing 3D sound with thrilling bass
-
What’s on the menu tonight? Movies, music or gaming? The JBL Bar 500 brings your movies to life with MultiBeam™ and Dolby Atmos® 3D surround sound. While PureVoice technology optimizes voice clarity to ensure you never miss a word. Feel the thrilling bass from the wireless 10” subwoofer. And with AirPlay, Alexa Multi-Room Music (MRM) and Chromecast built-in™, you’ve got over 300 easy streaming options to choose from, whether you want to dance or you’re ready to relax. Whatever you’re in the mood for, the JBL Bar 500’s got you covered.
Features:
Technical specifications:
General specification
-
Model: BAR 500 (soundbar unit) BAR 500 SUB (subwoofer unit)
-
Sound system: 5.1 channel
-
Total speaker power output (Max @THD 1%): 590W
-
Power supply: 100 - 240V AC, ~ 50/60Hz
-
Soundbar output power (Max @THD 1%): 290W
-
Subwoofer output power (Max @THD 1%): 300W
-
Soundbar transducer: 4x (46x90)mm racetrack drivers, 3x 0.75” (20mm) tweeters
-
Subwoofer transducer: 10” (260mm)
-
Networked standby power: < 2.0 W
-
Operating temperature: 0°C - 45°C
HDMI specification
-
HDMI input: 1
-
HDMI eARC: 1
-
HDMI HDCP version: 2.3
-
HDR pass through: HDR10, Dolby Vision
Audio specification
-
Frequency response: 35Hz - 20kHz (-6dB)
-
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
USB specification (Audio playback is for US version only):
-
USB port: Type A
-
USB rating: 5V DC, 0.5A
-
Supported file format: MP3 MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3,MPEG 2.5 Layer 3
-
MP3 sampling rate: 16 - 48 kHz
-
MP3 bitrate: 80 - 320 kpbs
Wireless specification
-
Bluetooth version: 5.0
-
Bluetooth profile: A2DP 1.2, AVRCP 1.5
-
Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz
-
Bluetooth transmitter power: <15 dBm (EIRP)
-
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
Dimension
-
Soundbar dimensions (W x H x D): 1017 x 56 x 103.5 mm / 40’’ x 2.2’’ x 4’’
-
Soundbar weight: 2.8kg/ 6.2 lbs
-
Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12” x 17.3” x 12”
-
Subwoofer weight: 10 kg / 22 lbs
