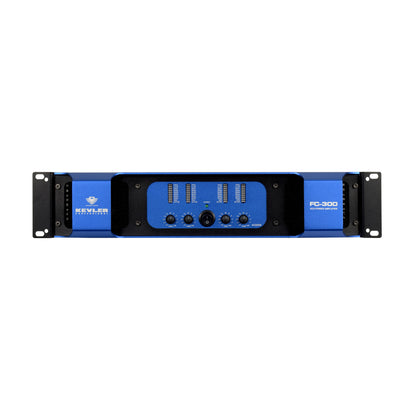

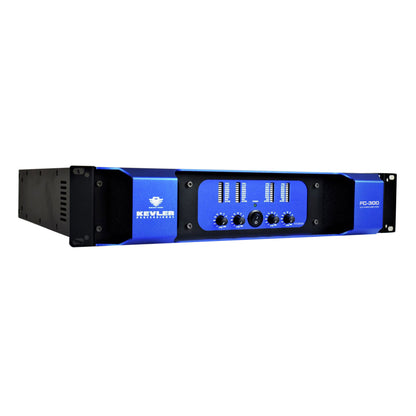

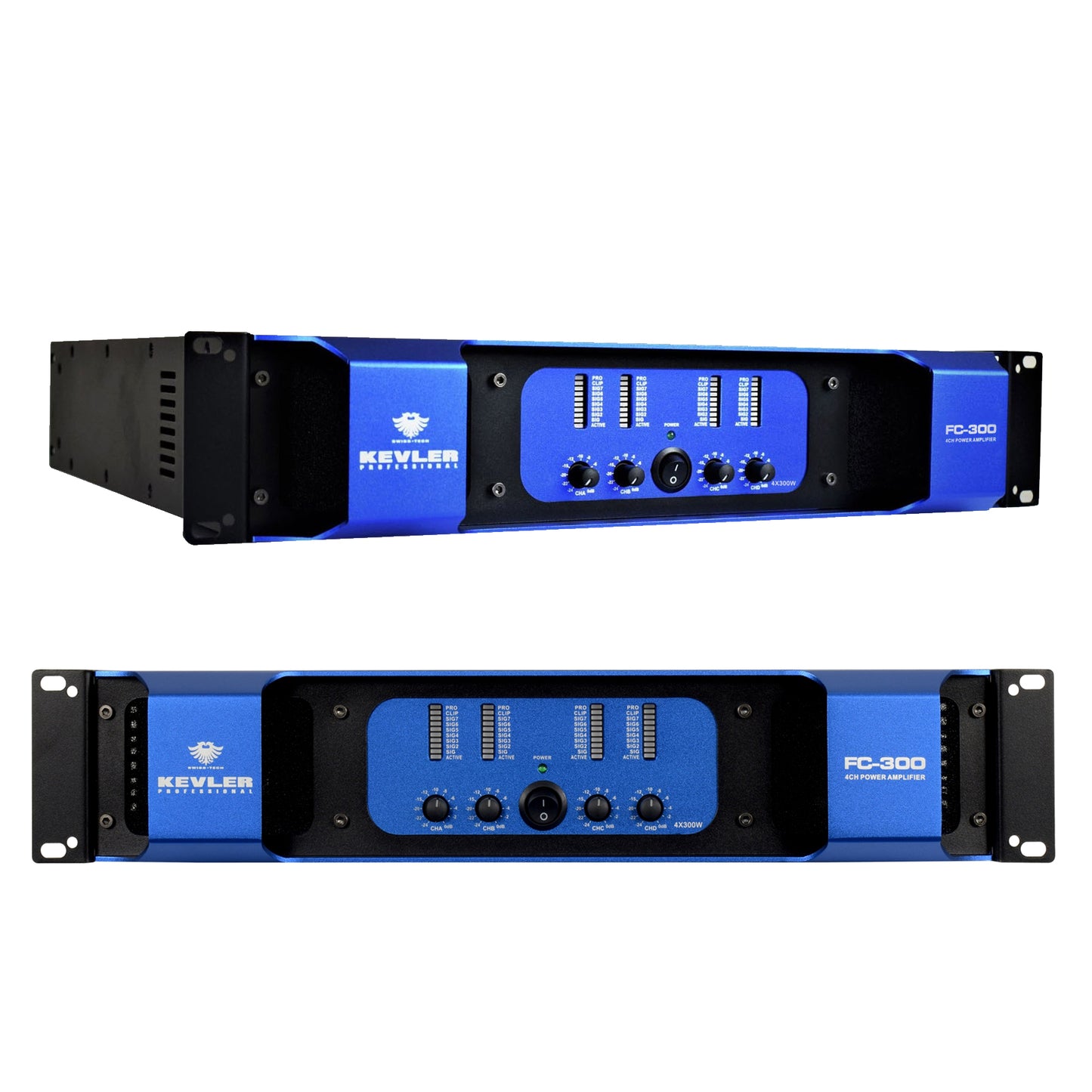

KEVLER Professional Power Amplifier
-
High-current toroidal transformer, 2 ohms stable
-
Front mounted gain control for easy access
-
Dual variable speed fans
-
Selectable input sensitivity
-
Stereo, Parallel, Bridge mode selection
-
Balance XLR input
-
Speakon and binding post speaker output
-
Strong Built metal chasis
-
Highpass & lowpass filter selection
Specifications
-
Stereo Power @ 80: 4 x 300W
-
Stereo Power @ 40: 4 x 450W
-
Bridge Mono Power @ 80: 2 x 600W
-
Signal to Noise ratio: 109 dB
-
Slew Rate: 60ν/με
-
Damping Factor: 400:1
-
Frequency Response: +0.5dB 20Hz-30KHZ
-
Total Harmonic Distortion: ≤0.1% Rated Power @ 8 Q1 KHz
-
Input Sensitivity: 0.775V, 1.0V, 1.44V
-
Input Impedance: 20KOmhs Balance
-
Crosstalk: ≤0.8 dB
-
LED Indicators: Signal, Protect, Clip, Active
-
Class: AB
-
Power supply & Fuse: 240V/60Hz T15A
-
Net Weight: 22Kg
-
Dimension (mm): 505W x 483D x 88H
