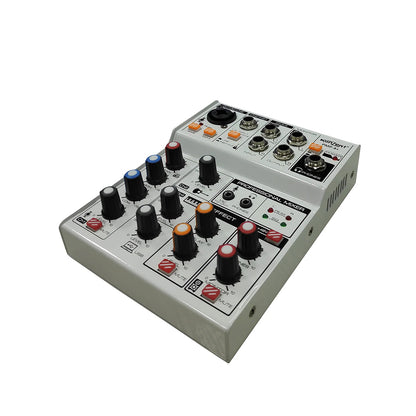

Overview:

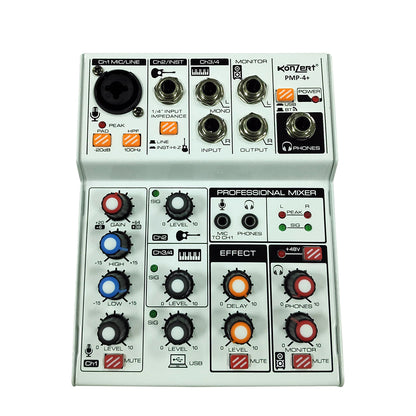

Controls and Functions:
1. [MIC/LINE] Input jack, used to connect the mono signal such as XL microphone or 1/4" line input device.
2. [LOW CUT] Button, press it down to cut down the frequency under 100Hz.
3. [STEREO] Input jacks, for connecting to line level device, e.g. electric keyboard. If only connect to L (MONO) jack, the mixer will send out the same mono signal to L and R outputs.
4. [MAIN OUT] Output jacks, connect the input of an amplifier or a recorder.
5. [POWER] Button, it will power on/off the mixer.
6. [POWER ON] LED, it will light up when the mixer's power is on.
7.PHONES] Output jack, connect with earphones, it is supporting stereo phone plug.
8.[GAIN] Controller, determines the basic volume of CH1/2, adjust it for maximum volume performance, when the volume gets too loud, the PEAK LED will light up or keep flashing.
9. [HIGH| Treble tone controller, adjust the controller to enhance or attenuate for 15dB at 12KHz.
10. [LOW] Bass tone controller, adjust the controller to enhance or attenuate for 15dB at 80Hz.
11. [FX] Button, press it down to get the effect for CH 1/2.
12. [PEAK] LED, it will light up when the input signal is too high.
13. [PAN] Controller, this is the panorama control or balanced control, determines the position of channel signal within the stereo image. When working in subgroups, you can use the PAN controller to assign the signal to just one output, which gives you additional flexibility in recording situations. Set this controller in middle position, signal level of channel L & R will be same. When the controller is set to left, only Channel L receives the signal, Channel R can not, vice versa.
14. [LEVEL| Controller on each channel, adjust to balance the volume.
15. [DELAY] Controller, adjust the time interval of echo repeat.
16. [FX] Level controller, adjust the volume of effect.
17.[MAIN] Controller, used to adjust the volume of MAIN and USB PORT output.
18. [PHONES] Controller, control the volume of earphones.
19. [CLIP L & R] LED, they will light up when the MAIN output signal is too high.
20. [STEREO IN] 3.5mm Jack, this is an auxiliary stereo input, flexible connectivity for a variety of external audio devices. The volume can be controlled by external audio device or CH5/6 controller.
21. This is an input select switch, when the switch is bounce up, the input signal is from
CH3/4. Press it down, the input signal is from USB.
22. [+48V PHANTOM POWER] Button/LED, when the button is turned on, the LED light is on, provide DC +48V phantom power to XL plug on MIC mono input. Please turn on this button when using the condenser microphone which is powered by a phantom power.
23. [MP3 & USB DISPLAY AND CONTROL]
[MI/REC] Button: Under state of U-Disk/Bluetooth/PC playing, short press this button to play or pause, under state of U-Disk playing, long press this button to begin recording, then, long press again to exit the recording and play the recorded music directly.

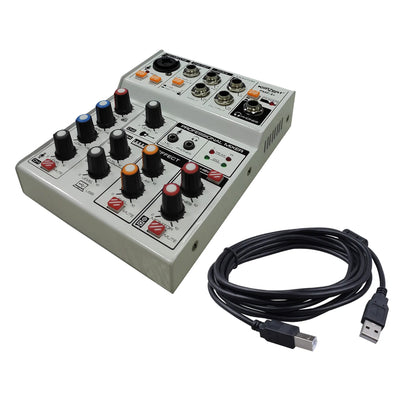

24. [USB FOR POWER SUPPLY ONLY]
Connected with PC USB port, Power bank or power socket to supply power to mixer.
It must meet the following requirements:
Output Voltage: 4.8V to 5.2V
Output Current: 1A or even more
