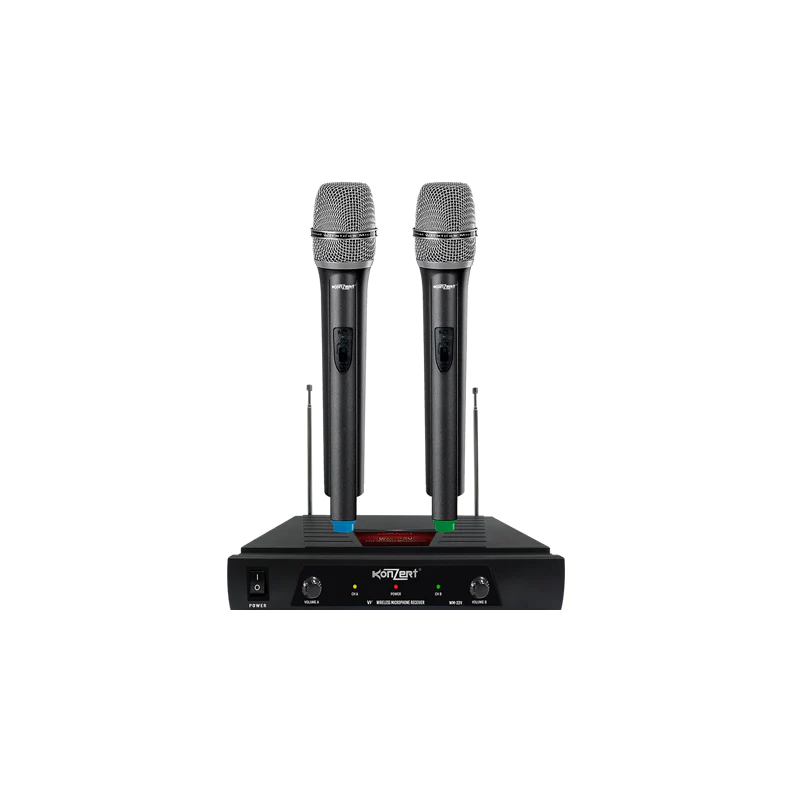

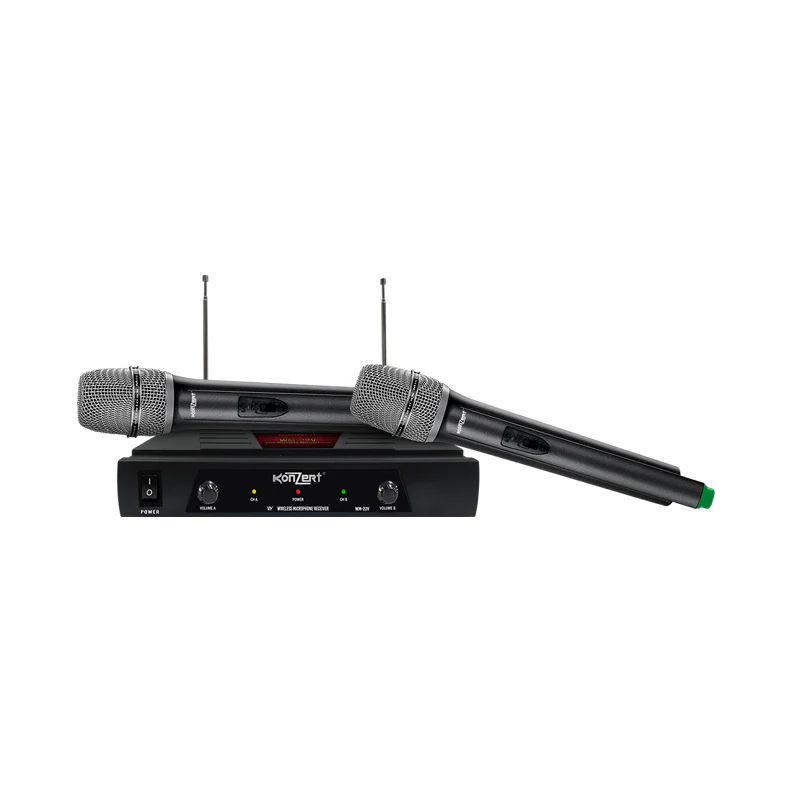

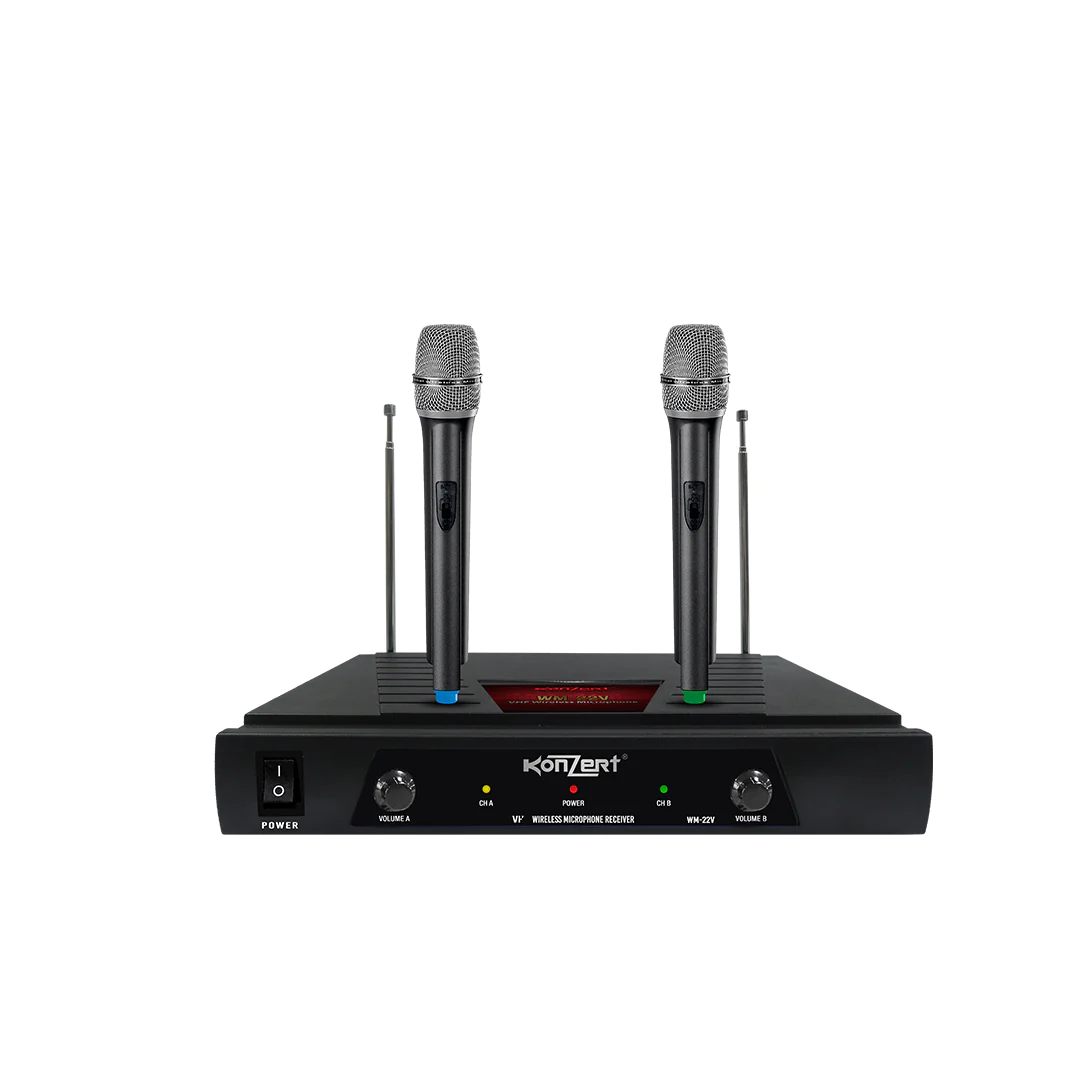

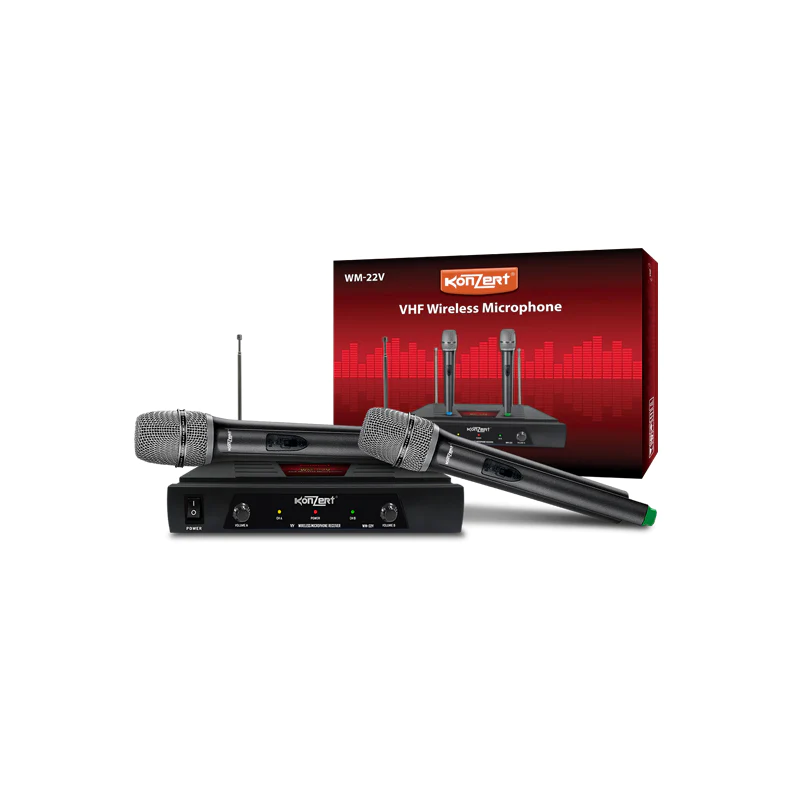

WM-22V
VHF Wireless Microphone
Features:
-
Model: WM-22V
-
Dual Wireless Handheld VHF Microphone
-
Dynamic Capsule
-
227.25MHz/239.55 MHz Fixed Frequency
-
High Power Sound
-
2 Channels Wireless
-
Solid Signal
-
2 Wireless Microphone
-
Power LED Light Indicator
-
Volume for Microphone A & Microphone B
Specification:
-
Carrier Type: VHF 174-270MHz
-
Frequency Stability: 0.005%
-
Maximum Deviation: 30kHz
-
Audio Frequency Response:40Hz-20kHz
-
Signal to Noise Ratio: >85dB
-
Audio Dynamic Range: >80dB
-
T.H.D: <0.2%
-
Maximum Range : 50 meters
Receiver
-
Power Supply: 12Vdc 250mA (mains adapter supplied)
-
Audio Outputs: XLR (balances), Jack (Unbalanced)
-
Controls: Power On/Off, Mic. Volume
-
Indicators: Power, Signal
-
Dimension: 43x213x180mm
-
Weight:340g
Handheld Transmitter
-
Capsule Type: Dynamic- Cardioid Response
-
Battery: 1.5V DC, PP3
-
Switch: Power, Mute, On
-
RF Emission: <10mW
-
Dimension:235x44mm
-
Weight(w/out Battery): 176g
