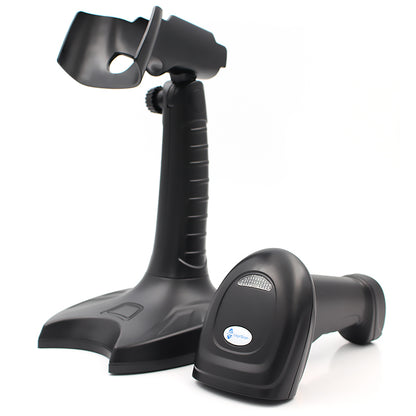

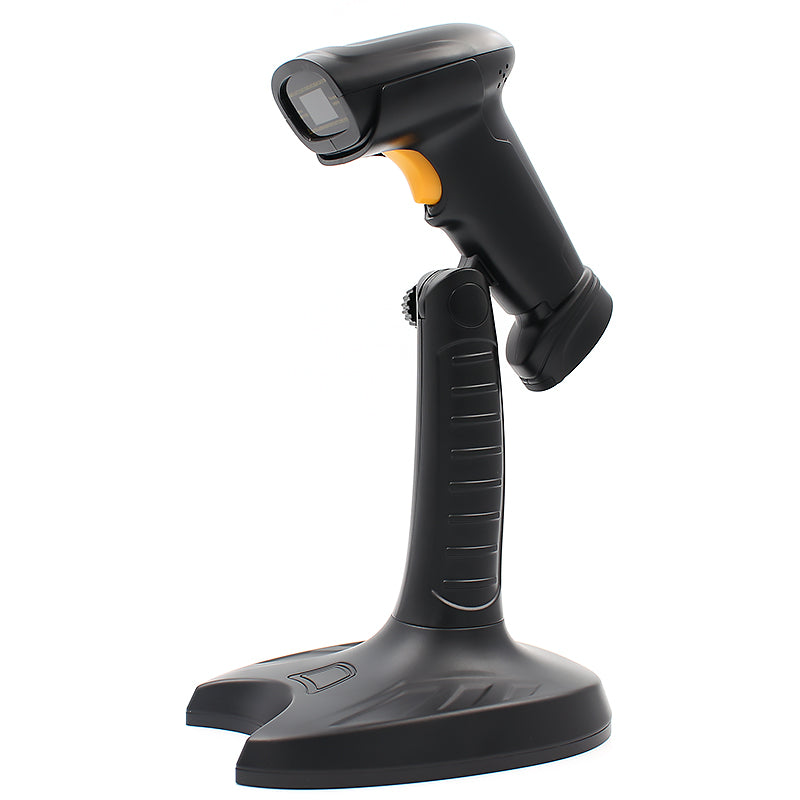

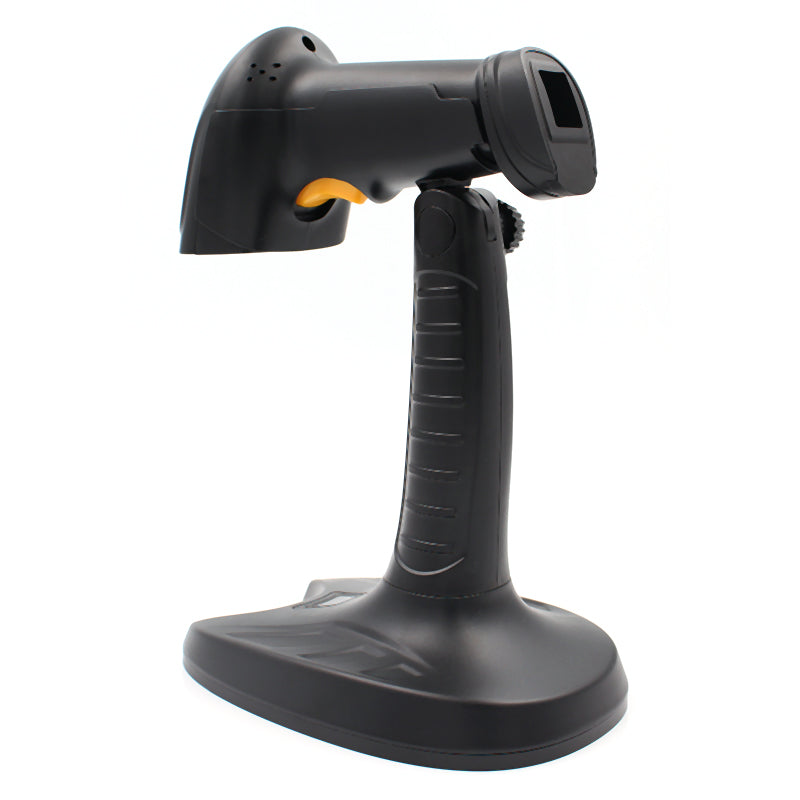

LogicOwl OJ-910 Barcode Scanner with Stand 1D Reader



Error rate |
less than 1/5 million |
Antiknock design |
withstand 2.0M drops |
Function |
Parameter |
Light Source Type |
650nm Visible laser diode |
Use-Mode |
Hand-held |
Safety Performance |
Meet the Grade II National Criteria for Laser Safety |
Barcode Type |
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,Post Bar etc. |
Interface |
USB port |
Scanning Mode |
Manual |
Depth of Field |
10-800mm (pos0.9) |
scan pattern |
Single Scan |
Reading Speed |
150 scan lines per second |
Mention pattern |
Buzzer and bi-color light( Red-power, Blue-decoding Successfully) |
Reading angle of elevation |
60 Degree |
Light Levels |
450 foot-candles |
Reading angle of dip |
45 Degree |
Operating temperature |
-20 C-45C |
Storage temperature |
-20 C-45C |
Operating humidity |
5%-85% |
Storage humidity |
5%-85% |
Power supply |
5V |
Light intensity Daylight |
5000lux max |
Exterior dimension L x W x H |
83.7mm×68.2mm×162.8mm |
Materials |
ABS+pc |
Weight |
140g |
