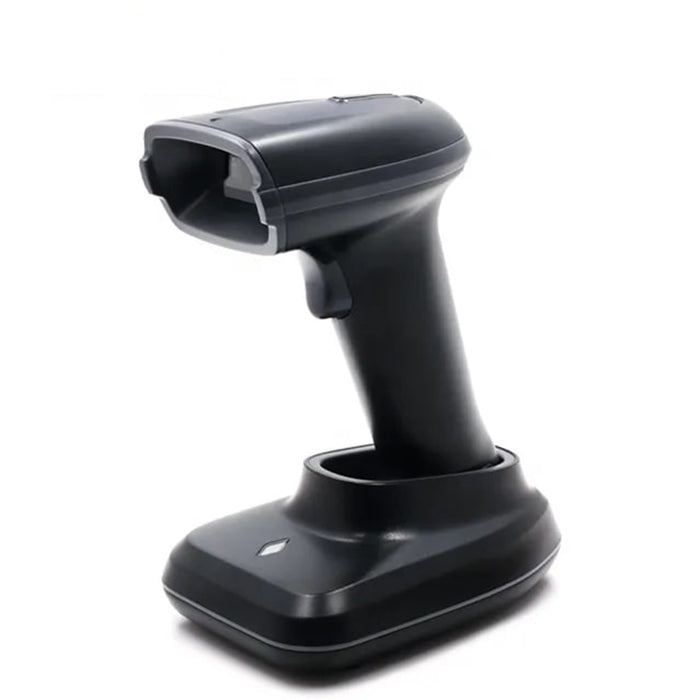

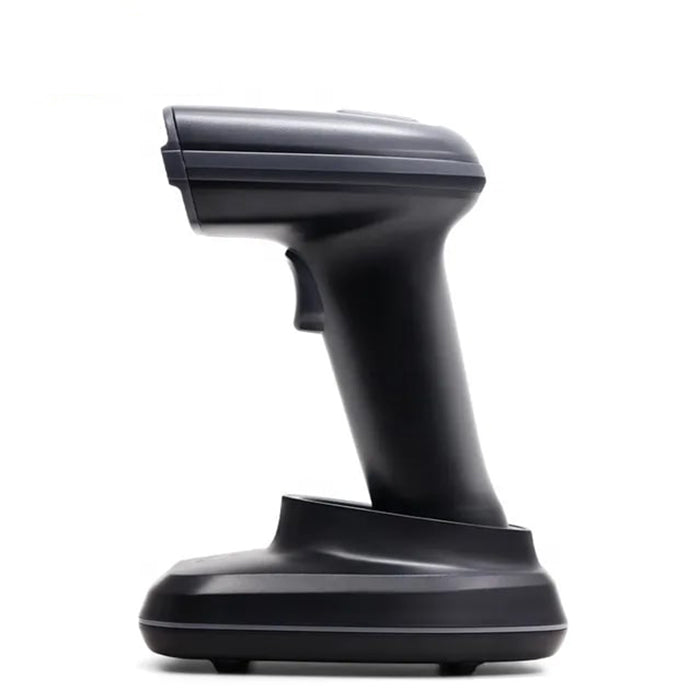

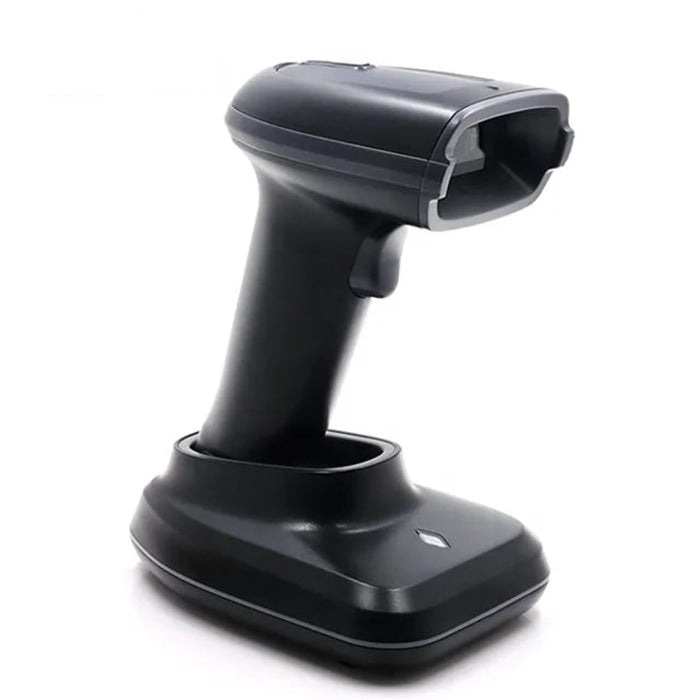

Handheld 1D QR 2D Barcode Scanner Wireless CMOS Bar Code Reader for POS System Supermarket Warehouse HS23
-
Type: Barcode Scanner
-
Scan Element Type: CMOS
-
Colour Depth: 32 Bit
-
Interface Type: Bluetooth
-
Max Paper Size: A4
-
Optical Resolution: 5 mil
-
Scan Speed: 300 times/sec
-
Brand Name: Logicowl
-
Warranty(Year): 6 Months
-
Software development kit (SDK): Yes
-
color: black
-
Product name: 2D Wireless Barcode Scanner
-
Application: Retail Point of Sales, Inventory, Heathcare, Hospiblity
-
Light source: White LED/Red LED
-
Decode Capabilities: 1D + 2D + QR Code
-
Resolution: ≥5mil
-
Scan Mode: Handheld Rapid Scan
-
Weight: 0.5kg
-
Dimension: 185*110*83mm
-
Voltage: 5 VDC±5%
|
Model |
OJ-BWHS23 2D Barcode QR Code Scanner |
||||
|
Performance |
Image Sensor |
640*480 CMOS |
|||
|
Decode Capacities |
1D |
Airline 2 of 5、Codaba、Codablock A、Code 128、Code 11、Code 32、Code 39、Code93、EAN/UPC、EAN-8、EAN-8转成EAN-13、EAN-13、Full SACII Code39、GS1DataBar Expanded、GS1DataBar Limited、GS1DataBar Omnidirectional、HongKong 2 of 5（China post）、Interleaved 2 of 5、RSS-14、RSS-LIMITED、RSS-EXPANDED、Straight 2 of 5 Industrial、Telepen、Trioptic Code、UPC-A、UPC-E、UPCE、Codablock F、 Pharmacode、MSI、Matrix 2 of 5 |
|||
|
2D |
Composite、Data Matrix Code、HANXIN、Maxicode、MicroPDF417、Micro QR code、PDF417、QR Code、Aztec Code、DOT_CODE |
||||
|
Typical Decode Range |
Test Codes |
Near |
Far |
||
|
UPC-13 13mil |
3 |
26 |
|||
|
code39 15 mil |
5 |
20 |
|||
|
QR Code 20 mil |
1 |
15 |
|||
|
Operating Systems |
Linux，Android，Windows XP、7、 8、 10，M*c0S |
||||
|
Scan Mode |
Auto Scan/Trigger Manual Scan |
||||
|
Countries Keyboard |
Italy, Germany, Spain, Japan, Russia, Sierra Leone, Turkey Q, Hungary, Russian (Russia), Belgium, Singapore, El Salvador, France, United Kingdom, United States, Thai |
||||
|
Print Contrast |
25% Minimum Reflectance Difference |
||||
|
Data Formatter |
Prefix/Suffix/Aim ID/Code ID |
||||
|
Scan Angle |
Horizontal: 45° Vertical: 34° |
||||
|
Environmental |
Drop |
Withstand 5 drops from 2 meters height |
|||
|
Sealing |
IP42 |
||||
|
Operating Temperature |
-20-55℃ |
||||
|
Storage Temperature |
-20-60℃ |
||||
|
Operating Humidity |
5-95% Non-Condesing |
||||
|
Storage Humidity |
5-95% Non-Condesing |
||||
|
Amient Light |
0-70000LUX |
||||
|
Wireless |
Wireless Technology |
Bluetooth |
|||
|
Wireless Range |
60m |
||||
|
Wireless Transmit Power |
20dBm |
||||
|
Wireless Receive Power |
20dBm |
||||
|
Indicators |
LED Indicators |
Blue LED on: Power on Red LED on: No Battery Blue LED Flash: Decode |
|||
|
Beeper |
Startup Beep/Good Read Beep/Error Beep |
||||
|
Physical |
Net Weight |
202g |
|||
|
Gross Weight |
335g |
||||
|
Dimension |
173.3mm* 68mm*96.9mm |
||||
|
Package Size |
185*110*83mm |
||||
|
Cable Length |
180CM(±3CM) |
||||
|
Scan Times |
13000 scans after every charge |
||||
|
Expected Operating Time |
15Hours |
||||
|
Expected Charging Time |
4 Hours |
||||
|
Data Storage Capacity |
120000 Barcode Data |
||||
|
Battery Capacity |
1800MAH |
||||
