LogicOwl OJ-76 Dot Matrix POS Printer/Barcode Printer for POS System Compatible with Windows 7 OS
Features:
- Compliance with international safety certification,the products meet the national standards
- Well-knit inner space lowers the noises effectively while printing, without distracting noisy through transactions.
- The black mark sensor orientates to print fixed length.
- YK-76 have graceful external appearance with excellent build quality and low price that the competition can't match. It has windows driver.
- YK-76 fits neatly into any retail or hospitality environment.
|
PRINT PARAMETERS |
|||
|
Print Method |
9 needle serial impact matrix
|
||
|
Print Width |
Max.400 dot/line |
||
|
Copy Ability |
1 original + 2 copies |
||
|
Print Resolution |
203×180DPI |
||
|
Print Speed |
4.5 lines /sec |
||
|
Interface |
USB,RS232,PS/2 ( Three in one) |
||
|
Character Set |
Chinese-Simplified,ASCLL(12*12), ASCLL(9*17) |
||
|
Fonts |
GB2312 |
||
|
Reliability |
Print head |
1.5billion fonts |
|
|
Print structure |
10 million lines |
||
|
PRINT MEDIA |
|||
|
Media Type |
Commonly paper and Carbonless Paper
|
||
|
Media Width |
76mm |
||
|
Media Core Diameter |
Max Φ80mm |
||
|
Media Thickness |
Commonly paper |
0.04mm to 0.08mm |
|
|
Carbonless Paper |
0.04mm to 0.08mm |
||
|
Paper-out Type |
Manual |
||
|
POWER ADAPTER |
|||
|
Power |
AC 110V/220V, 50 to 60Hz, DC24V/2A |
||
|
Cashbox Output |
DC24V/1A |
||
|
PHYSICAL PATAMETERS |
|||
|
Weight |
N.W |
1.99kg |
|
|
G.W |
2.79kg |
||
|

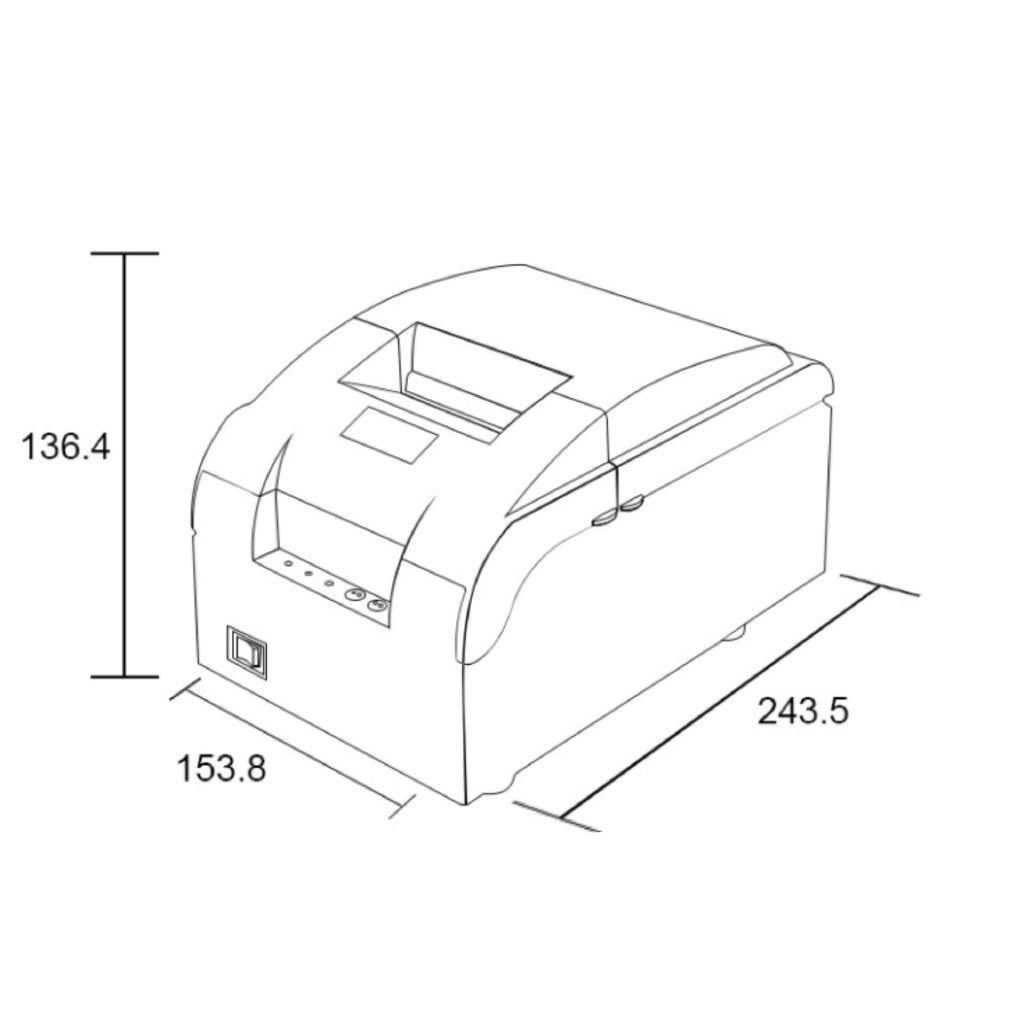

Size |
Host |
243.5mm×153.8mm×136.4mm |
|
|
Package |
305mm×255mm×170mm |
||
|
ENVIRONMENTAL PATAMETERS |
|||
|
Operating |
0degrees to 45 degrees(32 Fahrenheit to113 Fahrenheit ) |
||
|
Storage Temperature |
-10degrees to 60 degrees(-14 Fahrenheit to 140Fahrenheit ) |
||
|
Humidity |
10% to 90% RH |
||
