LogicOwl OJ-8030 80mm Thermal Receipt Printer for POS Cash Register with USB and RS232 and Ethernet with Auto Cutting

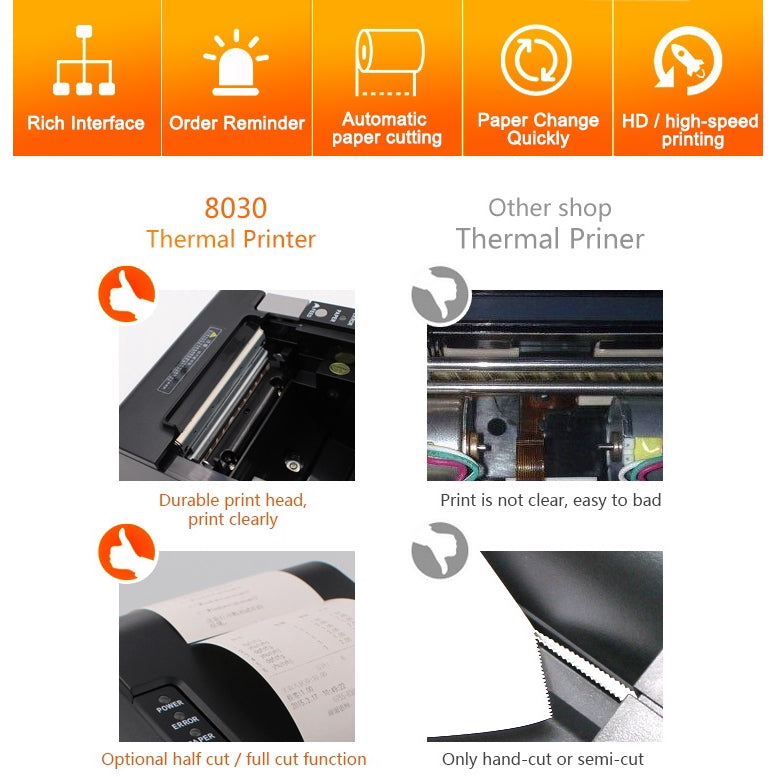

Features:

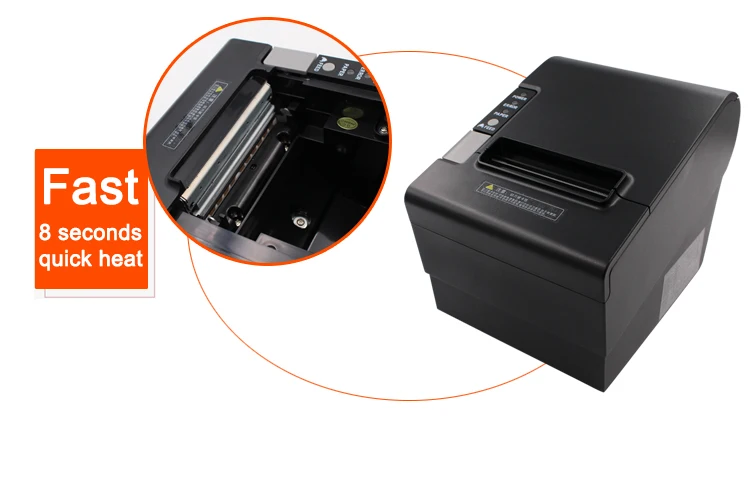

- High Printing Speed (Max 250mm/second)
- With Auto Cutter
- Pretty Outside Design.
- 250mm/s high speed printing, easy to maintain, improve work efficiency
- Low noise, high speed image & characters printing

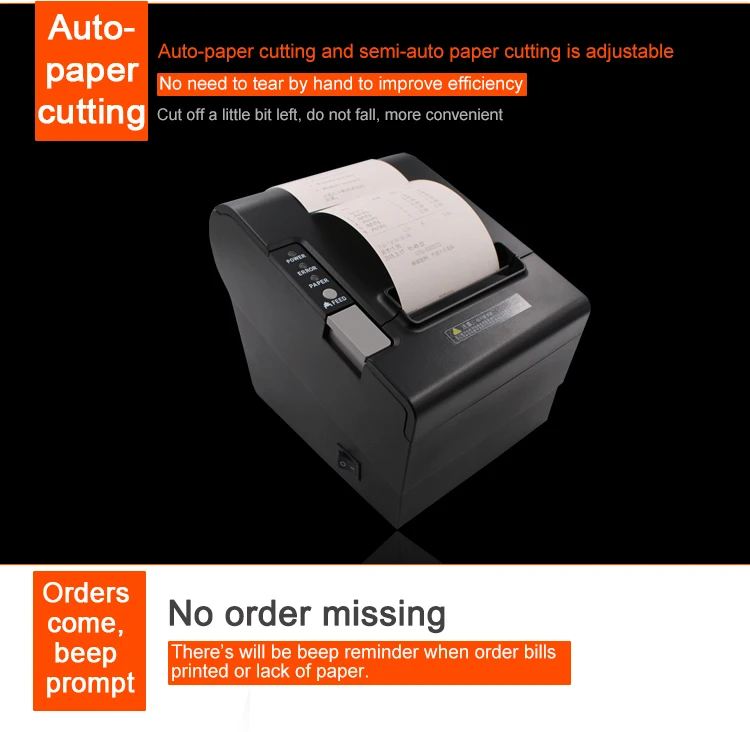

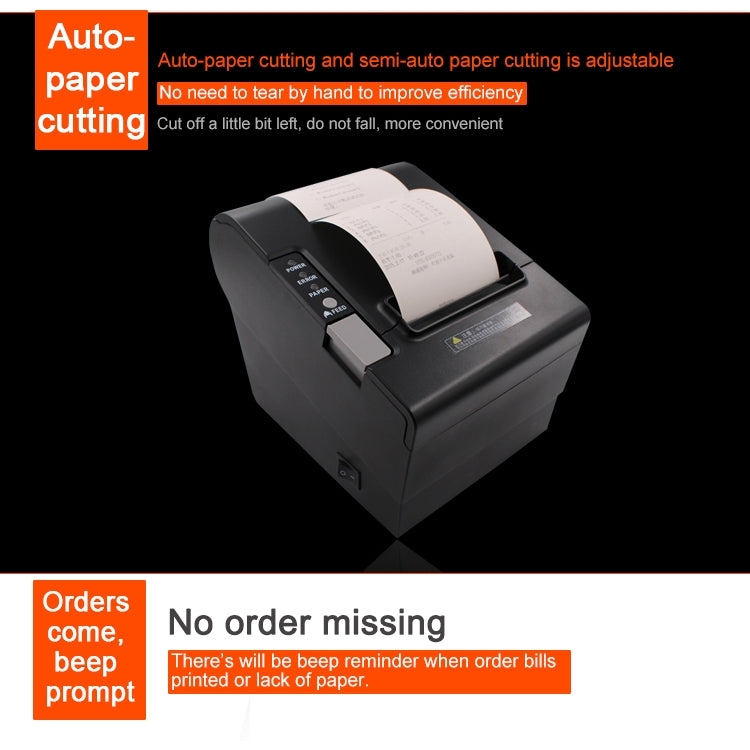

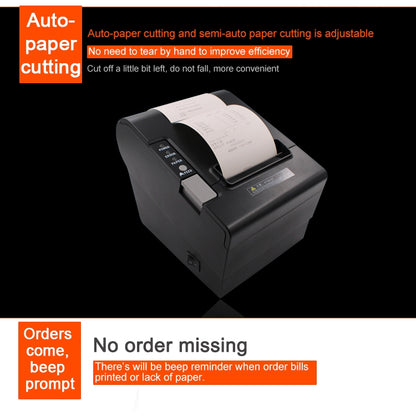

- Easy paper loading, with auto cutter, partial/full cut optional
- Flexible installation on countertop or wall using optional bracket

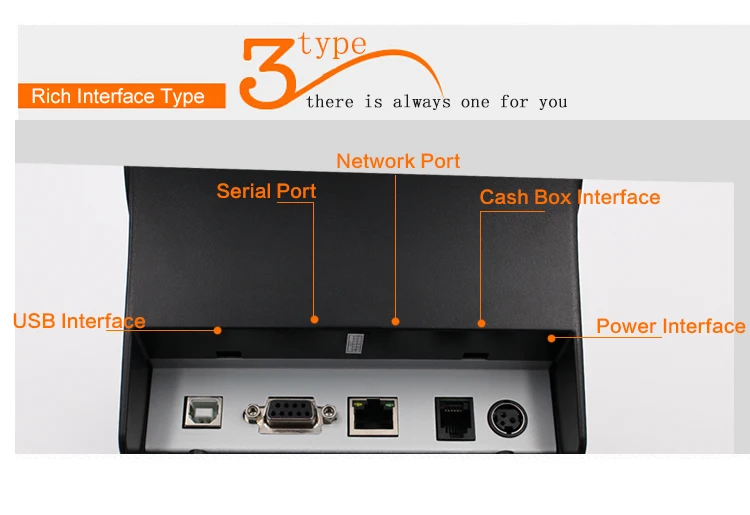

- Parallel, Serial, USB, Ethernet interfaces optional. (support two in one, or three in one)
- Support paper out alarm and print prompt.

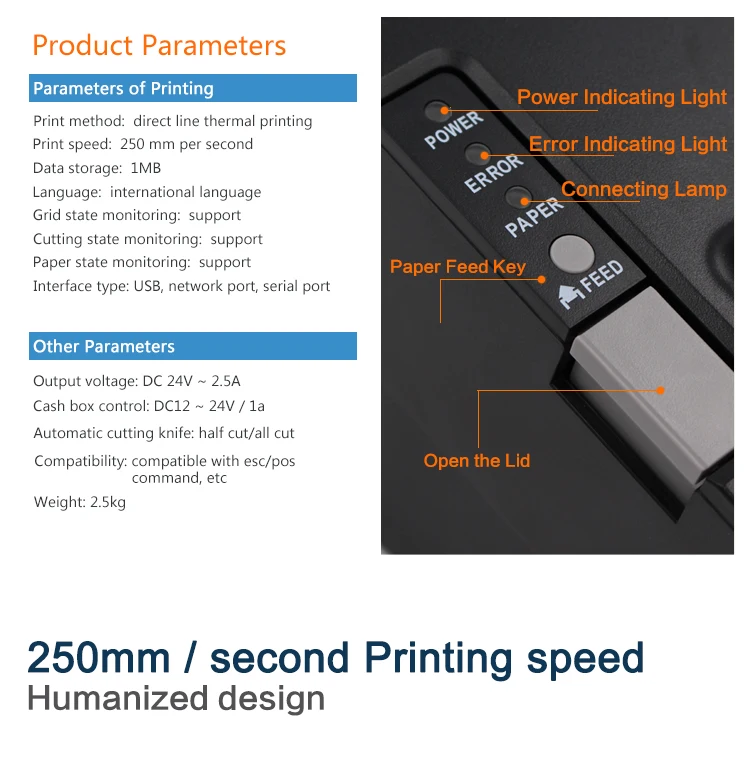

PRINT PARAMETERS |
||
Print Method |
Straight Thermal Print |
|
Print Width |
150mm to 230mm |
|
Print Resolution |
203×180DPI |
|
Print Speed |
300mm/sec |
|
Interface |
USB, PS/2,LPT,RS232 |
|
Character Set |
Chinese-Simplified, Chinese Traditional, English and 47 languages |
|
Fonts |
GB2312 |
|
Printer Head |
ROHM Compatibility: EPSON |
|
Reliability |
Print head:150KM |
|
Sensors |
Temperature of print head ,Paper out , Black mark |
|
PRINT MEDIA |
||
Media Type |
Continuous or Black mark thermal paper |
|
Media Width |
80mm |
|
Media Core Diameter |
Max Φ85mm |
|
Media Thickness |
0.06mm to 0.1mm |
|
Paper-out Type |
Automatic |
|
POWER ADAPTER |
||
Power |
AC 110V/220V, 50 to 60Hz, DC24V/2A |
|
Cash-box Output |
DC24V/1A |
|
PHYSICAL PATAMETERS |
||
Weight |
N.W |
1.7kg |
G.W |
2.58kg |
|
Size |
Host |
202.8mm*140.8mm*149.8mm |
Package |
255mm*190mm*245mm |
|
ENVIRONMENTAL PATAMETERS |
||
Operating |
0degrees to 45 degrees(32 Fahrenheit to113 Fahrenheit ) |
|
Storage Temperature |
-10degrees to60 degrees(-14 Fahrenheit to140 Fahrenheit ) |
|
Humidity |
10% to 90%RH |
