Specification:
|
Sensor Resolution |
960*640 |
||
|

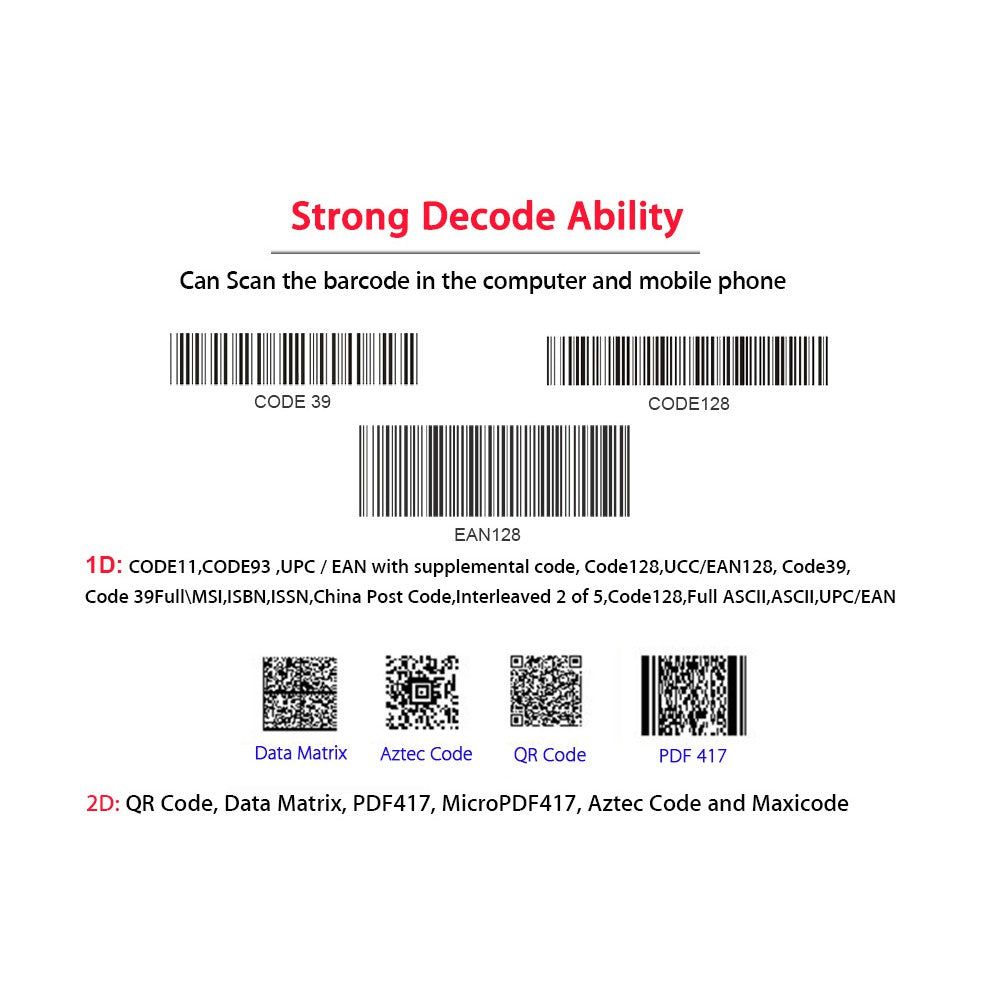

Capacity |
1D(EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of5,MSI,etc); 2D(PDF417,MICROPDF417,Datamxtrix,QR,Maxicode,Aztec,etc) |
||
|
Depth of Field |
Tested Code |
Minimum |
Maximum |
|
5mil code39 |
1.5cm |
8cm |
|
|
13mil EAN13 |
4cm |
23cm |
|
|
15mil DM |
3cm |
14cm |
|
|
15mil QR |
2cm |
13cm |
|
|
15mil PDF417 |
6cm |
18cm |
|
|
System Compatibility |
Android, IOS, Windows |
||
|
Light Source |
Wavelength,675nm±3nm Infrared LED |
||
|
Decode Accuracy |
3mil |
||
|
Code Available |
1D,2D Codes printing on Paper or film on Cellphone |
||
|
Scanning Speed |
230 Times/Second |
||
|
Symbol Contrast |
20% |
||
|
Scanning Angle |
Horizontal : 72° Vertical:82° Rotated:360° |
||
|
Transmission range |
The open space 15 meters |
||
|
Wireless Technology |
Bluetooth. |
||
|
Drop |
Design to withstand 1.5 M drops to concrete 300 TIMES |
||
|
Environmental Sealing |
IP54 |
||
|
Working Temperature |
-20-55 Celsius degree |
||
|
Conserve Temperature |
-40-65 Celsius degree |
||
|
Working/Conserve Humidity |
5-95% Non-Condensed |
||
|
Environment Light |
0-120000LUX |
||
|
Net Weight |
145g |
||
|
Packing Weight |
330g |
||
|

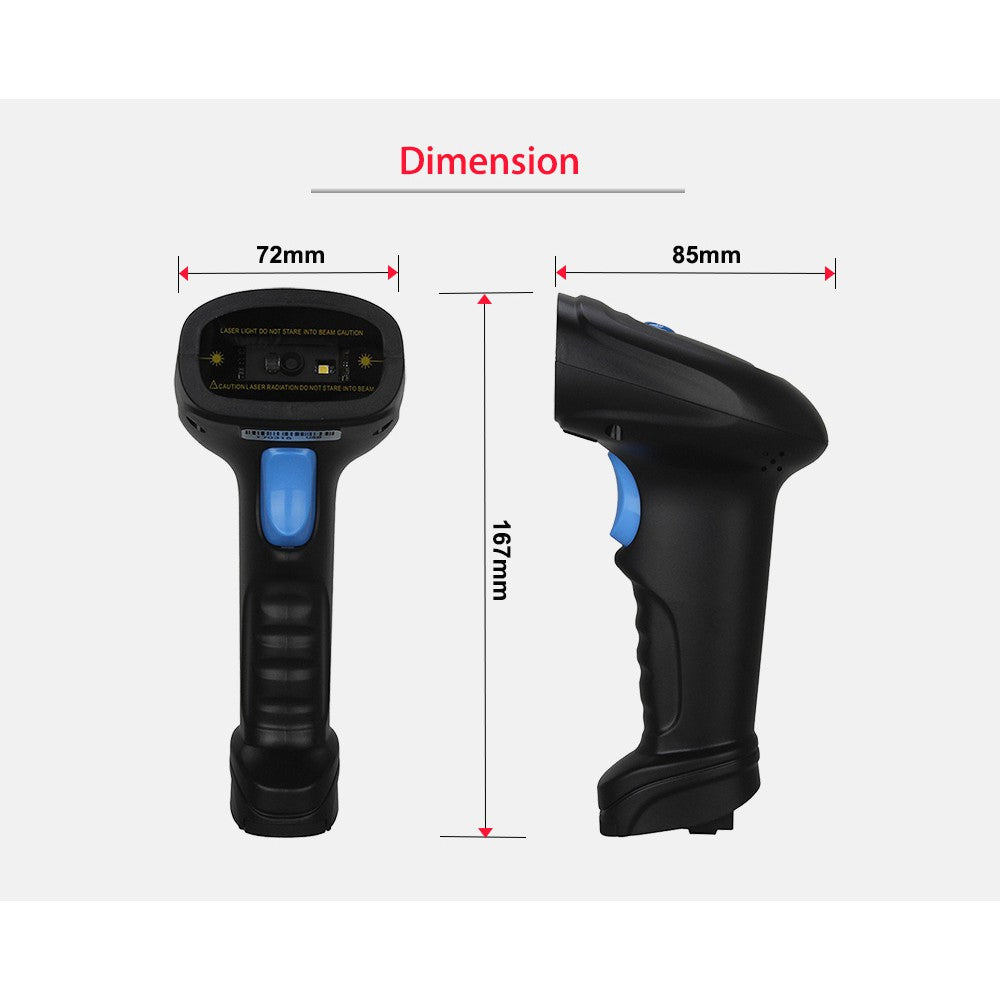

Host Size(L*W*H) |
167mm* 72mm*85mm |
||
|
Packing Size(L*W*H) |
185mm*110mm*80mm |
||
|
Prompting |
Buzzer, Red & Blue LED |
||
|

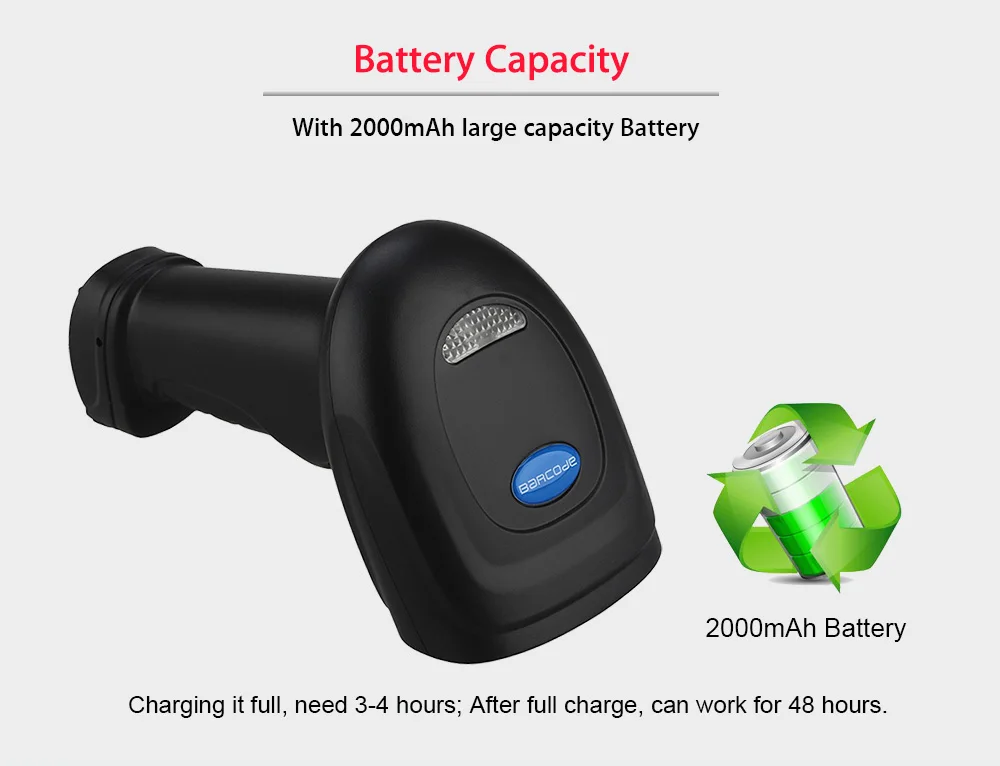

Battery capacity |
2000MAH |
||
|
Maximum Current |
373MA |
||
|
Working Current |
168MA |
||
|
Standby Current |
72MA |
||
