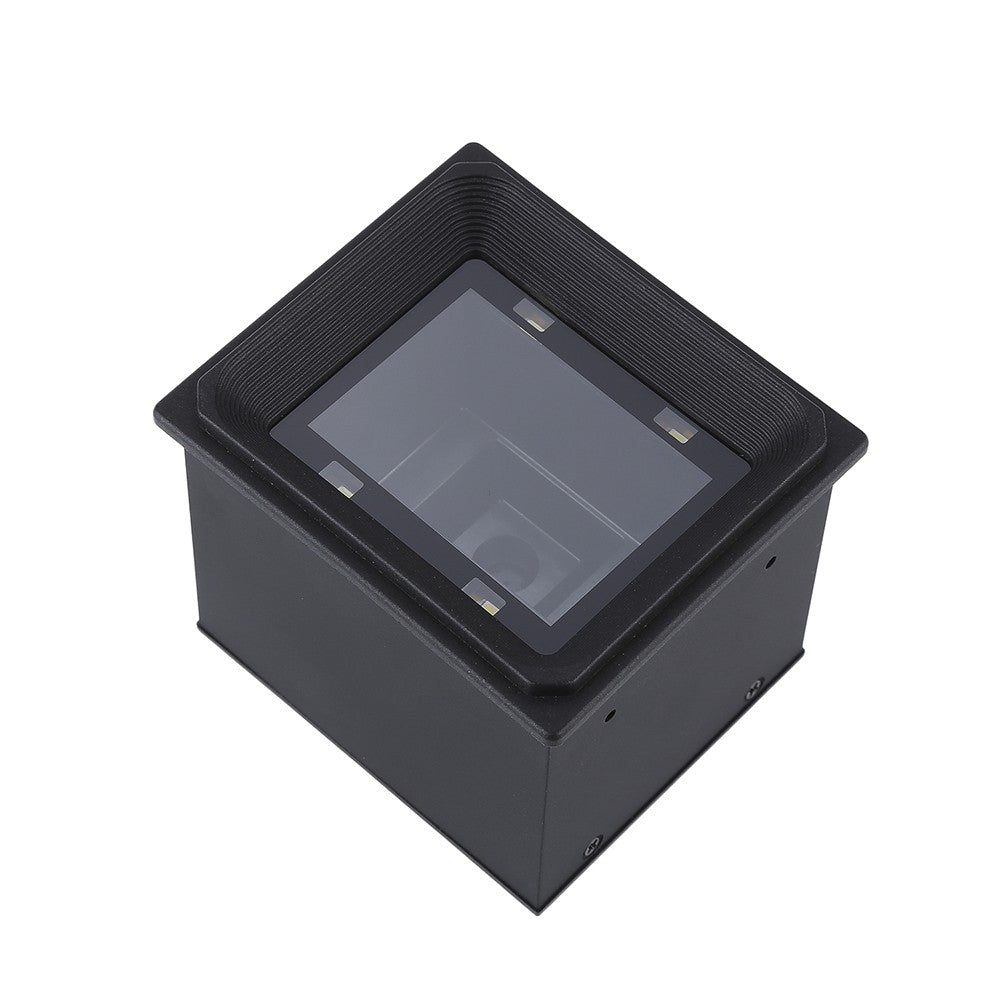

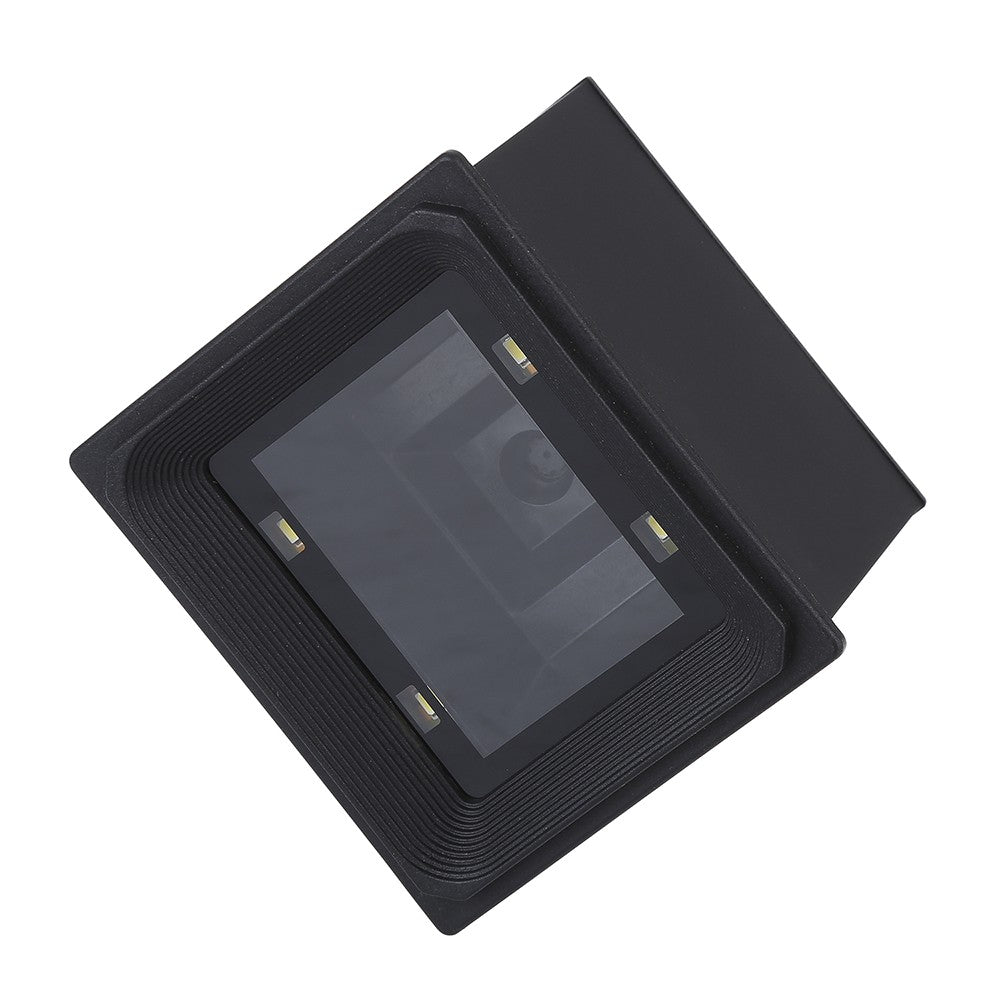

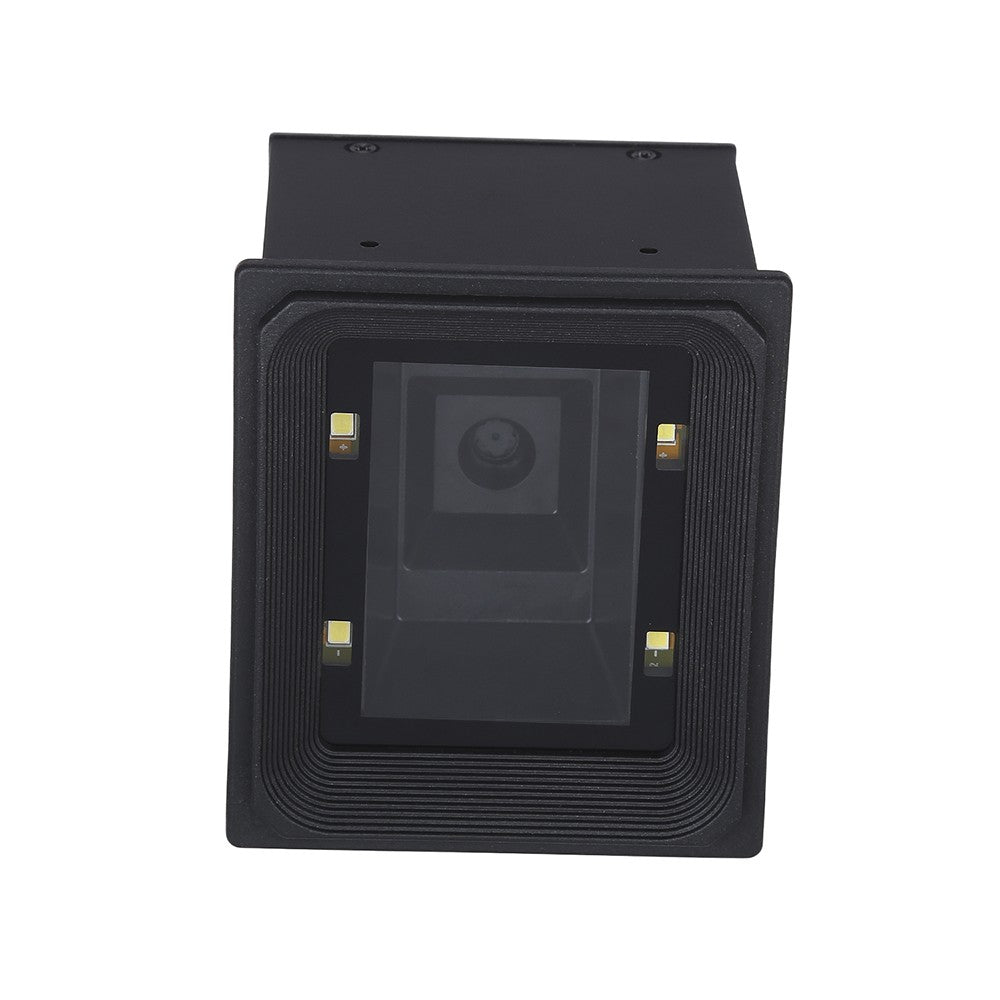

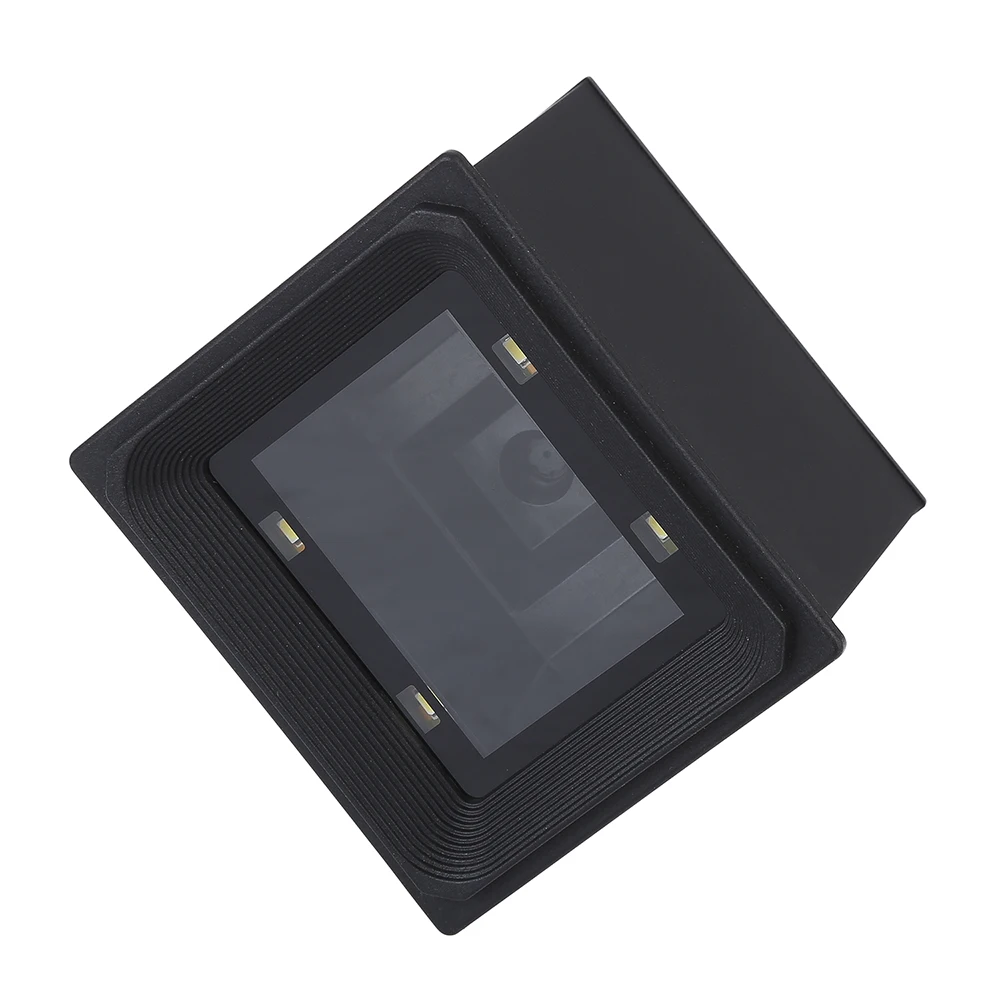

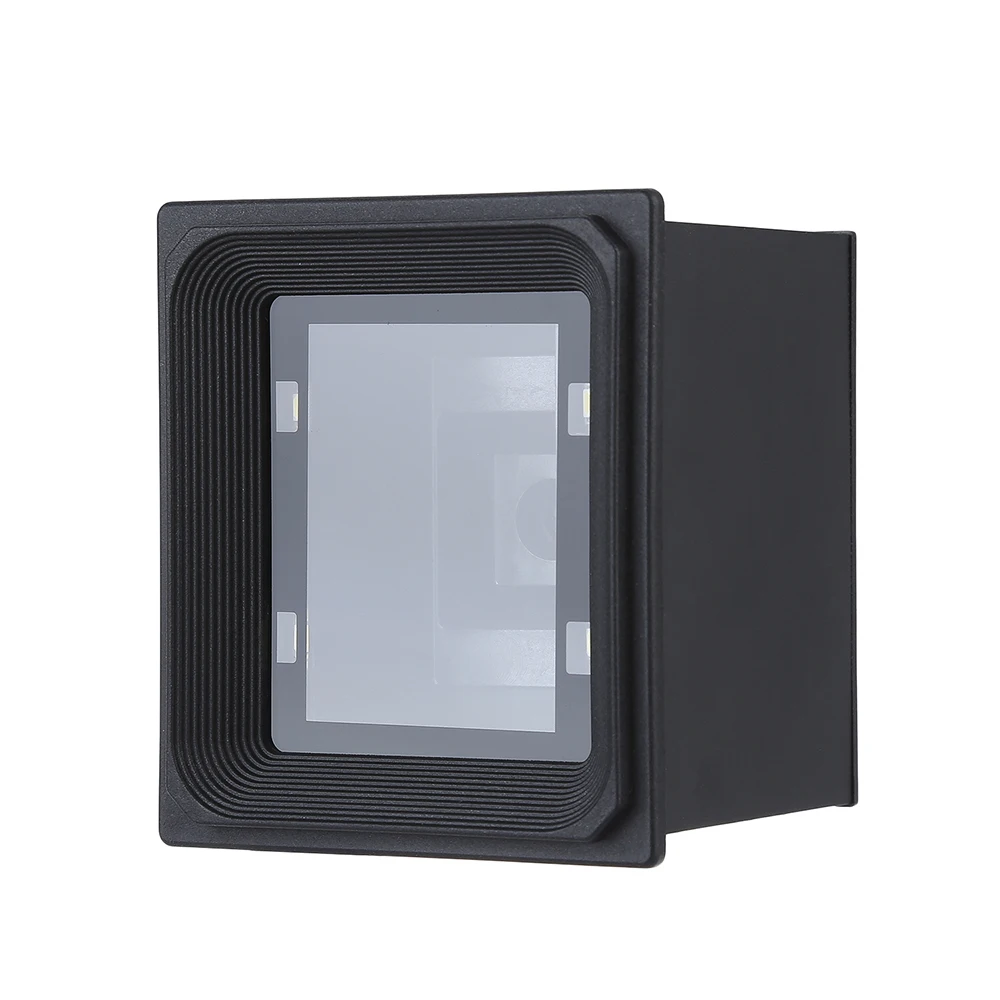

LogicOwl OJ-EP3000 High Speed Mini Embedded 1D and 2D Barcode Scanner Module QR Code USB Type

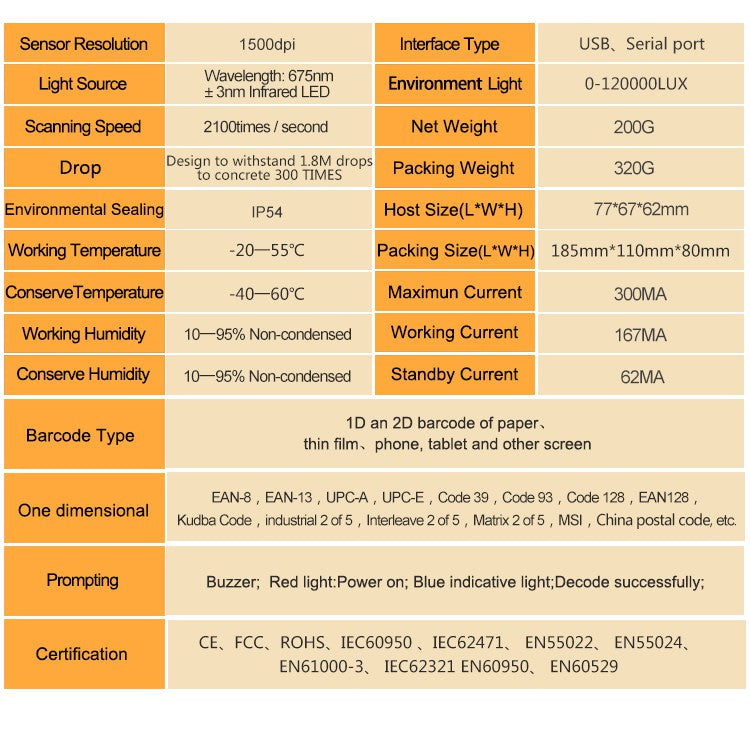

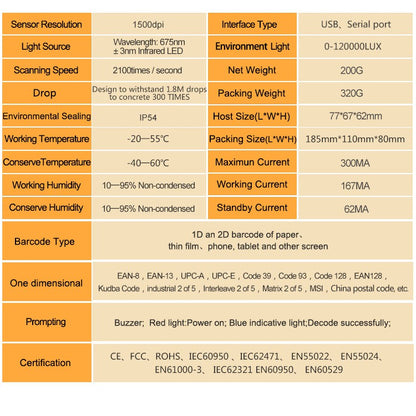

Specification:
- SENSOR Resolution: 960 * 640
- Decoding:
- 1D: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Kudoba, industrial 2 of 5, Interleave 2 of 5, Matrix 2 Of 5, MSI and so on.
- 2D: PDF417, MICROPDF417, Datamxtrix, QR, Maxicode, Aztec, code and so on.
- Bar code type: 1D&2D barcode on paper,thin film and screen
- Light source type: wavelength of 675nm ± 3nm high brightness near infrared LED

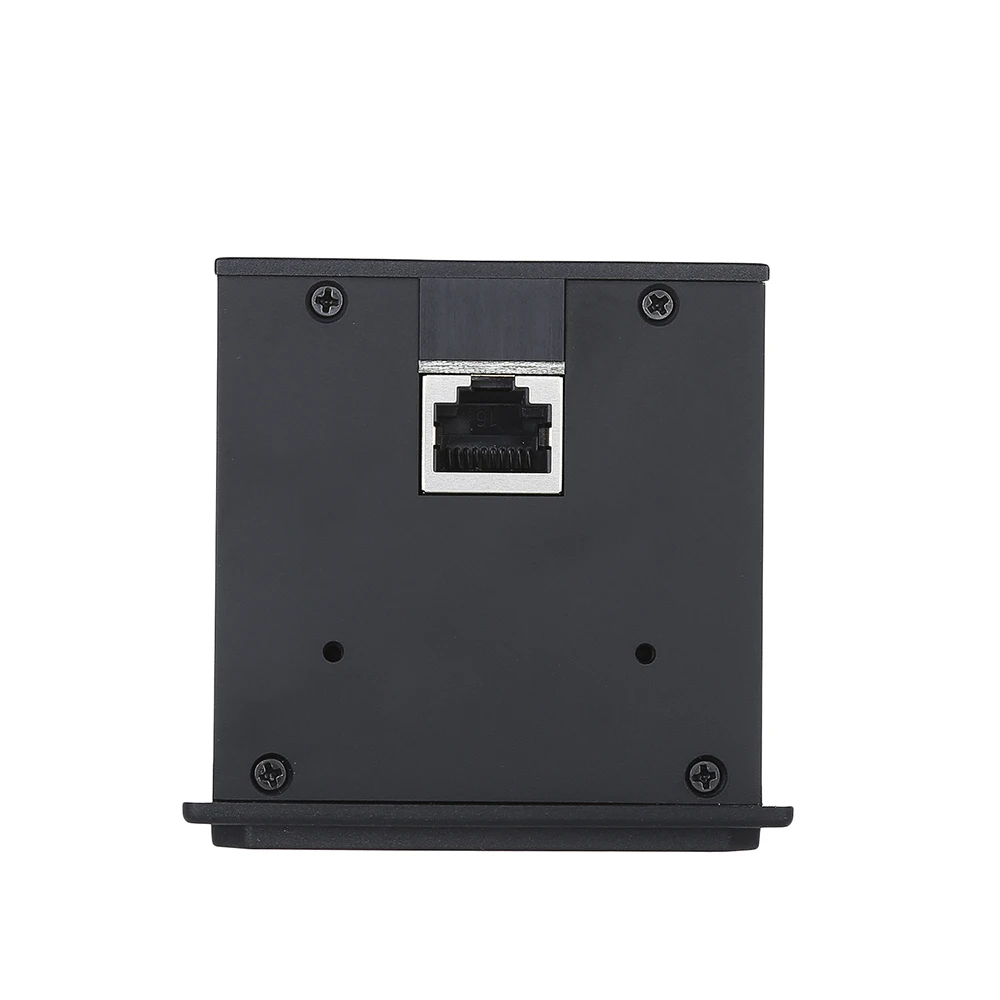

- Interface Type: USB
- Tip: buzzer sound tips and red and blue color lights tips
- IP Degree: IP54
- Wide applications: Express, warehouse, supermarket, clothing store, hotel
- Ambient light intensity: 0-120000LUX
- Operating voltage: 5V ± 0.25V
- Support systerm:WindowsXP/10/8/7
- Scanning accuracy :4mil
- Depth of field:code39 5mil(7-11cm) ; EAN13 13mil(7-35cm)
- Barcode reading: 210 times/sec
- Light source type: wavelength of 675nm + -3nm high brightness near infrared LED

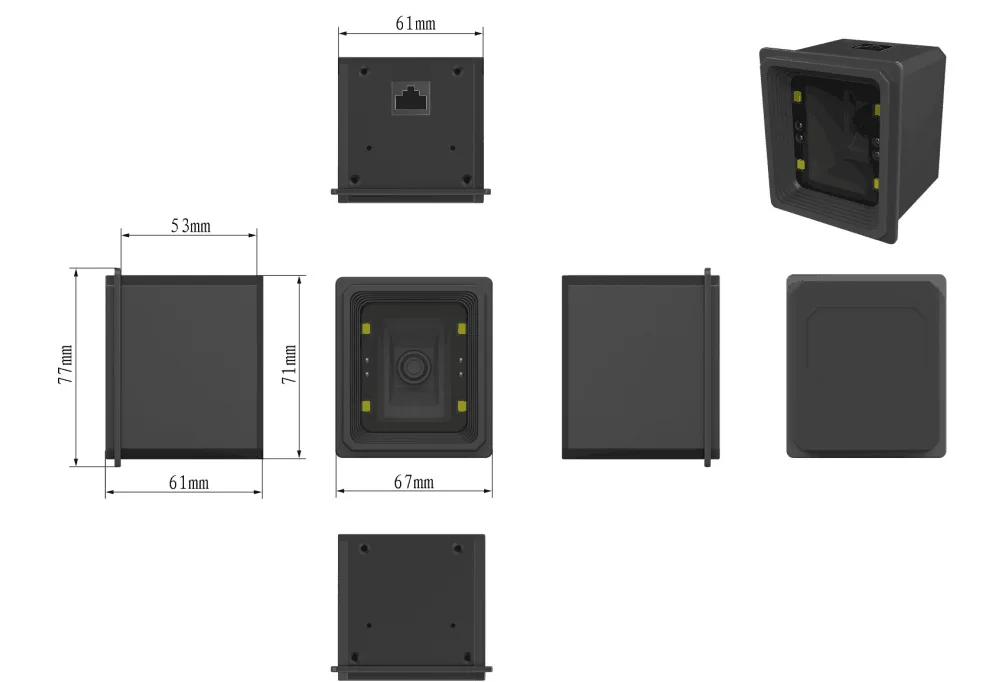

- Product size:77*67*62mm
- Data cable:2m
- Shell material :PC+ABS
- Color: Black

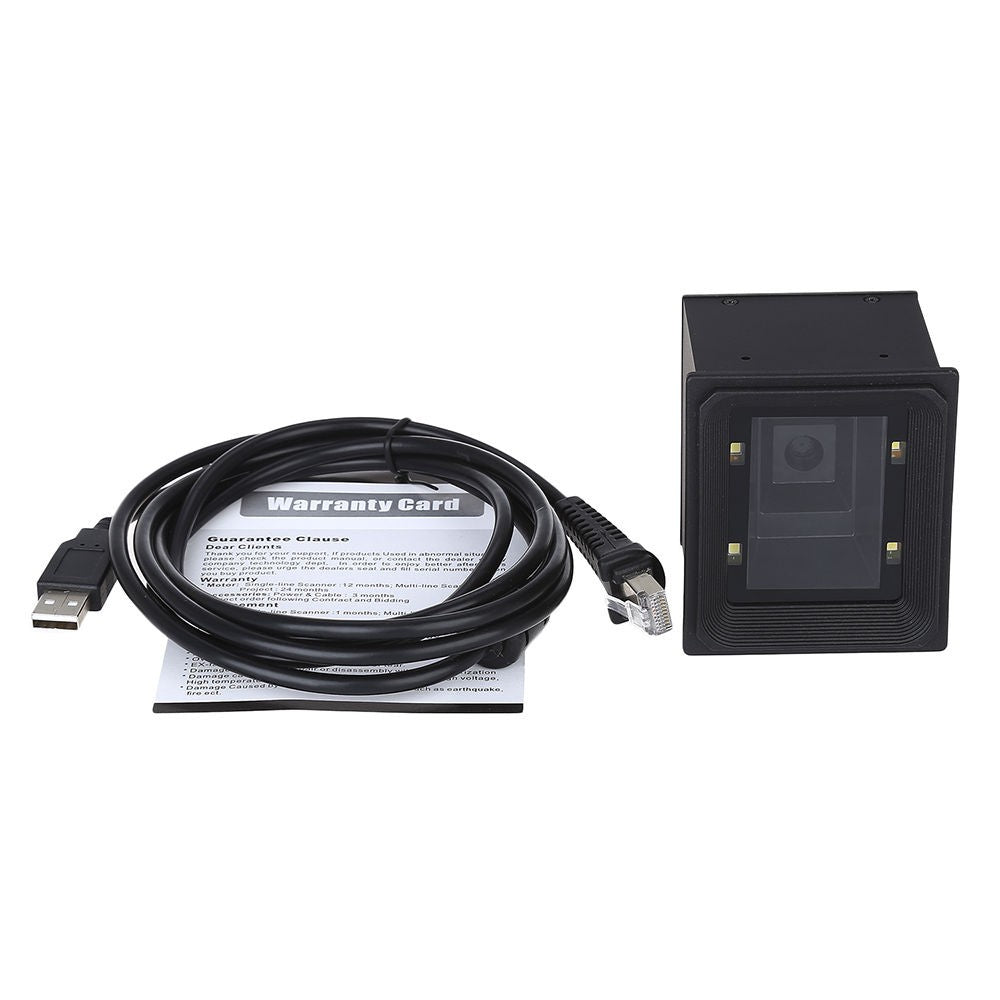

Package Included:
- 1* Barcode Scanner Module
- 1*USB Cable
