Manfrotto 322RC2 Ball Head with 200PL-14 Quick Release Plate and 322RA Quick Release Adapter

Overview:

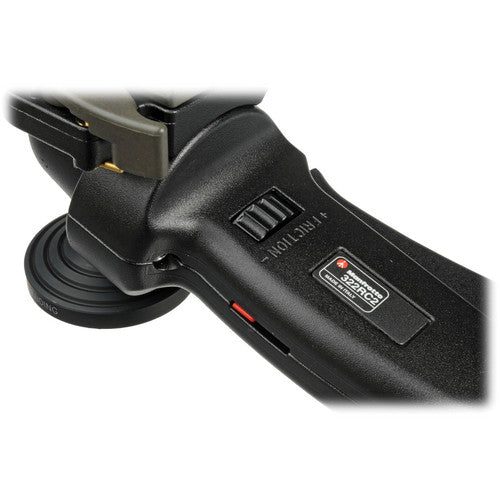

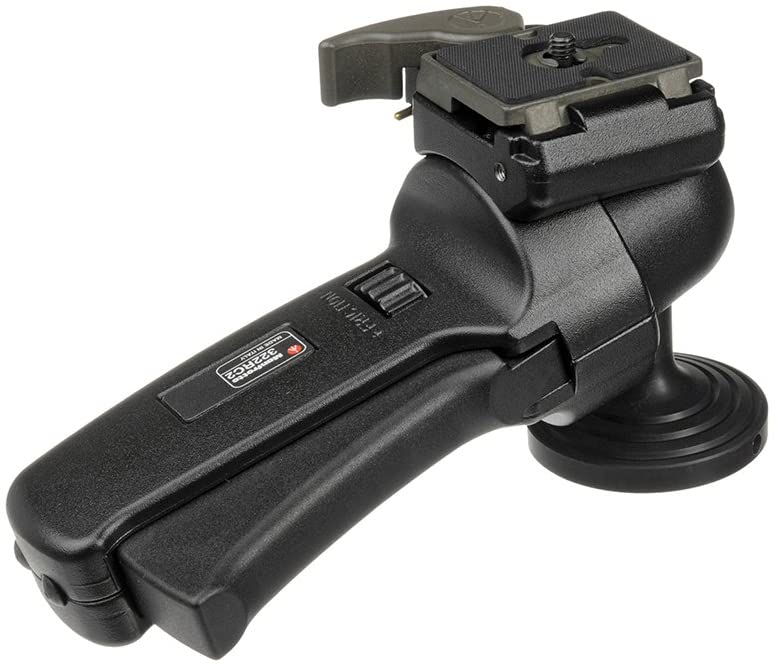

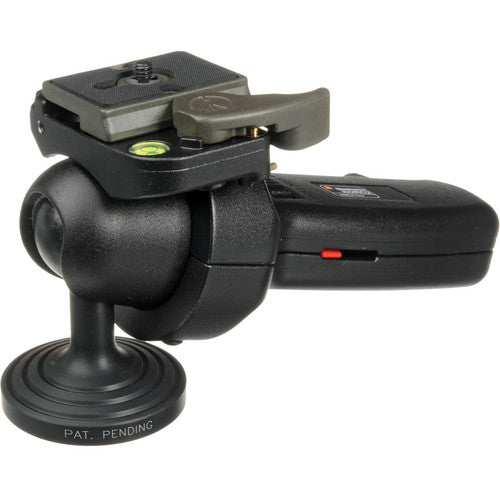

The 322RC2 Ball Head from Manfrotto can be attached to tripods or other support systems that feature a 3/8"-16 mount. By squeezing the control handle's integrated trigger, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.

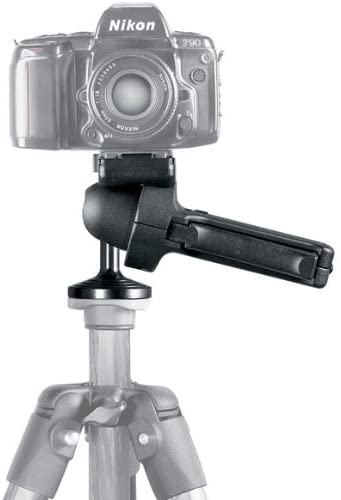

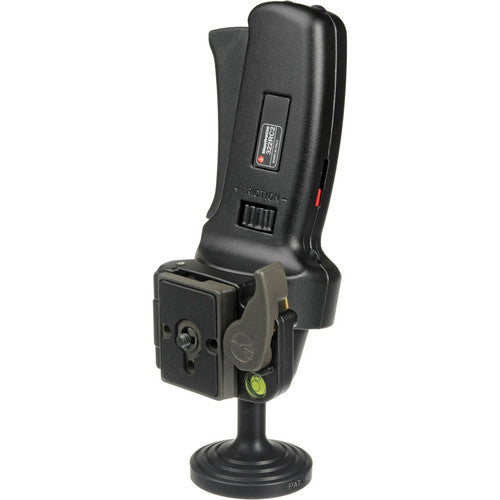

The control handle is initially oriented to provide a horizontal grip for the right hand. However, the included 322RA Quick Release Adapter with 200PL-14 Quick Release Plate is detachable and can be repositioned to enable left-handed use with a horizontal grip. Alternatively, the 322RC2 can be transformed into a joystick-grip ball head suitable for right or left-handed use with the control handle oriented vertically and the quick release adapter attached to the top of the configuration.

When oriented for a horizontal grip, the 322RC2 has a load capacity of 11.0 lb, and 7.0 lb when configured as a joystick for a vertical grip. The 322RA Quick Release Adapter features an RC2 quick release cam lock for the 200PL-14 Quick Release Plate. RC2 compatible quick release plates can be removed from the quick release adapter by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a quick release plate from accidentally disconnecting.

Features:

• Ball Head with Control Handle
• Horizontal and Joystick Grip Positions
• Horizontal Load Capacity: 11.0 lb
• Joystick Load Capacity: 7.0 lb
• Integrated Handle Squeeze Trigger
• 90° Forwards, Backwards & Portrait Tilt
• 360° Rotation, Ball Head Tension Control
• 322RA Quick Release Adapter
• Bull's-Eye Bubble Level
• 200PL-14 QR Plate with 1/4"-20 Mount
