Martin Audio Adorn 40 Ultra Compact 2-Way Wall Mounted Loudspeaker System for Indoor Music and Speech Broadcast (70/100V Transformer Available) (Black/White) | A40, A40T, A40-W, A40T-W

A40 / A40T

4" Passive Two-way On-wall Loudspeaker

The ADORN A40 / A40T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.

The A40T and A40T-W incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch.

The A40 is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such as CDD or BlacklineX.

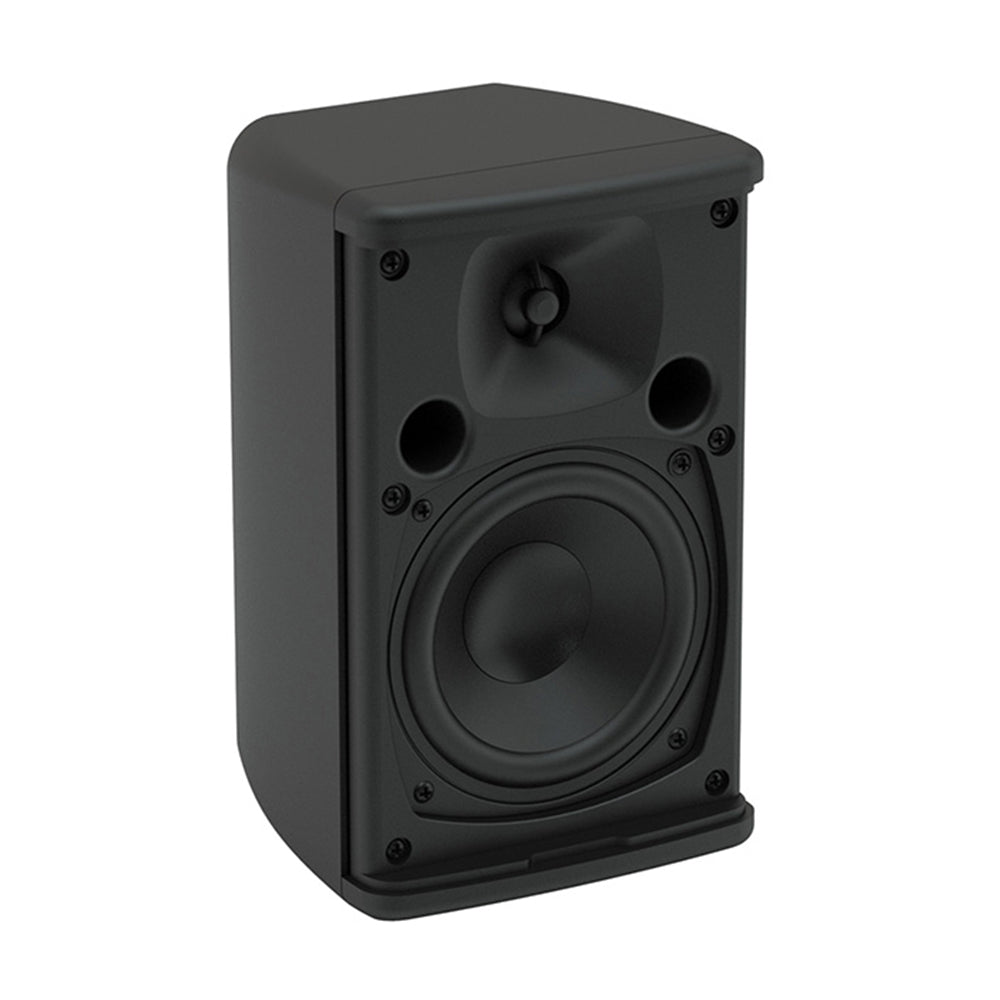

Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 40W AES, 160W peak and can produce 109dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 70Hz.

With a nominal impedance of 16 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, thereby maximizing efficiency and minimising cost. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.

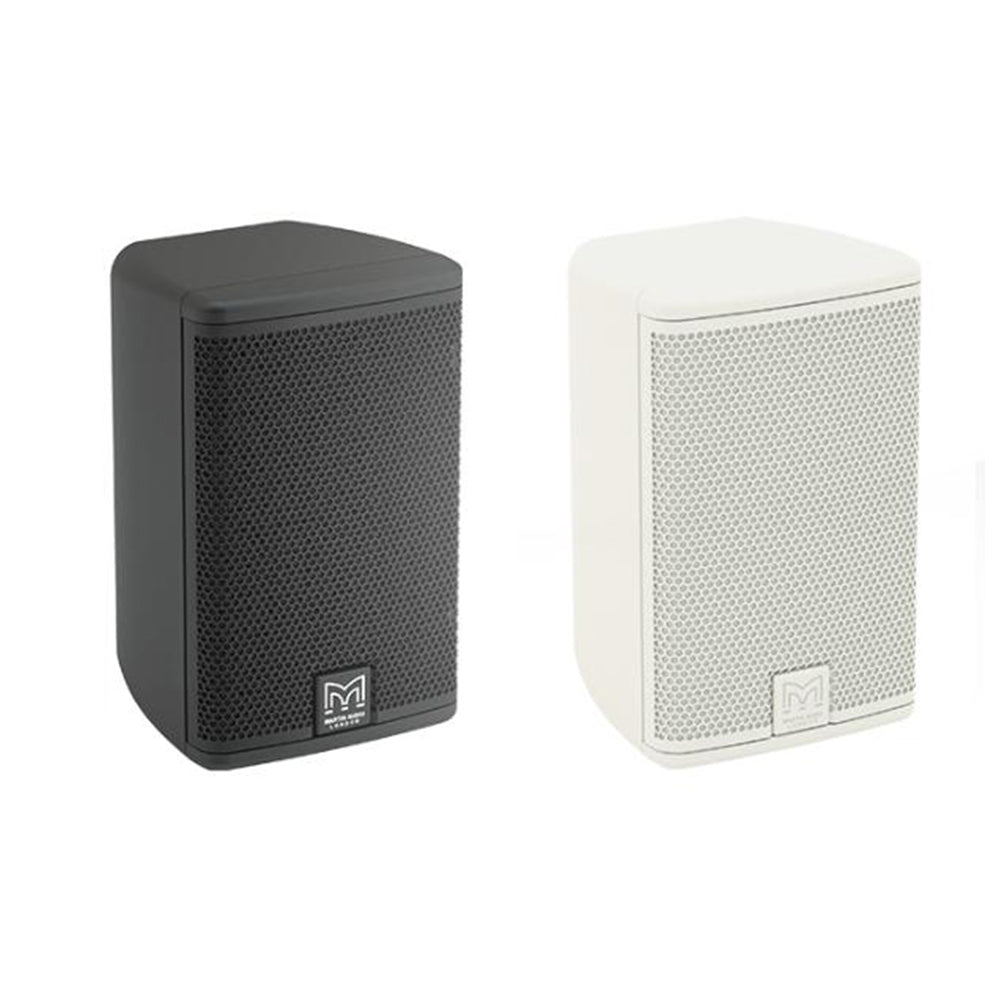

Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied. In addition, for general outdoor use the cabinet only requires the additional waterproof connector cover.

Applications

• Retail outlets
• Cafes, bars and restaurant chains
• Hotels and convention centres
• Educational facilities

Features

• Contemporary, unobtrusive design
• High output capability
• High fidelity sound
• Low and high-frequency overload protection
• Vertical or horizontal orientation
• Wide 110° x 80° coverage
• Wall bracket included

Technical Specifications

• TYPE: Ultra-compact passive two-way system, front ported bass reflex
• FREQUENCY RESPONSE: 98Hz-17kHz ± 3dB, -10dB @ 70Hz
• DRIVERS: 4” /1” high-temp voice coil, coated paper cone, rubber surround ferrite motor, pressed steel chassis (LF), 0.75” silk dome, neodymium motor (HF)
• RATED POWER: 40W AES, 160W peak
• RECOMMENDED AMPLIFIER: VIA2004
• SENSITIVITY: 87dB/1W/1m
• MAXIMUM SPL: 109dB peak
• NOMINAL IMPEDANCE: 16 ohms
• DISPERSION: 110° H x 80° V
• CROSSOVER: 3.5kHz passive (LF and HF auto-resetting fuses)
• RECOMMENDED HIGH-PASS FILTER: 60Hz 24dB/oct
• ENCLOSURE: ABS, UL 94V-0 rated

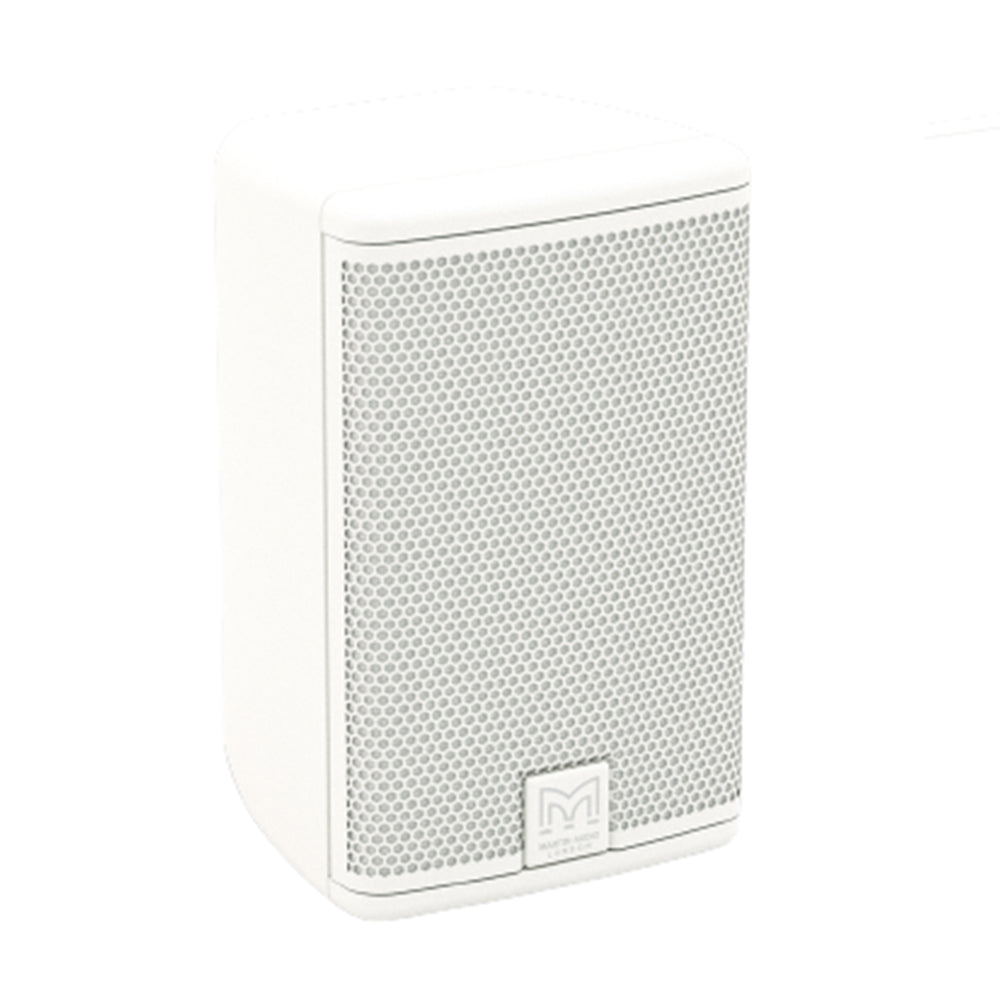

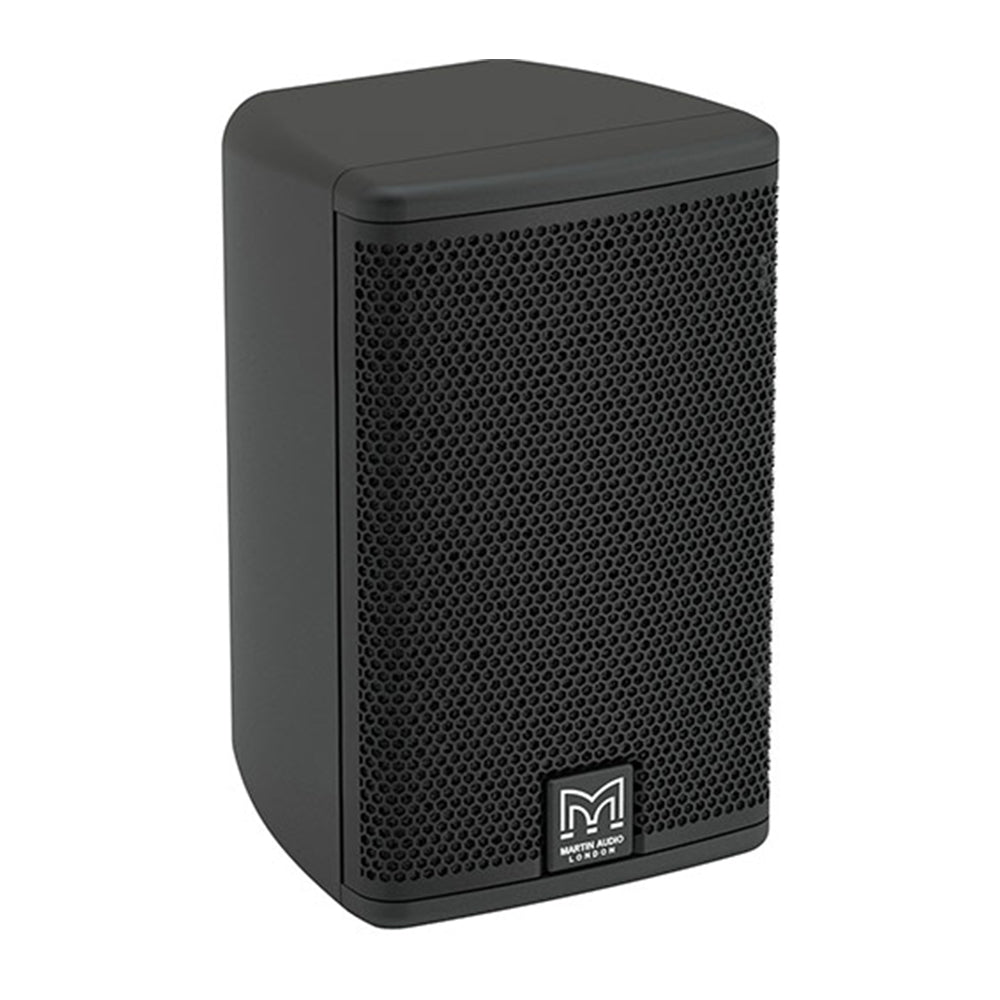

• FINISH: Black or white
• GRILLE: Perforated steel

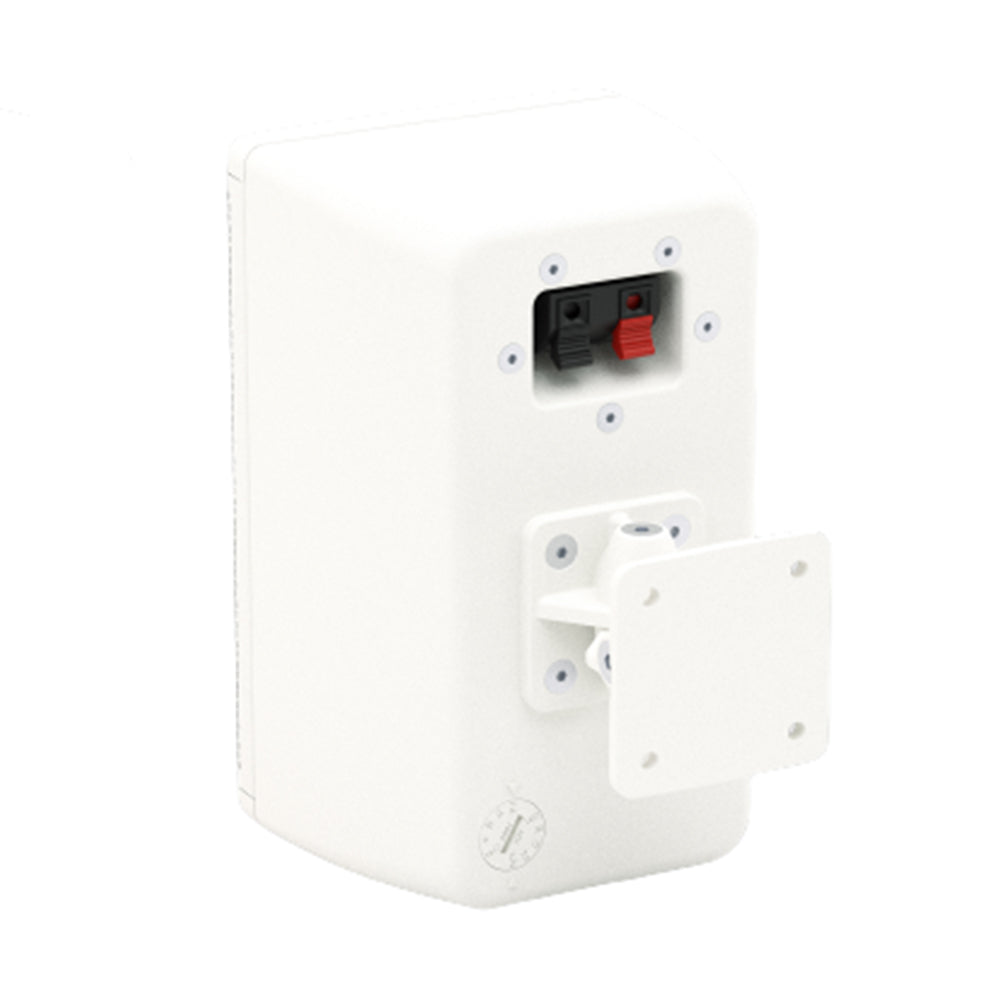

• CONNECTORS: Push terminals
• FITTINGS: Wall bracket included
• DIMENSIONS EXCL. BRACKET: (W) 124mm x (H) 200mm x (D) 114mm
• WEIGHT: 1.75kg
• ACCESSORIES: Waterproof connector cover
