Blackline S218+

Dual driver, vented sub-bass system

 The powerful Blackline S218+ sub-bass system has been designed to be used with large scale Blackline F12+ and

F15+ systems to extend and increase the total low frequency output power. It can also be used as the low

frequency section of a bi-amped or tri-amped H3+ system. The S218+ provides good bass punch with extended

sub-bass output from two new, long-excursion, 18” (460mm)/4” (100mm) voice coil drivers with water resistant

cones and triple roll surrounds.

The birch ply cabinet features large area porting to reduce air noise and is fitted with substantial handles and four 4”

(100mm) castors for easy deployment. Lid clips for an optional lid are also fitted as standard.

The S218+ must be electronically crossed over with the M3+, DX1.5 or equivalent Electronic Controller

Technical Specifications

• TYPE: Dual-driver, vented sub-bass system
• FREQUENCY RESPONSE: 35Hz-150Hz ± 3dB, -10dB @ 28Hz
• DRIVERS: 2 x 18” (460mm)/4” (100mm) voice coil LF drivers
• RATED POWER: 1500W AES, 6000W peak
• RECOMMENDED AMPLIFIER iK42
• SENSITIVITY: 105dB (half space)
• MAXIMUM SPL: 136.5dB continuous, 142.5dB peak (half space)
• NOMINAL IMPEDANCE: 4 ohms
• DISPERSION: (-6dB)
• CROSSOVER: 80-150Hz active
• ENCLOSURE: 320 litre, multi-laminate birch ply
• FINISH: Textured black paint

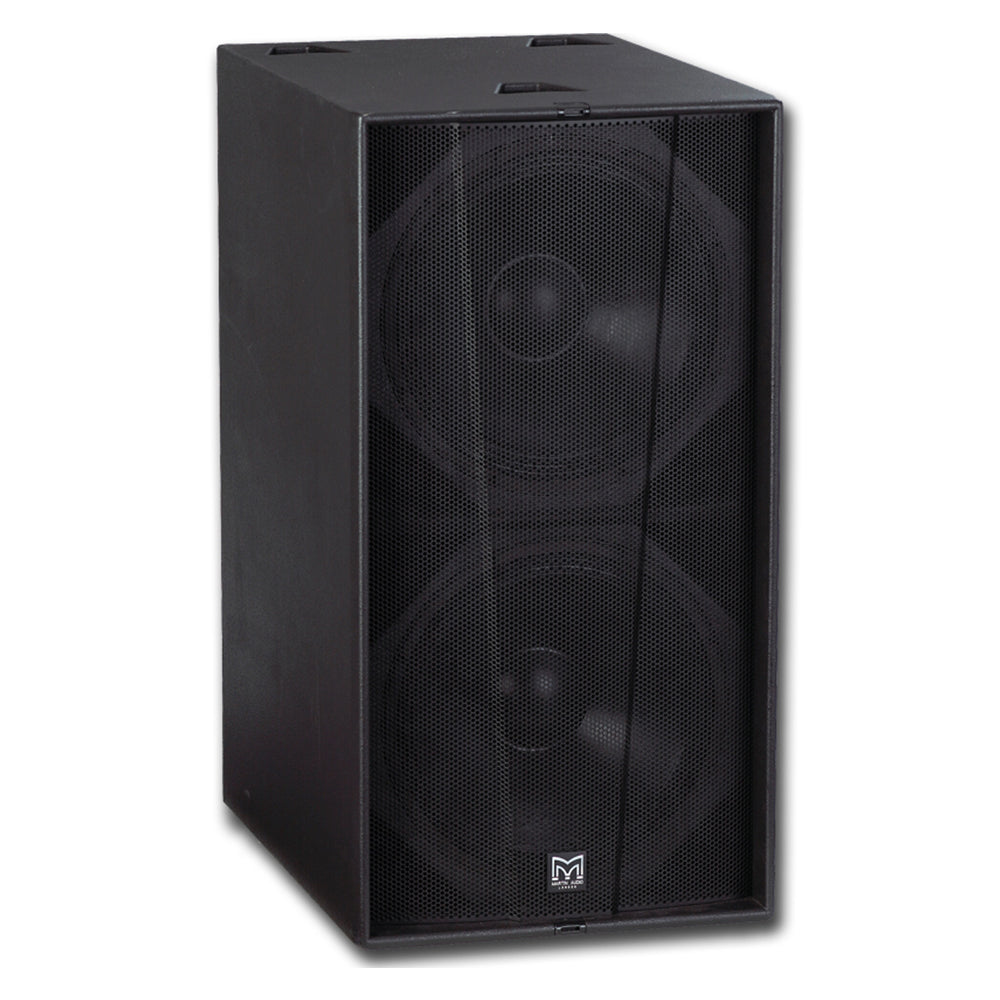

• PROTECTIVE GRILLE: Black perforated steel
• CONNECTORS: 2 x Neutrik NL4
• PIN CONNECTIONS: LF+,- : 1+,1- and 2+,2-

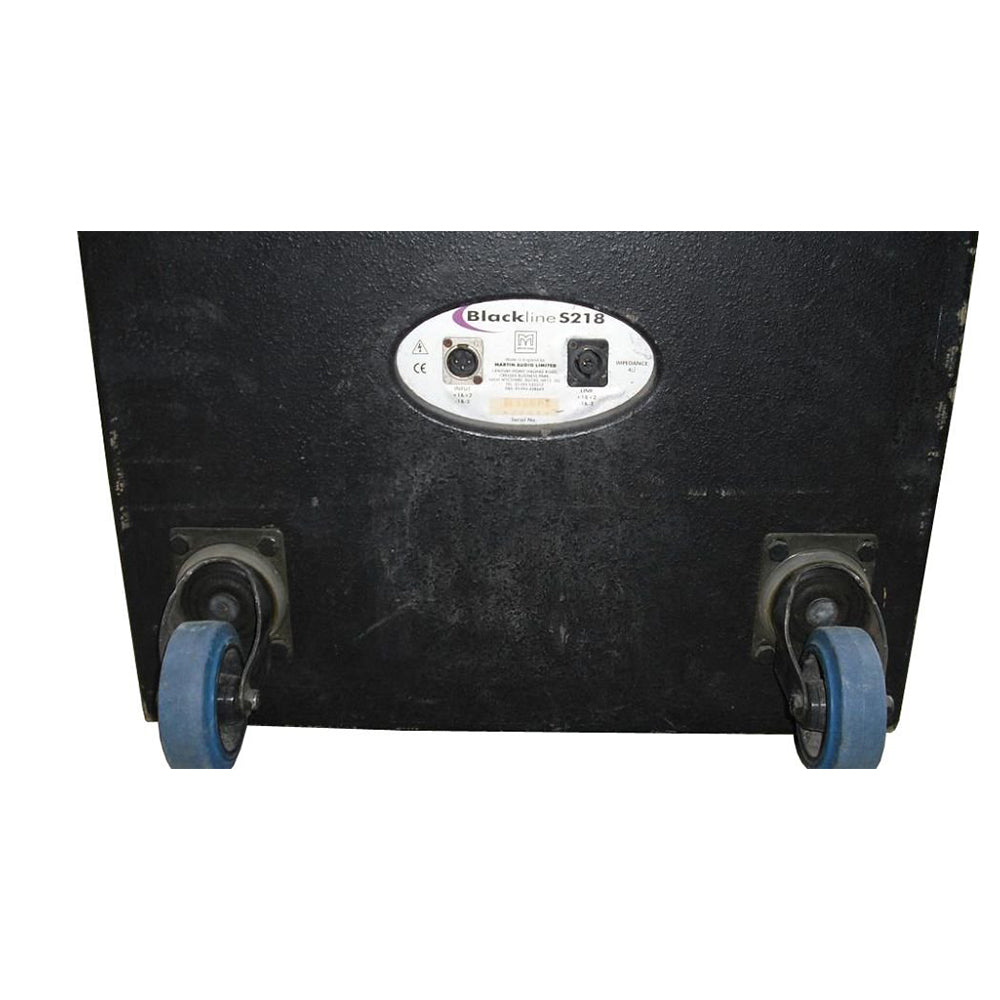

• FITTINGS: 4 x 4” (100mm) castors, 6 x pocket handles, 2 x lid clips
• DIMENSIONS (including wheels): (W) 561mm x (H) 1066mm x (D) 780mm (911mm)
• WEIGHT: 87kg (191.5lbs)
