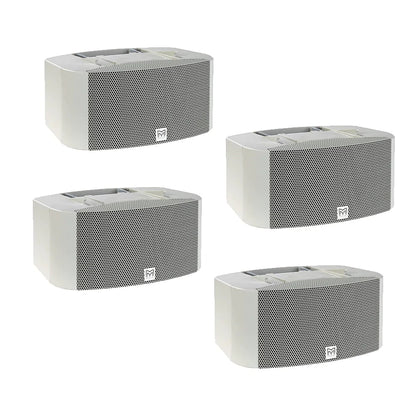

Martin Omniline Omniline Starter Pack of 4 Modules

Omniline delivers consistent audio coverage with unprecedented accuracy in a wide variety of architectural environments, using just one amplifier channel per array in many applications. By utilising a complement of unique, martin audio designed drivers, and mechanical alignment techniques, simple eq and limiting is the only processing required.

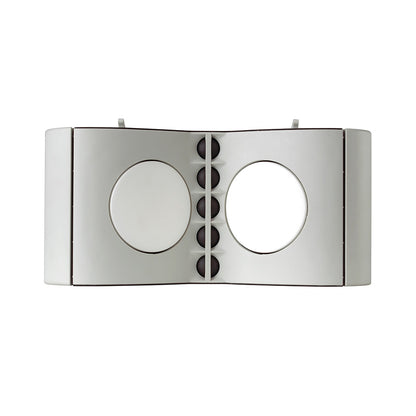

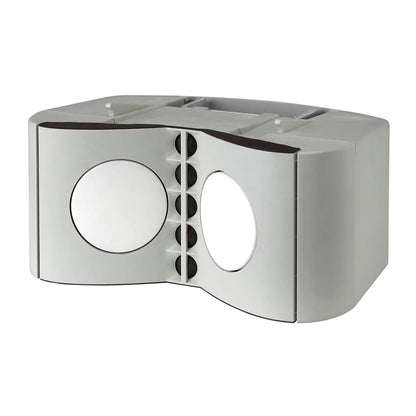

An Omniline module uses a line of five custom-designed dome tweeters, with a spacing of only 21mm between each element. The result is sidelobe-free vertical dispersion from the high frequency section. The ‘cones’ of the two custom-designed lf drivers are sculpted from an ultra-light, stiff material and precisely follow the ideal contour of the hf horn walls (patent pending). This provides constant horizontal directivity from low mid, right up to extreme high frequencies.

 Features:

• Modular micro line array for maximum deployment flexibility
• Software optimised array configuration for focussed sound energy
• Additional DSP optimised functionality for increased coverage, consistency and control
• Sidelobe-free vertical dispersion from the high frequency section
• Ideal for high-quality music reproduction as well as speech
• Architecturally sympathetic design for discreet deployment

Rather than applying dsp to a traditional column, OmniLine’s vertical beam-forming is achieved by physically articulating individual array modules to curve the array. The actual array configuration for a specific venue is determined by powerful, patent pending optimisation software, which makes intelligent judgements about the ‘goodness’ of the array’s spl distribution against objective target functions.

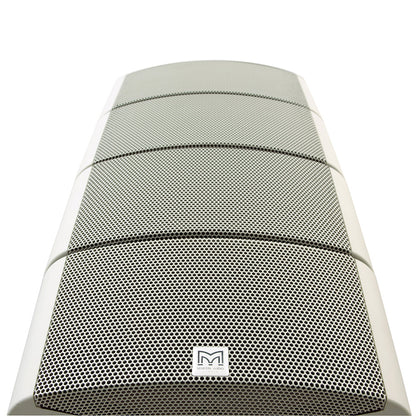

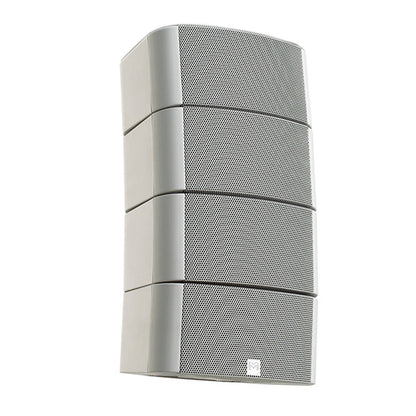

OmniLine arrays are constructed by simply connecting individual modules together in column lengths of 4 to 24 units as determined by the software.

OmniLine modules are finished in a neutral light grey and combine to form aesthetically pleasing, variable length arrays, of outstanding audio quality that will enhance even the most demanding architectural environment.

Applications:

• • Houses of worship
• • Museums
• • Conference centres, auditoria and lecture theatres
• • Transport terminals, shopping malls and sports venues
• • Bars and Restaurants

Product Specs

• TYPE: Two-way micro-line array module
• FREQUENCY RESPONSE: 85Hz-20kHz ± 3dB, -10dB @ 76Hz
• DRIVER: 2 x 3.5" (87mm)/1" (25mm) voice coil LF drivers
• 5 x 0.55" (14mm) soft dome tweeters
• RATED POWER: 50W AES, 200W peak
• SENSITIVITY: 84dB at LF rising to 92dB at HF
• MAXIMUM SPL: 104dB continuous, 110dB peak
• NOMINAL IMPEDANCE: 16Ω
• DISPERSION (-6DB): 100º horizontal, 5º vertical
• CROSSOVER: 2.5kHz passive
• ENCLOSURE: 4-liter ported cabinet, molded in ABS
• FINISH: Light grey
• PROTECTIVE GRILLE: Light grey perforated steel
• CONNECTORS: 4 pole socket
• PIN CONNECTIONS: +/- in, +/- link out
• FITTINGS: Captive inter-connecting bracket assembly, 6 x M8 fixings for wall and flying brackets
