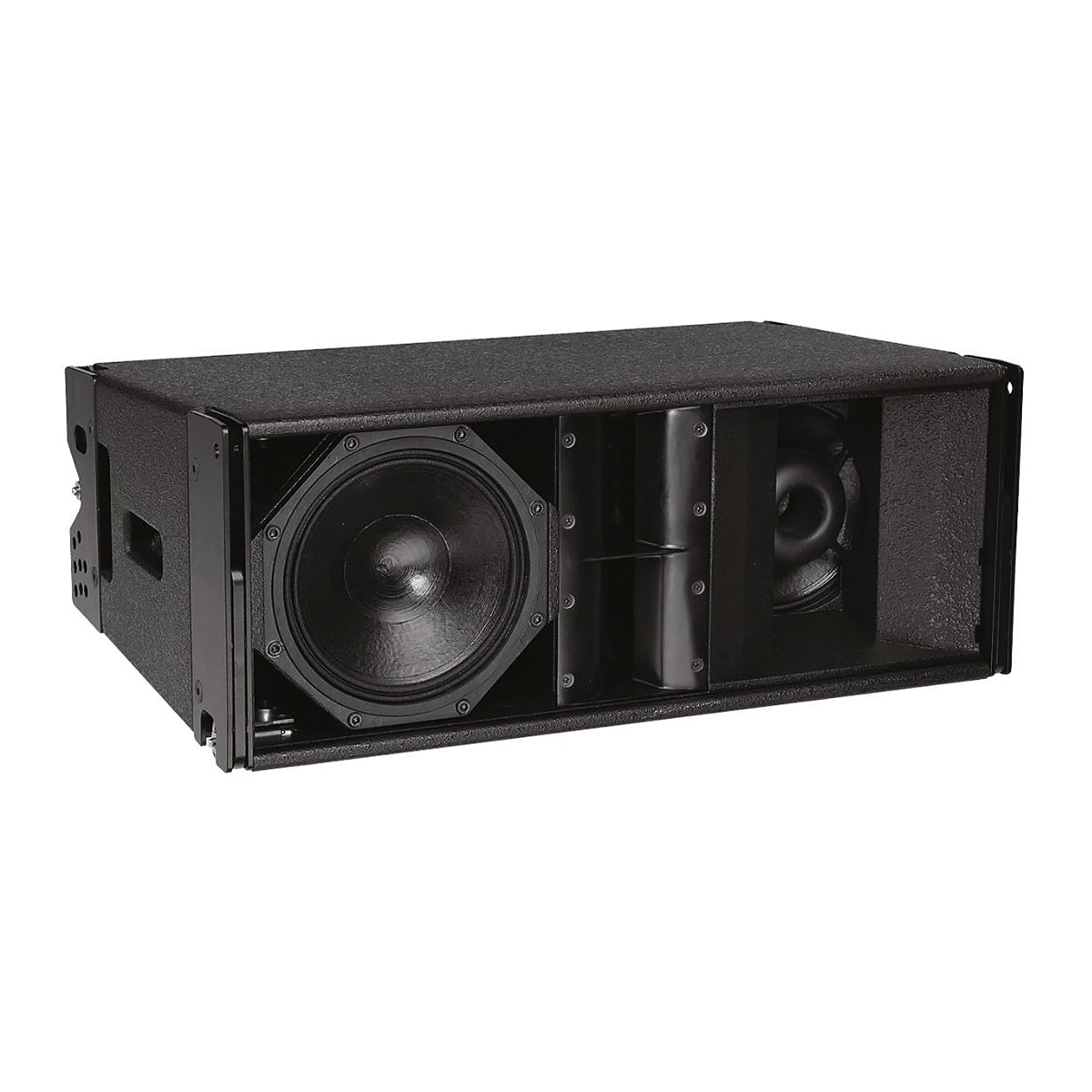

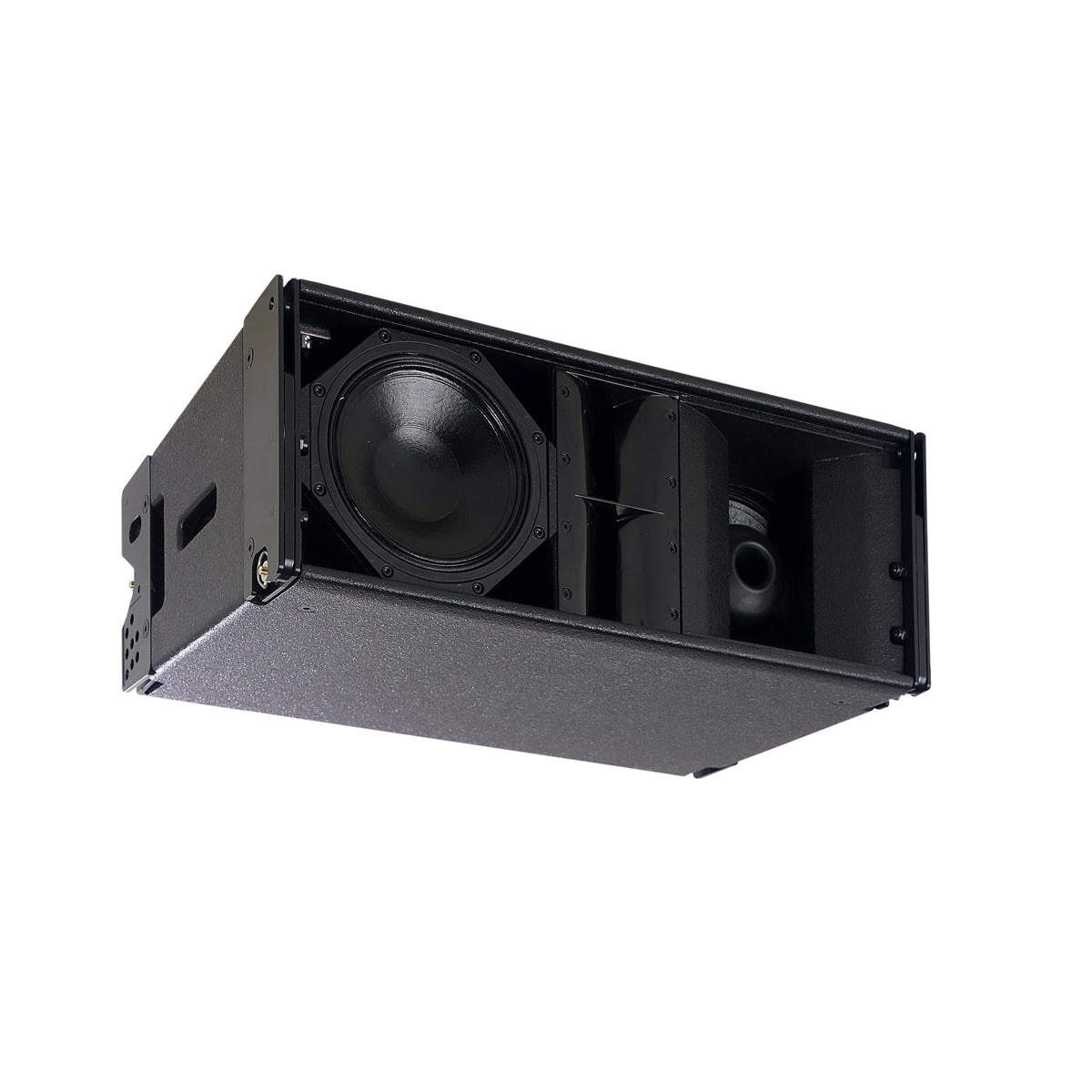

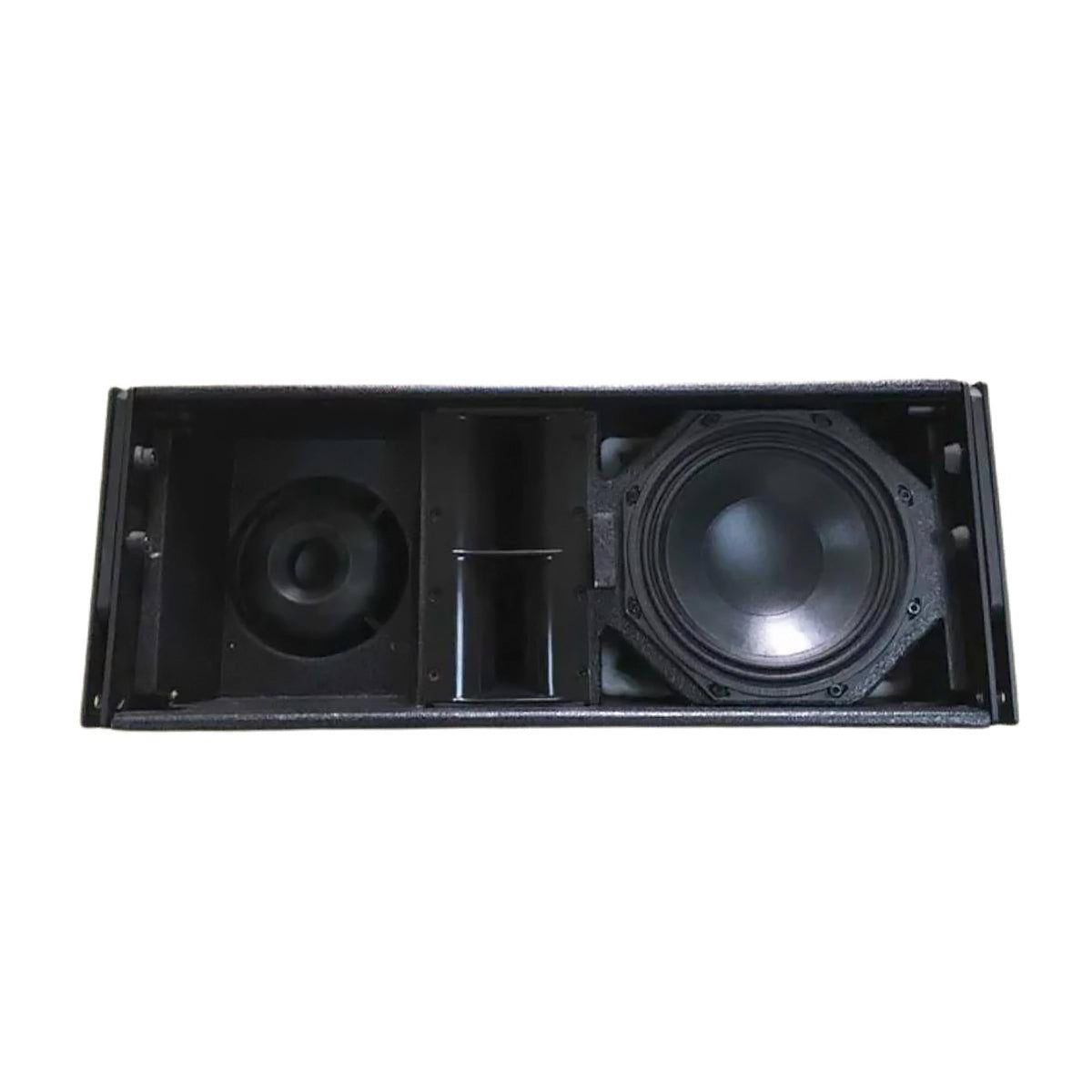

The Martin Audio W8LM is a mini line array enclosure designed to bring line array performance benefits to a variety of small and medium scale applications. It meets the need for a versatile, scalable system that can be flown or ground stacked for corporate events, theatres and indoor venues. It is also suitable as a delay system for large scale outdoor sound reinforcement.
Applications:
◗ Theatre Sound Reinforcement
◗ Live Sound Reinforcement
◗ Corporate Events
◗ Fixed Installations
◗ Delay systems for large scale outdoor sound reinforcement
Specifications:
-
Type: Three-way, Active/passive, Mini Line Array Element
-
Frequency Response: 60hz-18khz ± 3db
-
Drivers: Lf + Mf Section 8": (200mm)/2" (50mm) Voice Coil, Reflex-loaded
-
Direct Radiator: 8" (200mm)/2" (50mm) Voice Coil, Neodymium
-
Drivers: Hf Section 2 X 1" (25mm) Exit Hf Compression Drivers,
-
Rated Power: Lf + Mf: 400w Aes, 1600w Peak
-
Hf: 75w Aes, 300w Peak
-
Passive: 400w Aes, 1600w Peak
-
Sensitivity: Lf + Mf: 100db
-
Hf: 106db
-
Fr: 99db Rising To 105db At Hf
-
Maximum Spl: Lf + Mf: 126db Continuous, 132db Peak
-
Hf: 125db Continuous, 131db Peak
-
Passive: 125db Continuous, 131db Peak
-
Nominal Impedance Lf + Mf: 12 Ohms
-
Hf: 12 Ohms
-
Fr: 12 Ohms
-
Dispersion: (-6db) 100º Horizontal (Down To 800hz),
-
7.5º Vertical
-
120º Horizontal (Down To 700hz) @ -10db
-
Crossover: 300hz Passive, 2.2khz Active Or Passive
-
Dimensions: (W) 620mm X (H) 243mm X (D) 400mm / (W) 24.4ins X (H) 9.6ins X (D) 15.8ins
-
Weight: (Including Rigging Hardware): 29kg (64lbs)
