Description:

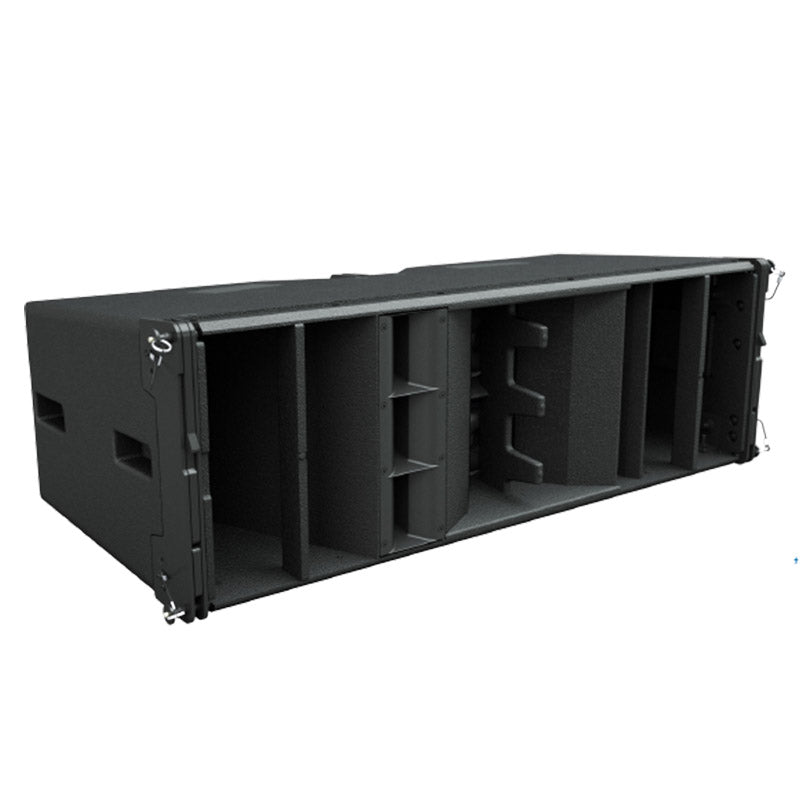

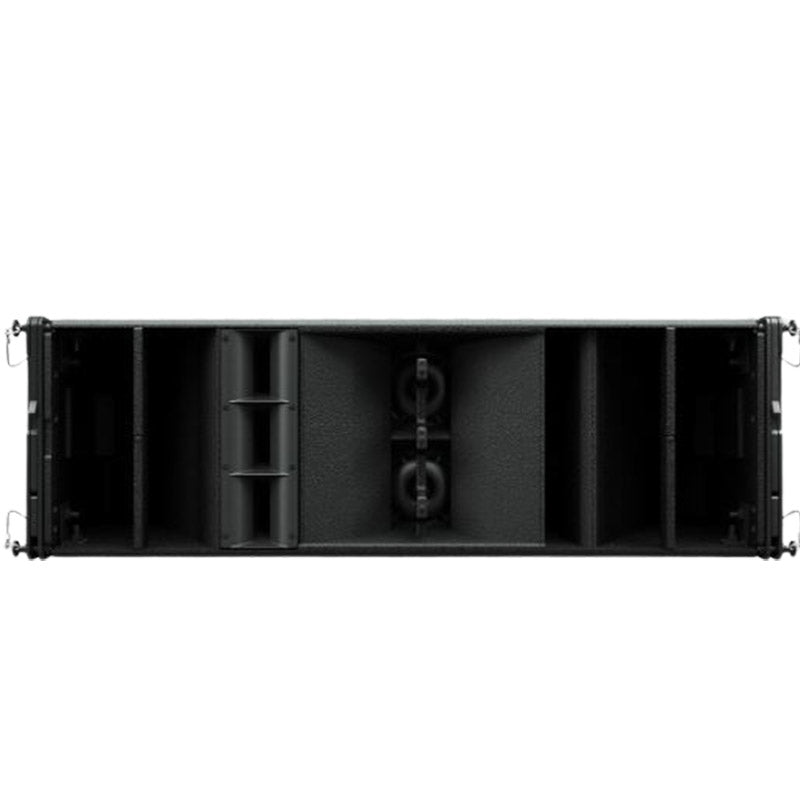

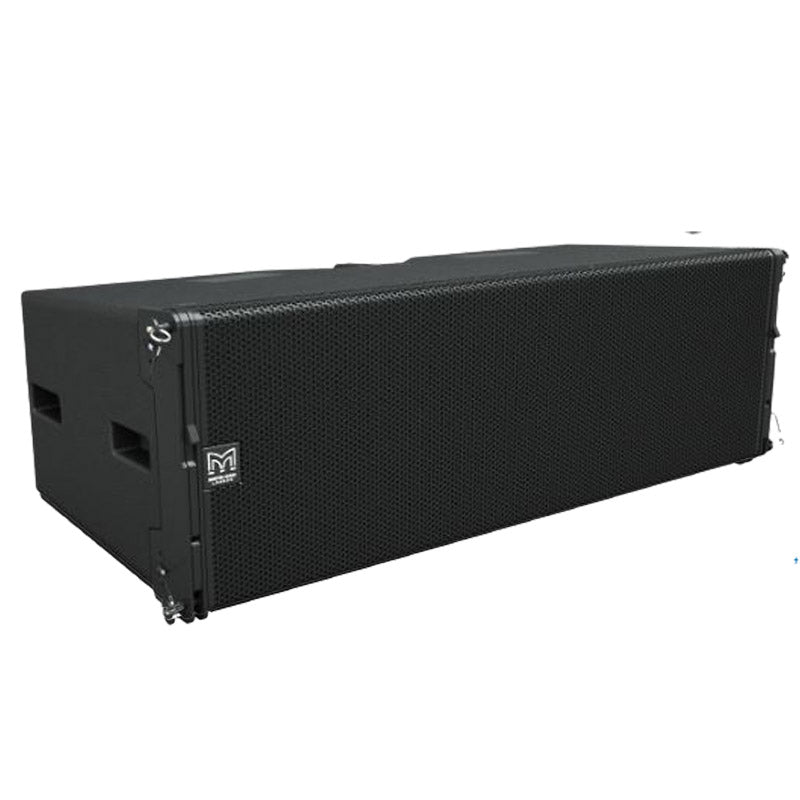

WPL is a 3-way bi-amp, 2 x 12” large format line array featuring
scalable resolution optimisation. This flexible approach to array
optimisation provides greatly improved coverage, consistency
and control compared to a standard line array.
Applications:
- Touring sound reinforcement for festivals, stadiums and arenas
- Sports stadium and arena installations
- Concert hall and HoW installations
Specification:
- 3-way bi-amp, 2 x 12” large format line array
- All-horn, maximum-efficiency design
- Exceptional signature sonic performance
- Exemplary 90° horizontal constant directivity pattern control
- External, dedicated, multi-channel Class D amplification
- Scalable resolution for flexible optimisation of coverage, consistency and control
- Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
- Fast, integral 3-point rigging for up to 24 enclosures
- Compact and light weight design with discreet side handles for ease of handling
Features:
- Auto-standby: No
- Bluetooth: No
- Custom RAL: No
- DSP: No
- HP diameter: 2 x 6.5", 2 x 12", 3 x 1"
- Horizontal dispersion (-6dB) in degrees: 90
- Vertical dispersion (-6dB) in degrees: 7.50
- Finish: Black
- Mixer: No
- Number of channels: 3 biamp channels
- Frequency response: 52Hz - 18kHz
- Type: passive speaker
- Complementary specs:
- Max SPL pressure: LF: 139dB / MF: 140dB / HF: 145dB
- Recommended amplifier: iKON iK42
- Impedance: LF: 8 ohms / MF+HF: 8 ohms
- Tropicalized enclosure
- Cutoff frequency: 320Hz active, 4kHz passive
