IPC CCTV TESTER
NF-IPC722ATCH
This IPC tester combines a 7-inch touch screen with button controls to offer real-time CCTV monitoring, IP camera testing, and configuration. It supports 4K H.265, ONVIF, CVBS, TVI, CVI, and AHD protocols, enabling checks on IP address, PING, speed, and more. Users can adjust camera settings, run playback, and perform zoom, record, and snapshot functions. With PoE support, 5V/12V/24V DC power outputs, and various ports including RJ45, CVBS, SDI, HDMI, and fiber optic, it also enables cable tests like continuity and TDR, making it a versatile tool for surveillance setup and diagnostics.
Specifications:
- Model: NF-IPC722
- Touch Screen: 7" G+G capacitive
- LCD Screen: 7" IPS, 1920x1200
- Ethernet Port: 10/100/1000M adaptive
- WiFi: Built-in, 150Mbps
- IP Camera Test: 4K H.265, real-time, snapshot, record, playback
- ONVIF: Supports 30+ brands, app install supported
- PTZ Control: Pelco-D/P, Samsung, Panasonic, etc.
- CVBS Test: 1CH input, PAL/NTSC auto-adapt
- HD Test: TVI/CVI/AHD 8MP
- Zoom: 8x real-time video zoom
- Cable Test: Sequence, breakpoint detection
- Audio Test: 1CH input, record & save
- Optical Meter: Fiber parameter testing
- DC12V Out: Max 3A
- DC24V Out: Max 1A
- PoE Out: 48V standard
- DC5V Out: USB power, max 2A
- HDMI Input: HD video only
- Battery: 7.4V 7000mAh, 8–10 hrs
- Storage: 8GB internal SD
- Size: 23×14×4.5 cm
- Weight: 0.9 kg
What's inside the box (NOYAFA NF-IPC722ATCHS)?
- 1× IPC Tester
- 1× RJ45 Tester Remote
- 1× Power Adapter & Cable
- 1× Alligator Cable Clip
- 1× Carrying Bag
- 1× User Manual
MULTIFUNCTIONAL IPC TESTER

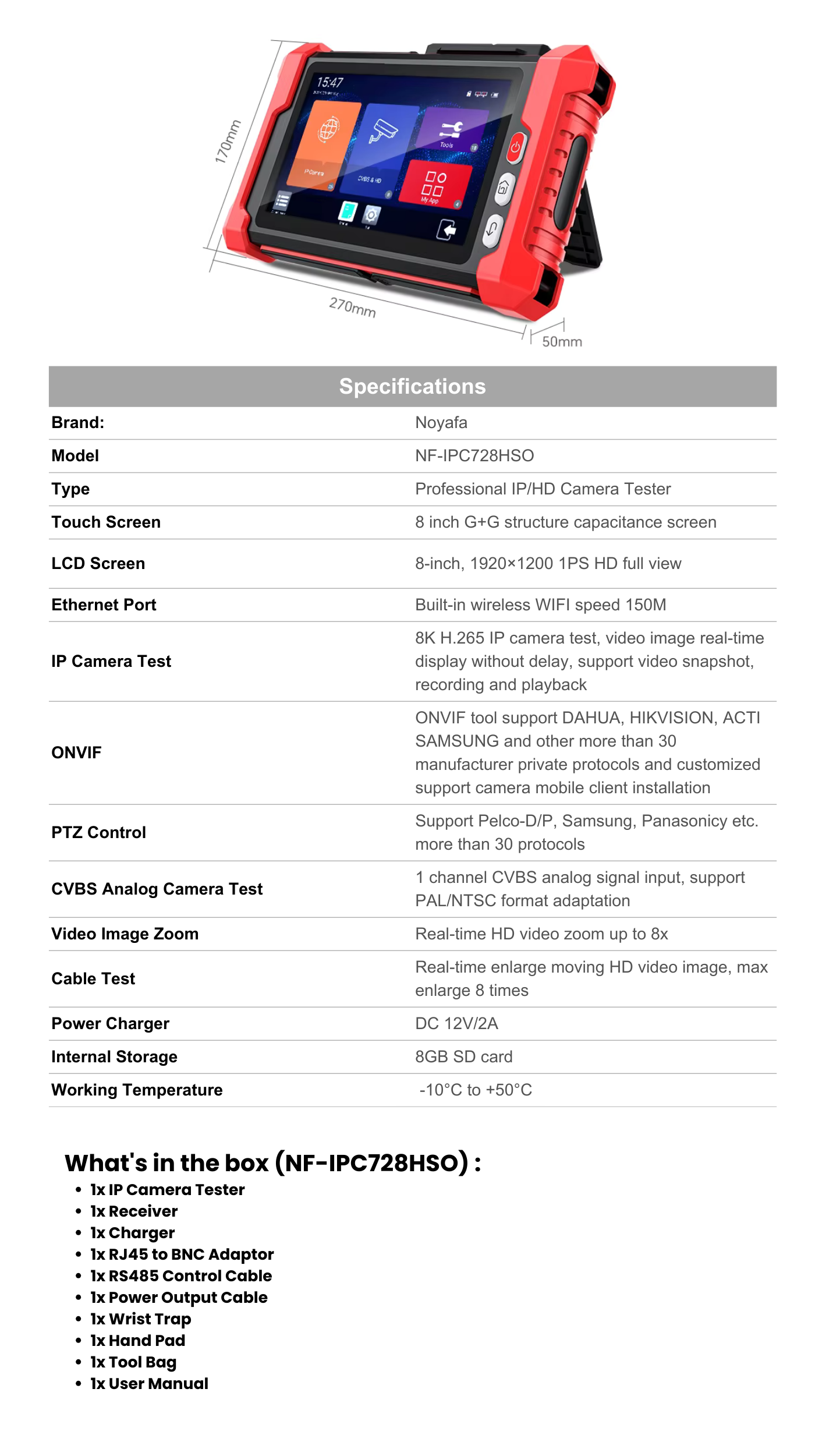

NOYAFA NF-IPC728HSO
Key Features:
- 8" Full-HD IPS Touchscreen 1920×1200
- Dual Gigabit Ethernet Ports
- Smart IPC Tester with AI Engineering Assistant
- Supports true 8K / 32MP resolution
- HDMI Input and Output
- High-capacity 2600mAh ×6 battery
- Cable testing and tracking
- Advanced network diagnostics
