IPC CCTV TESTER
NF-IPC722ATCH

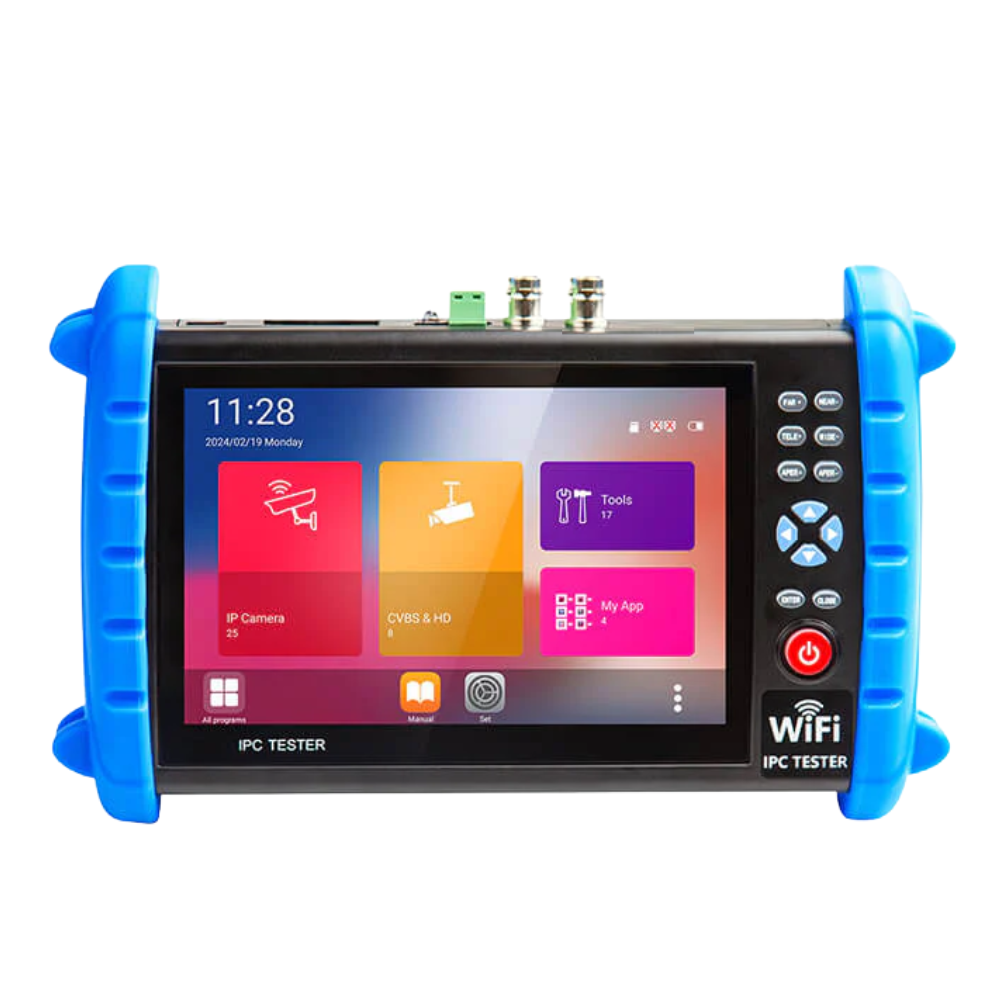

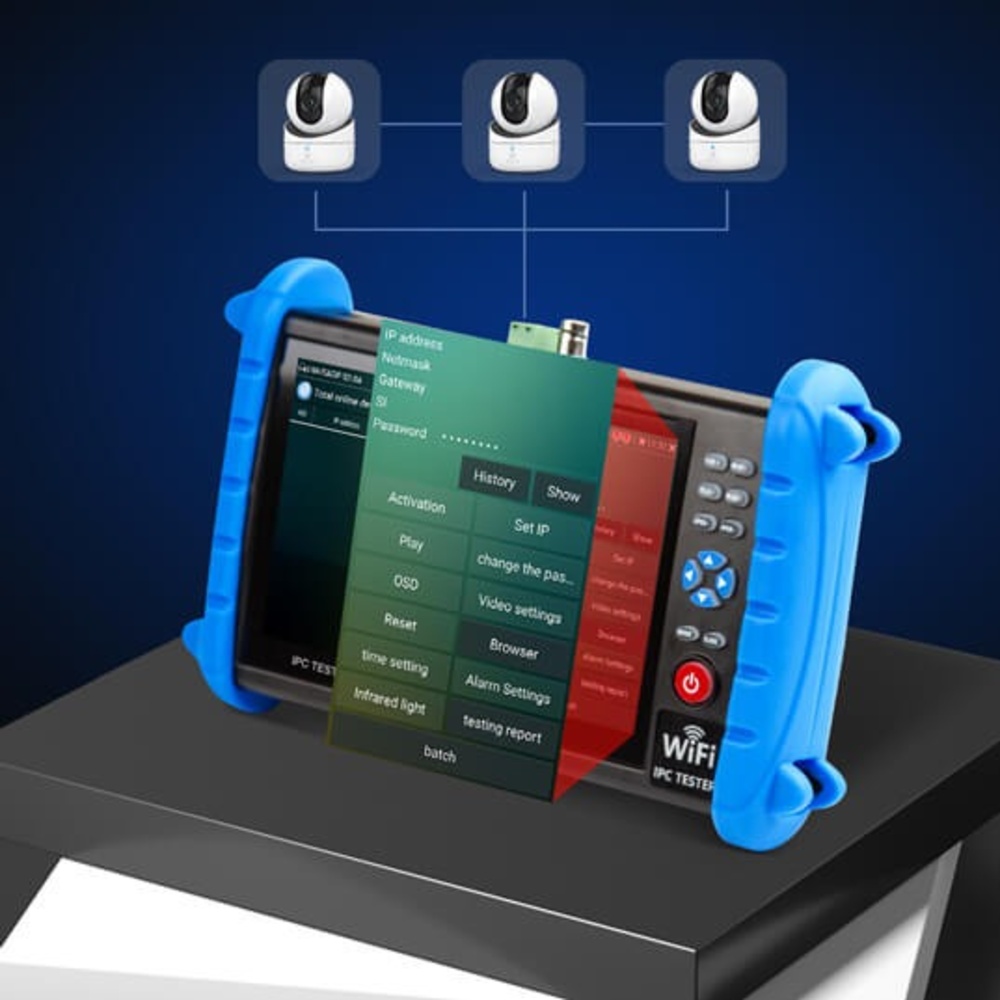

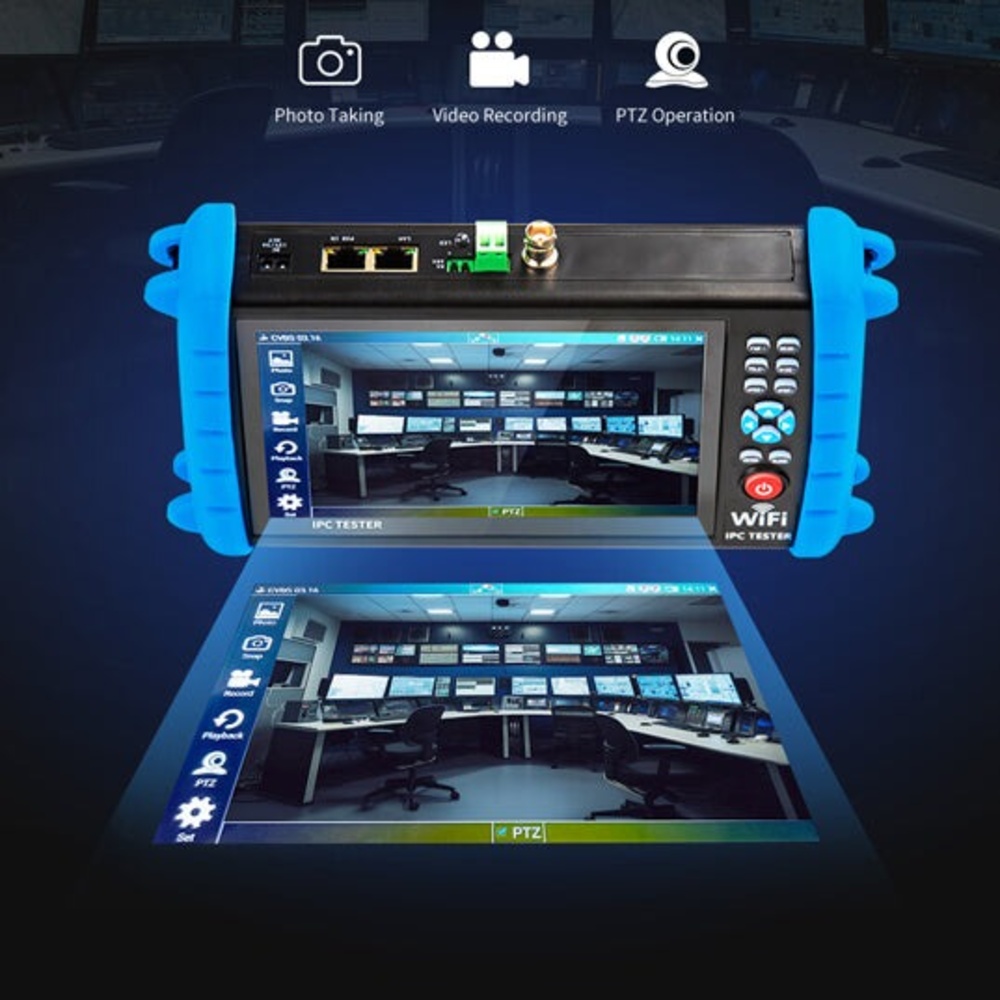

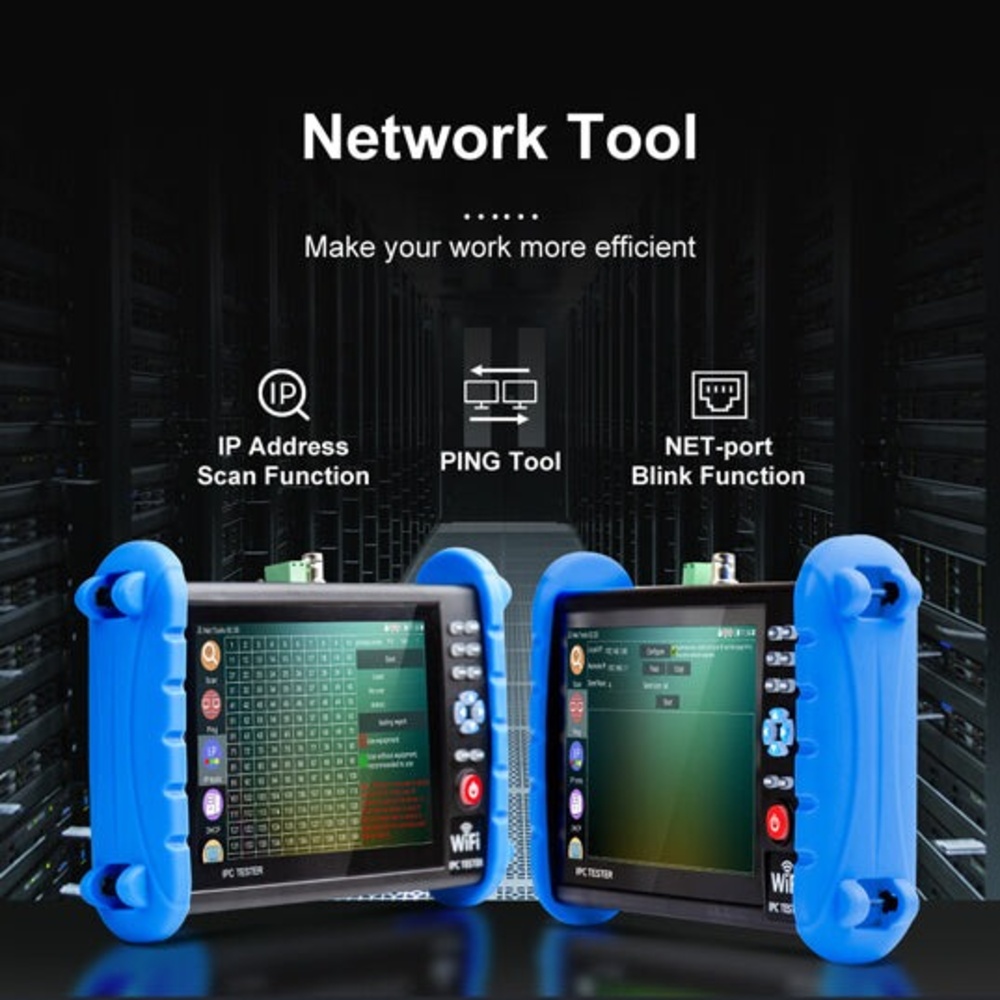

This IPC tester combines a 7-inch touch screen with button controls to offer real-time CCTV monitoring, IP camera testing, and configuration. It supports 4K H.265, ONVIF, CVBS, TVI, CVI, and AHD protocols, enabling checks on IP address, PING, speed, and more. Users can adjust camera settings, run playback, and perform zoom, record, and snapshot functions. With PoE support, 5V/12V/24V DC power outputs, and various ports including RJ45, CVBS, SDI, HDMI, and fiber optic, it also enables cable tests like continuity and TDR, making it a versatile tool for surveillance setup and diagnostics.
Specifications:
● Model: NF-IPC722
● Touch Screen: 7" G+G capacitive
● LCD Screen: 7" IPS, 1920x1200
● Ethernet Port: 10/100/1000M adaptive
● WiFi: Built-in, 150Mbps
● IP Camera Test: 4K H.265, real-time, snapshot, record, playback

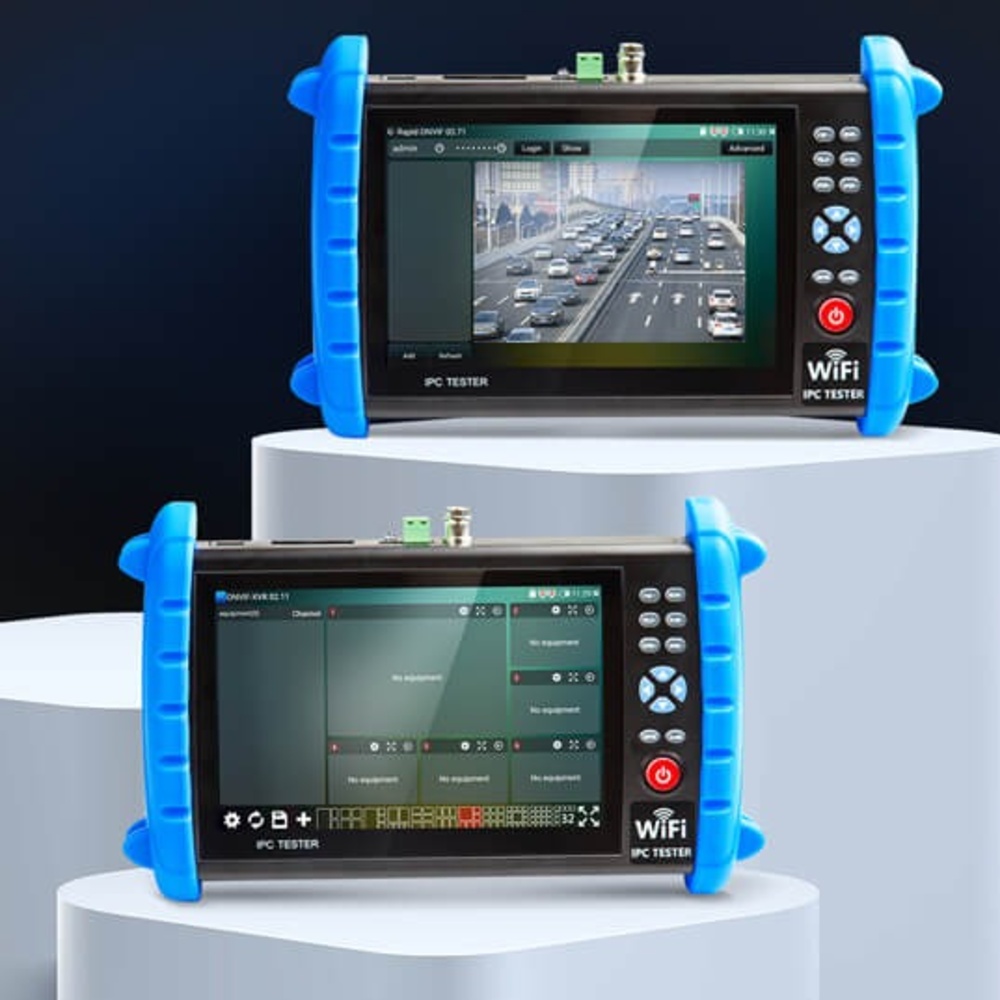

● ONVIF: Supports 30+ brands, app install supported
● PTZ Control: Pelco-D/P, Samsung, Panasonic, etc.

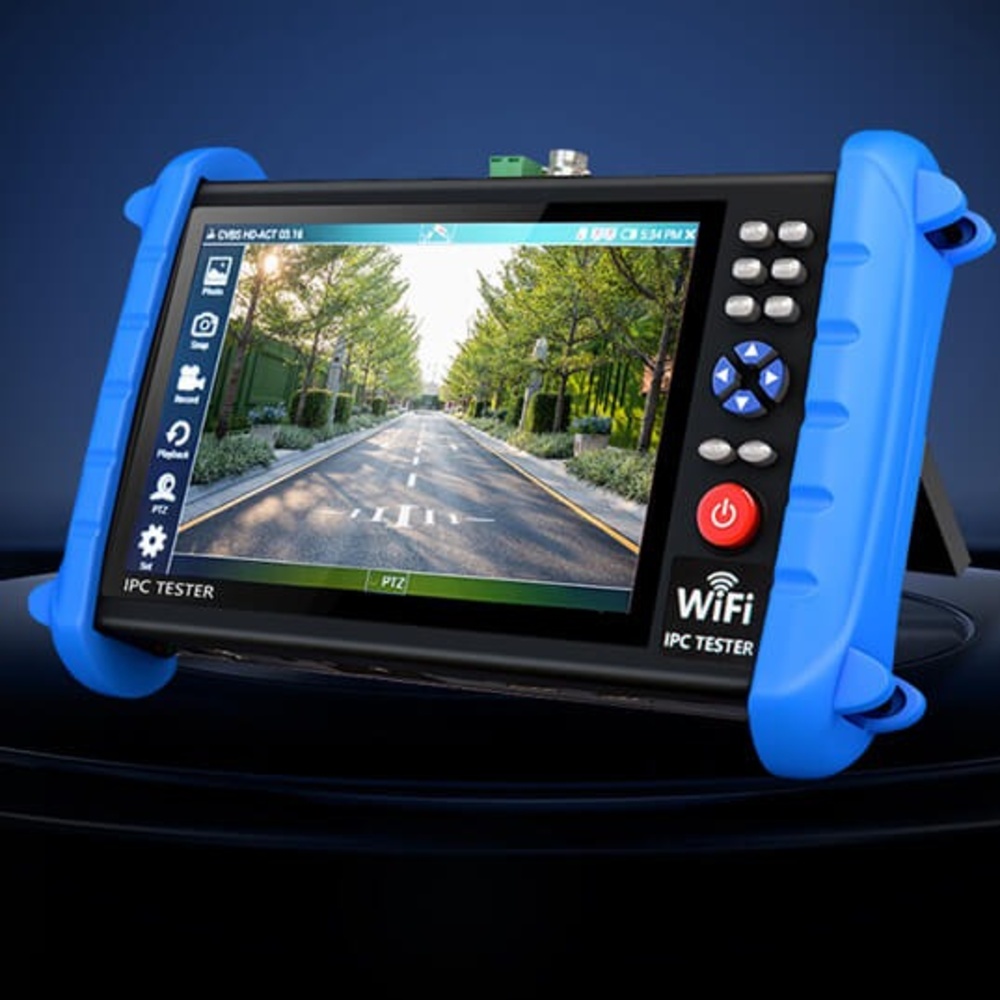

● CVBS Test: 1CH input, PAL/NTSC auto-adapt
● HD Test: TVI/CVI/AHD 8MP (EX-SDI not supported)
● Zoom: 8x real-time video zoom

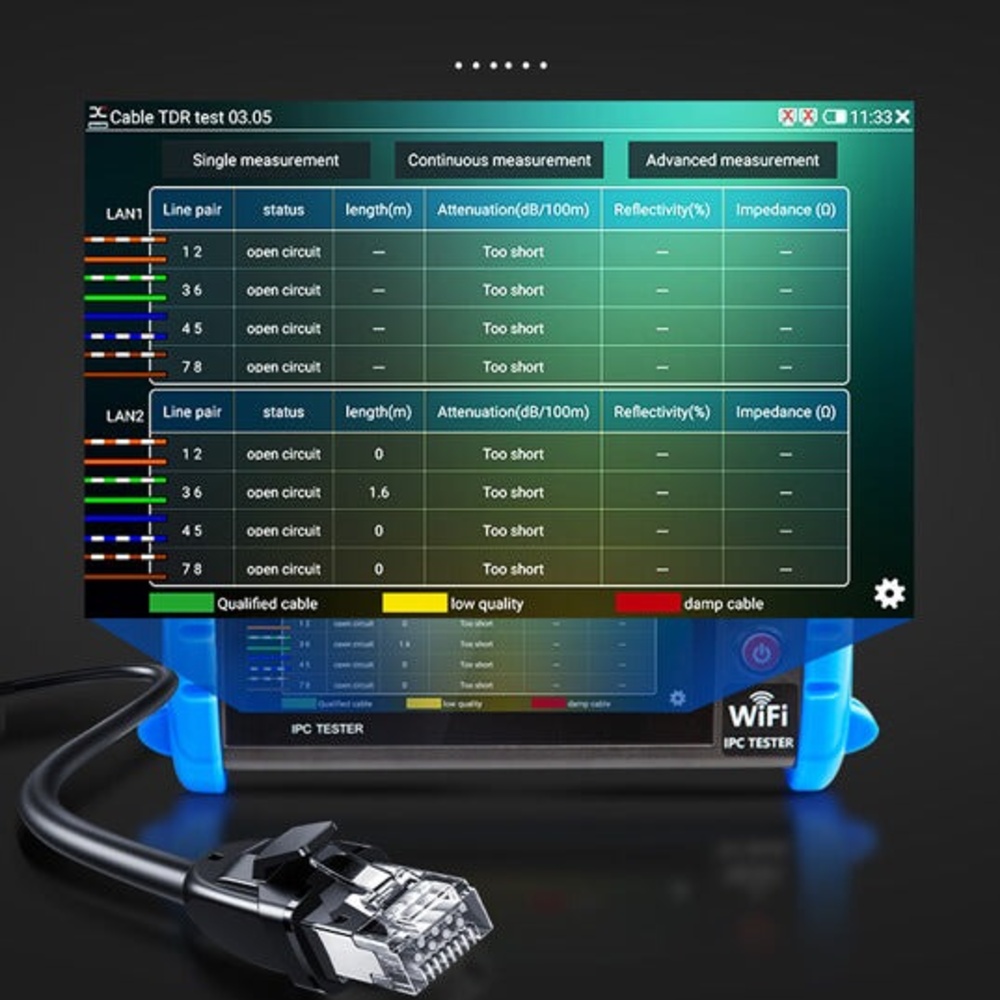

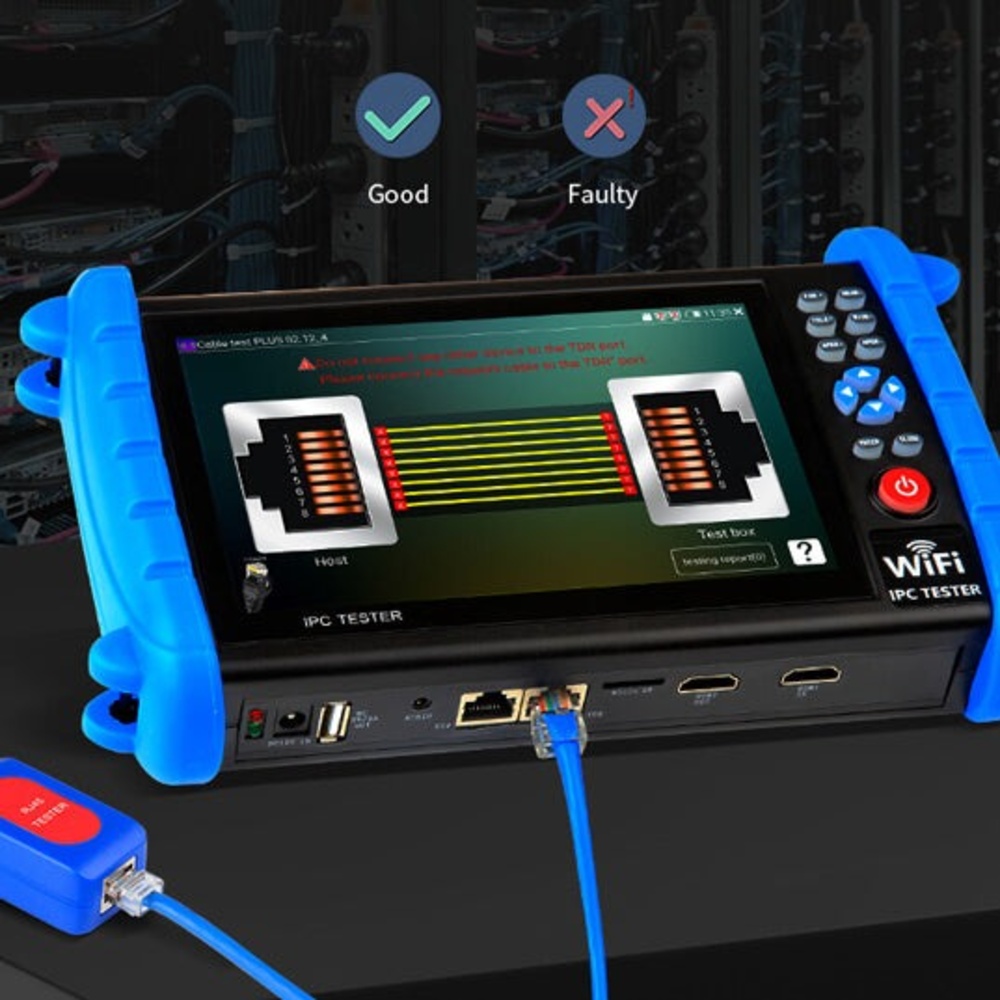

● Cable Test: Sequence, breakpoint detection
● Audio Test: 1CH input, record & save
● Optical Meter: Fiber parameter testing
● DC12V Out: Max 3A, temp camera power
● DC24V Out: Max 1A, temp camera power
● PoE Out: 48V standard, camera power
● DC5V Out: USB/mobile power, max 2A
● PSE Test: Voltage & circuit display

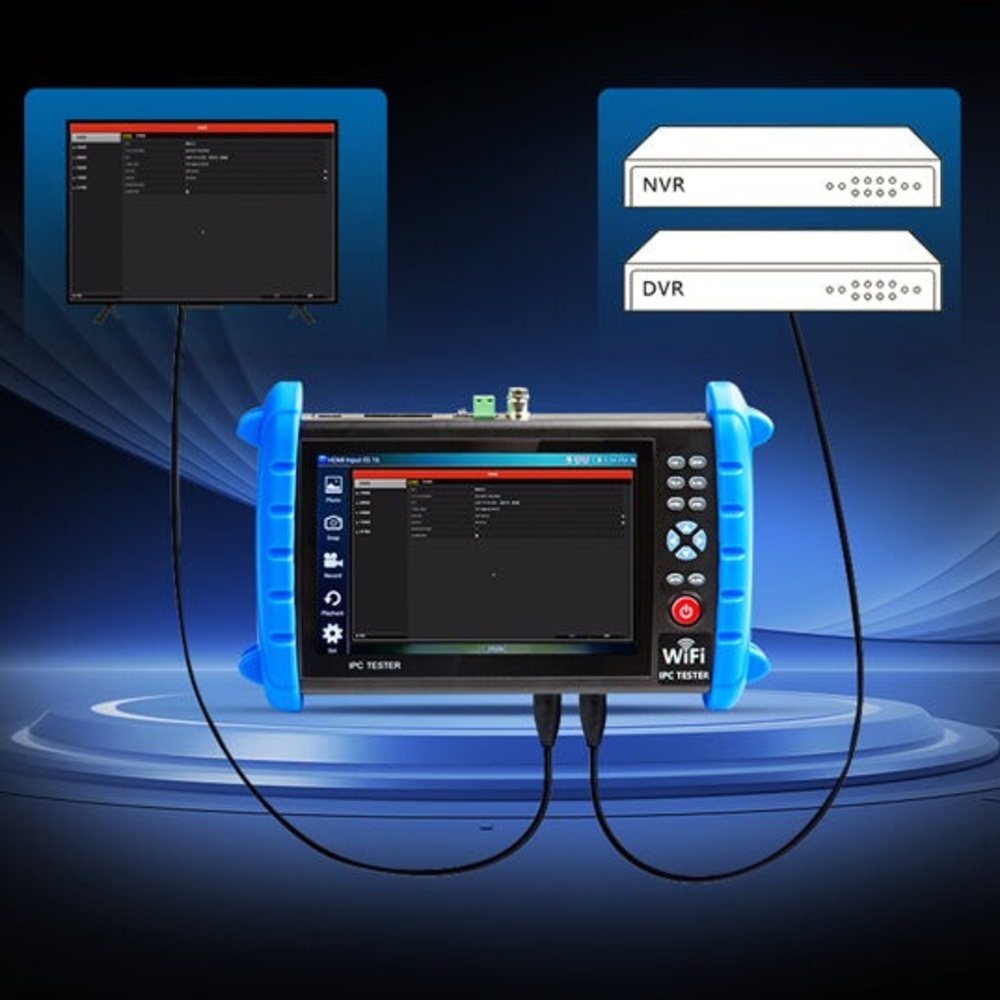

● HDMI Input: HD video only (no 4K support)
● RS485 Tool: Send/receive hex/data
● Charger: DC12V/2A
● Battery: 7.4V, 7000mAh, 8–10 hrs use
● Languages: 13 total (EN, CN, ES, etc.)
● Storage: 8GB internal SD
● Temp Range: -10℃ to 50℃
● Humidity: 30%–90%

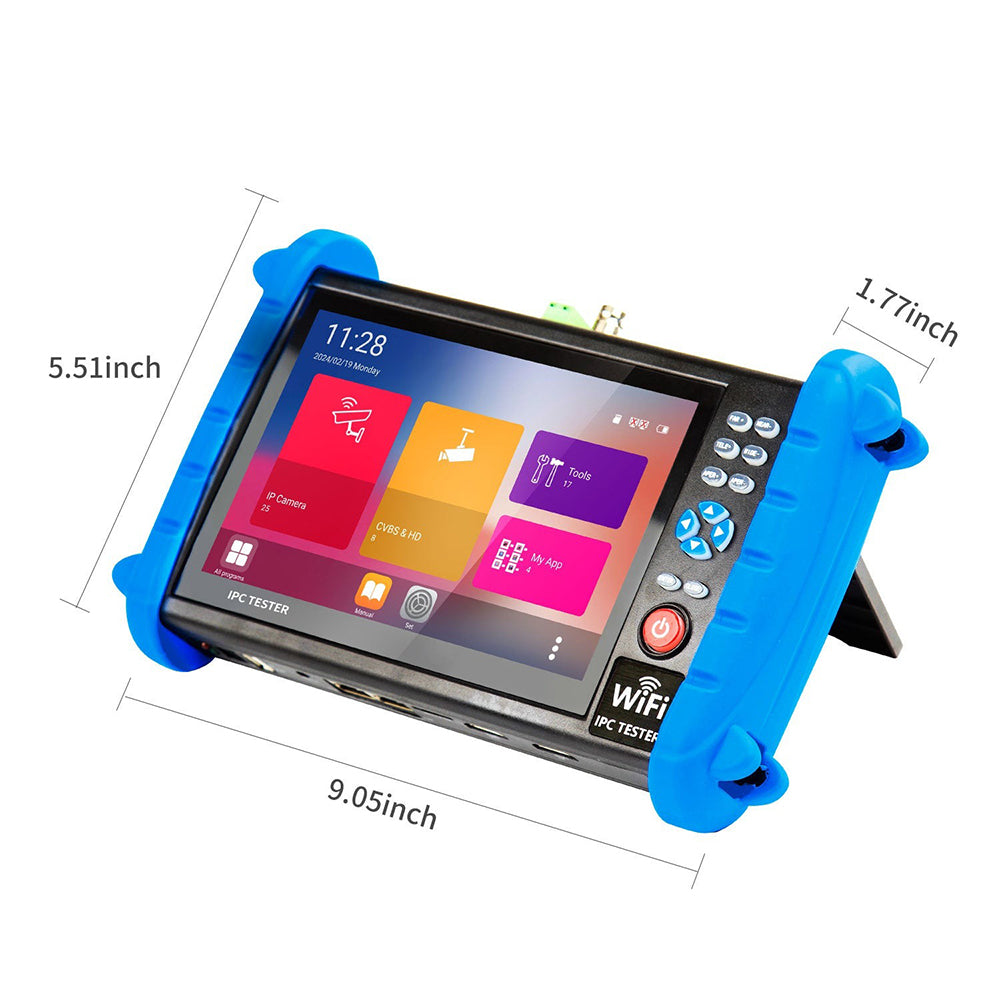

● Size: 23×14×4.5 cm
● Weight: 0.9 kg
What's inside the box?
● 1x IPC Tester
● 1x RJ45 Tester Remote
● 1x Power Adapter & Cable
● 1x Alligator Cable Clip
● 1x Carrying Bag
● 1x User Manual
