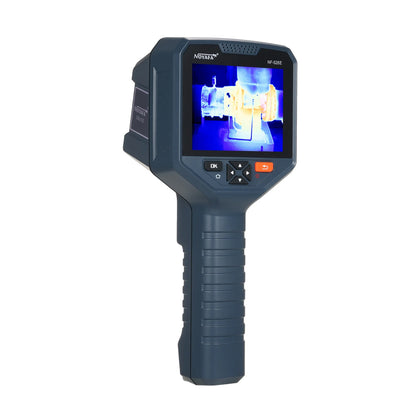

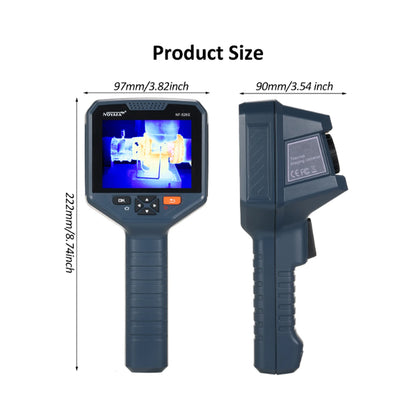

NF-526E
Industrial Thermal Imager
-
New appearance design, 3.5-inch large screen, 256x192 ultra-clear infrared resolution.
-
720P HD resolution, making the image finer and clearer.
-
Athermalized fixed-focus lens, more accurate focusing.
-
Upgrade to 8G built-in large-capacity storage, which can store more than 20,000 pictures.
-
Type-C charging port, 2600mAh large capacity battery.
-
Support the hot spot, cold spot, center spot and zone temperature measurement.
-
Support Outline fusion,Overlay fusion,Picture in picture, Thermal,Visible.
-
It has the function of replaying temperature video, 25Hz frequency make the operate and replay smooth.
Specifications:
-

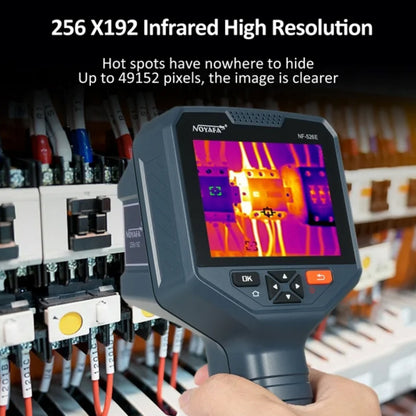

Resolution: 256 x 192
-
Infrared spectral bandwidth: 8~14um
-
Frame rate: 25HZ
-
NETD: 70mk@25℃
-
HFOV: 55.6°
-

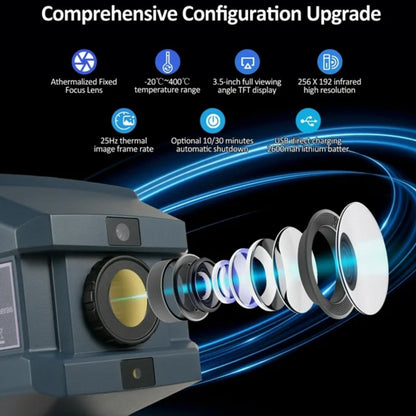

Lens: Athermalized Fixed Focus Lens
-

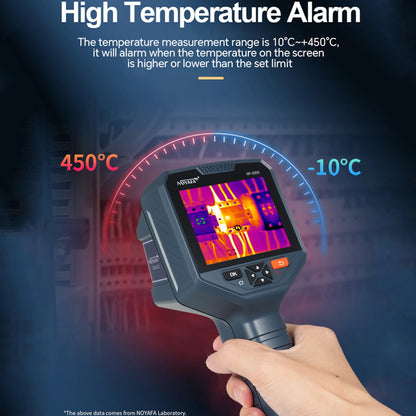

Temperature measurement : Low temperature: -20~150℃, high temperature: 120~400℃
-
Measurement Accuracy: +/-2℃ or +/-2% of reading
-
Temperature Measurement: Support highest point, lowest point, temperature measurement in whole screen and regional temperature measurement
-
Color palettes: Iron Red, Rainbow, Red hot, Black hot, White hot, High contrast, Green hot, Lava pattern
-

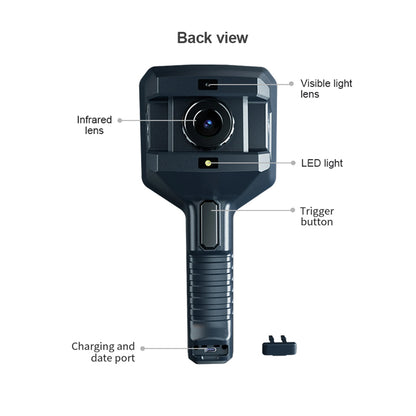

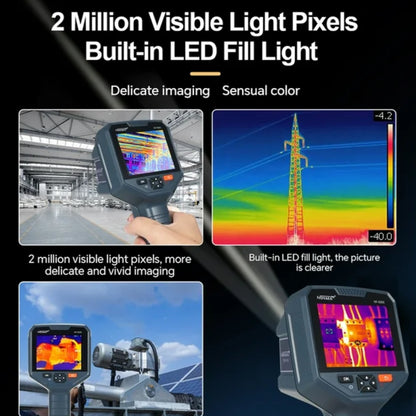

Visible light Resolution: 720P
-
Visible feld angle: 55°X83°
-
Image Display Size: 3.5 inches
-
Image Mode: Overlay fusion, Outline fusion, Picture-in-Picture, Thermal, Visible.
-
Language: Chinese (Simplified), Chinese (Traditional) , English, French , German , Spanish, Dutch, Japanese, Korean, Arabic
-
Port: USB Type-C (support to charge and export data)
-
Battery: 2600mah battery
-
Working time: 4 hours ( full power)
-
Working temperature: -10℃ ~ + 60℃
-
Storage temperature: -40℃ ~ + 85℃
-
Storage Capacity: 8G build-in memory
-
Storage Image Format: JPG
-
Storage Video Format: MP4
-
Material: ABS
