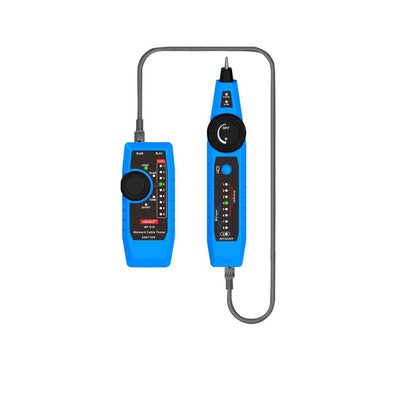

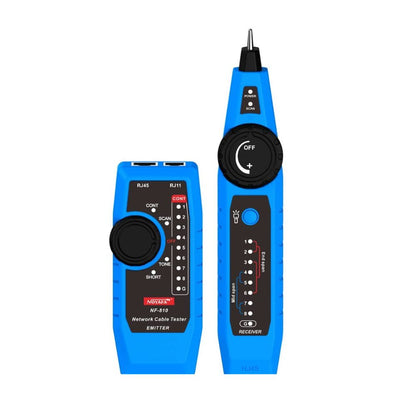

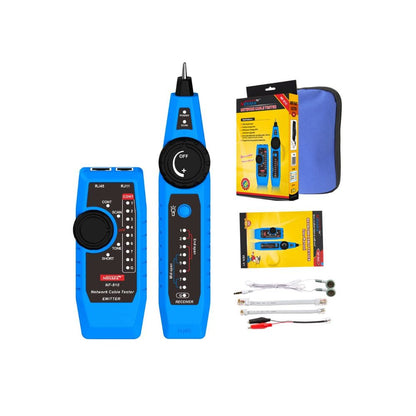

Noyafa NF-810 Network Cable Tester Kit for RK11 RJ45 Multi-Function Wiremap Tracker with LED Light POE Switch Test Functions
Noyafa NF-810 Network Cable Tester Kit for RK11 RJ45 Multi-Function Wiremap Tracker with LED Light POE Switch Test Functions
Regular price
₱1,200.00 PHP
Regular price
₱1,649.00 PHP
Sale price
₱1,200.00 PHP
Unit price
per
Tax included.
SKU:
Overview:
Multi-Function Testing Mode- It supports open, short, and cross Lan cable, including STP cable.
Cable scanning function- The cable tester can look for RJ11/RJ15/Electronic cables, through the sound of the receiver and the yellow-green signal indicator, the target line position can be accurately located.
Wire map function- The wire map function is mainly used to detect the wire sequence, short circuit, open circuit, and cross of the network cable, and display the test results in the form of wire sequence lights.
Telephone line status detection- It can test the polarity and on-off of the telephone line, and can also detect the state of the telephone line, such as idle, ringing, and conversation.
PoE Switch Testing- The RJ45 of the receiver is connected to the POE switch with a normal network cable, and the power supply connection of the POE switch can be tested.
Wiremap Function :
- The wiremap function is mainly used to detect the wire sequence, short circuit, open circuit, and cross of the network cable, and display the test results in the form of wire sequence lights.
POE Switch Test Function:
The RJ45 of the receiver is connected to the POE switch with a normal network cable, and the power supply connection of the POE switch can be tested.
Telephone Line Status Detection Function:
Connect the transmitter to the phone using the RJ11 adapter cable, and at the same time turn the transmitter knob switch to the "telephone line", the telephone line indicator lights up.
Transmitter :
Rotate the transmitter knob switch to the "SCAN", scan indicator is always on, indicating that the cable scanning function has been entered. After selecting the function, connect one end of the network cable/telephone cable to be tested to the RJ45/RJ11 port of the transmitter.
Receiver
Turn on the receiver knob switch, you can adjust the receiver knob switch to the maximum sensitivity, use the receiver probe to approach the cable, when the receiver receives a signal, the receiver emits a "dididi" sound, the stronger the signal, the yellow-green signal The brighter the indicator light flashes, you can quickly locate the approximate position of the cable in this way.
After determining the approximate position of the cable, appropriately reduce the receiver's signal sensitivity to accurately locate the target line.
Earphone Function
When the receiver is tested in a noisy environment, you can wear headphones for operation to avoid external interference.
