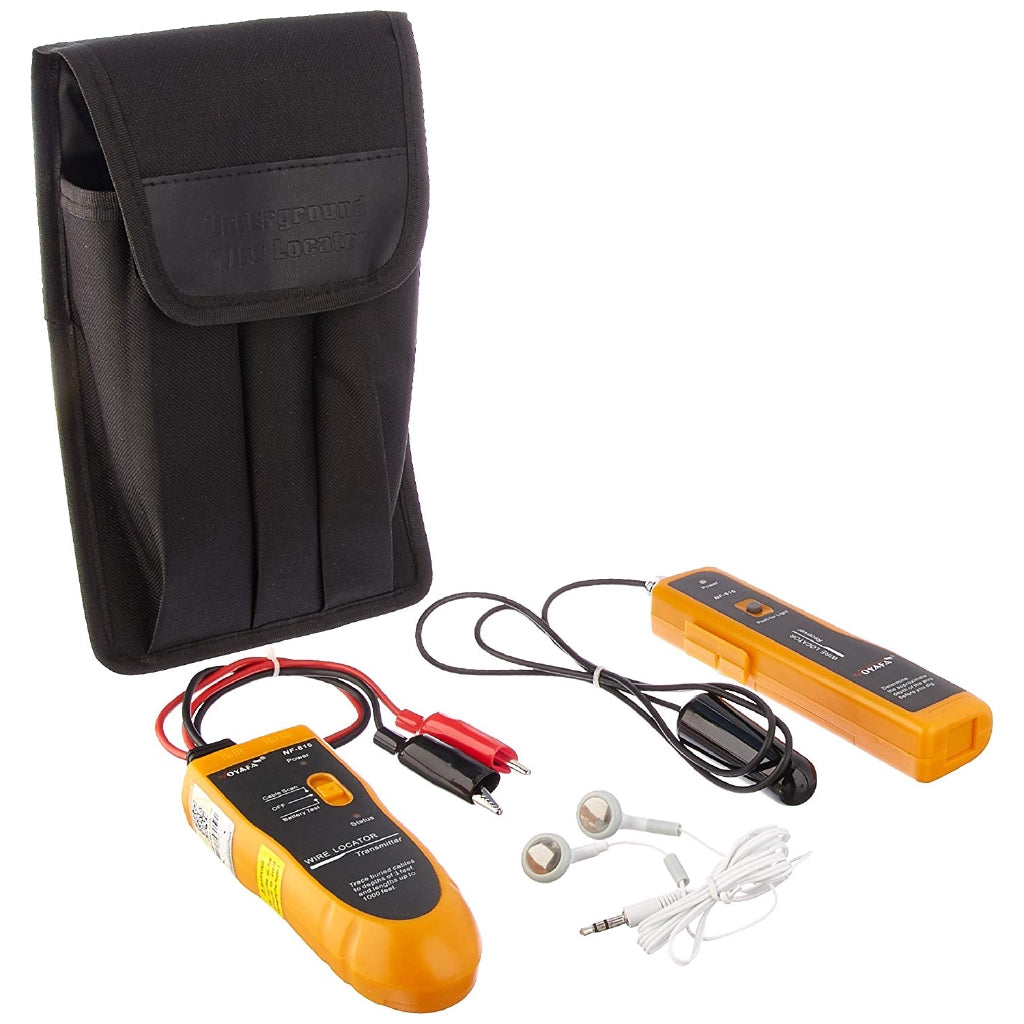

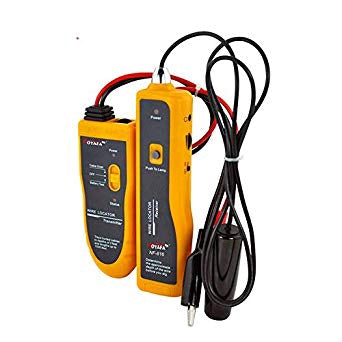

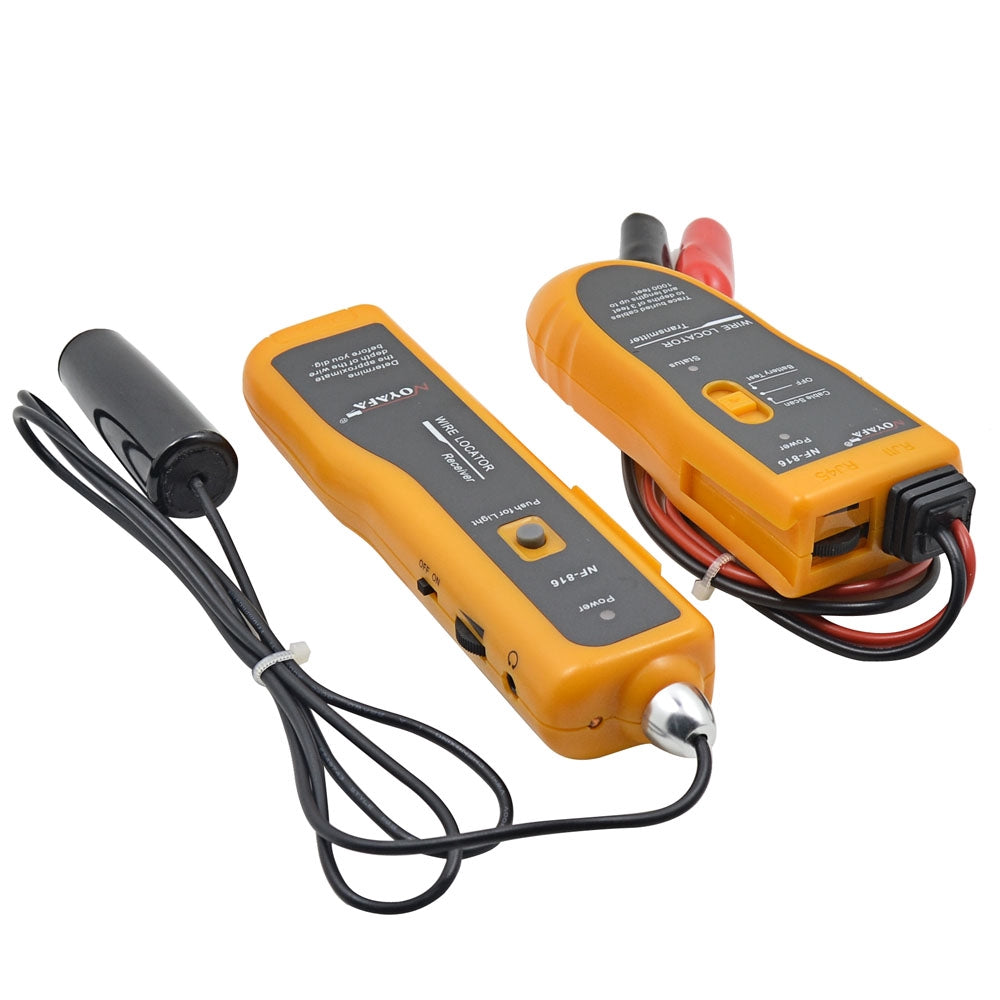

![[CLEARANCE] Noyafa NF-816 RJ11 Underground Buried Wire Locator Tracker Diagnose Tool Kit LAN Network Cable Tester](http://jgsuperstore.com/cdn/shop/files/9e90ed34a14aa627752451be16129a72.jpg?v=1746168518&width=1445)
![[CLEARANCE] Noyafa NF-816 RJ11 Underground Buried Wire Locator Tracker Diagnose Tool Kit LAN Network Cable Tester](http://jgsuperstore.com/cdn/shop/files/791d40f50354d7ca70f06f1a3bbcf3e8.jpg?v=1746168520&width=1445)
![[CLEARANCE] Noyafa NF-816 RJ11 Underground Buried Wire Locator Tracker Diagnose Tool Kit LAN Network Cable Tester](http://jgsuperstore.com/cdn/shop/files/7fdd197c77be976fb253d7246ebfdf45.jpg?v=1746168523&width=1445)
![[CLEARANCE] Noyafa NF-816 RJ11 Underground Buried Wire Locator Tracker Diagnose Tool Kit LAN Network Cable Tester](http://jgsuperstore.com/cdn/shop/files/092e38a6f811452cfb2167870e2b1a77.jpg?v=1746168525&width=1445)
![[CLEARANCE] Noyafa NF-816 RJ11 Underground Buried Wire Locator Tracker Diagnose Tool Kit LAN Network Cable Tester](http://jgsuperstore.com/cdn/shop/files/f4f333d8c19806b7821997f9becd32dd.jpg?v=1746168528&width=1445)
Features:
- Helpful-Locating & tracking buried and hidden wires.
- Easily Locate Pet Fence Wires, Metal Wires, Metal Pipes, Electrical Wires, ect ( only for single-strand wire, or double-strand wire in parallel, not for multistrand wire!!!)
- Locate-Determining Which Receptacles are on specific circuits,track-Pinpointing Drill Sites before drilling.
- Wire tracer range-Up to 3 feet deep and 1000 feet in length.
- Do not use on live circuits to avoid damaging the Tester! This device is mainly to locate non-energized Cable, or low-voltage situation
|
Technical indexes |
|
|
NF-816 Transmitter specifications |
|
|
Tone frequency |
900Hz |
|
The Max length distance |
1000 feet |
|
The Max depth distance |
3 feet |
|
The Max. working current |
Less than 70mA |
|
Tone mode |
1 Tone |
|
Max. signal voltage |
15Vp-p |
|
Signal display |
Signal tone, Antenna |
|
Voltage protection |
AC 60V/DC 42V |
|
Battery type |
DC9.0V(NEDA 1604/6F22) x 1pc |
|
Dimensions (LxWxD) |
49 x 135 x 33mm |
|
NF-816 Receiver specifications |
|
|
Frequency |
900kHz |
|
The Max. working current |
Less than 70mA |
|
Earphone jack |
1 |
|
Battery type |
DC9.0V(NEDA 1604/6F22) x 1pc (Without) |
|
Dimensions (LxWxD) |
43 x 168 x 27mm |
|
|
|
|
|
||||||
|
Description |
NF-801 |
NF-168 |
NF-268 |
NF-818 |
NF-816 |
NF-812 |
|
Tracing RJ11 Cable |
ok |
ok |
ok |
ok |
ok |
ok |
|
Tracing RJ45 Cable |
ok |
ok |
ok |
× |
× |
ok |
|
Tracing BNC Cable |
× |
ok |
ok |
ok |
× |
× |
|
Testing RJ11 cable |
× |
× |
× |
ok |
ok |
× |
|
Testing RJ45 cable |
ok |
ok |
ok |
× |
× |
ok |
|
Testing BNC cable |
× |
ok |
ok |
ok |
× |
× |
|
Locate breakage points |
× |
× |
ok |
× |
× |
× |
|
Cable clip connected to |
× |
× |
× |
× |
× |
× |
|
Anti-jamming when |
ok |
good |
best |
ok |
ok |
ok |
|
Pin-to-pin display |
ok |
ok |
ok |
ok |
ok |
ok |
|
Backlight |
ok |
ok |
ok |
ok |
ok |
ok |
Function Comparison
