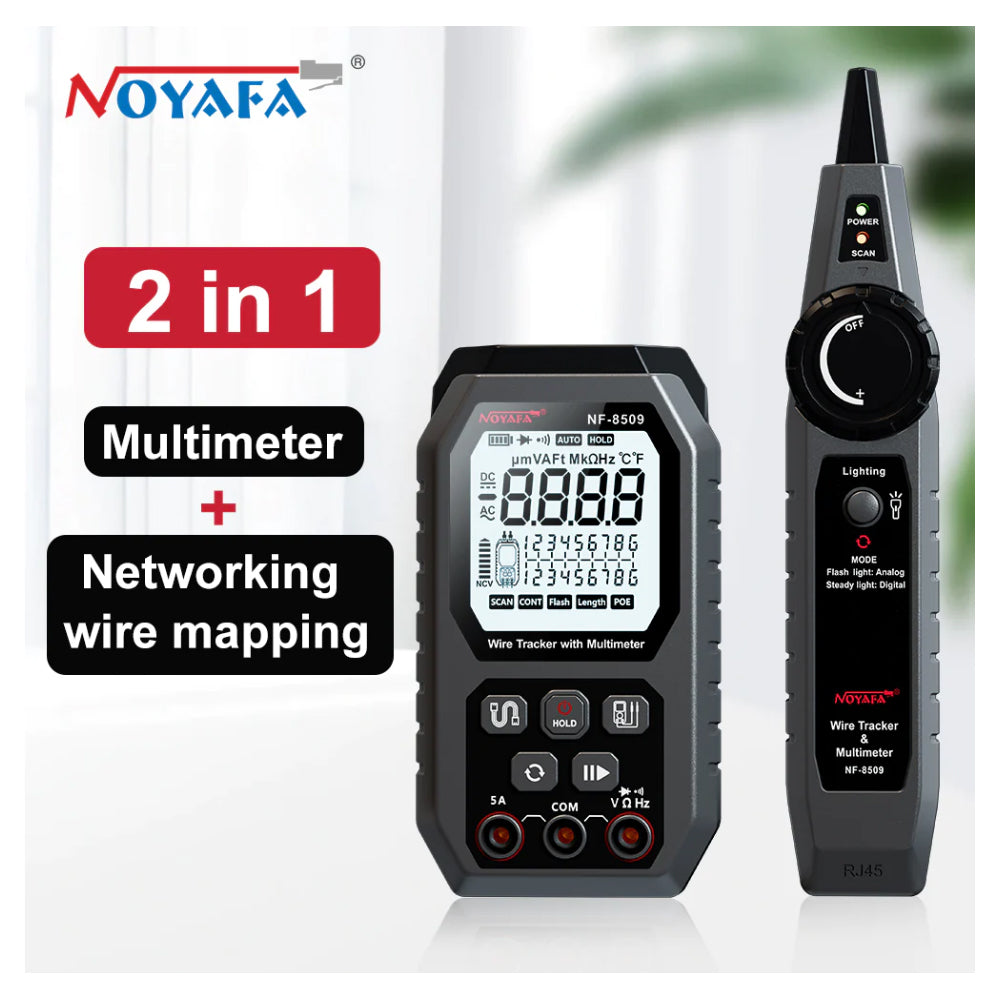

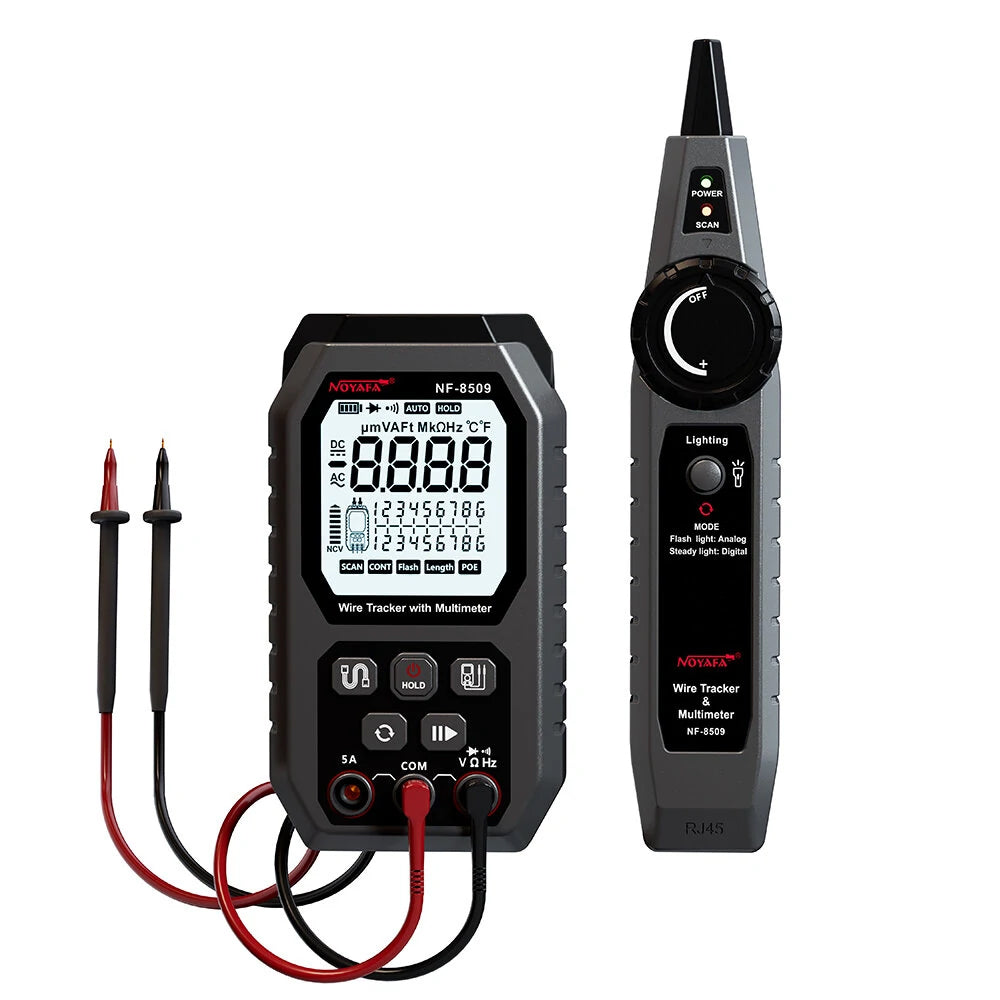

Noyafa NF-8509 Network Cable Wire Tracker Tone Tracer with Digital Multimeter Tester for Ethernet Cable, Telephone Line, Power Cable, Electrical Socket, Appliances, Computer, PC, Electronics - Electricity & Networking Tool

Description:

Features & Benefits

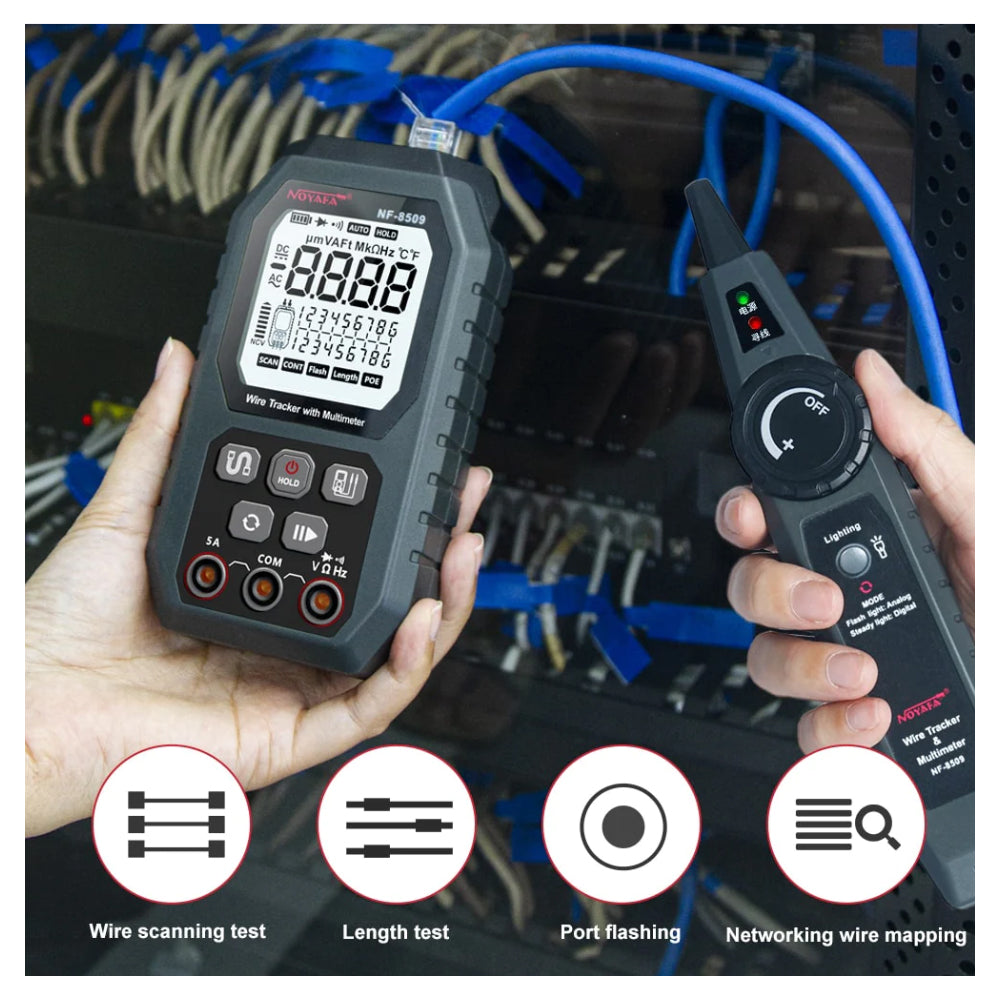

Versatile Functionality. The NF-8509 offers a wide range of features including cable tracking, wire map testing, cable length testing, electric circuit voltage / current / resistance measurement, and more.

Reliable Precision. With a precision circuit board and intelligent computing chip, the NF8509 delivers high-precision measurements and accurate results.

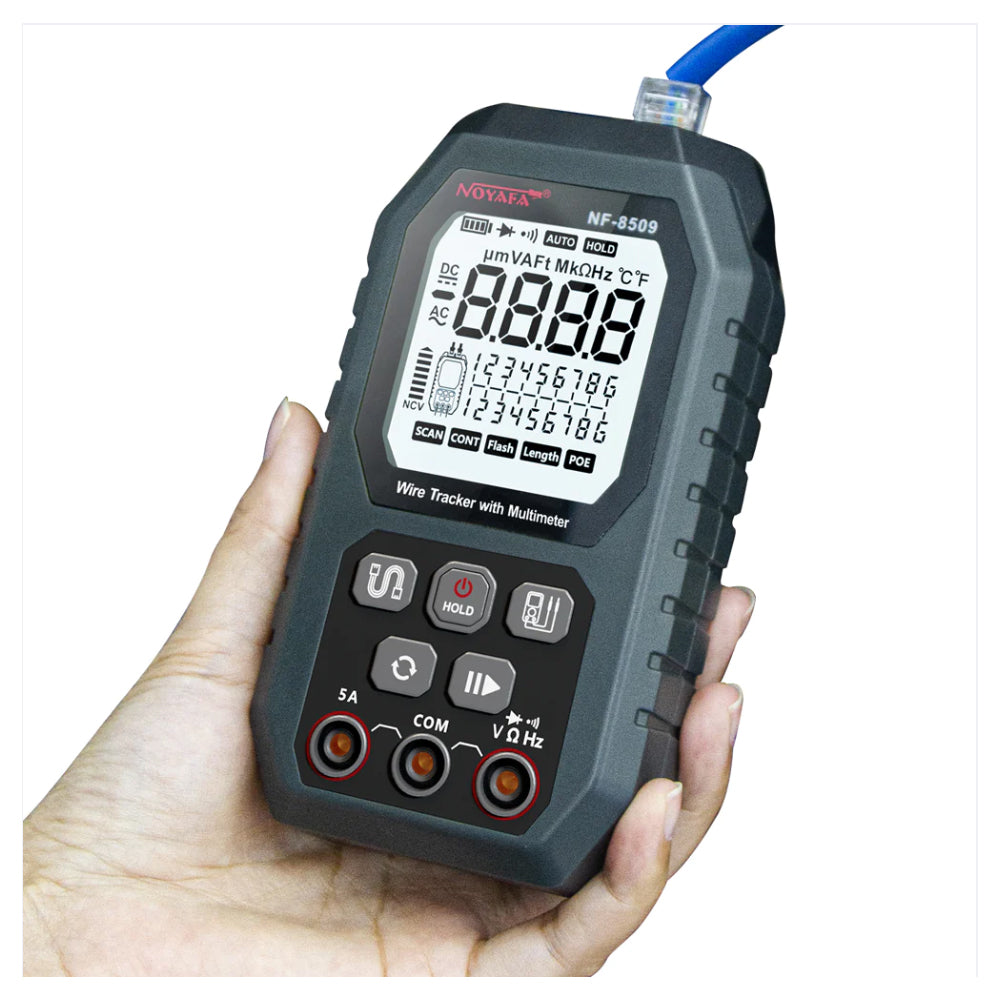

Clear and Convenient Display. The high-definition backlit display provides clear visibility of measurement data, making it easy to read and operate.

Anti-interference Mode: Switchable between anti-interference wire scanning and normal wire scanning. Proofreading network line sequence. Wire scanning quasi-responsive allows for responsive wire scanning.

Port Flash. Identifies the docking port by flashing the indicator light of the connecting network cable port at the same frequency, ensuring safety.

PoE test to quickly identify PoE devices. Supports testing of standard PoE devices.

Non-Contact Voltage Testing (NCV). Safely detects high and low AC voltages without physical contact.

Bright and Clear LED Lighting. Equipped with bright LED lighting for clear visibility in dark environments.

Wide Application Range. Suitable for various scenarios such as electromechanical testing, network testing, cable detection, and home appliance testing, making it a versatile tool for professionals in different fields.

Specifications:

• Model:NF-8509
• Transmitter Wire mapping test Max.distance of 2.000m
• Wire scanning RJ45 600m
• Wire length test 5-200m(±3m)
• Port flashing test 10M/100M/1,000M
• POE4-core/8-core power supply detection
• POE voltage detection
• Continuity test Detect The connectivity performance of ofwires andvariousconductorsThebuzzer will sound when resistance is below 50Ω
• Identify the polarity and forward voltage dropofdiodes(0-3.3V)
• NCV function Inductive voltage detector(0-4 levels)
• Resistance measurement :600Ω-60MΩ(accuracy:±1.0%+5)
• AC/DCvoltage measurement :600mV-610V(DCaccuracy:±0.5%+3 ACaccuracy:+0.5%+3)
• measurement:1mA-3ADC(accuracy:±0.8%+3)
• Frequency:0-10MHz(accuracy:±1.0%+3)
• Power:3.7V/1,500mAlithium battery
• Ambient
• temperature display √

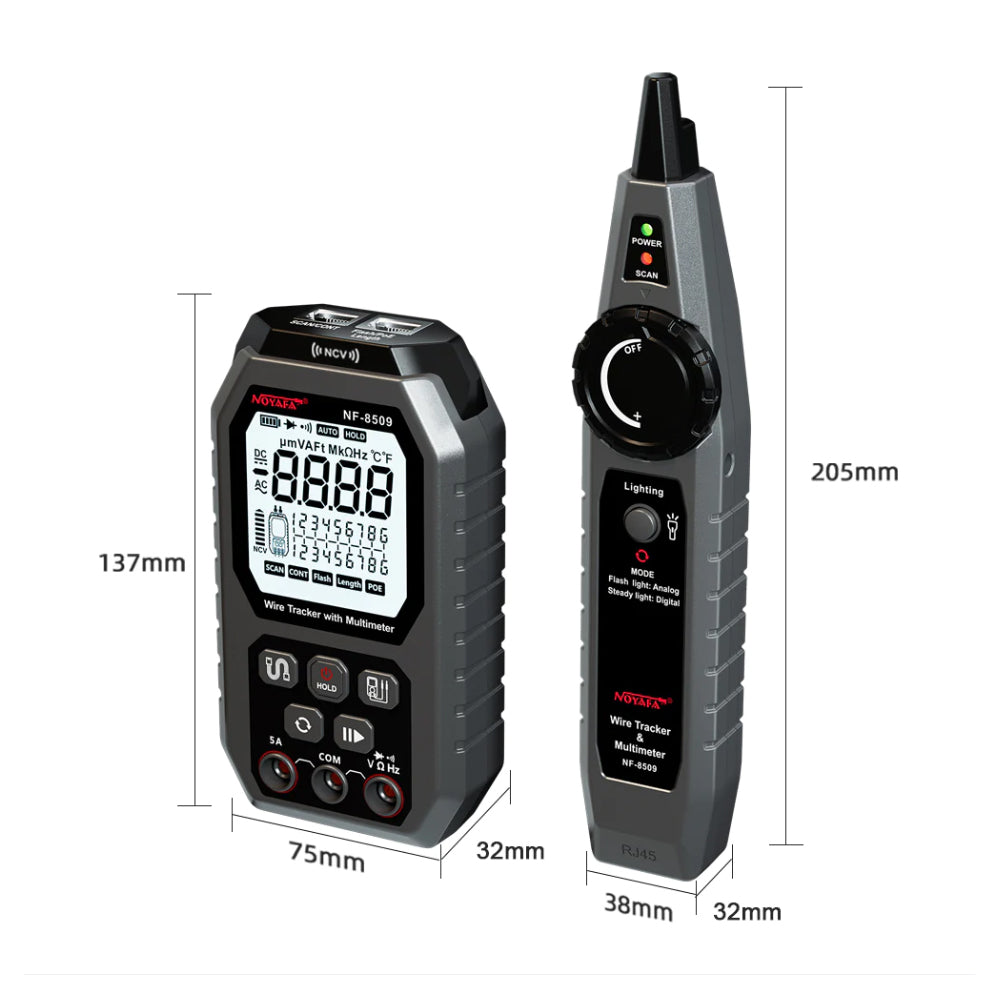

• Dimensions 137.5x76x34mm
• ReceiverL ED light √
• Telephone function √
• Power DC 9V(exclusive)
• Maximum working current≦150mA
• Dimensions204.9x38x29mm
