Overview:
The Acoustic Pedal:
The Orange Acoustic Pedal takes all the know-how of the acclaimed Acoustic Pre TC preamp and Crush Acoustic 30 amplifier, cramming it all into a do-it-all, compact preamp pedal. Whether you need to win the battle against feedback, handle complex effects chains, brighten up a dull instrument or just plug into a PA, the Acoustic Pedal has you covered. With a low-noise JFET circuit design, surgical-yet-flattering EQ, XLR and 1/4″ outputs and a buffered FX Loop, all situations are taken care of.
Highlights:
- EQ with Notch Control: The Middle knob works in conjunction with the Notch and Q Factor controls to subtly sculpt your sound or tackle feedback with precision. Fixed-frequency Bass and Treble knobs give you much-needed control over the “body” and “sparkle” of your instrument.
- High Headroom, Low Noise: The Acoustic Pedal uses a single-ended JFET circuit design to guarantee insanely low levels of background noise. Super-high headroom comes courtesy of the 18V power supply, guaranteeing the cleanest, clearest acoustic tone.

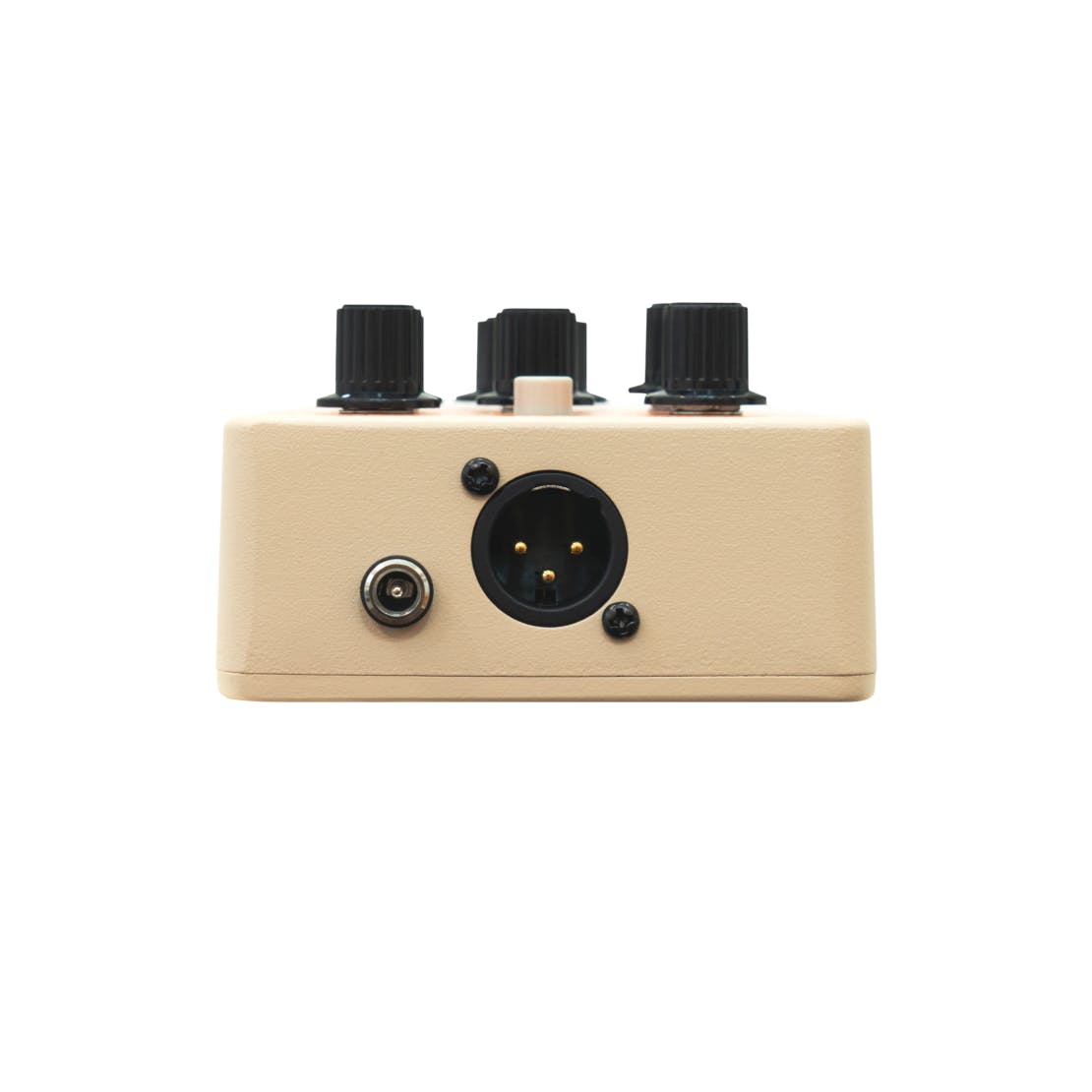

- Balanced XLR Output: Connect straight to the P.A. with no need for a D.I. box. Our studio-grade, balanced XLR output will drive long cable runs with noise-free, high-fidelity performance. A phase reverse control for this output allows further control over feedback issues, while the additional 1/4″ mono jack output can be used simultaneously for ultimate flexibility.
- Buffered FX Loop: Effects aren’t just for electric guitarists. In the world of the modern acoustic player, where loopers, reverbs and delays are just as important as the instrument itself, creating the perfect signal chain is essential. The highly transparent, buffered FX Loop gives you the freedom to build your dream acoustic rig, without compromise.
Specifications:
- Type: Acoustic Guitar Preamp
- Analog/Digital: Analog
- Channels: 1
- EQ: 3-band EQ with Q Control
- Polarity Switch: Yes
- Feedback Control: Notch Control
- Inputs: 1 x 1/4" (instrument), 1 x 1/4" (return)
- Outputs: 1 x 1/4" (main out), 1 x XLR (balanced DI out), 1 x 1/4" (send)
- Power Source: 18V DC Center Positive power supply (included)

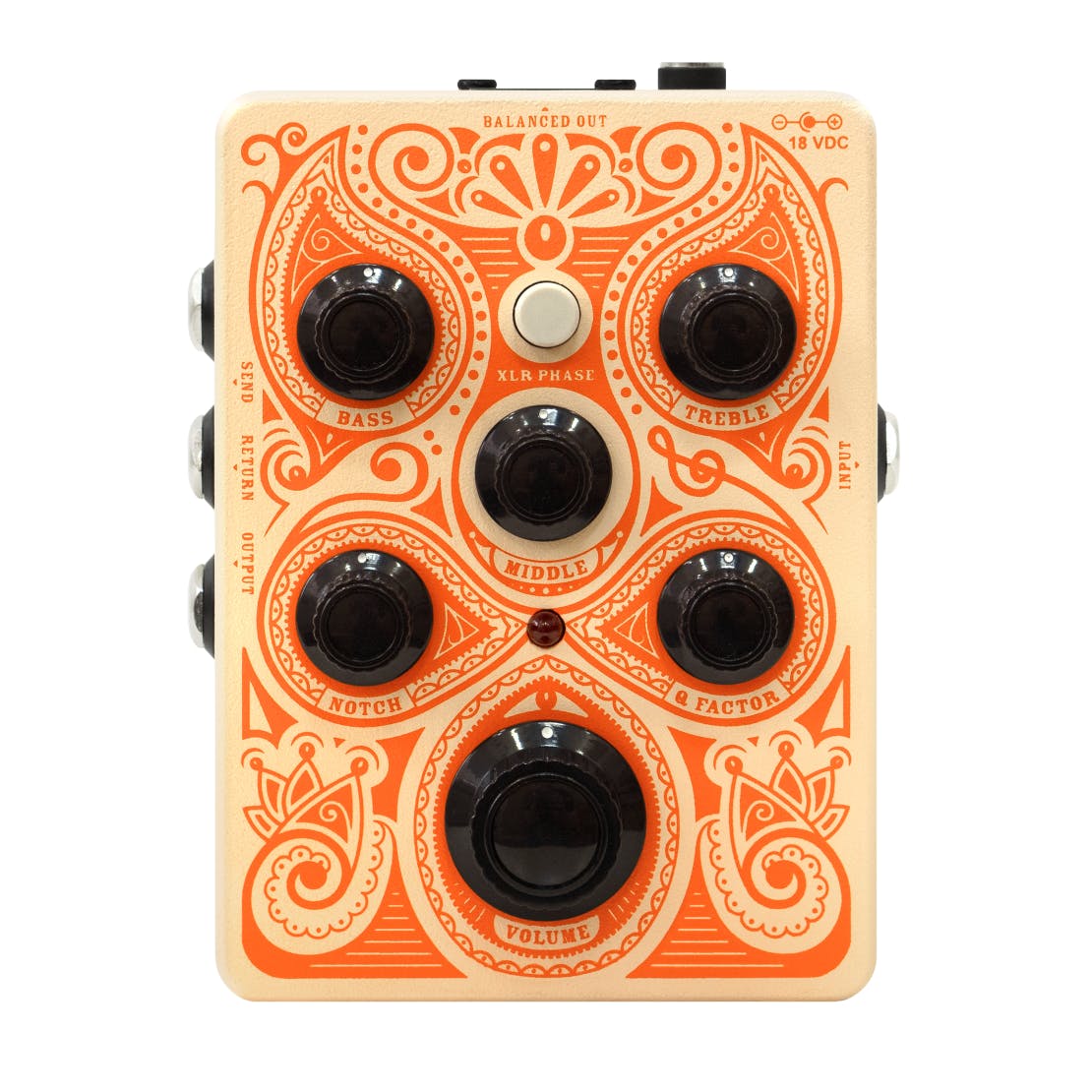

- Controls: Bass, XLR Phase, Treble, Notch, Middle, Q Factor, Volume
