Panasonic HC-X2000 UHD 4K 3G-SDI/HDMI Pro Camera Camcorder with 24x Zoom



• Capture up to UHD 4K video and output via 3G-SDI (BNC) or HDMI.
• Live stream using RTSP/RTMP/RTMPS streams via Wi-Fi.
• In 4K recording mode, the camera utilizes 5-axis optical image stabilization (O.I.S.).
• The HC-X2000 features dual manual lens rings.
• The camera features built-in selectable ND physical filters.
• The camera records in either MP4, MOV, or AVCHD Progressive.

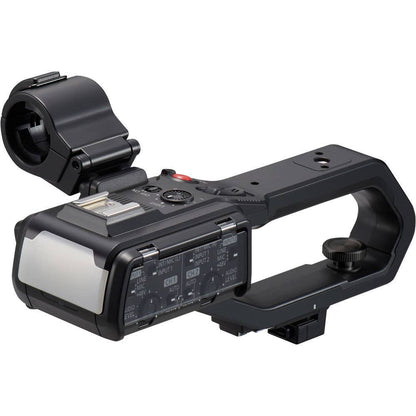

• The camera includes a removable top handle with two 3-pin XLR audio inputs for line or mic level input, as well as a switch for +48V phantom power. Manual adjustments are via dials set into the side of the camera so you can adjust the levels during the shot without having to pull up a menu function.



Imaging

• Sensor Resolution: Effective: 8.29 Megapixel
• Sensor Type: 1/2.5" MOS Sensor
• Image Stabilization: Sensor-Shift
• Optical in Integrated Lens
• Built-In ND Filter: Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
• Shutter Type: Rolling Shutter
• Shutter Speed: 1/1 to 1/30 sec
• Precise Scan Rate Control: No
• Gain: 0 to 30 dB
• Minimum Illumination: 1.5 Lux at 1/30 Shutter Speed
• White Balance: 2000 to 15,000K

Lens

• Focal Length: 4.1 to 98.9mm (35mm Equivalent Focal Length: 25 to 600mm)
• Optical Zoom Ratio: 24x
• Max Digital Zoom:
• 32x ( in UHD 4K)
• 48x ( in 1080p)
• Maximum Aperture: f/1.8
• Minimum Aperture: f/4
• Optical Design: 14 Elements in 11 Groups
• Minimum Focus Distance: Wide: 3.9" / 10.0 cm
• Telephoto: 47.2" / 1.2 m
• Filter Size: 62 mm

Control Rings:

• Focus
• Zoom
• Iris

Focus Control:

• Autofocus
• Manual Focus

• 3840 x 2160p at 50/60 fps (200 Mb/s VBR)
• 3840 x 2160p at 23.98/24/25/29.97/50/60/120 fps (150 Mb/s VBR)

• 3840 x 2160p at 23.98/25/29.97 fps (150 Mb/s VBR)
• 1920 x 1080p at 25/29.97 fps (200 Mb/s VBR)
• 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (100 Mb/s VBR)
• 1920 x 1080p at 23.98/29.97 fps (50 Mb/s VBR)
• 1920 x 1080i at 50/59.94 fps (100 Mb/s VBR)
• 1920 x 1080i at 50/59.94 fps (50 Mb/s VBR)

• 3840 x 2160p at 50/59.94 fps (100 Mb/s VBR)
• 3840 x 2160p at 50/59.94 fps (72 Mb/s VBR)

• 3840 x 2160p at 23.98/25/29.97 fps (72 Mb/s VBR)
• 1920 x 1080p at 23.98/50/59.94 fps (50 Mb/s VBR)

• 1920 x 1080p at 50/59.94 fps (25 Mb/s VBR)
• 1920 x 1080i at 23.98/50/59.94 fps (21 Mb/s VBR)
• 1920 x 1080i at 50/59.94 fps (17 Mb/s VBR)
• 1280 x 720p at 50/59.94 fps (8 Mb/s VBR)

• 1920 x 1080p at 50/59.94 fps (50 Mb/s VBR)
• 1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s VBR)
• 1280 x 720p at 50/59.94 fps (25 to 50 Mb/s VBR)

• Variable Frame Rates: 4.8 Up to 120 fps
• Audio Recording MOV: 2-Channel 24-Bit LPCM Audio
• MP4: 2-Channel 24-Bit AAC Audio
• AVCHD: 2-Channel 24-Bit AC-3 Audio
• Still Image Support: JPEG

IP Streaming:

Interface

• Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC/microP2 Hybrid
• Video Connectors:

• 1 x BNC (3G-SDI) Output
• 1 x HDMI Output

• Audio Connectors:

• 1 x 1/8" / 3.5 mm Stereo Headphone Output
• 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input

• Built-In Microphone Type: Stereo
• Other I/O: 1 x USB Micro-B Data Input
• 1 x 2.5 mm Input / Output
• Wireless Interfaces: 2.4 GHz Wi-Fi 4 (802.11n)

Monitor

• Size: 3.5"
• Resolution: 2,760,000 Dot
• Display Type: Articulating Touchscreen LCD

EVF

• EVF: Attached
• EVF Display Type: LCD
• Screen Size L: .24"
• EVF Resolution: 1,560,000 Dots

Power

• Battery Type: Panasonic AG-VBR Series
• Power Connectors: 1 x Proprietary (11.4 to 12.6 VDC) Input
• Power Consumption: 7.9 W

Environmental

• Operating Temperature: 32 to 104°F / 0 to 40°C
• Operating Humidity: 10 to 80%

Physical

• Tripod Mounting Thread: 1/4"-20 Female
• Built-In Light: Yes
• Accessory Mount: 1 x Cold Shoe Mount
• Dimensions: 10.12 x 6.26 x 5.08" / 25.7 x 15.9 x 12.9 cm
• Weight: 3.31 lb / 1.5 kg
