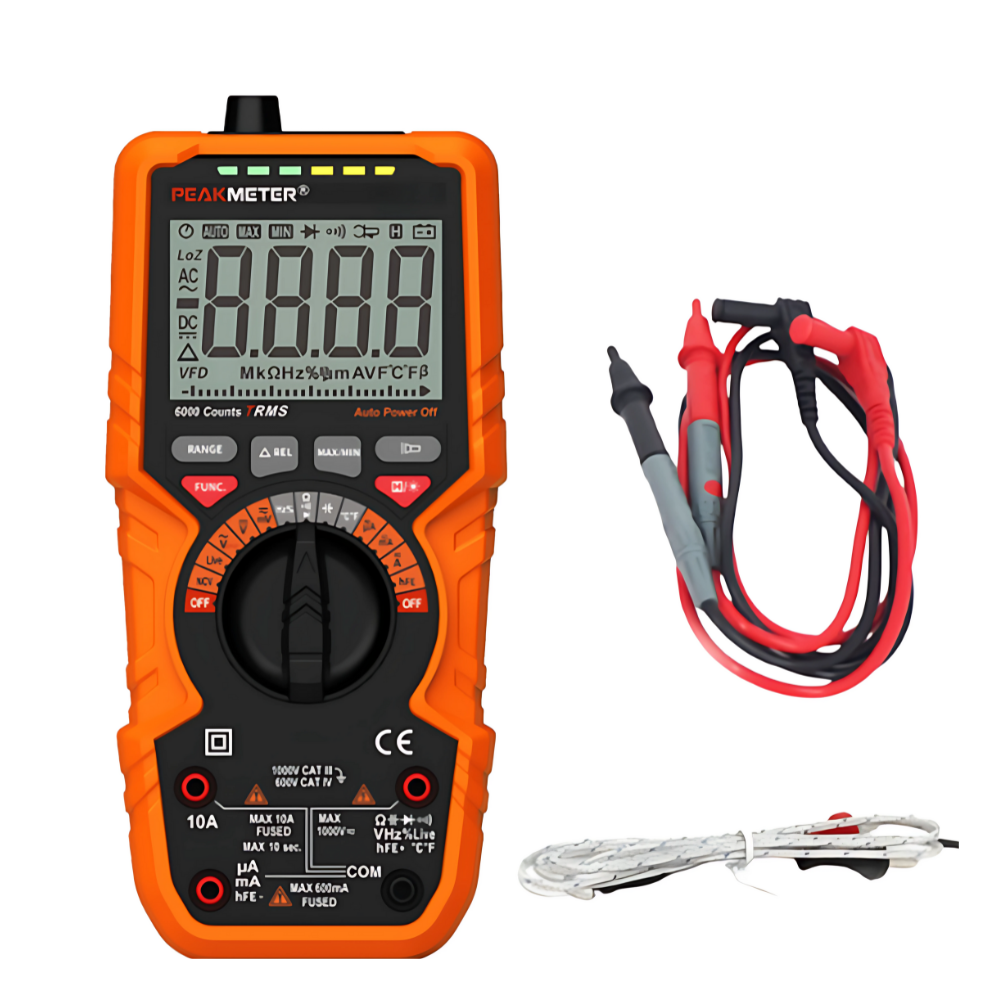

PEAKMETER PM118B MULTIMETER
Note:
To avoid any electric shock and/or damage to the meter; do not input 1000V AC/DC voltage (valid value) in any electric shock and/or damage to the meters don't attempt to impose between any public terminal and ground any voltage whose valid value is over 1000V AC/DC voltage. If you need to measure voltage higher than 1000V DC or 1000V AC RMS, turn the rotation gear to 2000V= and connect the test pen to the dedicated port.
Description
This meter is a hand-held digital multi-meter with the function of displaying True RMS. It is a large-screen LCD unit with backlight and illumination light functions so that the user can easily recognize reading. It is equipped with the function of overload protection and the indicator of battery under voltage. Either for professional, factories, schools, enthusiasts or households, it is an ideal multi-functional meter.
- Temperature Measurement – The meter can measure ambient temperature and measure temperature with a thermocouple
- Protective Case – Integrated protective case to prevent damage to the body when the meter falls accidentally; Convenient Probe
- Multi-function key, dial – The instrument has abundant usage functions, with simple keys and dials to make the functions
Key attributes
- Type: Digital Multimeter
- Customized support: OEM
- Power: 3*1.5V AAA Batteries
- Accuracy: ±(1.0%+3)
- Voltage: 600mV/6V/60V/600V/1000V
- Protection Class: None
- Brand name: Peakmeter
- Application: Universal testing
Features of Muti-function Digital Multimeter
- Auto and Manual range, relative value measure, max/min value measurement.
- Data hold, back light, work light, auto power off, NCV and live wire detection.
- AC/DC voltage, AC/DC current, resistance, frequency, duty cycle, diode, capacitance measurement.
RangeAccuracy
- DC Voltage600mV/6V/60V/600V/1000V±(0.5%+3)
- AC Voltage600mV/6V/60V/600V±(0.8%+5)1000V±(1.0%+5)
- DC Current 600uA/6mA/60mA/600mA±(0.8%+3)10A±(1.2%+3)
- AC Current600uA/6mA/60mA/600mA±(1.0%+3)10A±(1.5%+3)
- Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(1.0%+3)60MΩ±(2.0%+3)
- Capacitance60nF/600nF/6uF/60uF/600uF/6mF±(4.0%+5)100mF±(5.0%+3)
- Frequency10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz±(0.5%+5)
- Duty Cycle1%~99%±(3.0%+2)
- Temperature-40℃~1000℃±(1.0%+2)-40℉~1832℉±(1.0%+2)
