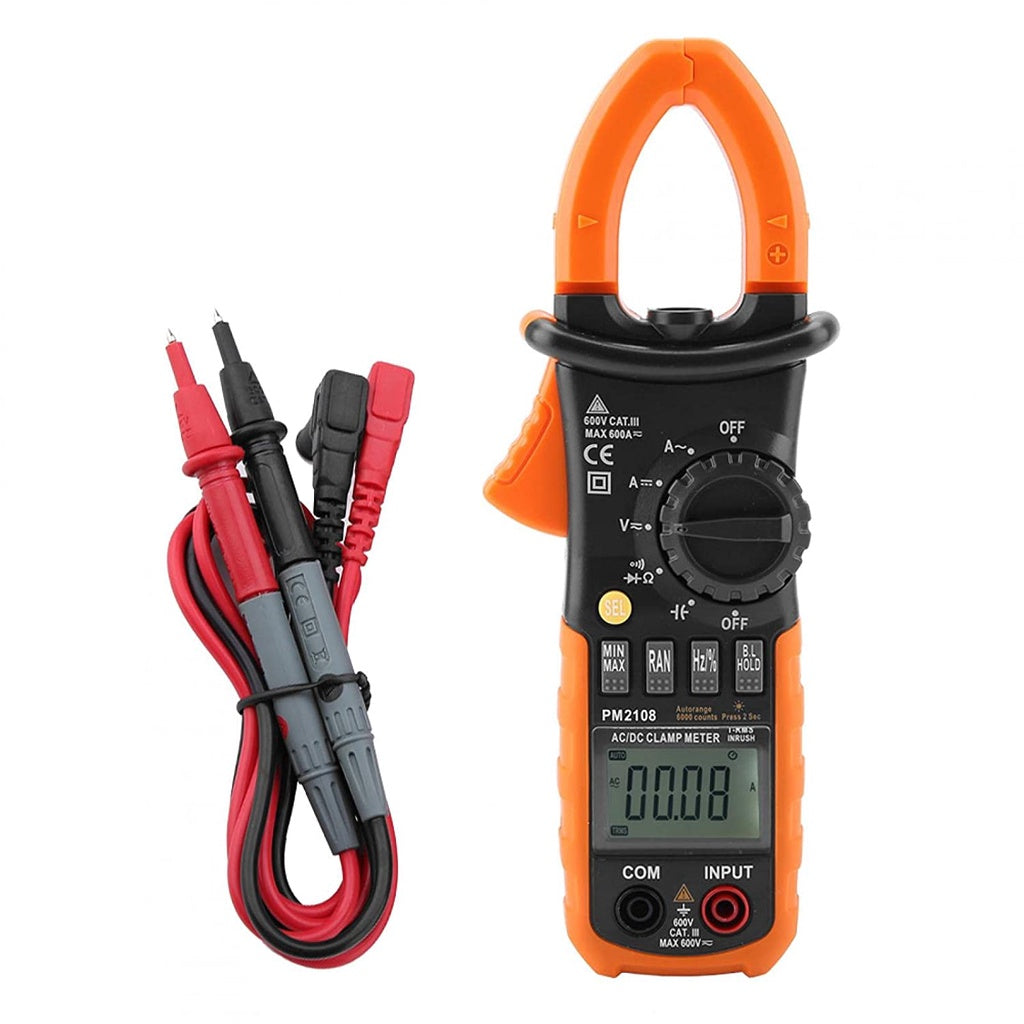

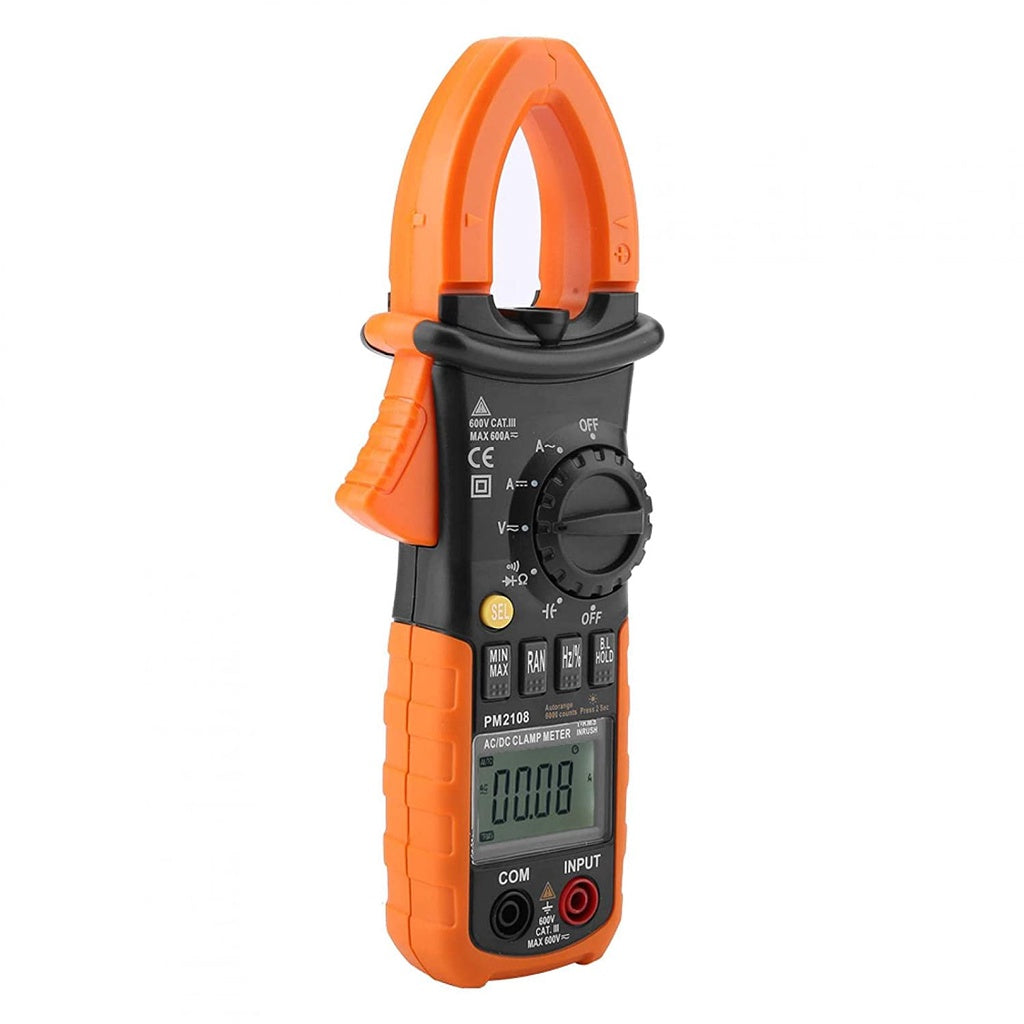

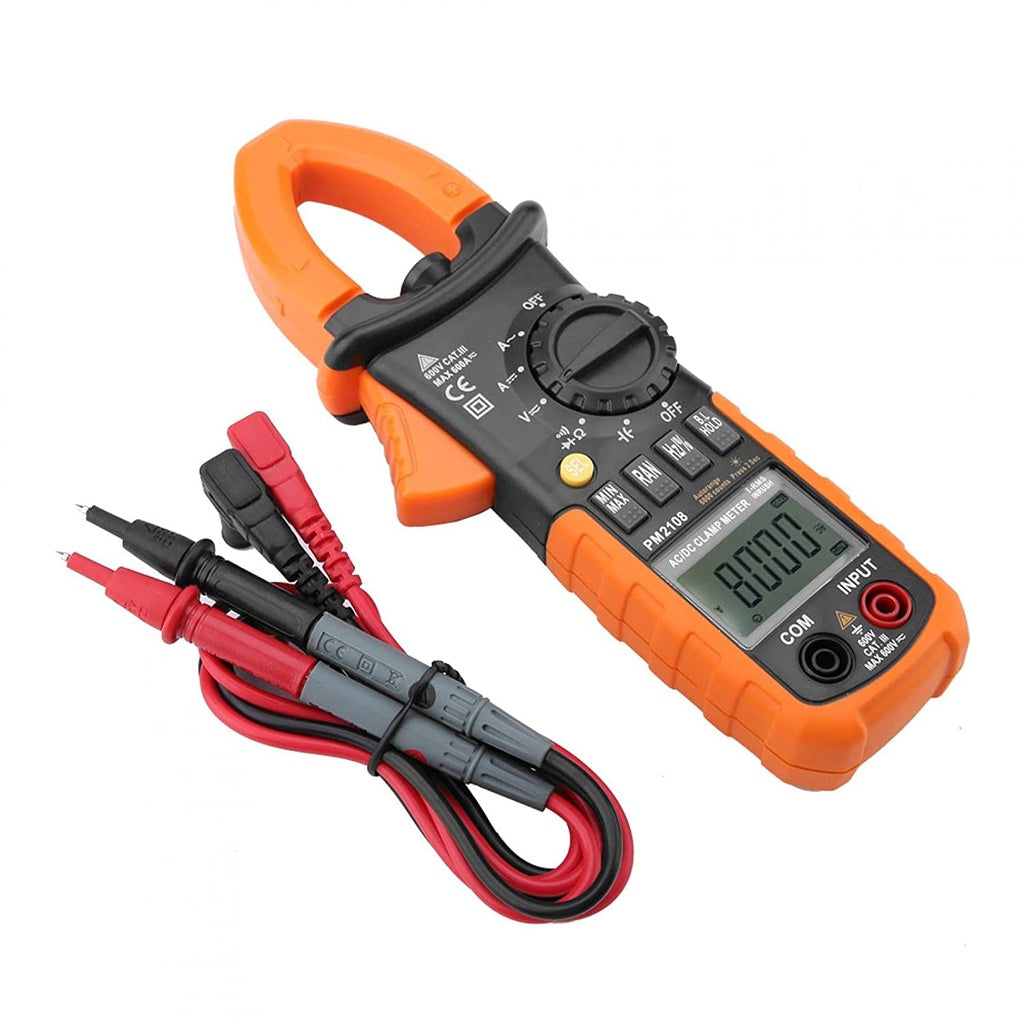

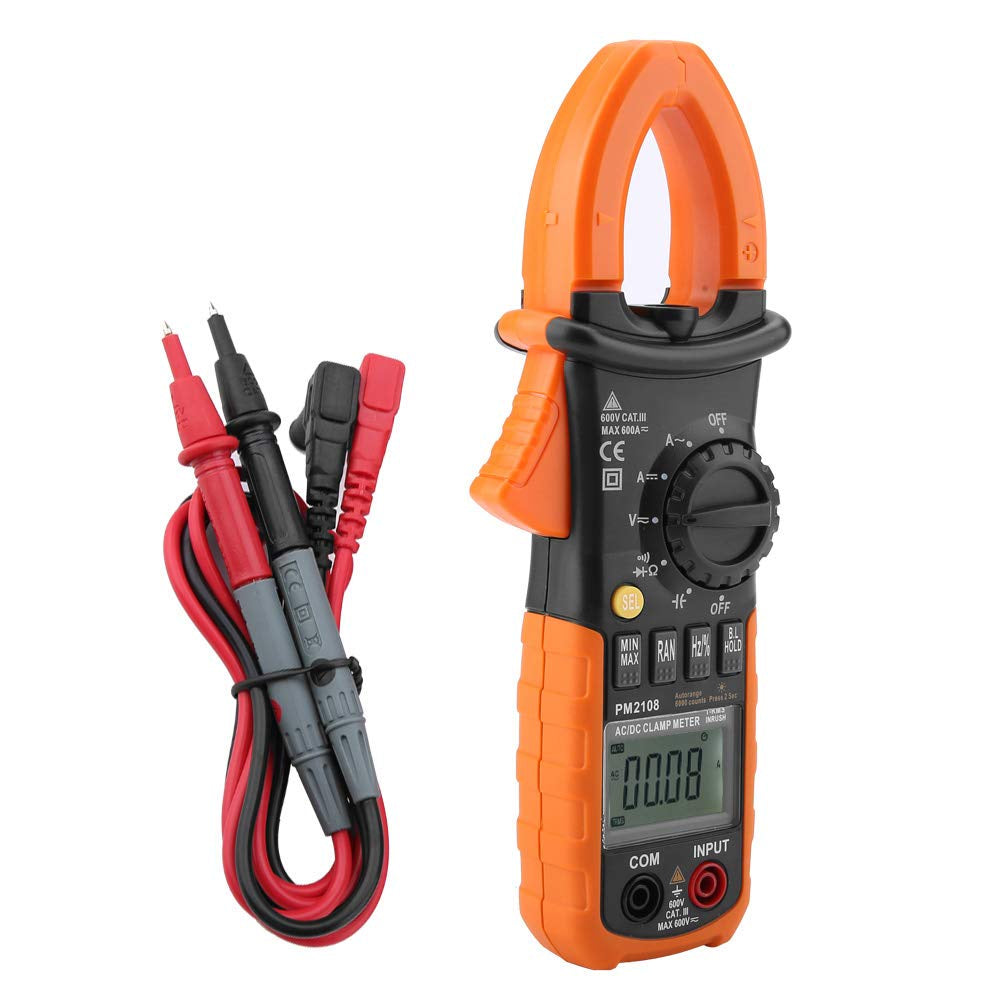

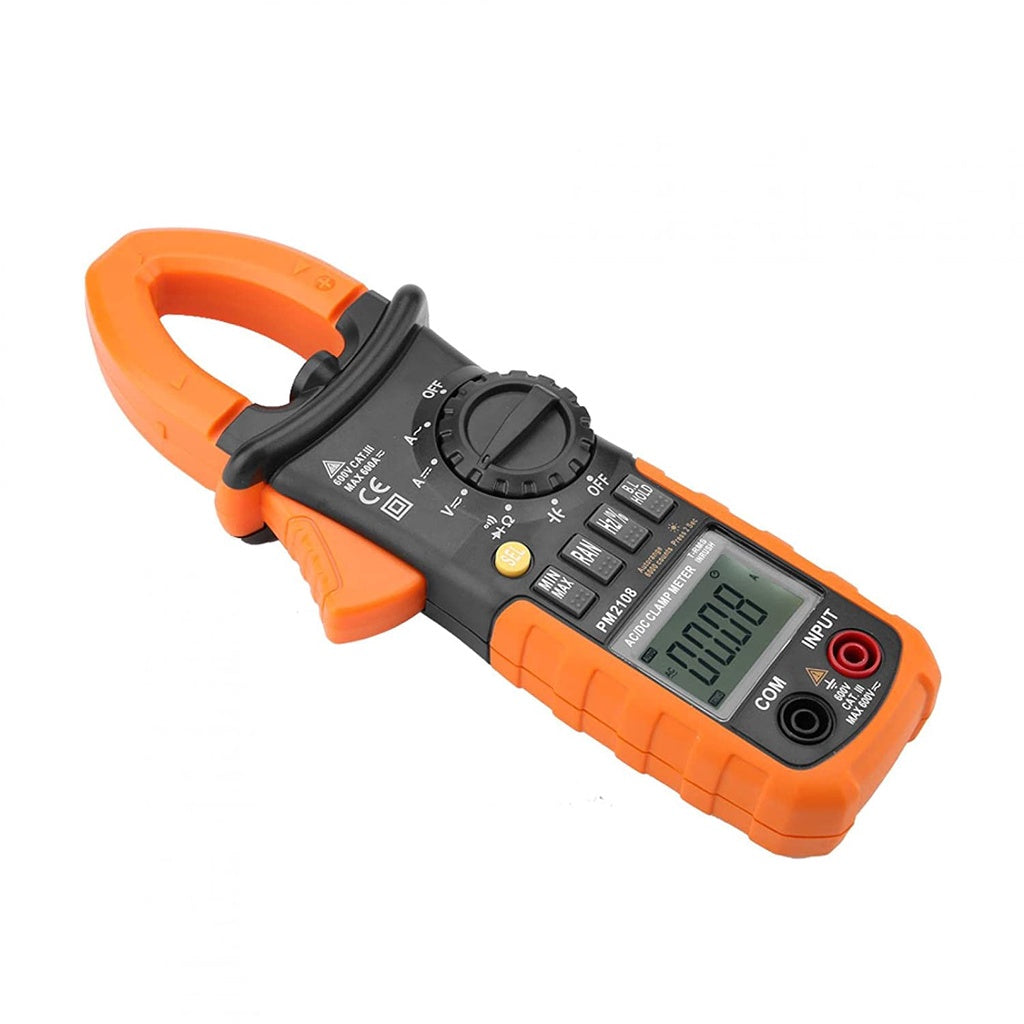

PeakMeter PM2108 6600 counts AC DC Mini Digital Clamp True RMS IN RUSH Current Resistance Capacitance Frequency Clamp Meter

  • ₱1,899.00




Features:

  • Auto range and manual range options are available.
  • Overrange protection is provided for all ranges
  • Maximum voltage between terminals and earth ground: 600V DC or RMS AC
  • Operating altitude: max. 2000 meters (7000 ft.)
  • Display: LCD
  • Maximum value display: 6599 digits
  • Auto power off time: 30 min.
  • Operating temperature: 0° to 40°(32F to 104F)
  • Storage temperature: -10° to 50°(10F to 122F)
PM2108 Specifications:
  • DC Voltage: 660mV/6.6V/66V±(0.8%+3) 660V±(1.0%+5)
  • AC Voltage: 660mV/6.6V/66V/660V±(1.5%+5)
  • AC Current: 66A/600A±(3.0%+10)
  • DC Current: 66A/600A±(3.0%+10)
  • INRUSH CURRENT(100ms): 66A/600A±(10.0%+60)
  • Resistance: 660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ ±(1.2%+2) 66MΩ ±(2.0%+5)
  • Capacitance: 6.6uF/66uF/660uF/6.6mF/66mF±(4.0%+3)
  • Frequency: 10kHz±(1.5%+5)
  • Duty cycle: 10%~95%±(3.0%+2)
  • Package size: 23 * 11 * 6cm / 9.2 * 4.4 * 2.4in
  • Package weight: 465g / 1lb
  • Display: 6600 Counts
  • Auto and manual range: √
  • Inrush current: √
  • True RMS: √
  • Data hold: √
  • Work light: √
  • Diode test: √
  • Max/Min Value hold: √
  • Continuity: √
  • Back light: √
  • Power supply: 1.5V(AAA) * 3 Batteries (Not included)
