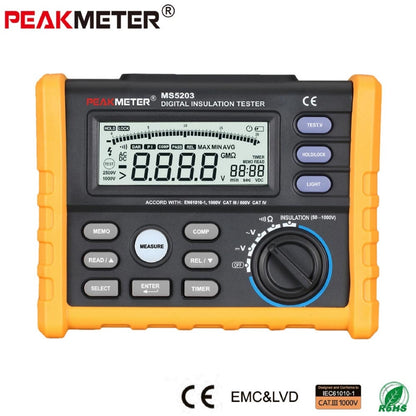

PEAKMETER MS5203 MEGGER

[CLEARANCE] PeakMeter MS5203 Alog and Digital 1000V Insulation Resistance Tester megger meter 0.01~10G Ohm with Multimeter

₱4,577.00
₱4,577.00 ₱6,179.00
Sale Sold out
Tax included. Shipping calculated at checkout.
View Product Details
  • Product Description

Features:

  • Checking the insulation of high-voltage electrical equipment (electric motor, transformer, and cable, etc.)
  • Use 50V-1000V voltage to test target insulation
  • It can measure up to 10GΩ resistance
  • Short current up to 1.8mA
  • Automatically calculates PI (Polarization Index) and DAR (Dielectric Absorption Ratio)
  • AC/DC voltage measurement and continuity test
  • Display back light and auto power-off

Specification

Source Output Voltage

Measuring Range

Insulation tests

50V (0 %~+20%)

0.01MΩ~50MΩ ±(3%+5)

100V (0%~+20%)

0.01MΩ~100MΩ ±(3%+5)

250V (0%~+20%)

0.01MΩ~250ΩM ±(3%+5)

500V (0%~20%)

0.01MΩ~500MΩ ±(3%+5)

1.00GΩ~5.00GΩ±(5%+0.1GΩ)

1000V (0%~+20%)

5.00GΩ~10.00GΩ±(10%+0.2GΩ)

Short circuit current

1.8mA

Multimeter functions

DC Voltage Test

0.1~1000V±0.5%

AC Voltage Test

0.1~50V±1%

Continuity Test

0.01Ω~200Ω±0.5%

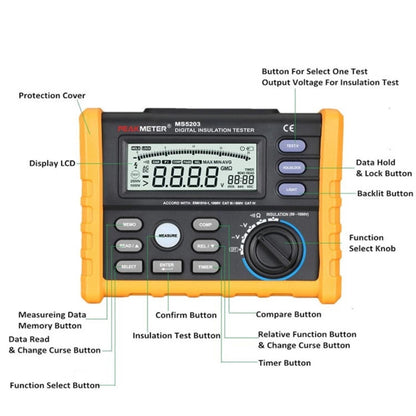

Features

· Auto Calculate PI and DAR

· Store /Load Function

· Compare function

· Auto discharge for capacitive load

· Timer Function for insulation test

· Lock function for insulation test

· Low Battery Indication

· DCV and ACV Test

· Continuity test

· Auto power Off

· Digital and analog display

General

Power Supply

6x1.5V AA batteries

Product Size

180mm x 140mm x65mm

Product Weight

Approx. 950g

Safety Rating

CE CAT.III 1000V CAT IV 600V RoHS
