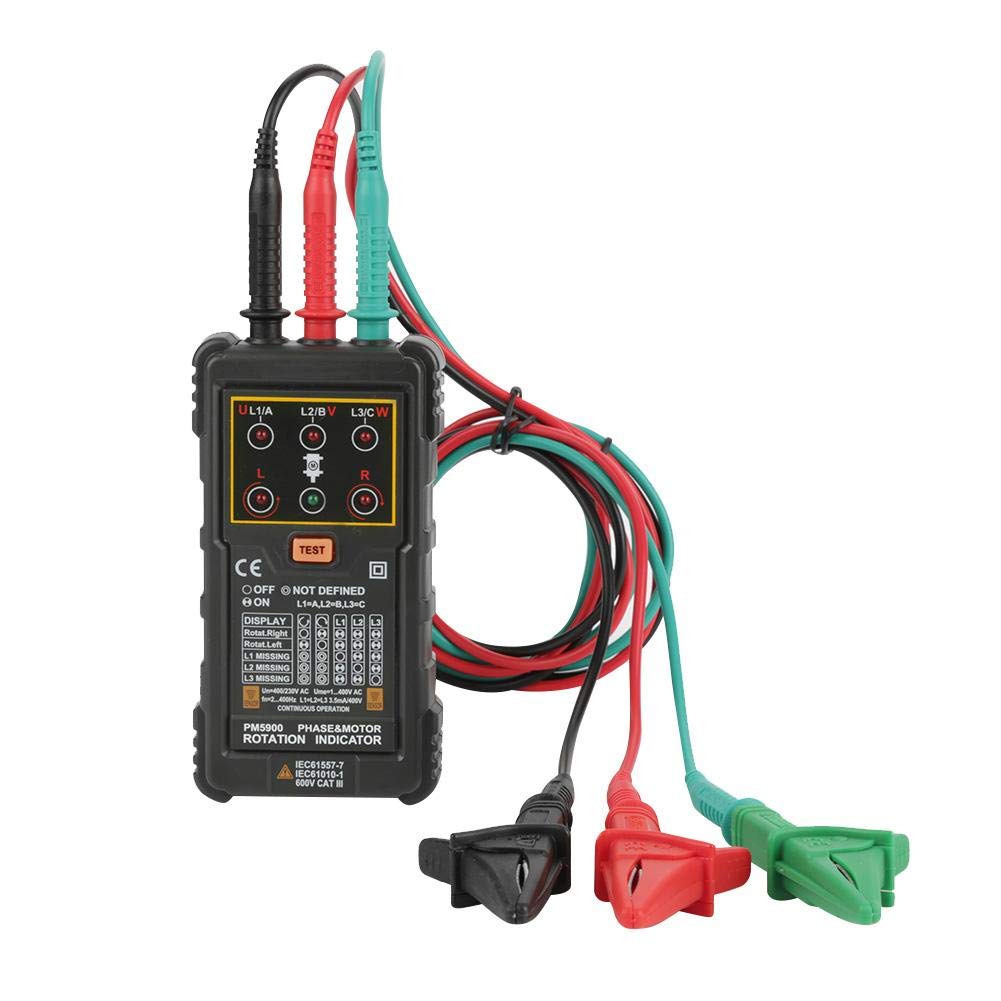

PeakMeter PM5900 Tri-Motor Rotation Indicator Meter Sequence Tester Rotary Field Indicator 3 Phase System Motor Tester
Features:
PM5900 Motor and Phase Rotation Indicators are used to test magnetic field direction of a three-phase system, phase rotation, motor rotation direction. Without a need to link the testing line, the motor rotation direction can be decided by placing this indicator above the motor and aligning it with the motor drive shaft. It is a durable, reliable, and lightweight handheld device, which is a necessary tool for those who often install, repair, or maintain a three-phase system or motor. Used to test phase sequence input of three-phase voltage, to indicate phase line L1, L2, and L3. It also supports the non-contact type magnetic field rotation direction test (motor rotation direction test).
Specifications:
- Brand: PEAKMETER
- Model: PM5900
- Maximal working voltage: 400V AC voltage
- Nominal voltage (tested at rotation direction): 2~400V AC voltage,2~400Hz
- Nominal voltage (tested at phase sequence): 120~400V AC voltage,2~400Hz
- Test current (per phase): <3.5mA
- Battery: 3 x 1.5V AA batteries(NOT included)
Temperature:
- Operating: 0~40, maximal 80 % relative humidity (non-condensing)
- Storage: -10~50, maximal 80 % relative humidity (non-condensing, battery not included)
- Altitude: <2000m(meter)
- Anti-explosion type: IP 40
- Weight: 442g(approx.)
