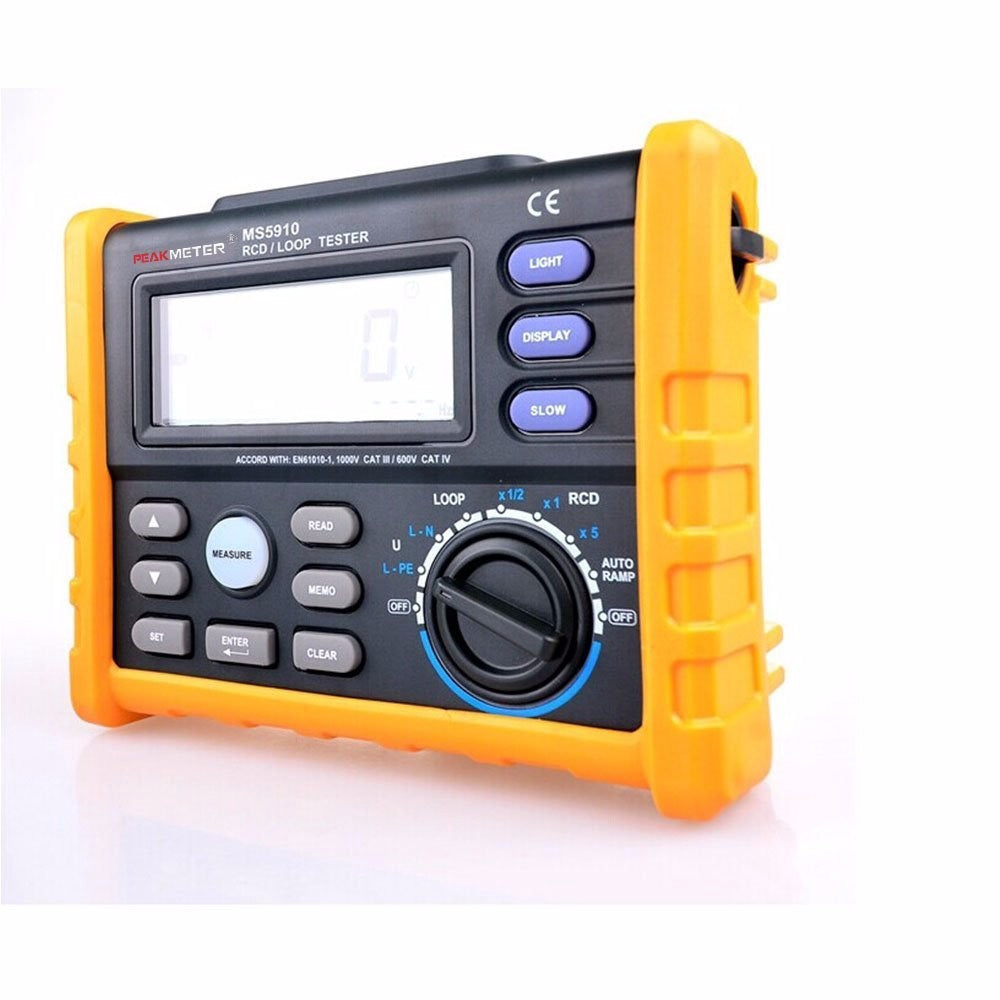

PeakMeter MS5910 Digital Resistance Meter RCD Loop Resistance Tester Multimeter Trip-out Current/Time Test RL Meter with USB Interface

Specification:

• Tripping time: x1 IΔN300(slow 500ms) ±3ms 0.1ms x5 IΔN40ms(slow 150ms) ±3ms 0.1ms
• Tripping Current: (0.2-1.1)IΔN ±0.1IΔN 0.5IΔN
• Contact Voltage: 0~99.9V ±(10%+0.2V) 0.01/ 0.1V
• Alternating Voltage: (UI-N,UL-L,UL-E) 0~440V ±(3%+3V) 1V
• Frequency: DC,45~65Hz ±1Hz 1Hz
• Loop Resistance(RL): 0.1~2000Ω ±(10%+0.2d) 0.1Ω
• RL Current Test: 0.51 IΔN ±(10%+10d) 0.5IΔN
• Multiplying Power of Measuring Current: x0.5,x1,x5
• Current Level(IΔN)|: 10mA,30mA,100mA,300mA,500mA
• Trigger Phase Angle: 0°or 180°
• Auto Power Off √
• Display Back Light √
• Low Battery indication √

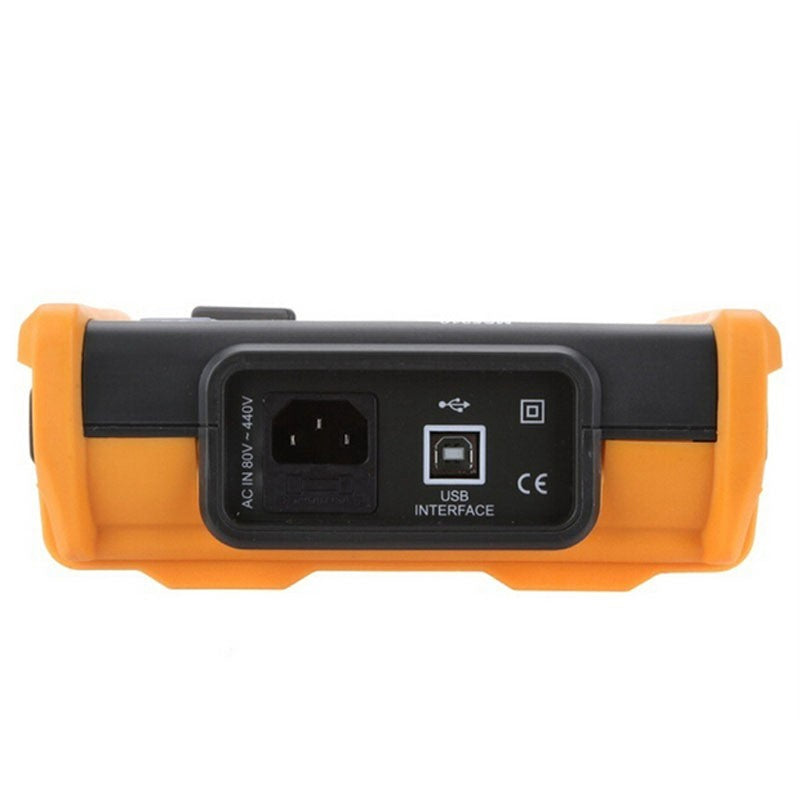

• USB2.0 Interface √
• Data logging And recall 100groups
