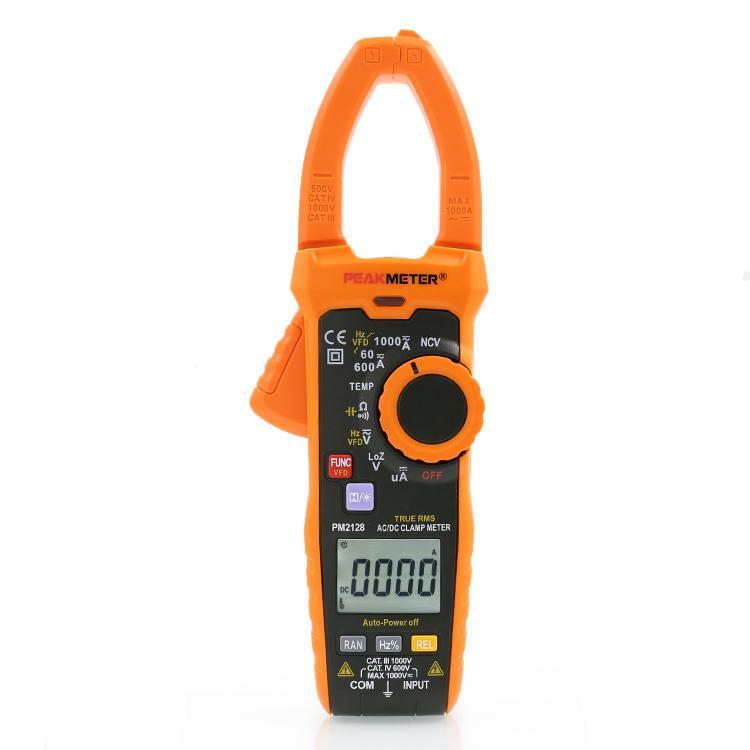

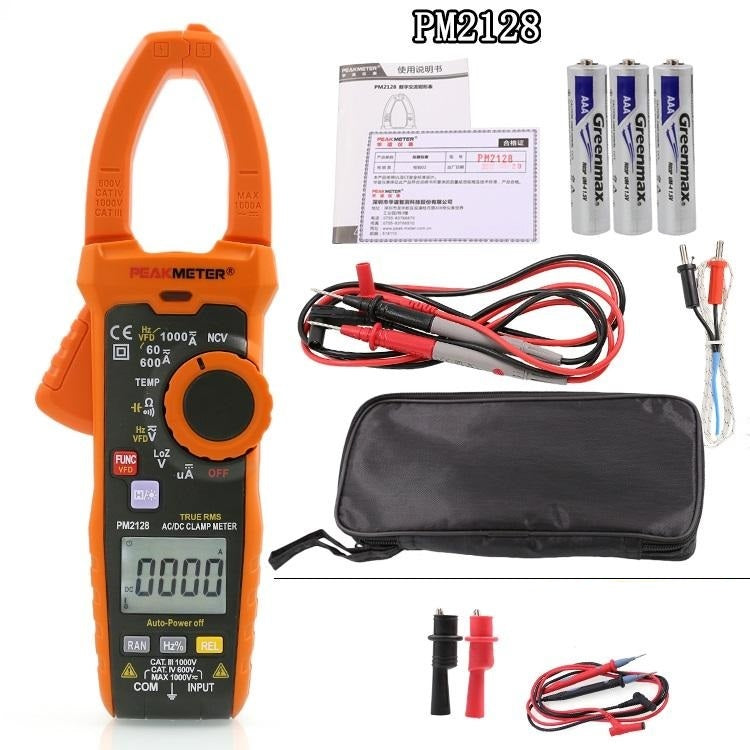

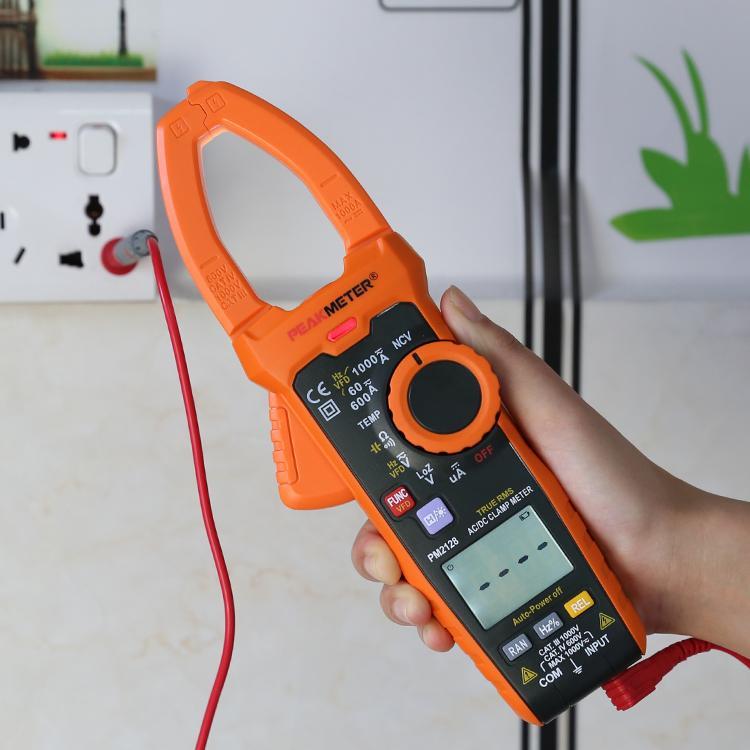

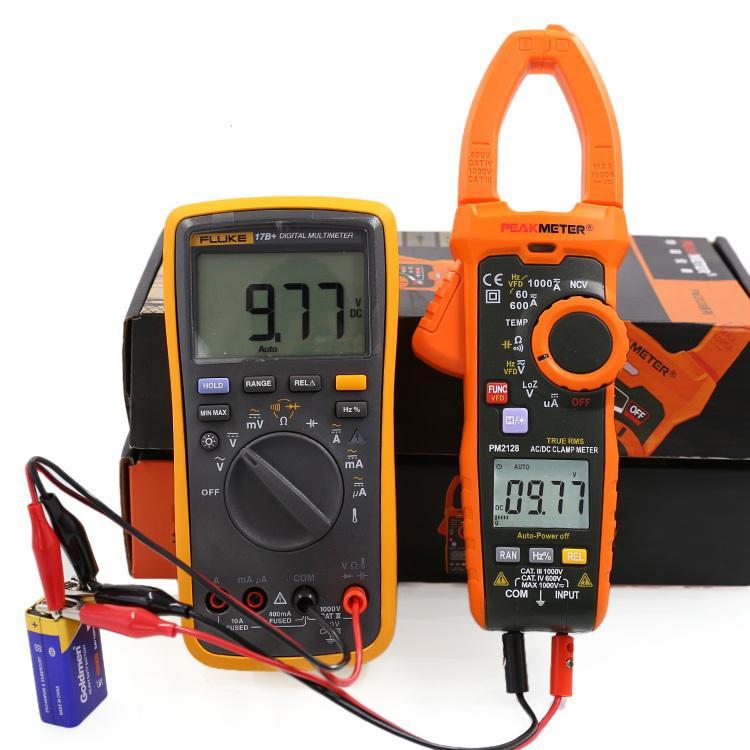

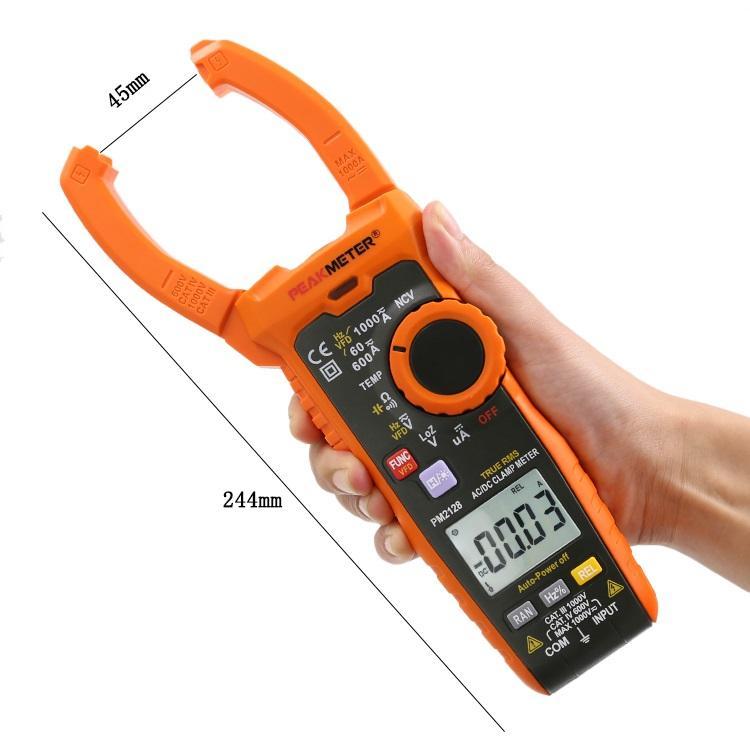

Peakmeter PM2128 Digital AC / DC Clamp Meter 1000V Multimeter

Features:

• Select measurement function and range automatically.
• Overload protection throughout the range.
• Max. voltage between measurement terminal and ground: 1000V DC or 1000V AC
• Operating height: Max. 2000m
• Display: LCD
• Max. display value: 6000 digit.
• Polarity indication: Automatic indication, and ‘-’ indicates negative.
• Over range display: ‘0L’ or ‘-0L’.
• ampling time: About 3 times/second.,bargraph 10 times/second
• Unit display: Function and electricity quantity unit display.
• Automatic shutdown time: 10 minutes
• Power supply: 1.5V AAA battery × 3
• Battery under-voltage indication: LCD display symbol
• Temperature coefficient: Less than 0.1×accuracy/℃
• Operating temperature: 18℃ ～ 28℃
• Storage temperature: -10℃ ～ 50℃

Specification:

• DC Voltage: 6V//60V/ 600V / 1000V +/- (1.0% + 3)
• AC Voltage: 6V/60V/600V/1000V +/- (1.2% + 3)
• DC Current: 60A/600A/1000A +/-(3% +5)
• AC Current: 60A/600A/1000A +/-(3% +6)
• Resistance: 600/6k/60k/600k/6M/60M +/- (1.0% + 3)
• Capacitance: 100nF /1000nF /10uF / 100uF / 1000uF/10mF+/- (3.0% + 3) →Frequency:10Hz~10kHz; +/- (0.5% +2)
• DC uA:200uA;+/-(1.5%+3)
• LowZ: DCV:1000V;+/- (1.0% + 10)
• LowZ: ACV:1000V;+/-(2.0%+20)
• Temperature(Deg. C / Deg. F):-20 Deg. C ~ 1000 Deg. C;+/- (2.0% + 2); -4 Deg. F ~ 1832 Deg. F;+/- (2.0% + 2)
