Overview:
-

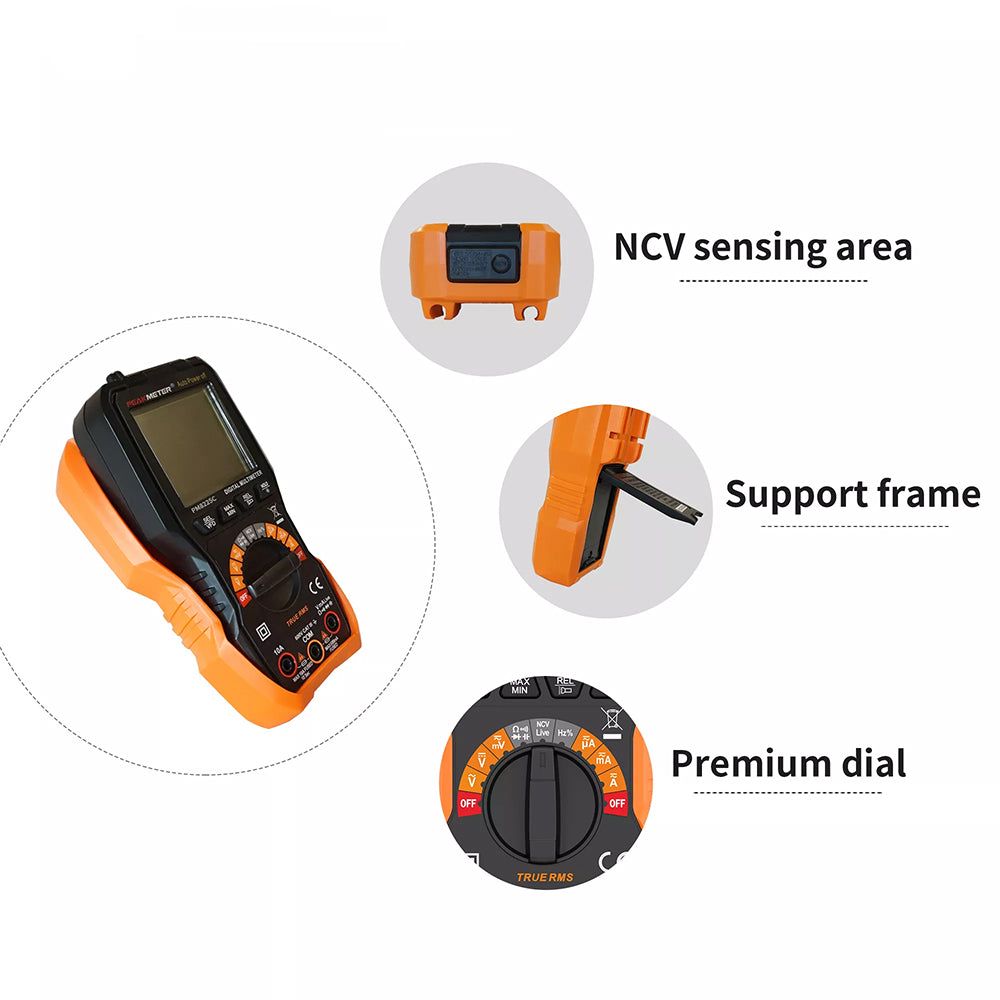

PM8225C is a handheld digital multimeter. This instrument retains the features of PM8225’s large LCD screen, dust-proof dial, and soft rubber protective shell, and has been further upgraded in functions, buttons, dials, etc. 6000 counts display, high precision measurement.
-
In addition to AC and DC voltage, DC current, resistance measurement and NCV, continuity detection, the function adds AC current, capacitance, frequency measurement and live wire detection.
-
The function keys are clear and easy to operate, and the range is automatically selected to reduce the user’s operation.
-
The meter is designed with an anti -burning circuit, with two fuses of 600mA/600V and 10A/600V to protect the meter circuit. The meter is portable and suitable for many different occasions.
Features:
-
Model Number:PM8225C
-
Measuring Current Range:10A AC/DC
-
Measuring Voltage Range:600V AC/DC
-
Measuring Resistance Range:60MΩ
-
Measuring Capacitance Range:100mF
-
Measuring Inductance Range:NA
-
Operating Temperature:0~40℃
-
Dimensions:166mm*78mm*48mm
-
Display:6000 counts
-
Function 1:back light
-
Function 2:NCV detection
-
Function 3:Live Line Test
-
Function 4:Data Hold
-
Power supply:2*1.5V AAA Batteries
