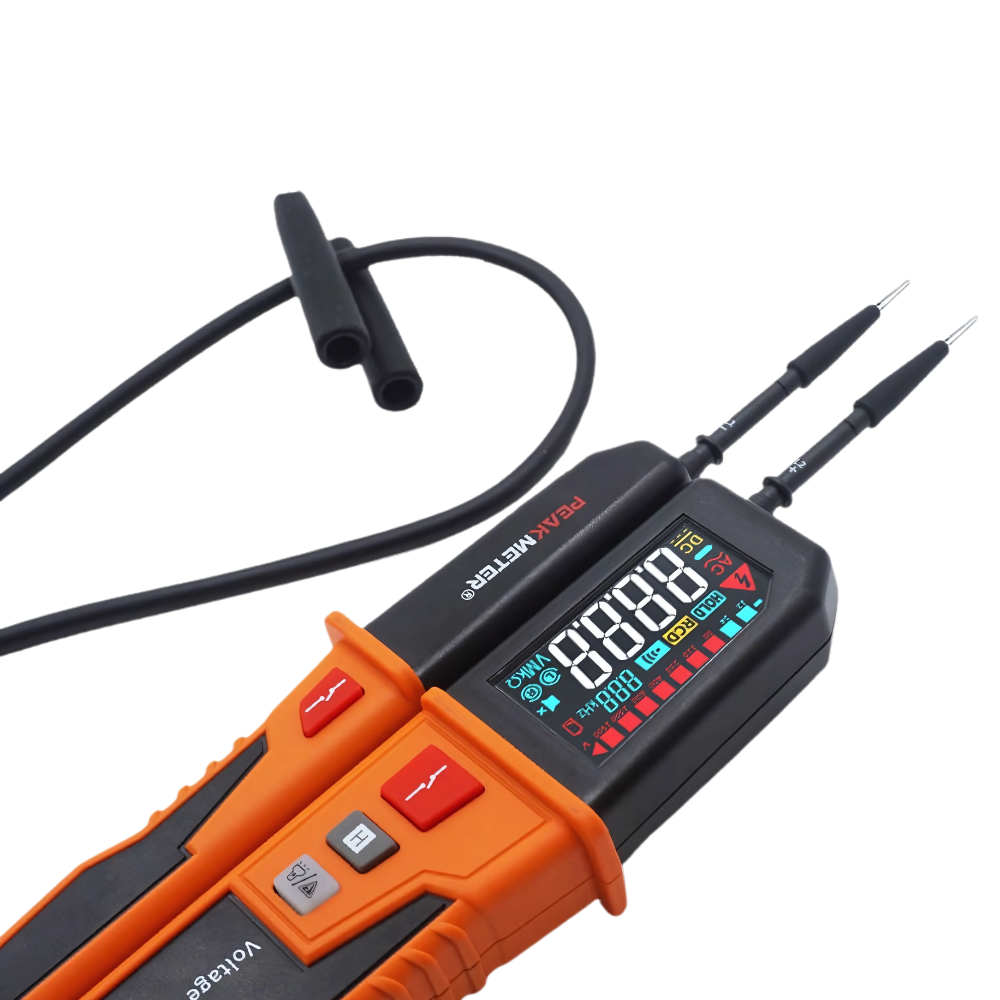

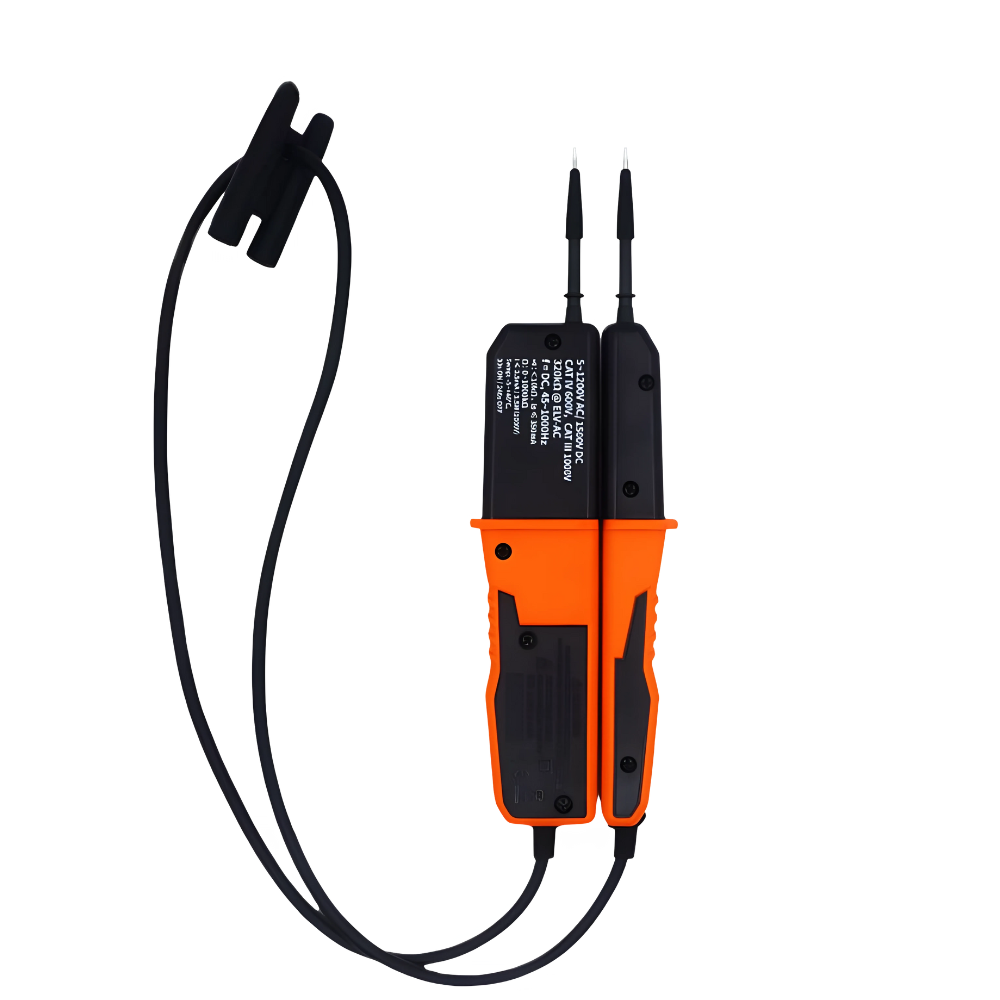

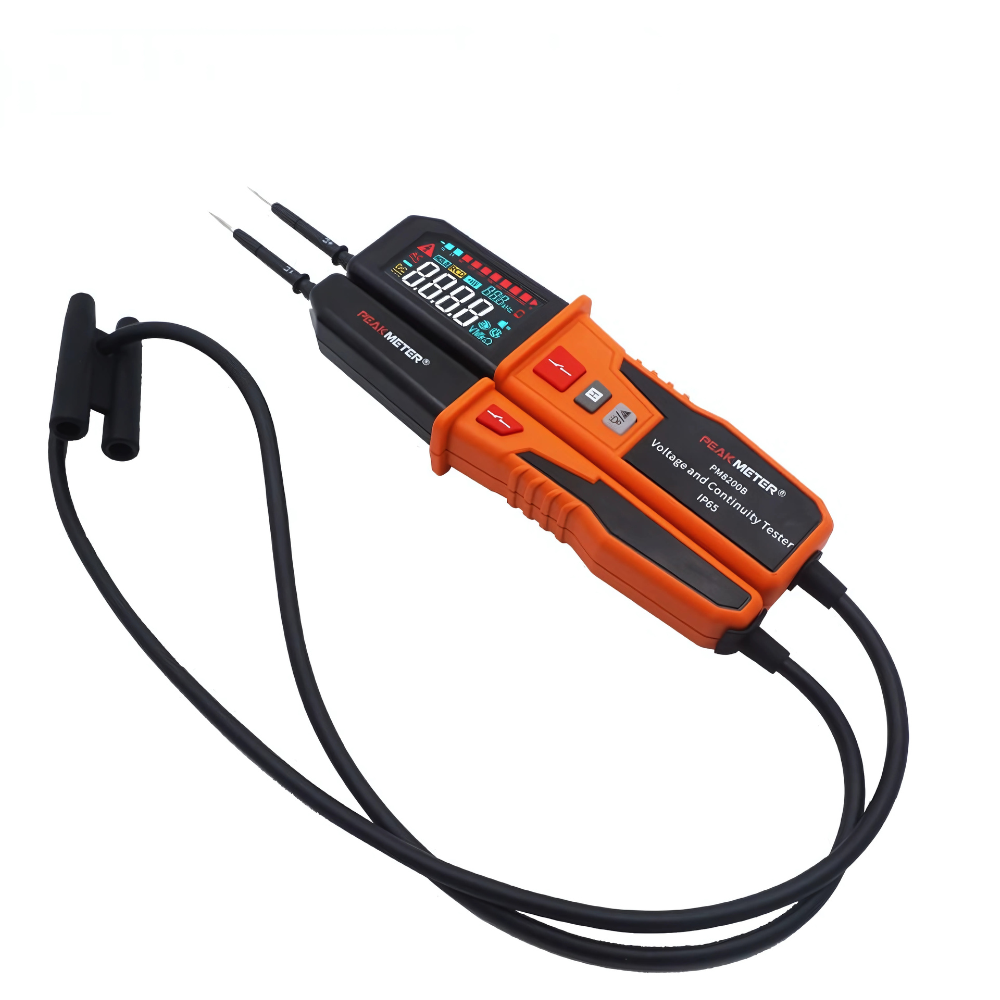

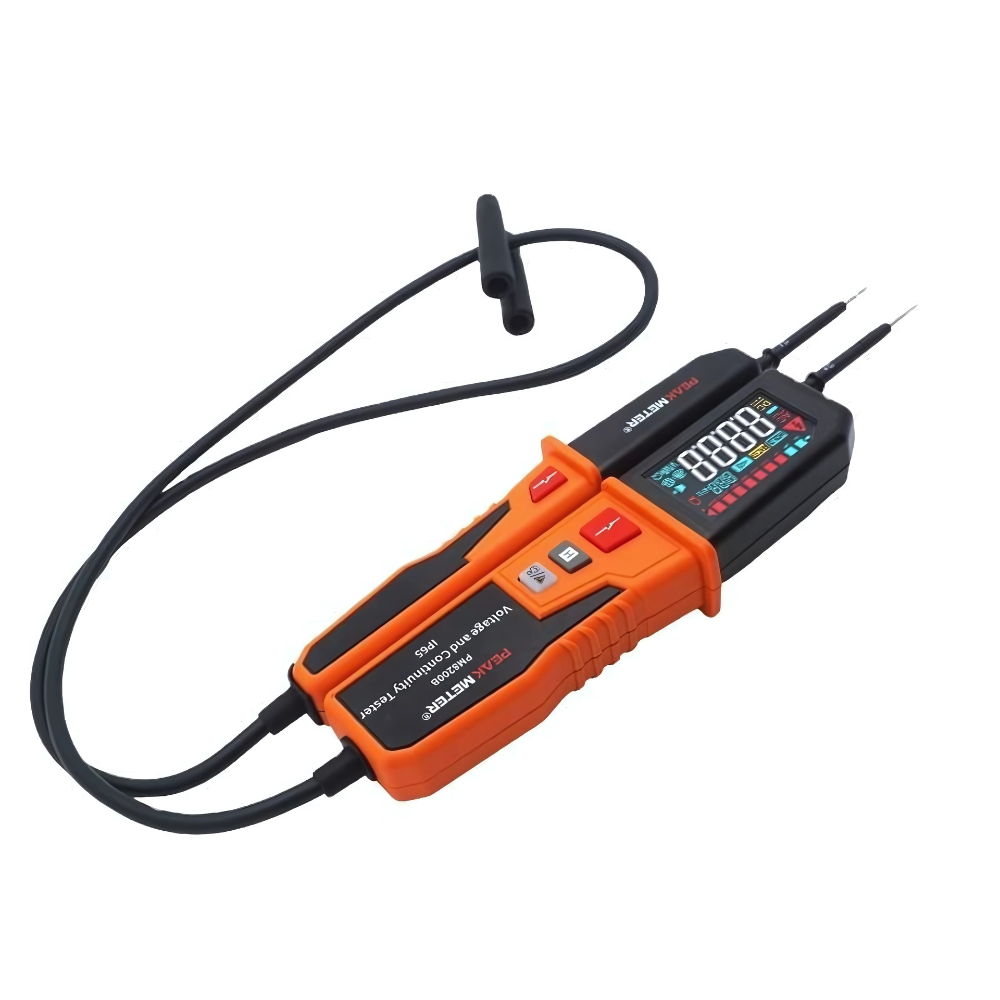

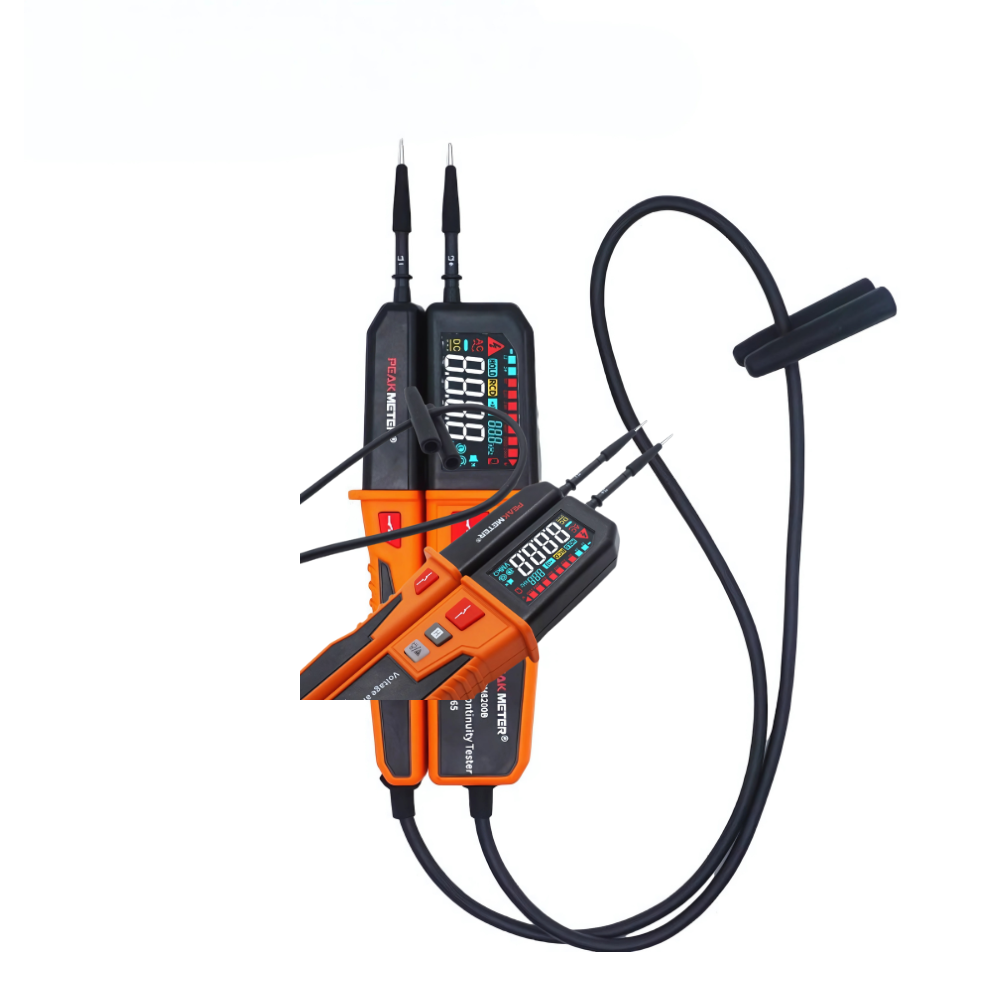

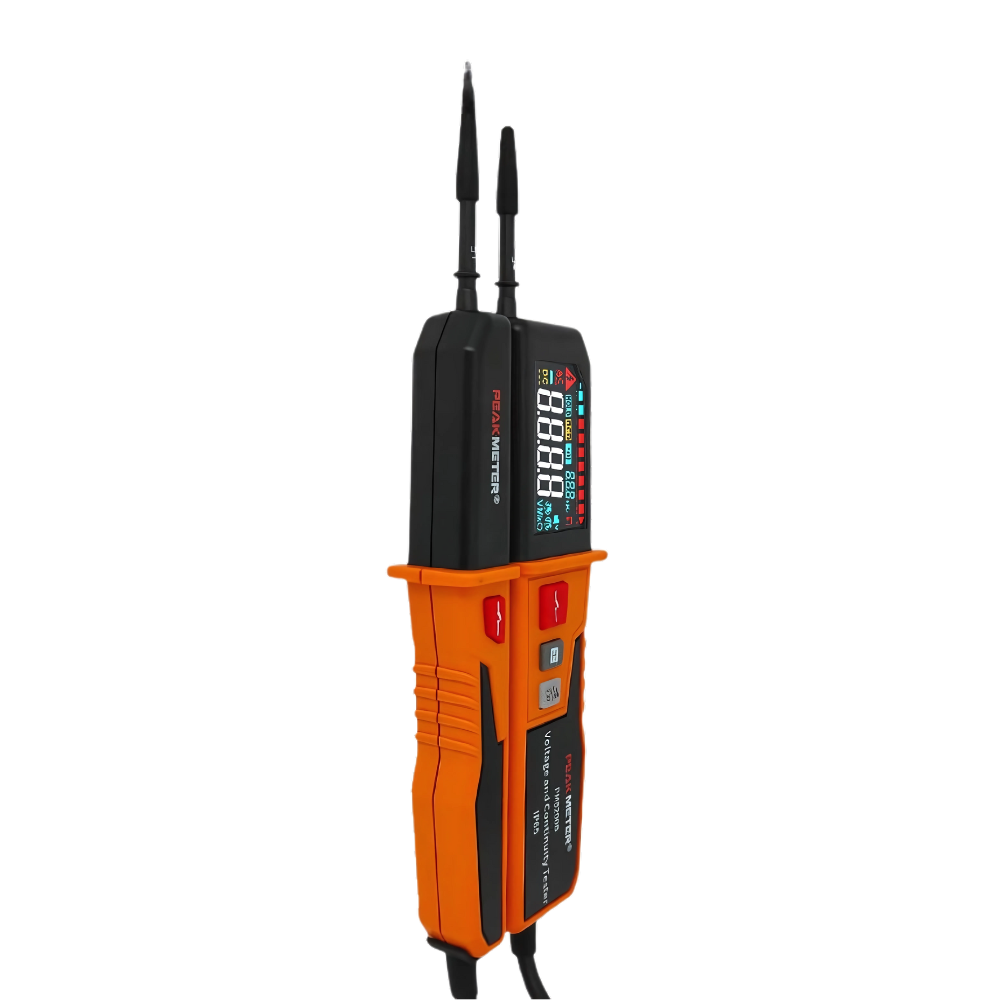

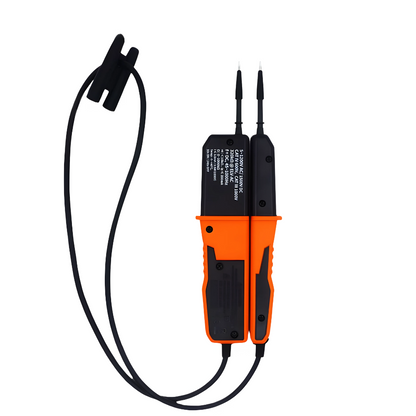

PEAKMETER PM8200B VOLTAGE CONNECTIVITY
The PM8200B is a professional-grade tool offering high-precision measurements of DC voltage up to 1500V and AC voltage up to 1200V. It features a 1MΩ resistance measurement, dual red and white backlights for improved visibility, flexible buzzer modes, and a rugged IP65-rated waterproof and dustproof design. Perfect for demanding environments, the PM8200B combines accuracy, durability, and user-friendly features, making it an indispensable choice for electricians and technicians.
Feature
- Range Selection: Automatic
- Back Light: Red and white back light
- Buzzer: Supports two modes (buzzer and mute)
- Waterproof and dustproof level: IP65
- RCD Test: Voltage: 230V (40-500Hz); Current: 30mA-40mA
- Phase sequence test: Three-phase AC voltage range: 150V-400V
- Continuity Test: √
- Auto Range: √
- Auto Power Off: √
- Wake Up: √
General
- Power Supply: 2*1.5V AAA Batteries
- Weight: 317g(Without battery)
- Size: 290*80*34mm
- Safety Rating: EN61326-1，EN60529，IEC 61243-3，CAT Ⅲ 1000V
