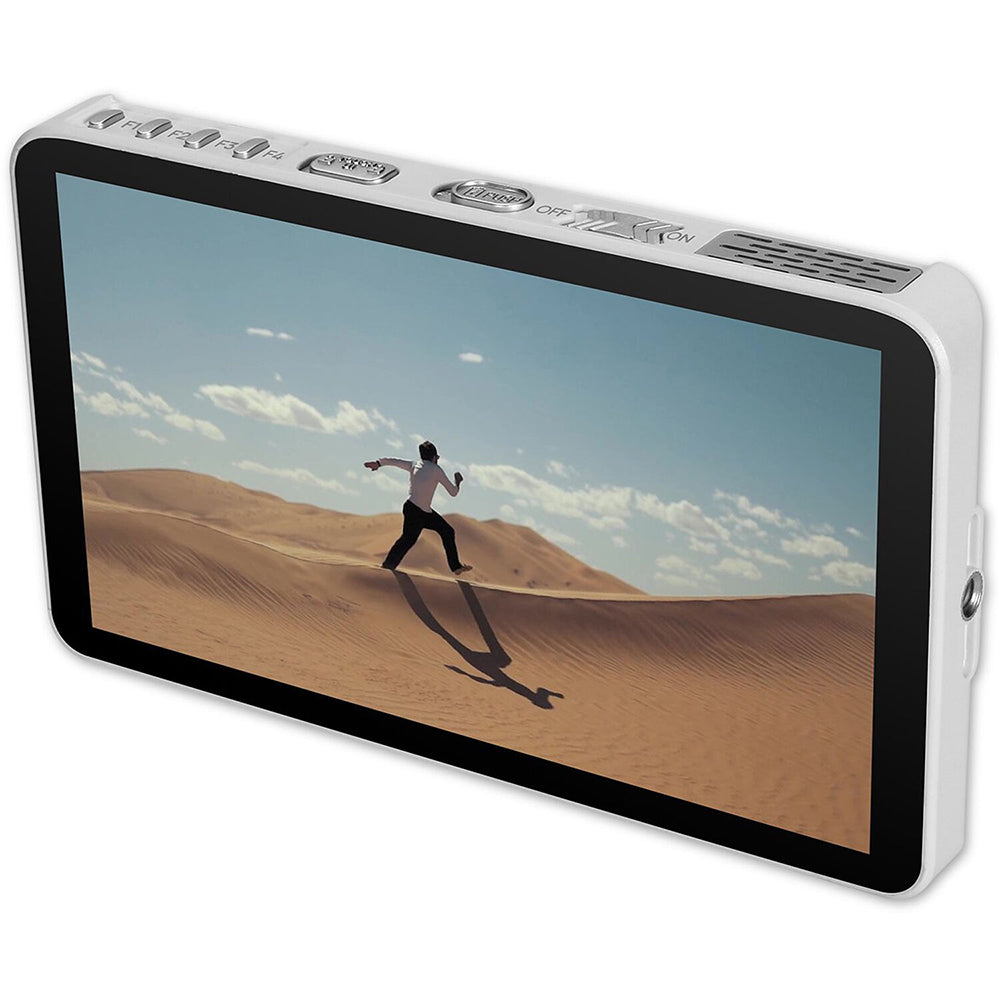

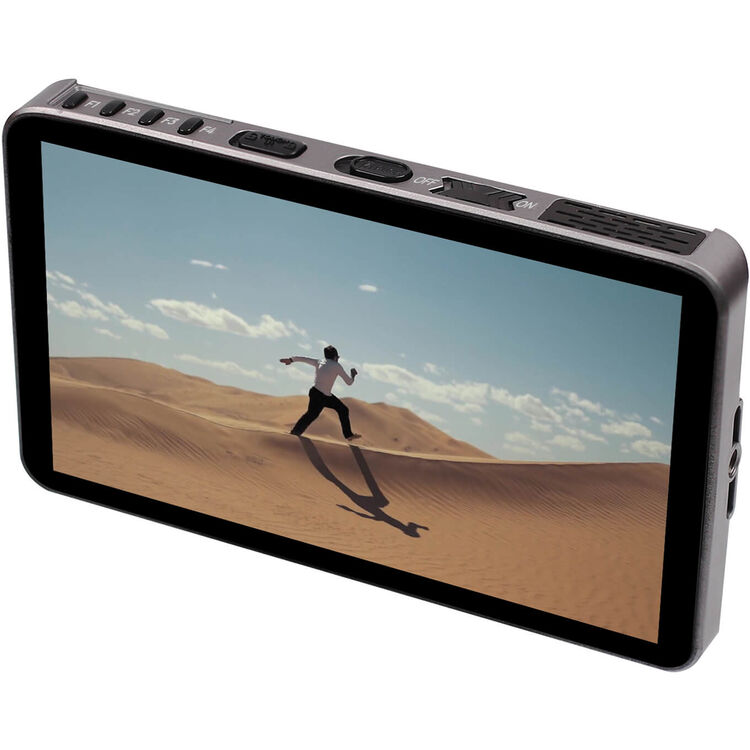

PORTKEYS LH7H / LH7H-W 7" High-Bright Touchscreen Monitor
Enhance your camera rig with the PORTKEYS LH7H/LH7H-W, a 7" high-bright (1000 cd/m²) on-camera touchscreen monitor featuring 1920 × 1080 resolution and a 1000:1 contrast ratio for excellent daylight visibility. Available in black (LH7H) or white (LH7H-W), it supports HDMI input/output up to DCI 4K24 or UHD 4K30.
Powered via the built-in Sony L-Series battery plate or optional DC input, the monitor offers advanced image tools including 3D LUT support, peaking, false color, waveform, histogram, zebra, HDR/HLG, anamorphic de-squeeze, frame guides, audio meters, and more—providing professional monitoring in a compact, versatile design.
Key Features:
• 7"" HDMI 1920 x 1080 Touchscreen
• Up to DCI 4K24/UHD 4K30 Video Input
• 1000 cd/m² Brightness, HDR Preview
• HDMI Input & Output, Headphone Jack
• Anamorphic Correction via HDMI Output
• 3D LUT Support, L-Series Battery Plate
• HDMI Cable & Screen Protector Included
Specifications:
• Panel Type: LCD
• Display Size: 7.0"" / 17.8 cm
• Native Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Viewing Angle Horizontal: 170° (85/85)
• Viewing Angle Vertical: 170° (85/85)
• Touchscreen: Yes
• Maximum Brightness: 1000 nits / cd/m2
• Contrast Ratio: 1000:1
• Color Support: 1.07 Billion Colors (8-Bit+FRC)
• HDR Support: No
• Image Controls: Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Waveform, Zebra
• Video I/O: 1x HDMI 1.4 Input, 1x HDMI 1.4 Output
• Embedded Audio: HDMI
• Color: Black
• Audio I/O: 1x 1/8"" / 3.5 mm Headphone Output
• Built-In Speaker: No
• Power I/O: 1x Barrel (24 VDC) Input, 1x USB-A (5 VDC / 2 A) Input
• Other I/O: 1x USB-A (Firmware/LUT Upload) [Shared with USB-A Power Input]
• Media/Memory Card Slot: No
• Wi-Fi: No
• Bluetooth: No
• Mobile App Compatible: No
• Video Format: HDMI — DCI 4K: 24; UHD 4K: 30/29.97/25/24/23.98; 1080p: 60/59.94/50/30/29.97/25/24/23.98; 1080PsF: 30/29.97/25/24/23.98; 1080i: 60/59.94/50; 720p: 60/59.94/50; 576p: 50; 576i: 50; 480p: 60/59.94/50; 480i: 60/59.94/50
• Input Power: 7 to 24 VDC
• Battery: 1x L-Series Mount on Fixed Plate
• Power Consumption: 8 W
• Tripod/Accessory Mounting: Bottom/Right, 1x 1/4""-20 Female
• Material of Construction: Plastic
• Dimensions: 6.9 x 4.1 x 0.7"" / 176.2 x 103.8 x 18.4 mm
• Weight: 8.64 oz / 245.00 g
What's inside the box?
• 1x LH7H Monitor
• 1x Safety Box
• 1x Micro USB Flash Drive
• 1x A to A HDMI Cable
• 1x Screen Cleaning Wipe
• 2x Screen Protector
• 1x MH-2 Mount
