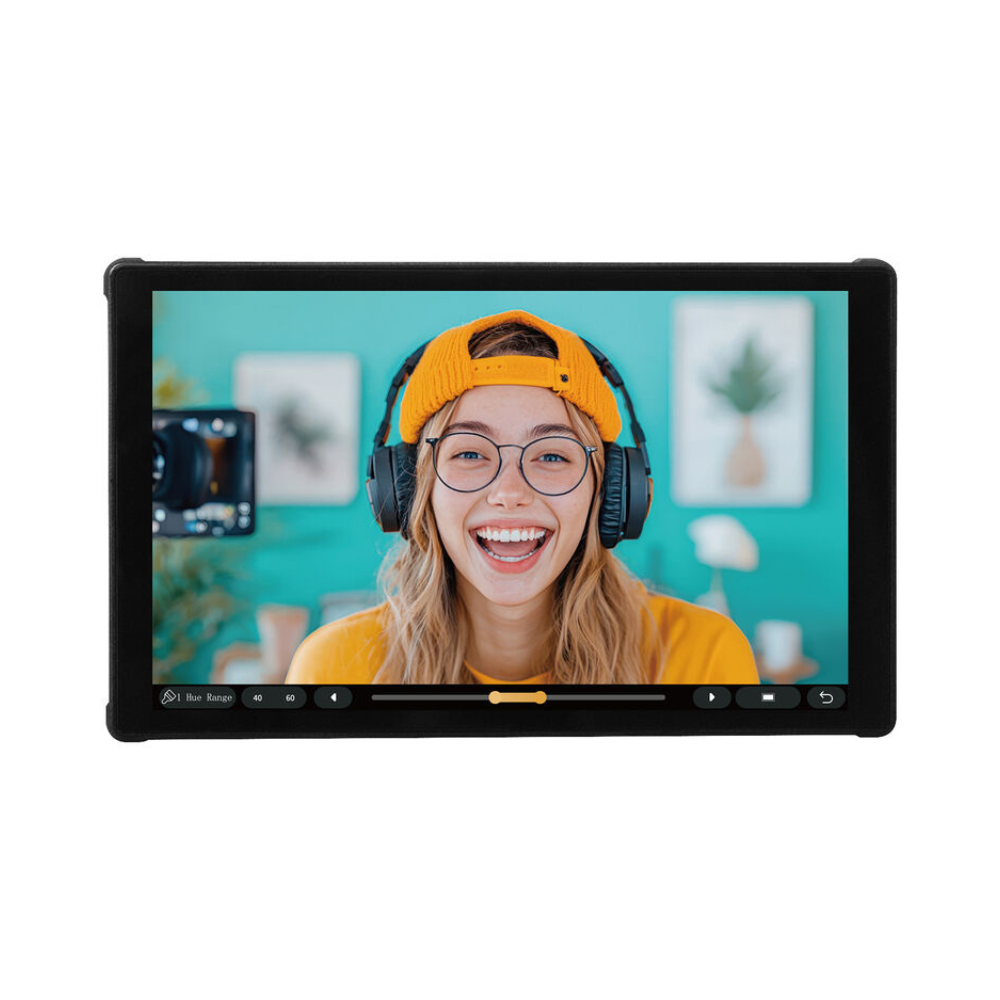

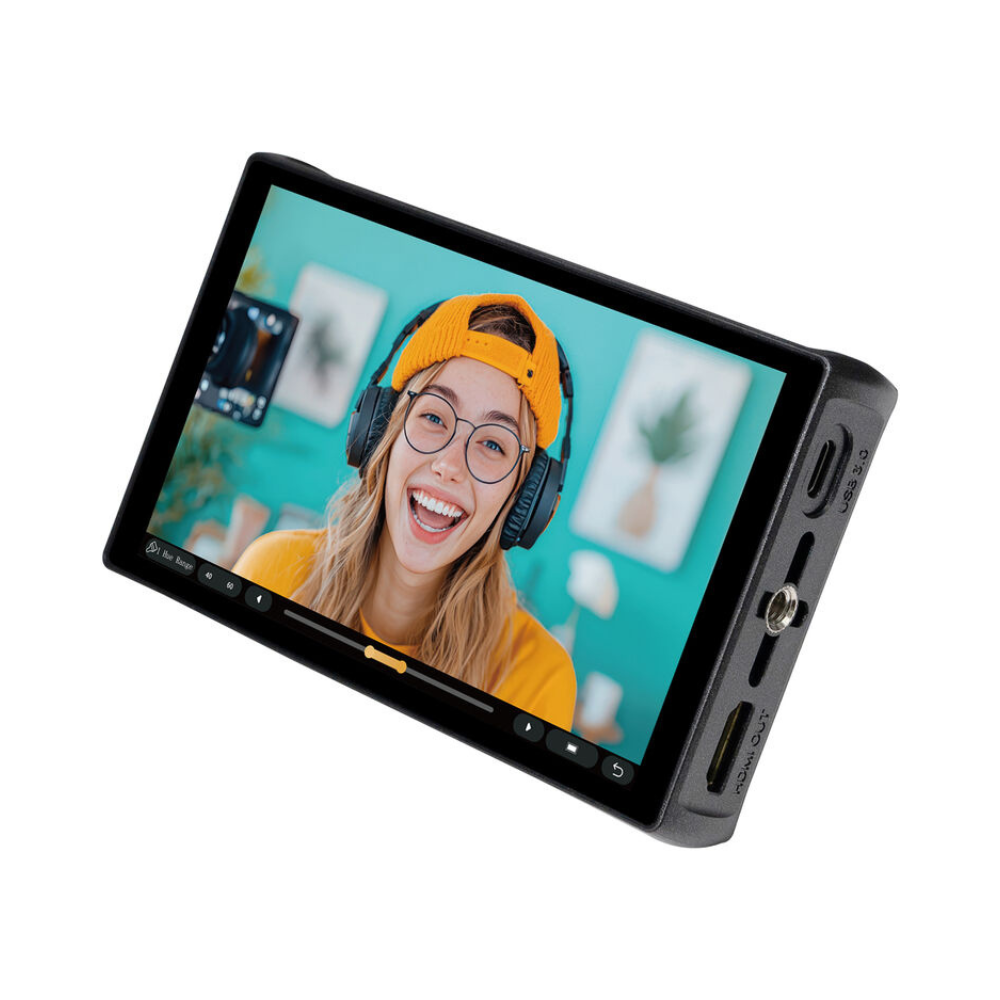

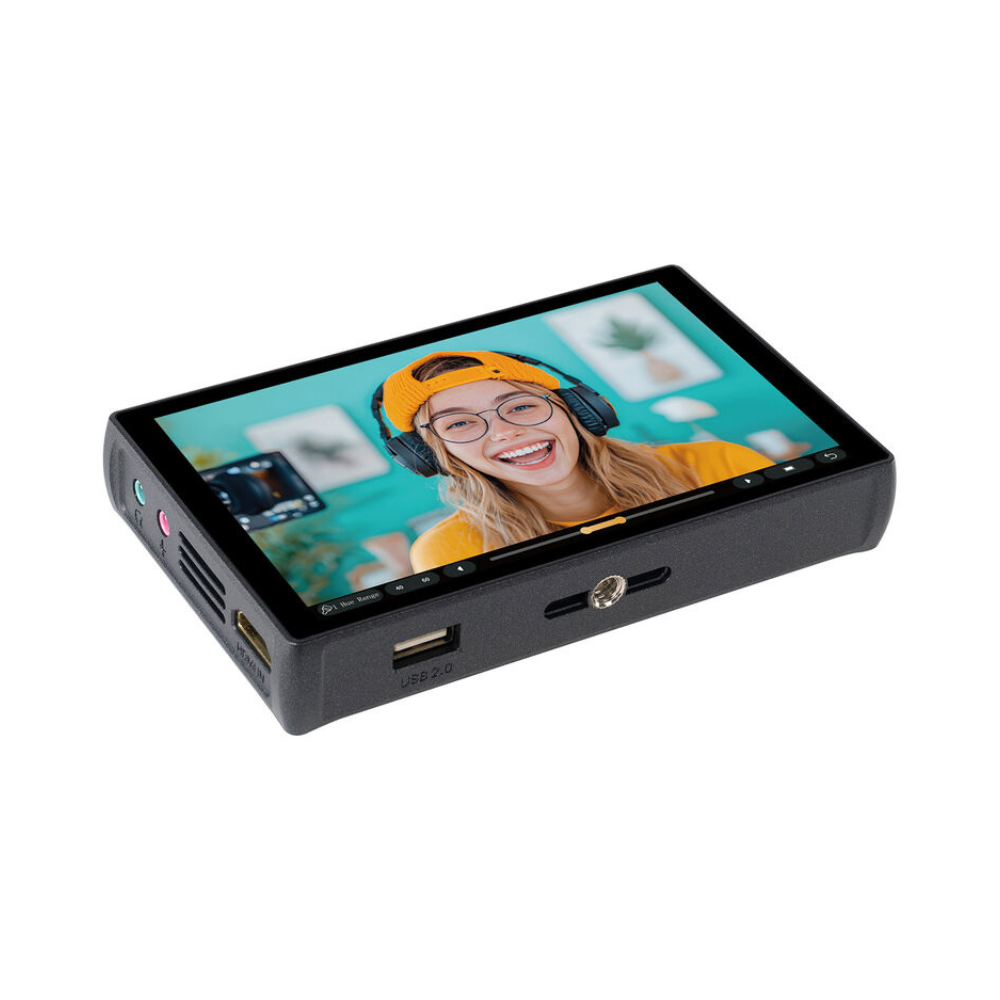

PT5 III FIELD MONITOR
for DSLR & Mirrorless
Features:
● 5.4" 1920 x 1152 Touchscreen Display
● 4K HDMI I/O, 3D LUT Import via USB Port
● 800 cd/m² Brightness, 1000:1 Contrast
● Updated MOVNORM OS
● Numerous Professional Monitoring Tools
● 3.5mm Audio Input, Headphone Jack
● USB-C Power Input, L-Series Plate
● Sunshade & Tilting Shoe Bracket

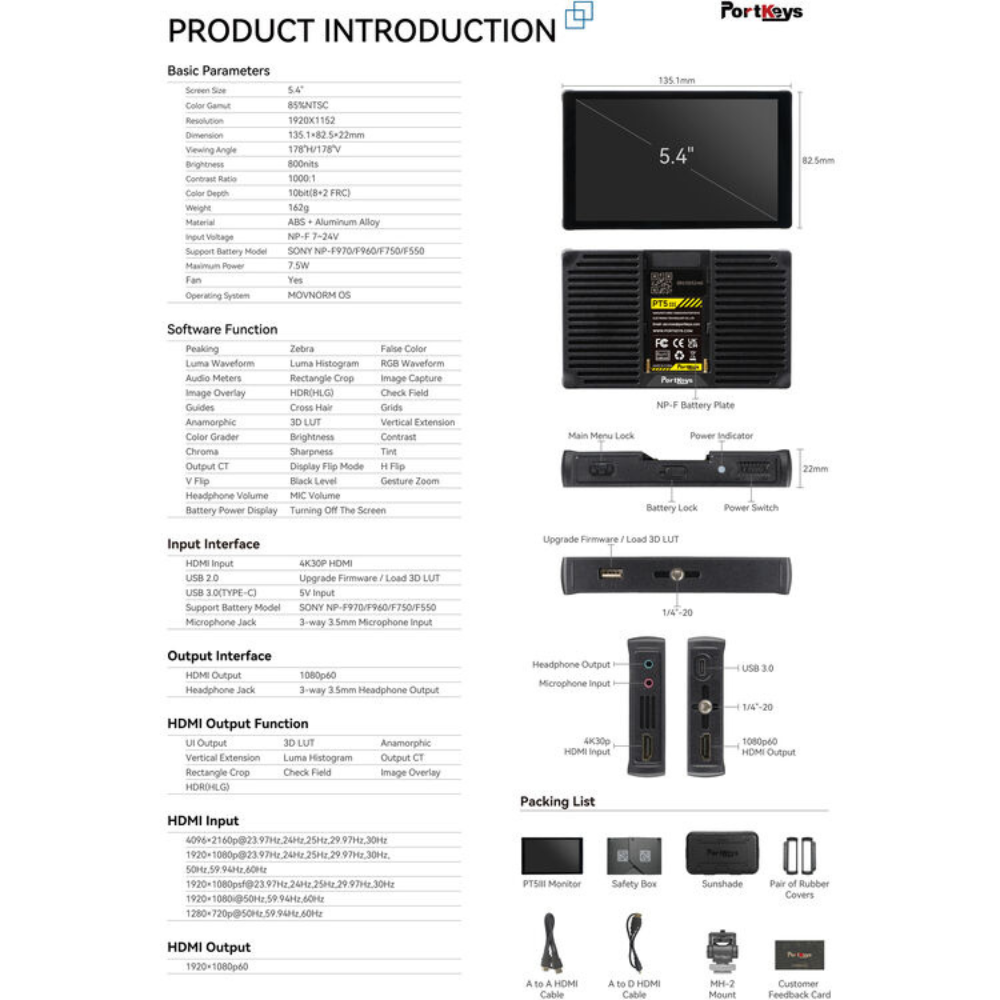

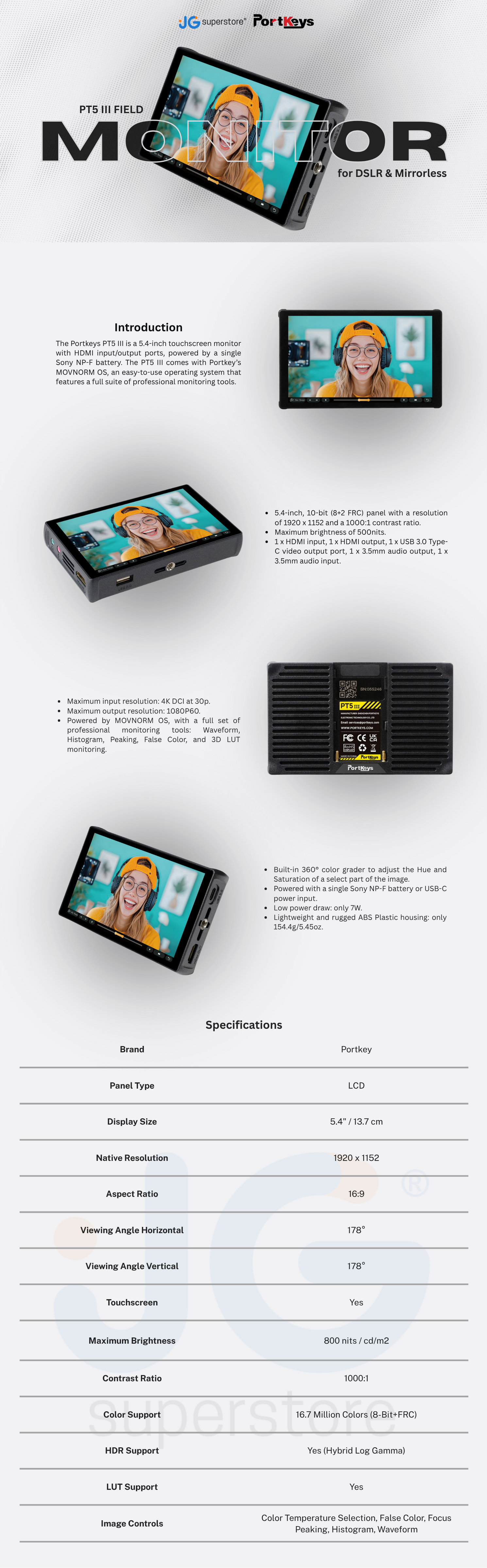

Specifications:
Panel Type: LCD
Display Size: 5.4" / 13.7 cm
Native Resolution: 1920 x 1152
Aspect Ratio: 16:9
Viewing Angle Horizontal: 178°
Viewing Angle Vertical: 178°
Touchscreen: Yes
Maximum Brightness: 800 nits / cd/m2
Contrast Ratio: 1000:1
Color Support: 16.7 Million Colors (8-Bit+FRC)
HDR Support: Yes (Hybrid Log Gamma)
Color Gamut: 85% NTSC
LUT Support: Yes

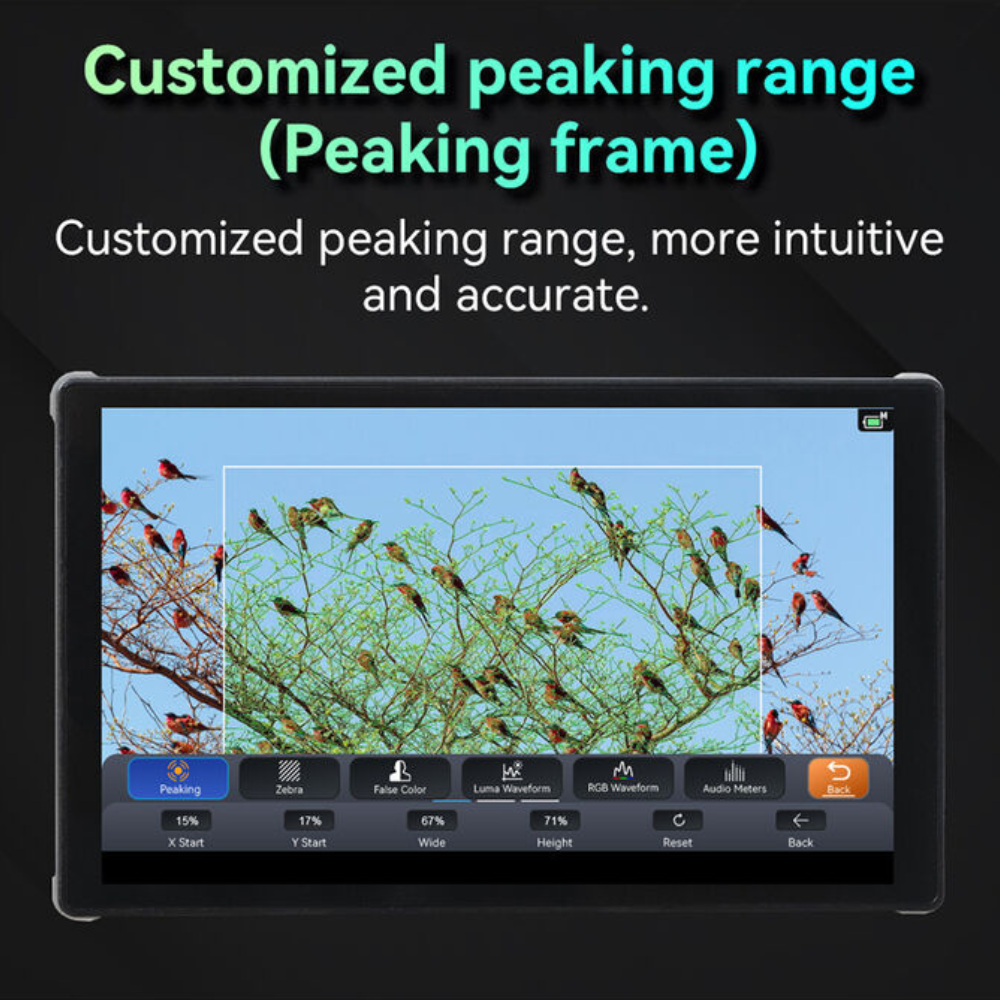

Image Controls: Color Temperature Selection, False Color, Focus Peaking, Histogram, Waveform
Video I/O: 1x HDMI 1.4 Input, 1x HDMI 1.4 Output
Embedded Audio: HDMI
Audio I/O: 1x 1/8" / 3.5 mm Headphone Output, 1x 1/8" / 3.5 mm Mic Input
Built-In Speaker: No
Power I/O: 1x USB-C (5 VDC) Input
Other I/O: 1x USB-A (Firmware/LUT Upload)
Media/Memory Card Slot: No
Video Format: HDMI (8-Bit) — DCI 4K: 30/29.97/25/24/23.98; 1080p: 60/59.94/50/30/29.97/25/24/23.98; 1080PsF: 30/29.97/25/24/23.98; 1080i: 60/59.94/50; 720p: 60/59.94/50
Input Power: 7 to 24 VDC

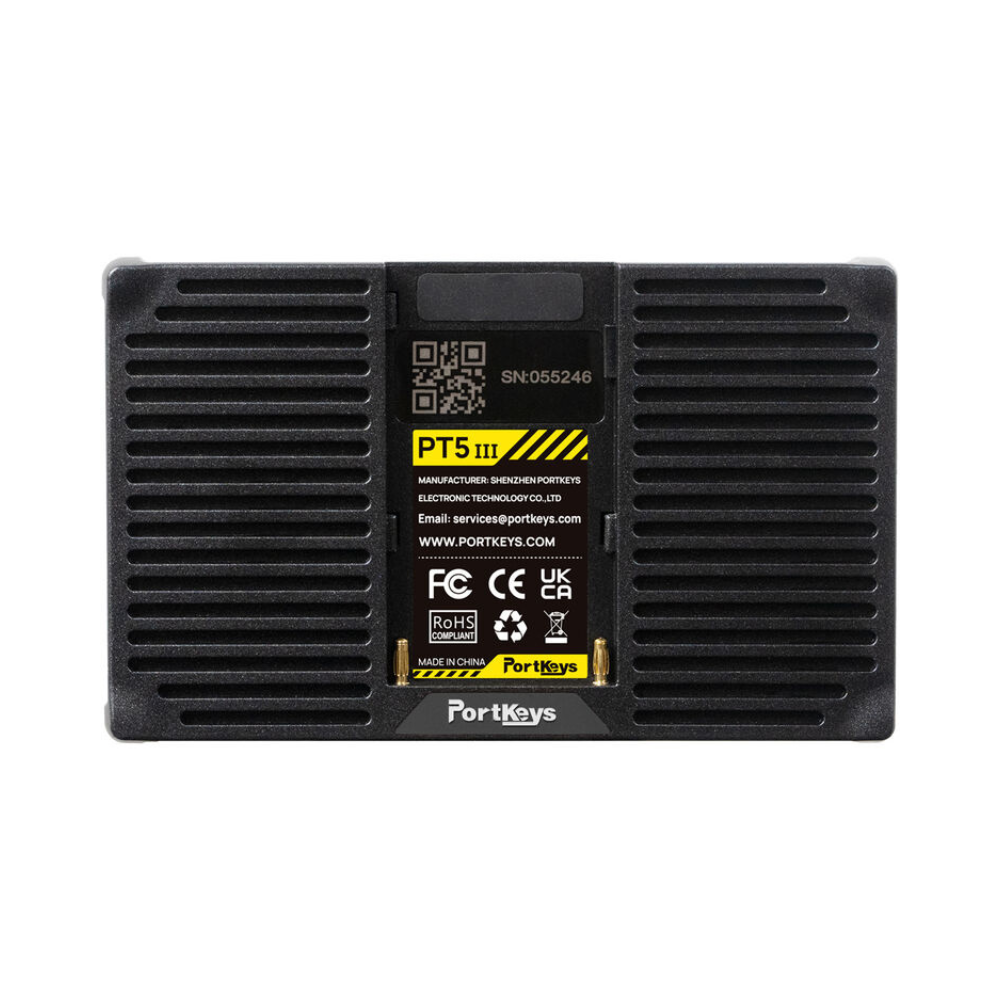

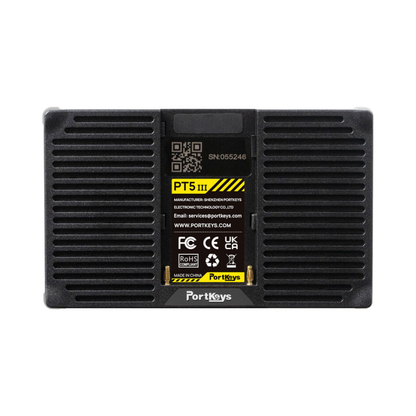

Battery: 1x L-Series Mount on Fixed Plate
Power Consumption: 7.5 W
Tripod/Accessory Mounting: Bottom – 1x Anti-Twist 1/4"-20 Female; Right – 1x Anti-Twist 1/4"-20 Female
Environmental Resistance: No
Material of Construction: Plastic, Polycarbonate
Dimensions: 5.3 x 3.2 x 0.9" / 135.1 x 82.5 x 22 mm
Weight: 5.7 oz / 162.00 g
What's inside the box?
● Monitor
● Sun Hood
● MH-2 Tilting Shoe Mount
● HDMI Type A Cable
● Micro-HDMI Cable
● Safety Case
● Rubber Cover (Pair)
