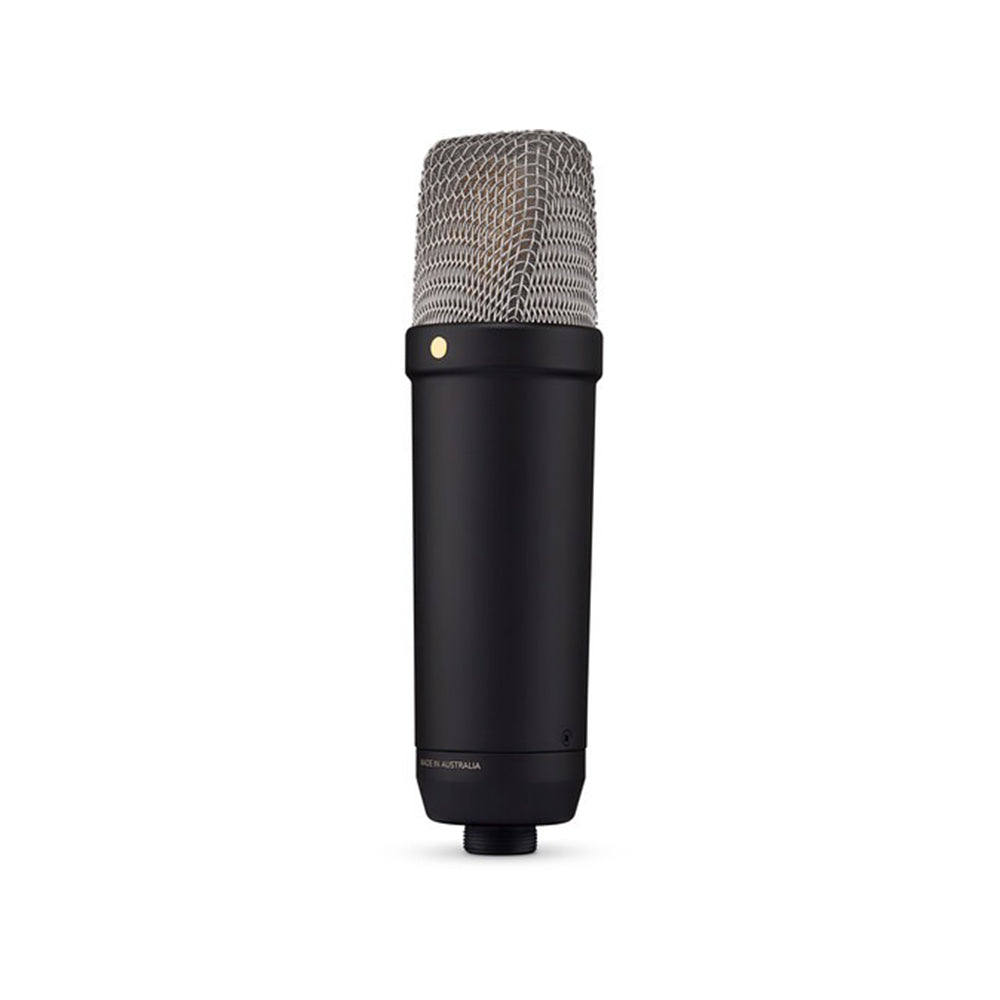

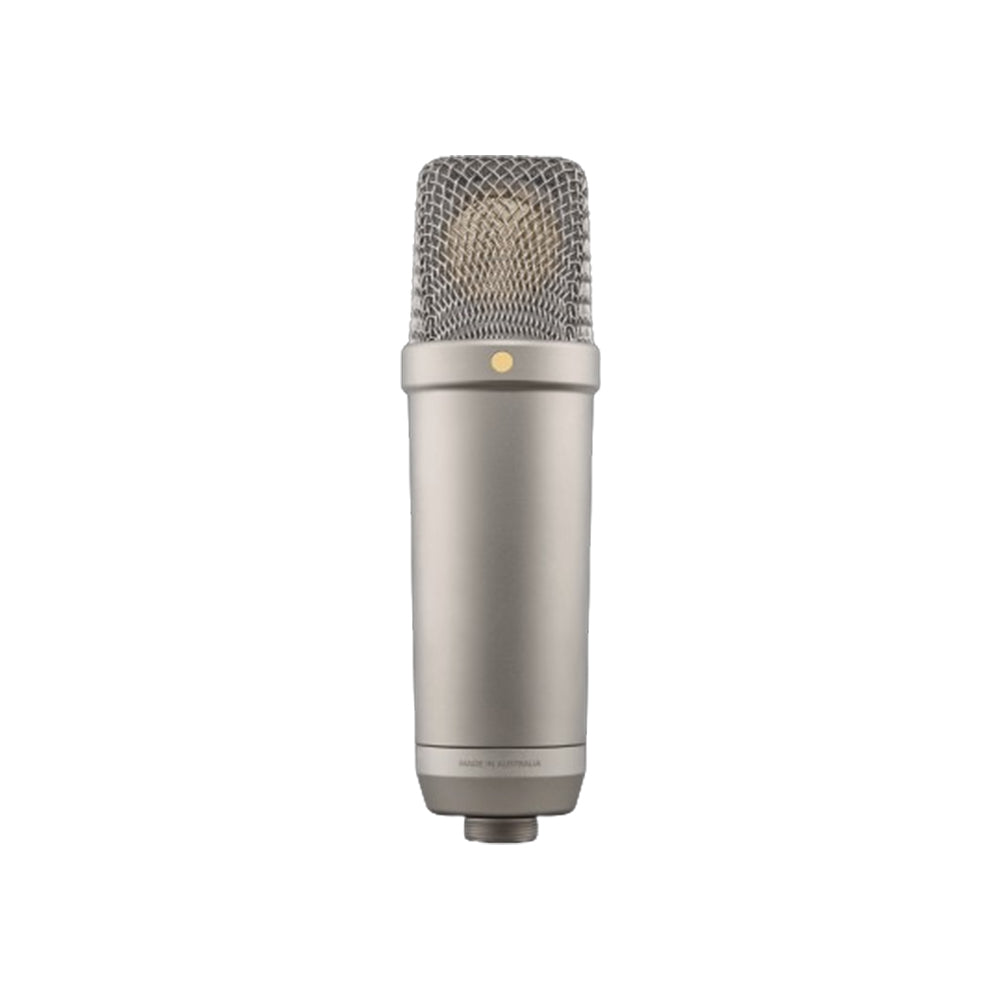

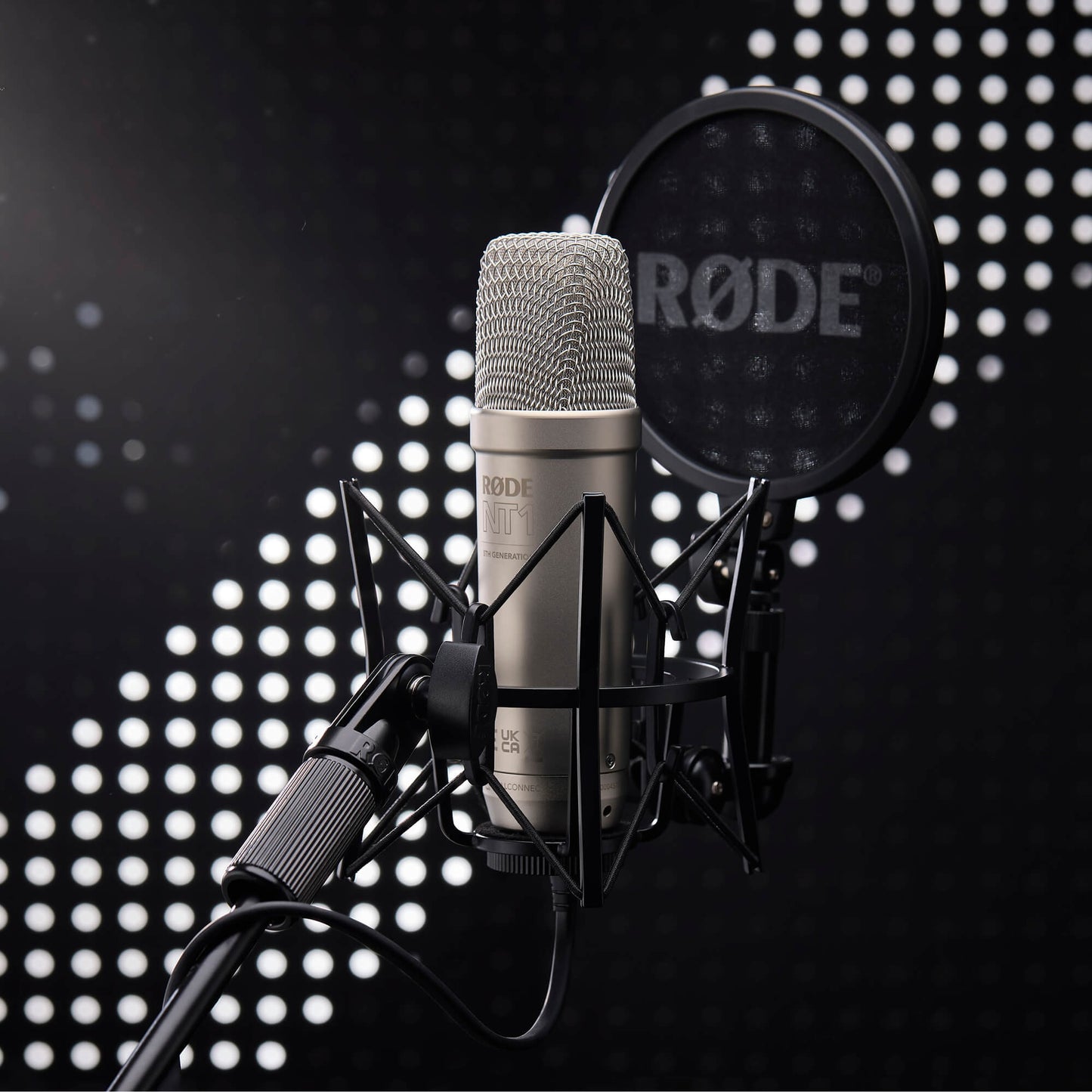

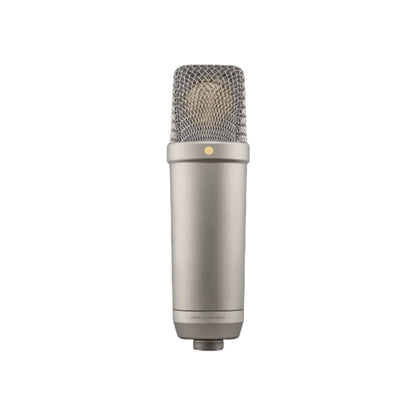

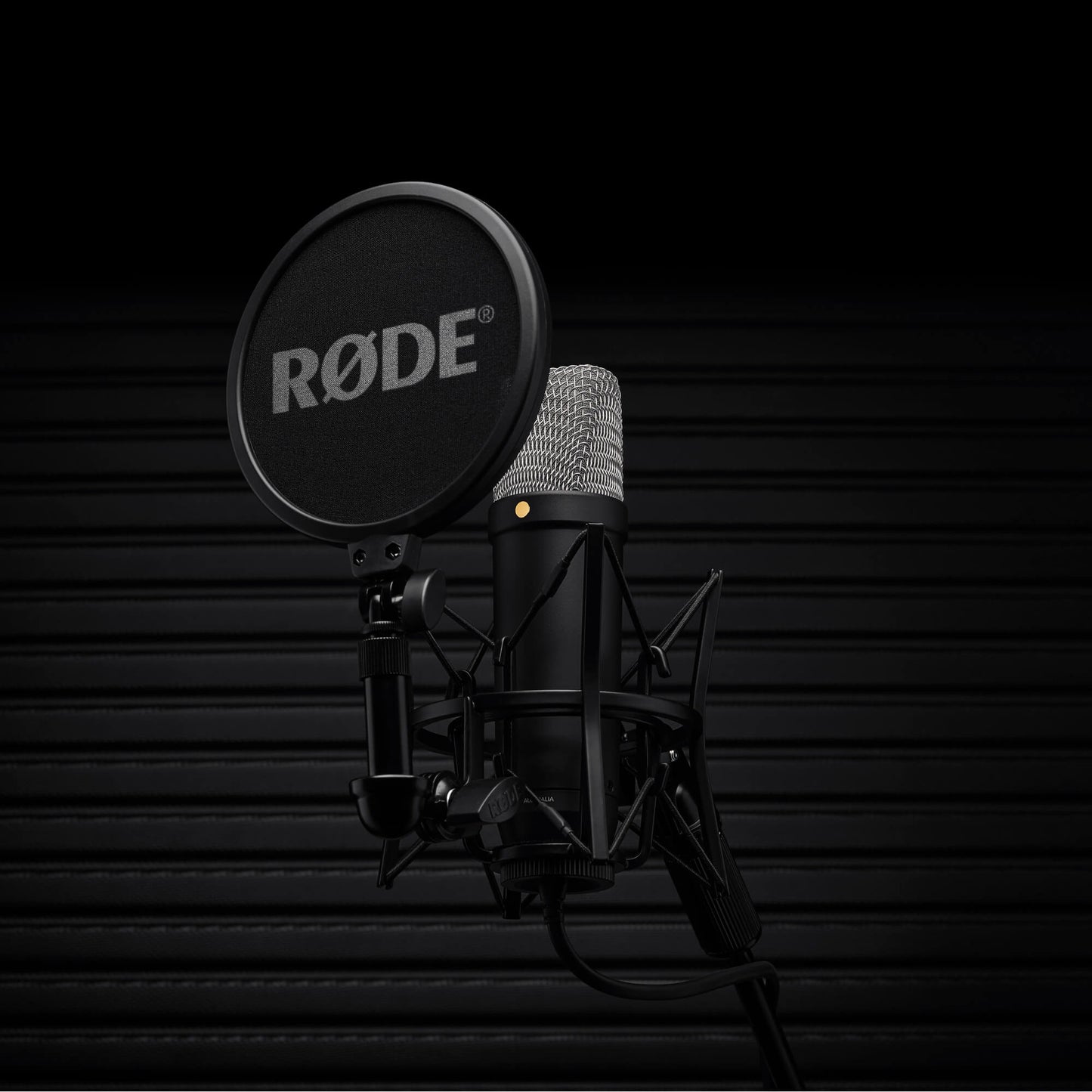

NT1 5th Generation
Studio Condenser Microphone
The NT1 5th Generation is a revolutionary studio condenser microphone that fuses the classic sound signature of the iconic NT1 with cutting-edge, next-generation technology. It features RØDE’s groundbreaking (patent-pending) Dual Connect output, offering both XLR and USB connectivity for incredible versatility, a world-first “unclippable” 32-bit float digital output, advanced digital signal processing, and more, all while delivering the same warm, silky character, extremely low noise, and high SPL handling that the NT1 is renowned for. The NT1 5th Generation is a true studio workhorse that excels on everything from vocals and speech, to guitar, piano, drums and percussion the ultimate studio microphone.
Features:
► For Recording, Streaming, and Podcasting
► Cardioid Pattern Reduces Ambient Noise
► Analog XLR and Digital USB-C Connectors
► 192 kHz / 32-Bit Float A to D Converter
► Large 1"" Gold-Sputtered Diaphragm
► Revolution Preamp, DSP Processing
► Software for Multiple USB Mics at Once

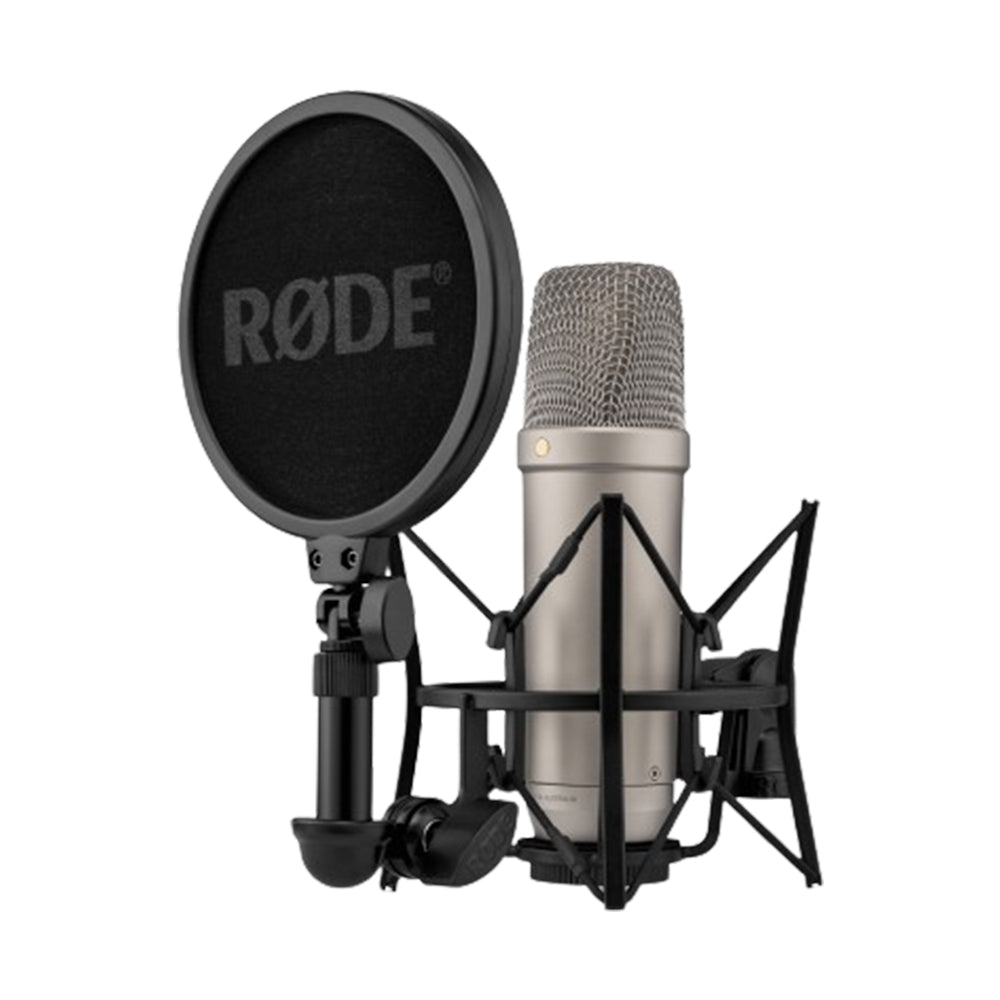

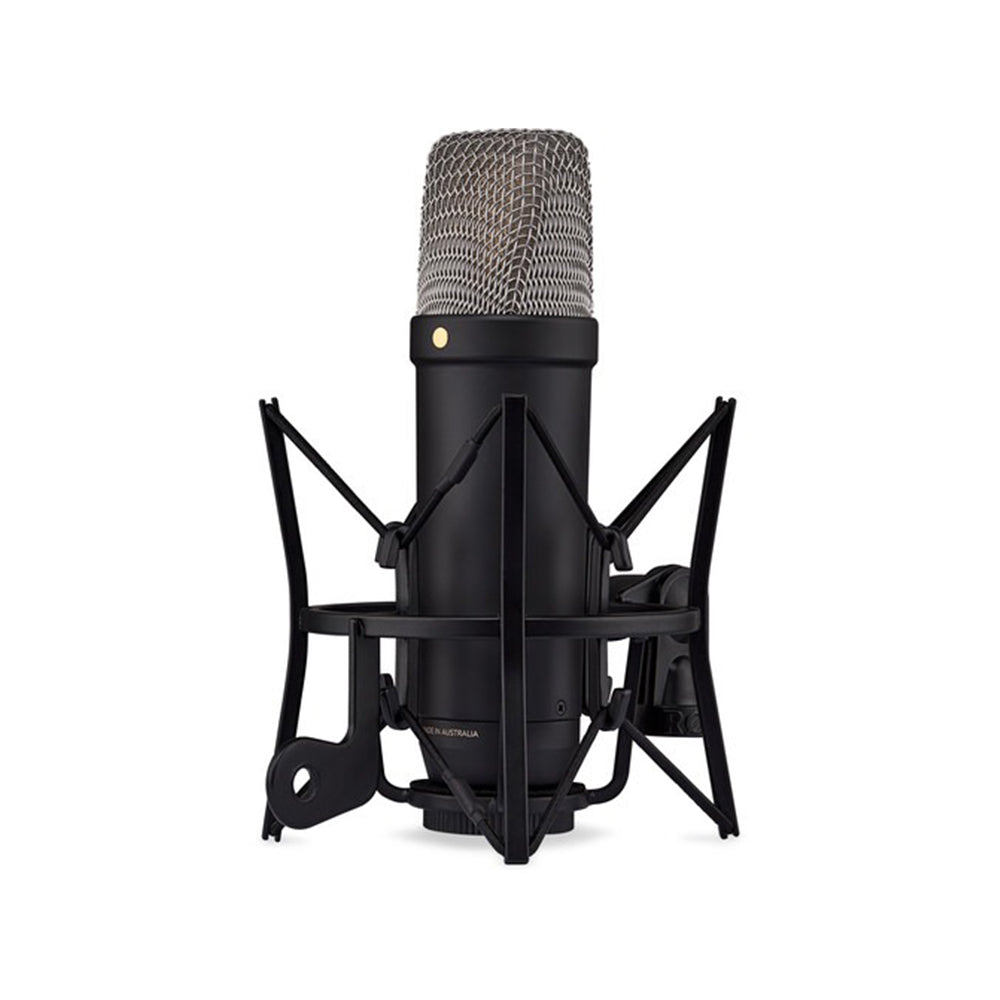

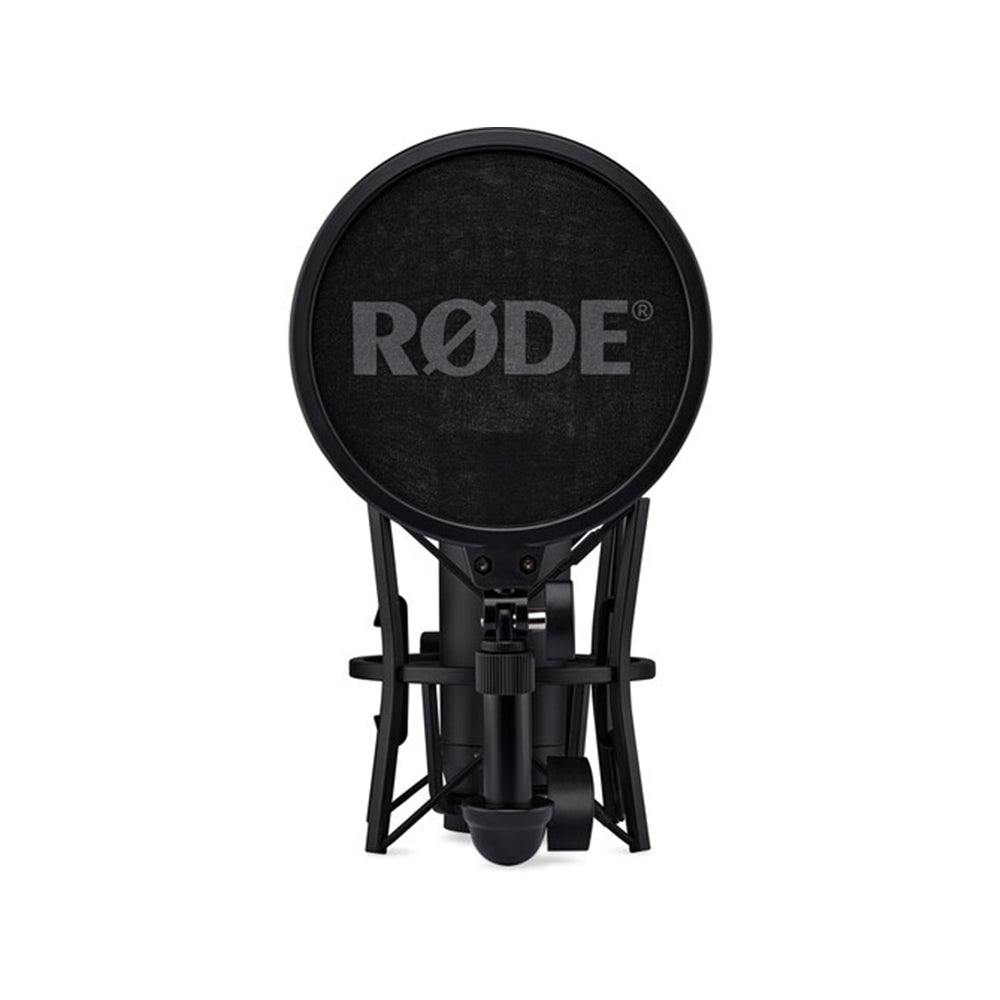

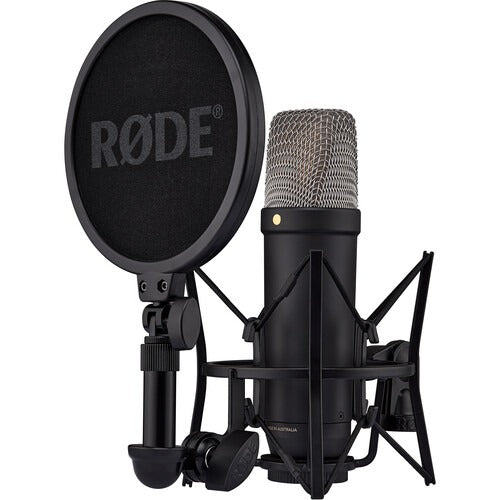

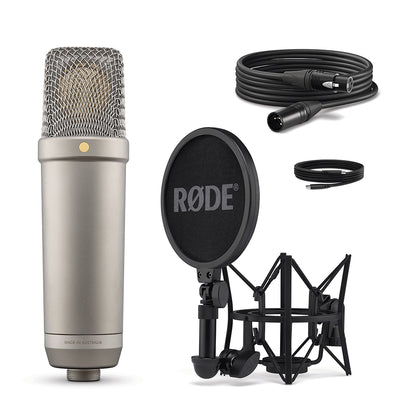

► Includes Pop Filter and Shockmount
► Operates on Phantom or USB Bus Power
Other Details:

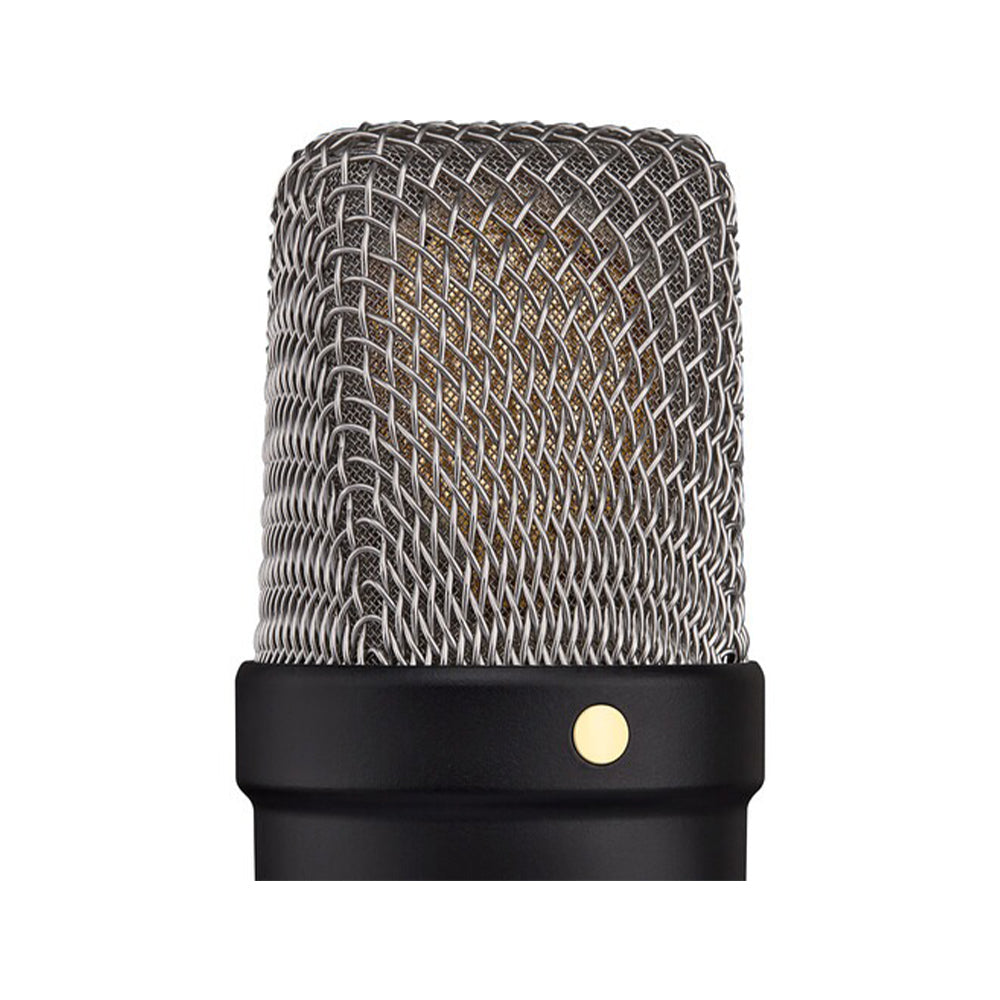

• HF6 1-inch true condenser capsule
• Smooth frequency response, high sensitivity and high SPL handling
• Exceptionally low noise (4dBA) – the world’s quietest studio condenser microphone
• World-first 32-bit float digital output
• On-board DSP for advanced APHEX® audio processing
Specifications:
• Brand: RODE
• Model: NT1 5th Generation
• Element Type: Condenser
• Polar Pattern: Cardioid
• Form Factor: Large Diaphragm Mic
• Power Sources: Bus Power / Phantom Power
• Frequency Range: 20Hz to 20kHz
• Maximum SPL: 142dB SPL
• Impedance: 100 Ohms
• Sensitivity: -32 dBV/Pa / 25 mV/Pa at 1 kHz
• Equivalent Noise Level: 4 dB A-Weighted
• Sound Field: Mono
• Orientation: Side Address
• Circuitry: Solid-State (JFET)
• On-Board Controls: None
• Analog Output: 1x XLR 3-Pin Male (Locking, on Mic)
• USB/Digital Output: 1x USB-C Female (on Mic)
• USB Class-Compliant: Yes
• A/D Conversion: 24 / 32-Bit Floating Point
• Sample Rate: 48 / 96 / 192 kHz
• Digital Signal Processing: Compressor, EQ, Noise Reduction, Sound Presets (via Software)
• OS Compatibility: Windows 10, macOS 10.15
