Saramonic VLINK2 KIT2 2.4GHz Wireless Microphone System Perfect for Field Recording, News Broadcast and Interviews (TX+TX+RX)



Overview

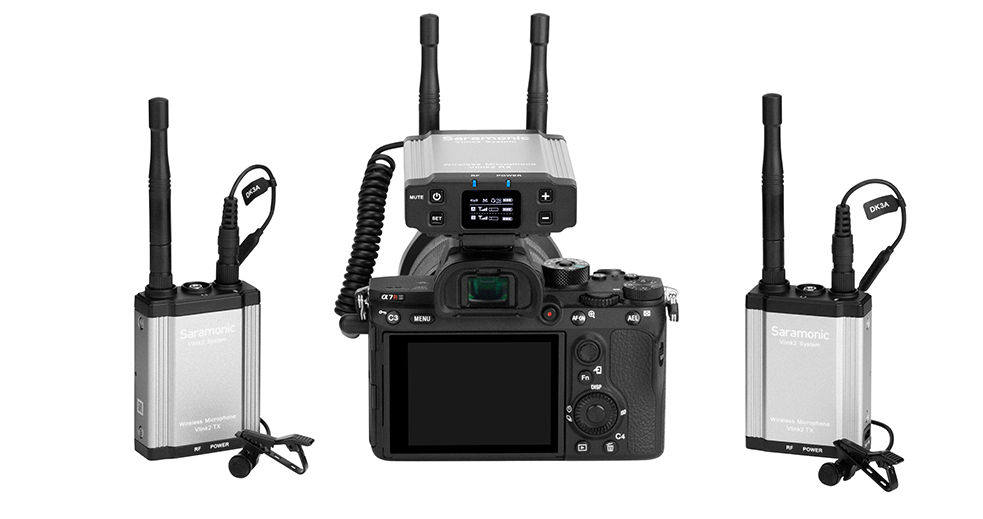

• The Saramonic Vlink2 is a versatile and easy-to-use 2.4 GHz wireless microphone system for news broadcast, interviews and field recording. The whole system is perfect for DSLRs, Mirrorless and all types of cameras, portable audio recorders and smartphones with 3.5mm microphone input..

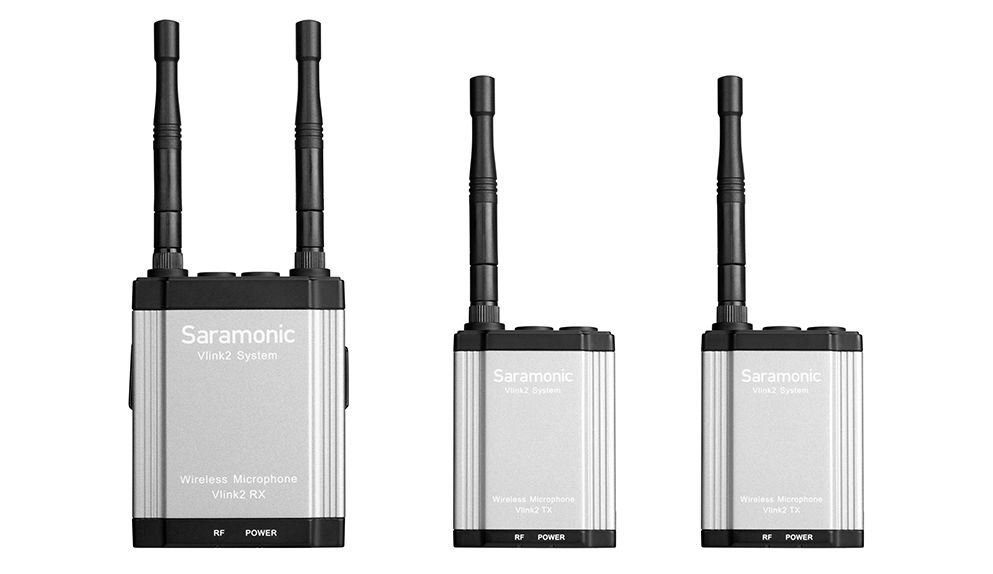

• Vlink2 RX Portable Receiver The Saramonic Vlink2 RX is a camera-mountable dual-channel 2.4GHz wireless receiver. It features a high-contrast OLED display and talkback function to the transmitter. The two detachable antennas can be rotated 360° for better reception. The receiver’s output can be toggled between mono and stereo modes. The talkback and monitor function on the receiver allows camera operators to select individually if desired, and communication can be controlled by a mute button.

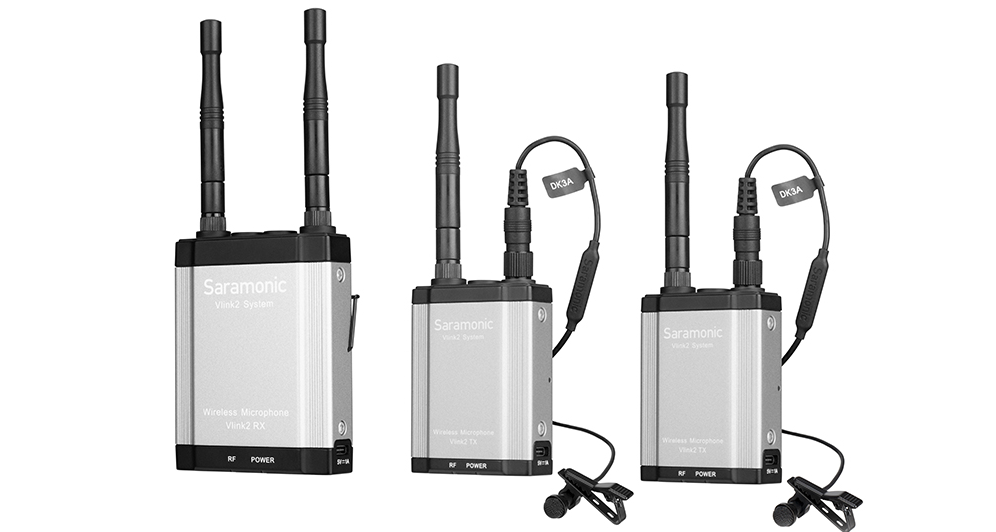

• Body-pack Transmitter Vlink2 TX The Saramonic Vlink2 TX is a compact body-pack transmitter. It features an easy-to-read OLED display, a detachable antenna and a built-in rechargeable battery. With the 3.5mm headphone and mic input jacks, it can accept audio from the included 3.5mm locking mic, and supports efficient two-way communication with the receiver. A short press of the power button mutes the mic between takes.





Features



• Delivers professional broadcast-quality sound
• Real-time talkback communication between the transmitter and the receiver
• Real-time monitoring on both the transmitter and the receiver
• Mono/Stereo mode switchable
• Vivid high-contrast OLED display
• Detachable and 360°switchable antenna
• Built-in rechargeable battery
• Single ear headphone included for the receiver





Specifications

• Brand: Saramonic
• Color: Black/Gray

Vlink2 RX:

• Oscillator type:GFSK
• Carrier frequencies: 2.4GHz (2404-2476MHz)
• Operating range    : Up to 328′(100m)
• Audio connector    : 3.5 mm LINE OUT jack / 3.5mm MIC IN & 3.5mm headphone output jack
• Built-in battery capacity: 3000mAh
• Continuous use time: 19 hrs
• Power requirements: Built-In Li-ion Battery or USB-C DC 5V
• Signal-to-noise ratio: 75 dB or more
• Sensitivity : Lavalier microphone:-40dB
• Headphone output level    : 30mW (32 Ω)
• RF output power: ＜ 10mW
• Frequency response : 35Hz-18KHz

Vlink2 TX:

• Oscillator type    : GFSK
• Carrier frequencies : 2.4GHz (2404-2476MHz)
• Operating range     Up to 328′(100m)
• Audio output connector: 3.5mm headphone output
• Audio input connector :3.5mm MIC IN/LINE IN jack
• Built-in battery capacity: 2000mAh
• Continuous use time: 20 hrs
• Power requirements: Built-In Li-ion Battery or USB-C DC 5V
• Signal-to-noise ratio: 75 dB or more
• Sensitivity: Lavalier microphone: -40dB.
• Headphone output level:30mW (32 Ω)
• RF output power     ＜ 10mW
• Frequency response: 35Hz-18KHz
• Operating temperature :-10 °C to 50 °C
• Storage temperature:  –20 °C to +55°C
