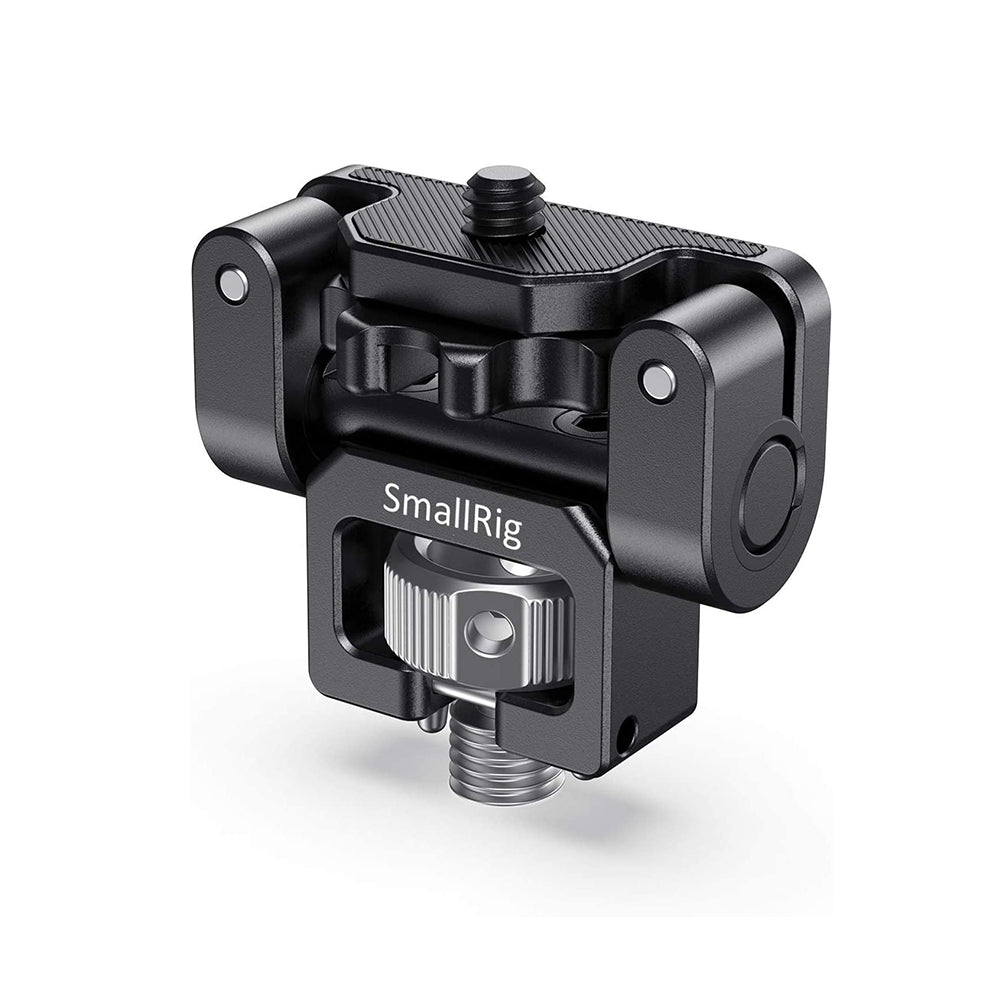

SmallRig Articulating Monitor Mount with 3/8"-16 ARRI Anti-Twist Pins, 1.5kg Load Capacity, Compatible with 5" or 7" Monitors, Secure Thumbscrews and Rubber Padding for Camera Cage Mounting System and Video Monitors 2174B

SmallRig Articulating Monitor Mount with 3/8"-16 ARRI Anti-Twist Pins 2174B

Mount a 5 to 7" on-camera monitor onto your cage or rig with this Articulating Monitor Mount from SmallRig, which features ARRI locating pins to prevent twisting. The aluminum mount connects to a cage or rig with a 3/8"-16 screw with ARRI-style anti-twist locating pins, and it is secured with a thumbscrew. The monitor connects to the top of the mount with a 1/4"-20 thumbscrew, and rubber padding on the top protects and secures your monitor. The mount tilts 146° so you can find the right monitor position. An Allen wrench is included to tighten the tilt hinge.

Key Features:

• Mount a 5 to 7" Monitor up to 3.3 lb
• 146° Tilt, 1/4"-20 Monitor Screw
• 3/8"-16 Screw with ARRI Anti-Twist Pins
• Rubber Padding to Protect Monitor
• Secures with Thumbscrews

Technical Data:

• Brand: SmallRig
• Model: 2174B
• Color: Black
• Material(s): Aluminum, Rubber
• Articulation: 146°
• Load Capacity: 3.3 lb / 1.5 kg
• Dimensions: 1.9 x 1.5 x 0.7" / 4.8 x 3.9 x 1.8 cm
• Weight: 68g / 0.068kg

Mounting:

• 1 x 1/4"-20 Screw
• 1 x 3/8"-16 Screw with ARRI-Style Locating Pins

Other Details:

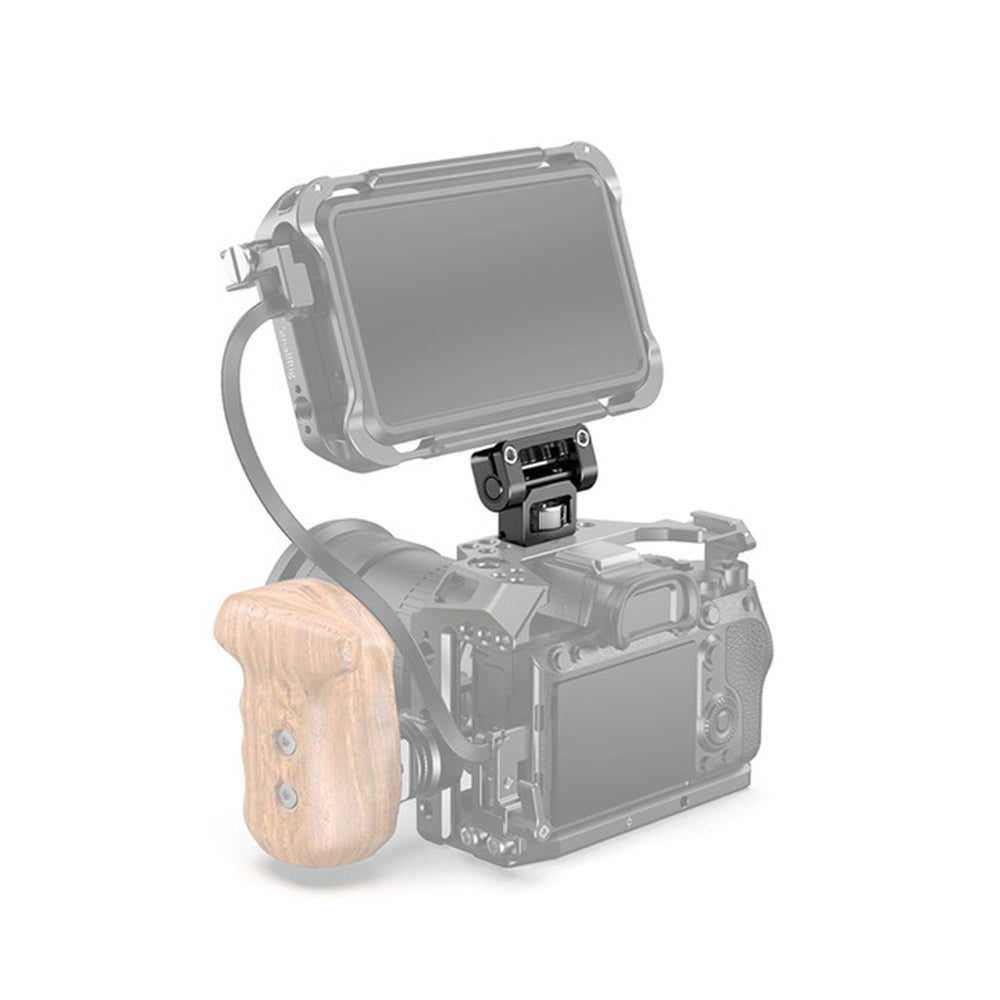

• FOR MONITOR: SMALLRIG Monitor Mount 2174 is designed to hold your monitor onto any cage or handle via 3/8"threaded hole for ARRI standard. It enables the cameraman to have better monitoring as per the needs in different shooting scenarios.

• NOTE: The monitor mount is compatible with 5 inch or 7 inch monitor and supports monitor up to 1.5kg. Also, if a cage haven't locating holes for ARRI standard, you can mount optional Mini Plate 2171 via two 1/4" threaded holes first, then it allows to attach the monitor mount 2174.

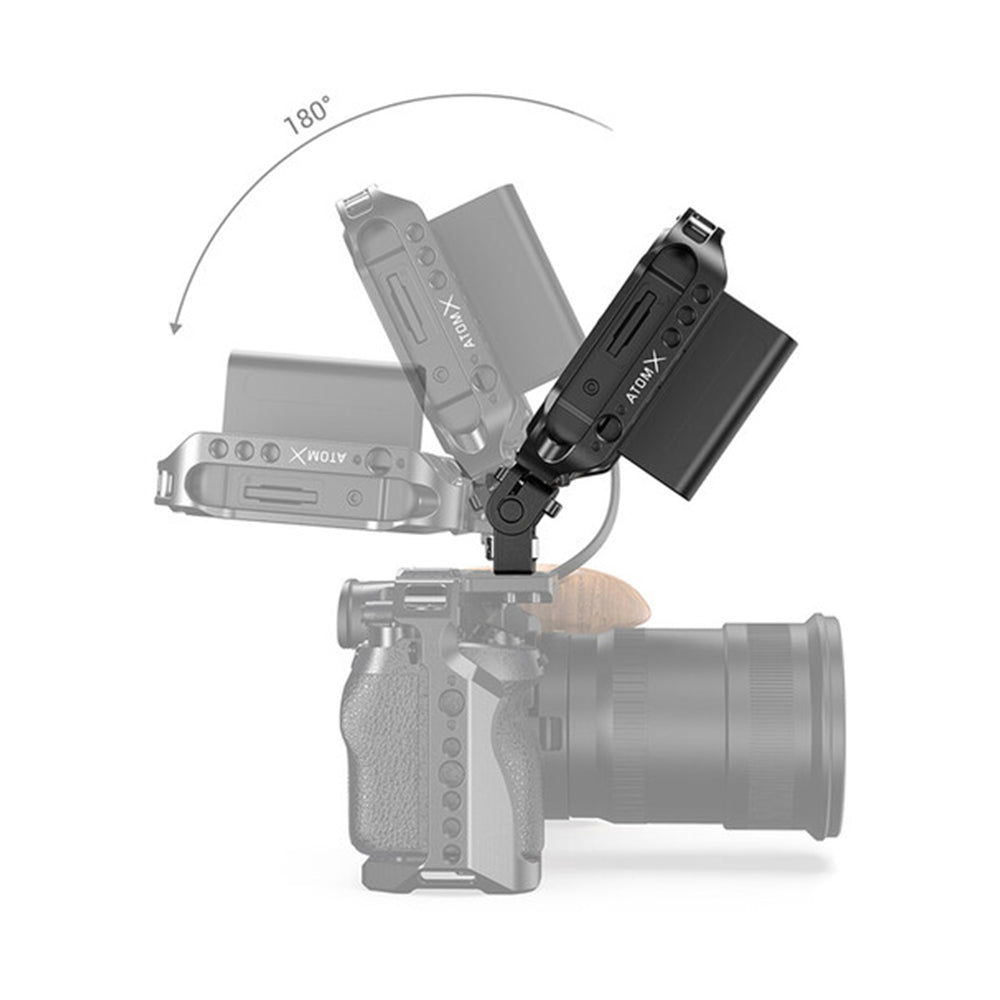

• ROTATION ADJUSTMENT: Rotation axis enables this monitor holder to adjust the position of monitor up to 146° with only one hand for better monitoring as per your needs at different directions during shooting.

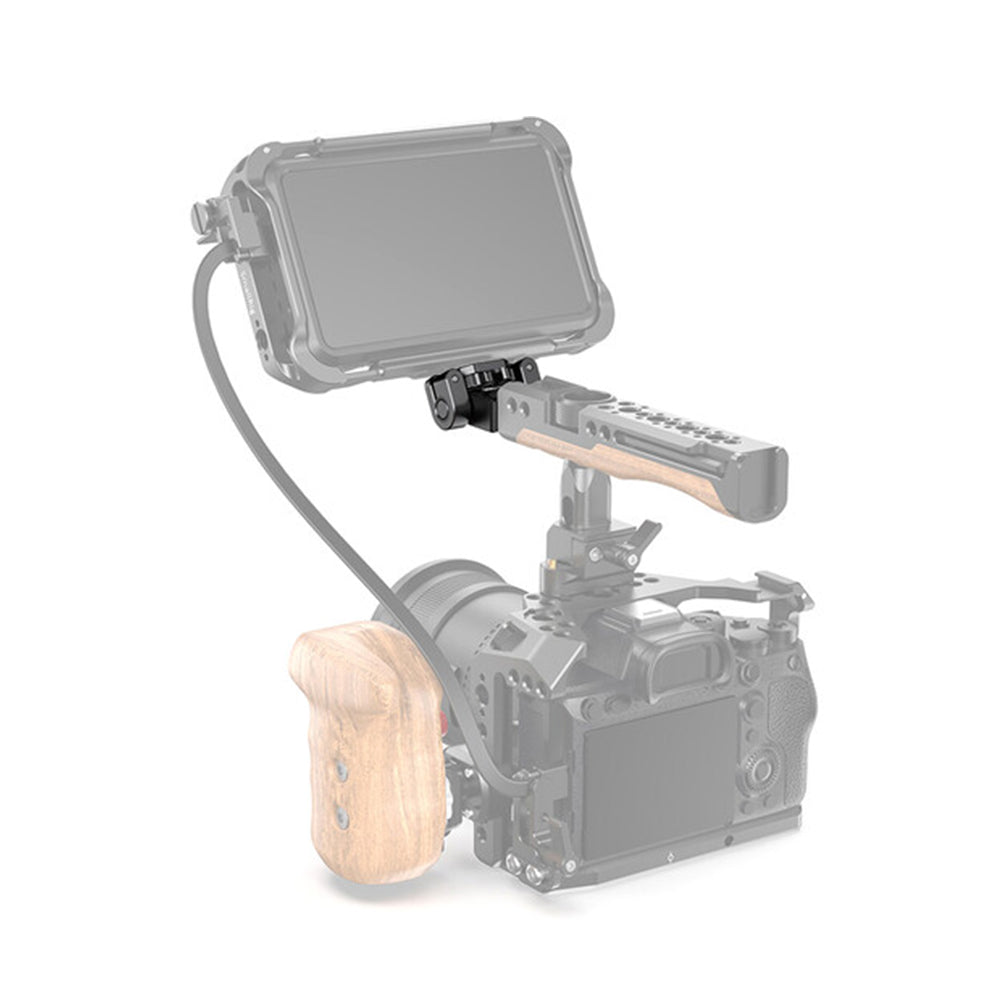

• COMPATIBLITY: The SMALLRIG monitor mount is compatible to SMALLRIG A7III Cage 2087, BMPCC 4K Cage 2203, Z6 / Z7 Cage 2243, D850 Cage 2129, NATO Handle1955 and any cage or handle with 3/8 locating holes.

• TOOLLESS INSTALLATION: The monitor mount connect cage can be tighten by hands via the thumbscrew, which provide a quick release for users. Also, it comes with a hole for using the Allen wrench to re-tighten it.

What's in the box:

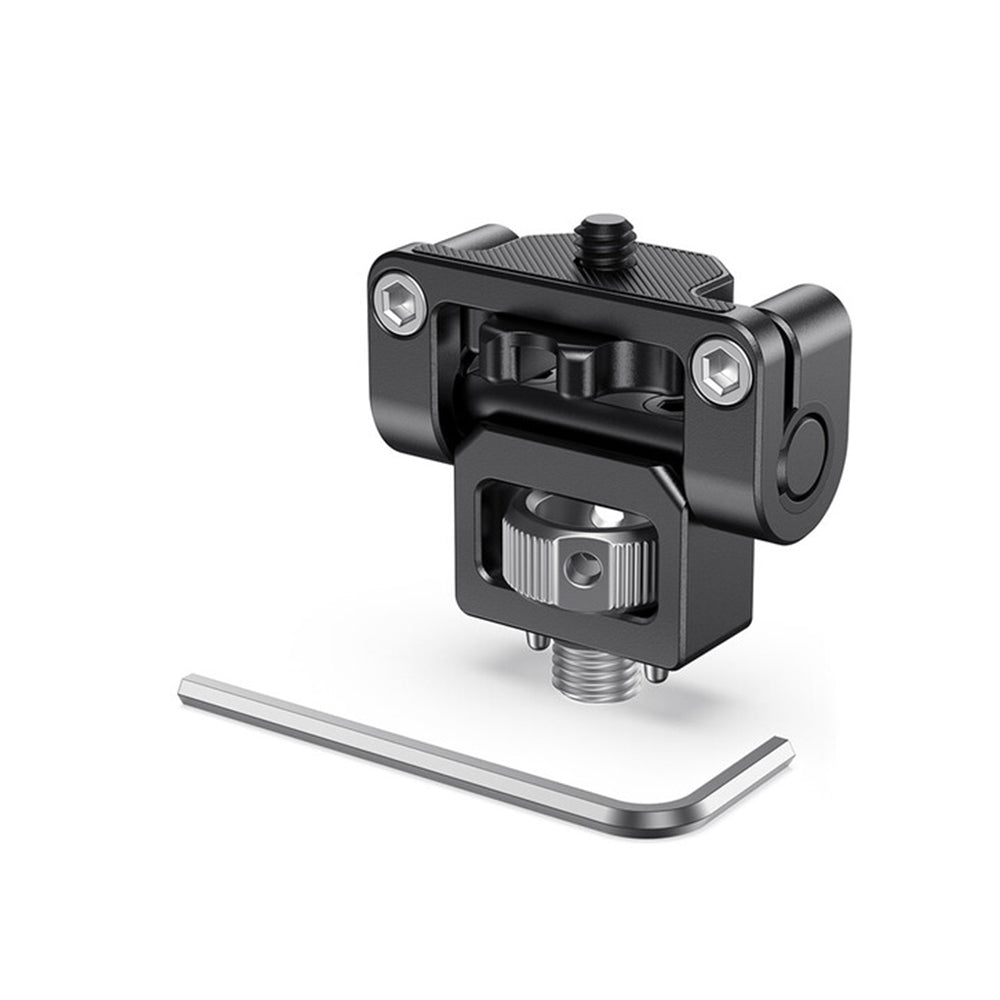

SmallRig Articulating Monitor Mount with 3/8"-16 ARRI-Type Accessory Screw, Allen Wrench
