Description:

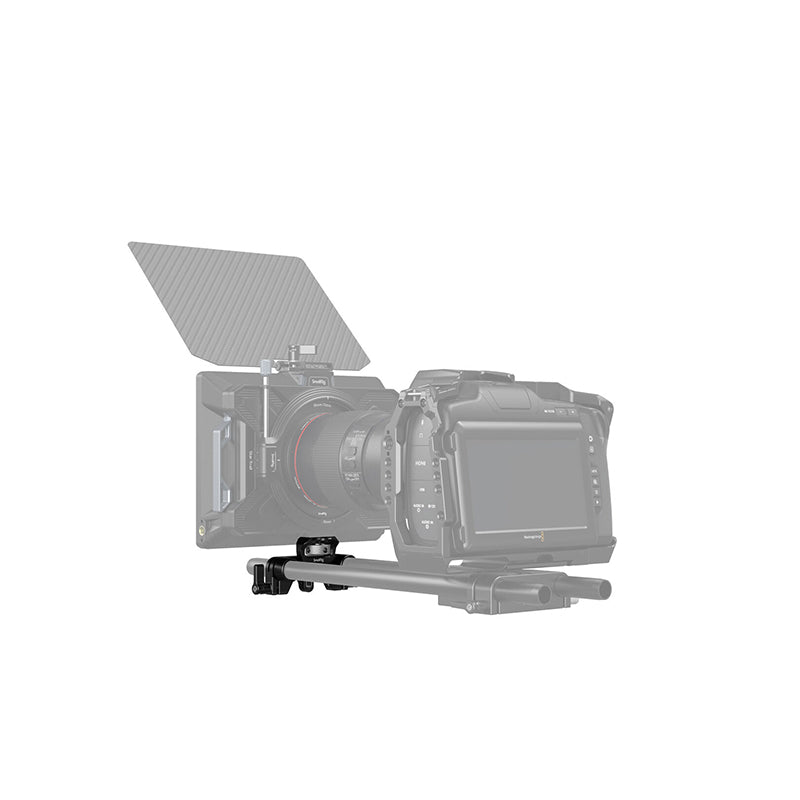

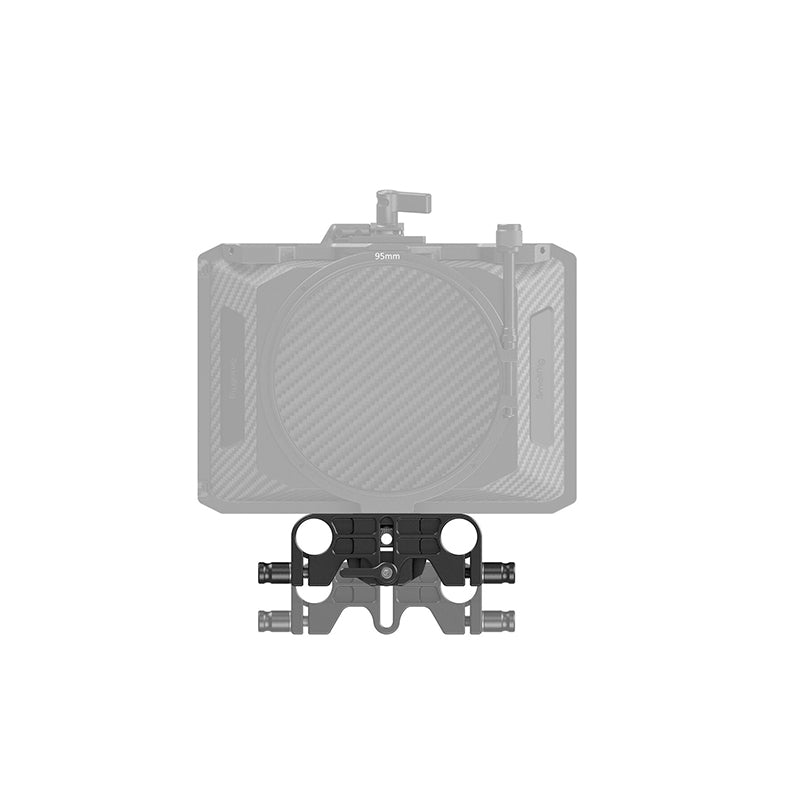

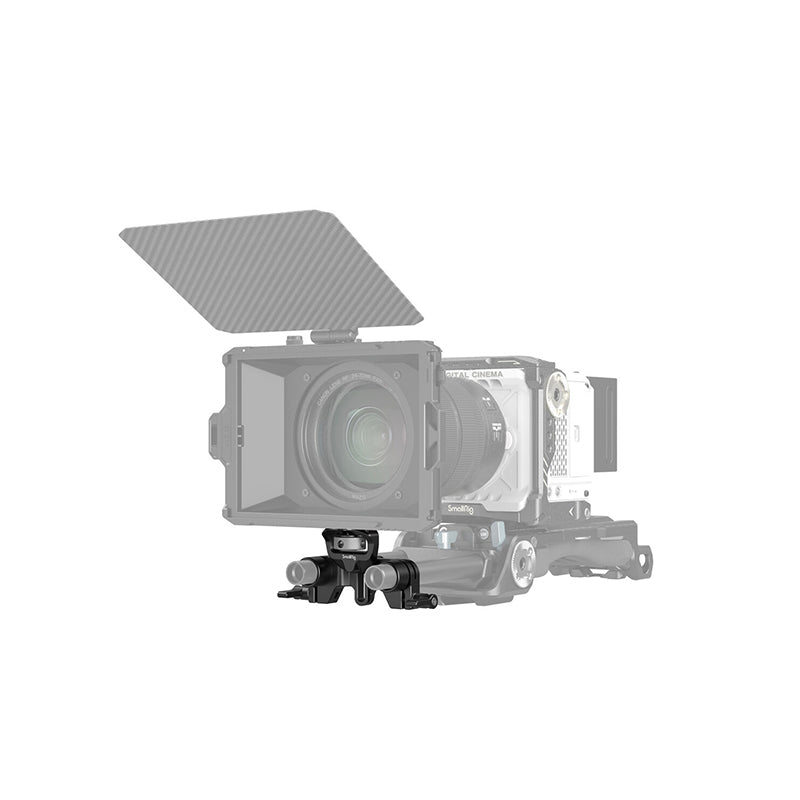

Attach a SmallRig Star-Trail, Revo-Arcane, or Mini Series matte box to a rail support system using the SmallRig 15mm LWS Support. A 1/4"-20 anti-twist screw secures the matte box, and dual 15mm LWS rod clamps secure the support to a compatible rail system. The support is vertically adjustable 0.8" and accommodates a wide range of DSLR and cine lenses. A horizontal support at the bottom prevents tilting for an additional layer of security.
Compatibility
SMALLRIG 15mm LWS Rod Support 3652 is an universal accessory for SMALLRIG Matte Box 3196/ 3680/ 3556/ 3641/ 3645, designed to fix matte box and protect lens mount
20.4mm Vertical Adjustment
15mm LWS Rod Support 3652 is 20.4mm vertically adjustable, with a horizontal support at its bottom to prevent tilting
Anti-twist Design

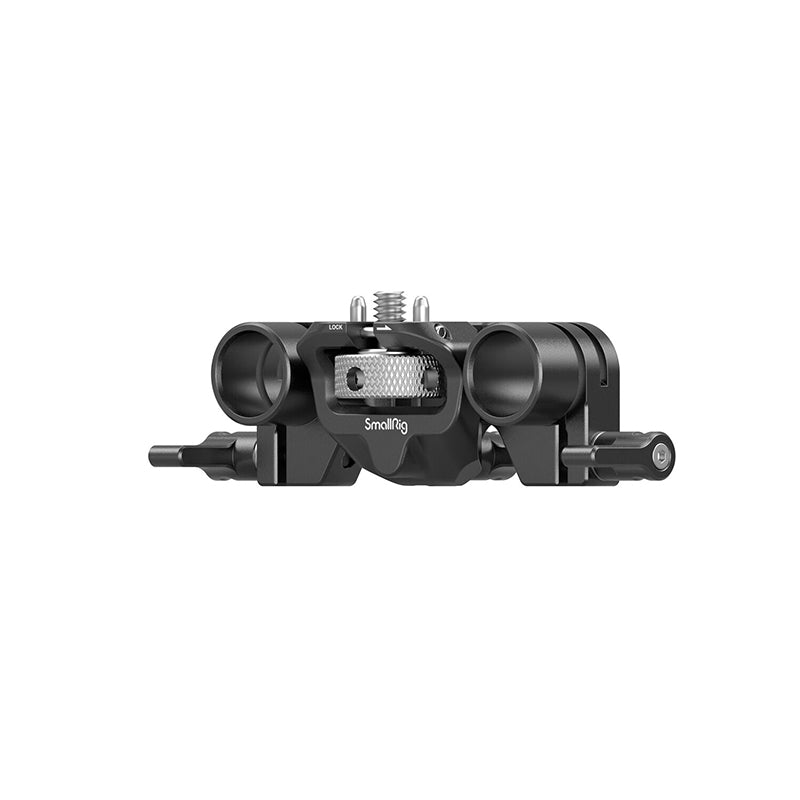

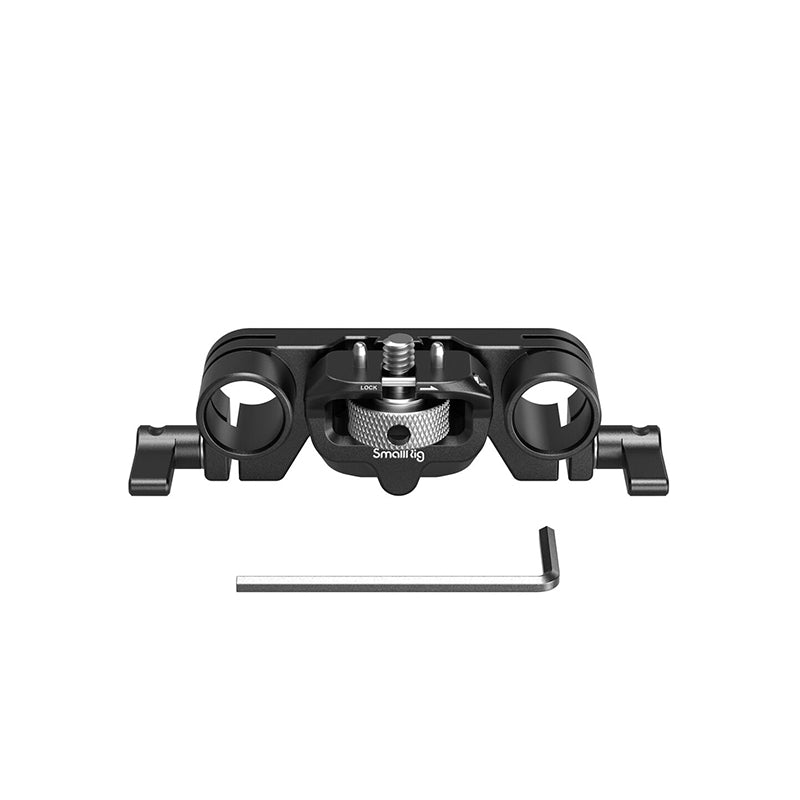

15mm Dual Rod Clamp 3652 has a 1/4"-20 screw and two pins to secure the matte box on the rail support system
Aluminum Alloy Construction

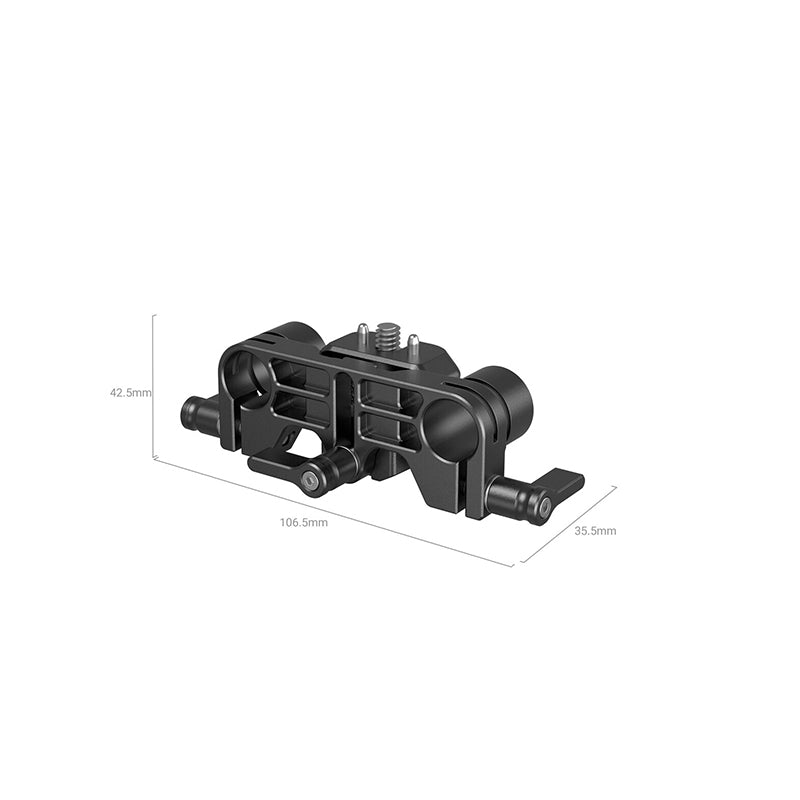

The rod clamp 3652 weighs only 85g, it is lightweight but stable and durable because it is made of aluminum alloy
Lens Diameter Compatibility
52mm
55mm
58mm
62mm
67mm
72mm
77mm
80mm
82mm
86mm
95mm
SmallRig Matte Box Compatibility:
Stair-Trail 95mm
Revo-Arcane 114mm
Mini Series matte boxes
Features:
Fix Matte Box to Rail Support System
15mm LWS Rod Support
1/4"-20 Screw
0.8" Vertical Adjustment
Accommodates Various Camera Lenses
Horizontal Support Prevents Tilts
