Name: SmallRig Monitor Mount with NATO Clamp, Top & Bottom Shoe Mounts, 1.5kg Load Capacity and Tilt-Adjustable Thumbscrew Mount for DJI RS 2 & RSC 2 Gimbals 3026B
Brand: SmallRig
SKU: SMALLRIG 3026B
Price: 2449.0 PHP
Availability: InStock

SMALLRIG 3026B

Overview:

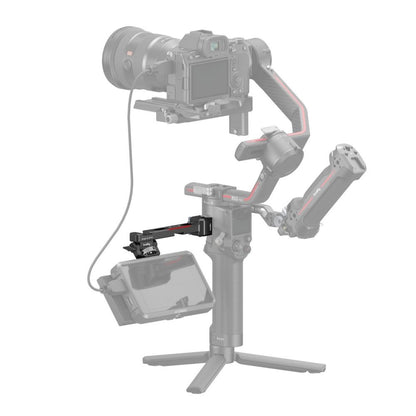

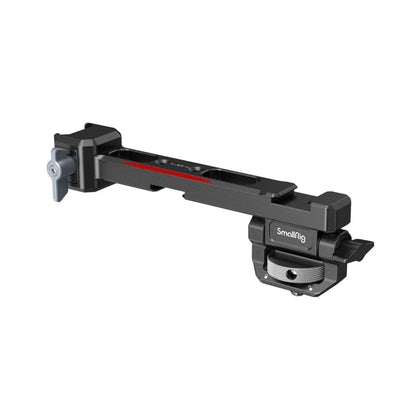

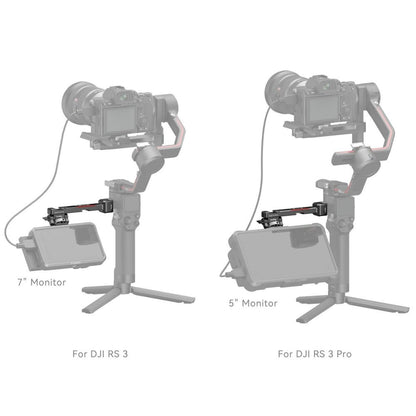

SmallRig Monitor Mount for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 3 Mini 3026B is designed for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 3 Mini gimbals to mount extra accessories, such as monitor, LED video light, sound receiver, image transmitter, action camera, etc. It quickly secures either side of a gimbal via the NATO clamp, which comes with an anti-drop design for added safety, with a thumb knob tilting the monitor up to 170°. There are multiple accessory mounting points, including two 1/4''-20 holes on the top for Magic Arm 3238 for action camera or image transmitter, and a cold shoe mount on the top and the bottom for the sound receiver, microphone, LED video light, etc. Another highlight is the anti-twist pin that helps further stabilize the monitor. Overall, 3026B, which supports 5" and 7" monitors, is compact and matches DJI RS series gimbals perfectly in terms of design style and accessory attachment.

Mount Types

A top shoe mount on the end

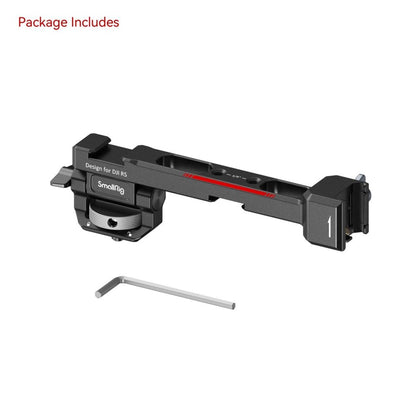

A monitor mount on the bottom with a 1/4"-20 male thumbwheel and tension-based 165° tilt adjustment; the thumbwheel has slots for further tightening it using an included Allen key
A 1/4"-20 thread on the side, on the very end, allowing attachment of short magic arms and other accessories
In the middle of this Monitor Mount, there are two 1/4"-20 threaded holes on top, and another shoe mount on the bottom

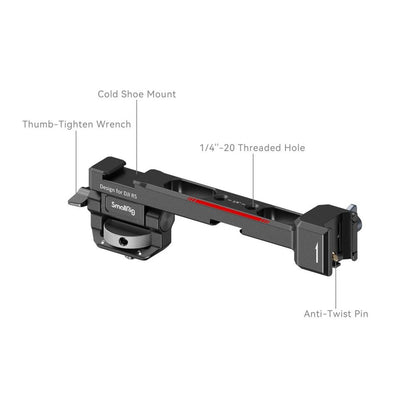

Features:

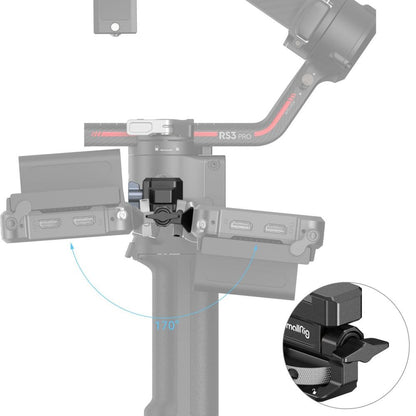

Thumb knob for quick adjustment of monitor's viewing angle;

Built-in 1/4''-20 threaded holes and cold shoe mount for the monitor, action camera, sound receiver, etc.;
Designed for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals;
Anti-twist pin for more safety and stability;

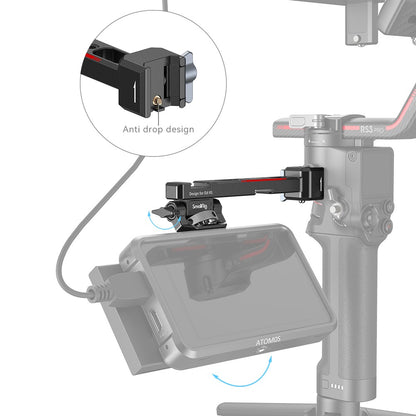

Quick-release NATO clamp, with an anti-drop button to prevent accidental fall.
