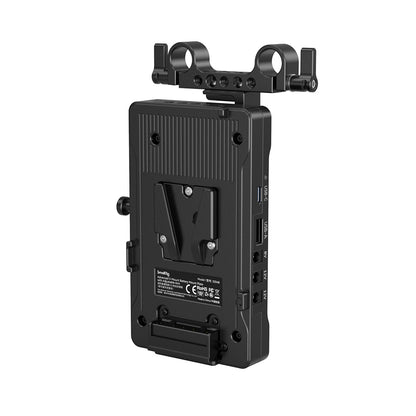

SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B can quickly mount onto 15mm LWS rod system. This item features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4"-20 threaded holes and ten M4 threaded holes on the back, five 1/4"-20 threaded holes on the top and bottom, which support dual rod clamp and many other accessories. It comes with a PD protocol compatible USB-C input / output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input / output (14.8V) port; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicate working status and fast / slow charging mode; the power on / off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has comfortable texture, with wonderful heat dissipation performance and durability.
1. Standard V-mount, compatible with most V-mount batteries;
2. PD protocol compatible USB-C input / output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.;

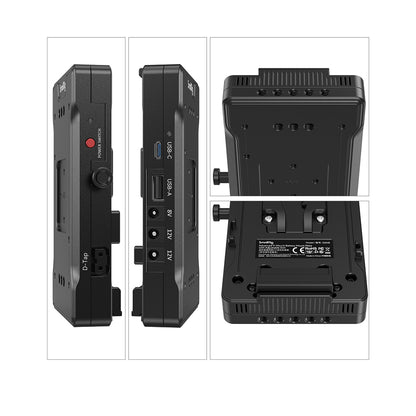

3. D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port;

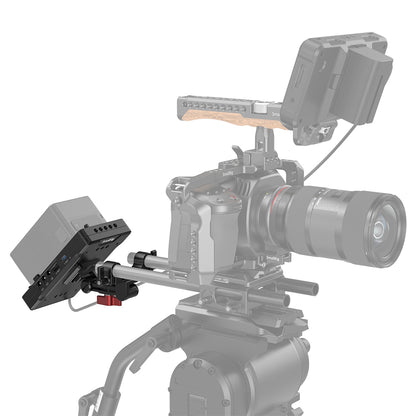

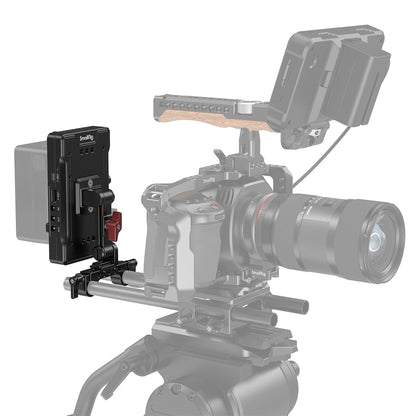

4. Quickly mounts onto 15mm LWS rod system;
5. Quickly repositions the V-mount battery.
Specifications
● Dual Rod Diameter： 15mm (for 15mm LWS rod system)
● Battery Voltage： 11.0V~16.8V
● Battery Rated Capacity：3500mAh~20000mAh / 14.8V
● Cut-off Voltage ：11.0V
● Input Voltage (Max.)： 16.8V
● Working Power (Max.)： ≤ battery power (subject to battery capacity)
● Total Maximum Power： Discharging: 271W (Max.)
● D-Tap Rated Input / Output Current： 5A
● D-Tap Input / Output Current (Max.)： 10A (subject to power adapter)
● D-Tap Input Voltage： 11.0V~16.8V
● USB-A Output Power： 36W (Max.)
● USB-A Output Protocol： QC2.0 / QC3.0 / AFC / DCP-1.5A / APPLE-2.4A
● USB-C Input Power： 65W (Max.)
● USB-C Output Power： 65W (Max.)
● USB-C Input / Output Protocol： PD3.0 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
● DC1 Output： 8.0V / 3A (Max.)
● DC2 Output： 12V / 3A (Max.)
● DC3 Output： 12V / 3A (Max.)
● DC Overcurrent Protection： ≥4.1A
● Material(s)： Aluminum Alloy
What's in a box
1x Advanced V-Mount Battery Adapter Plate
1x Dual Rod Clamp with Adjustable Arm
2x Hex Spanner
2x Screw
1x User Manual
