SmallRig Advanced Cage Kit 3669C
Features:
-

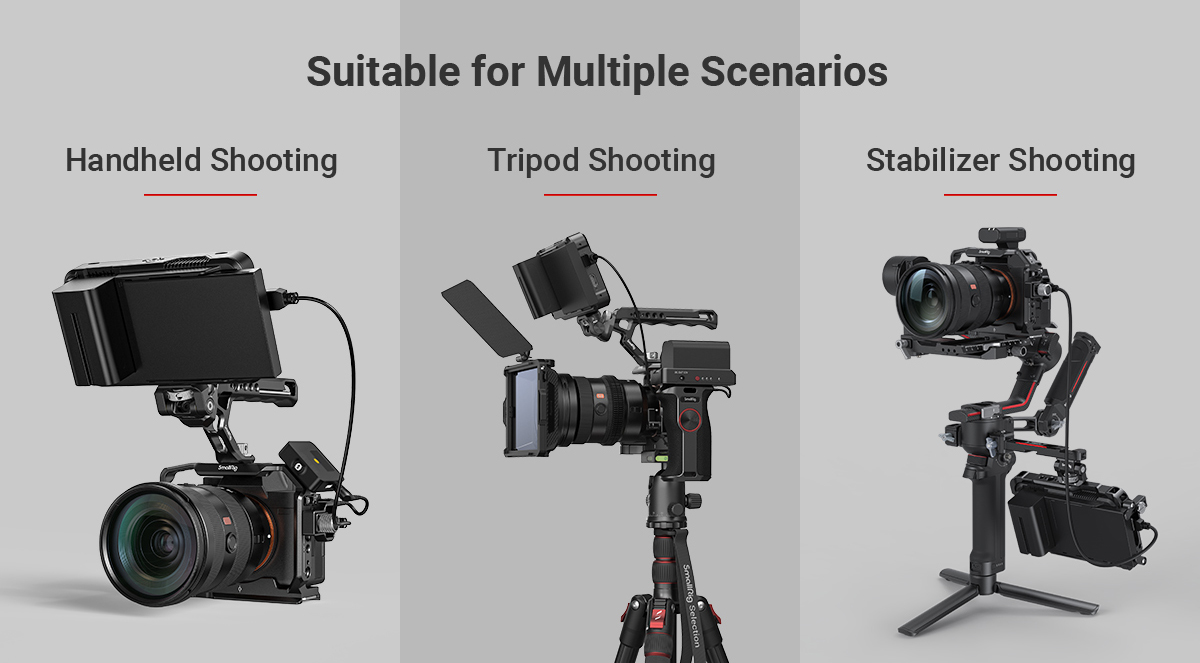

Professional handheld kit for two-handed and low-angle shooting at will
-

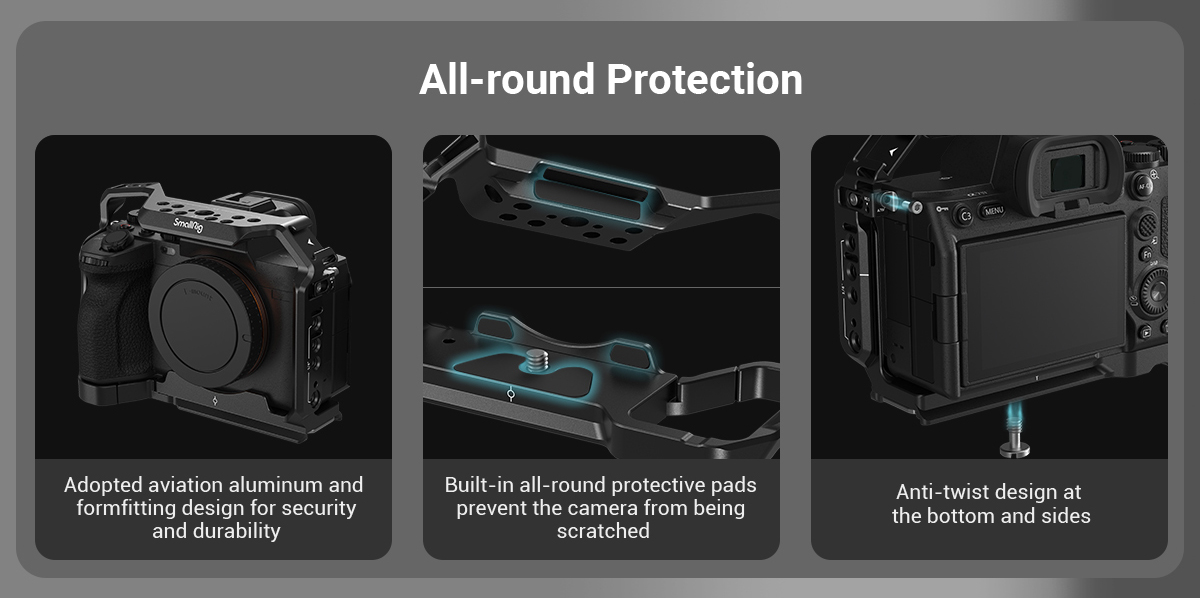

Triple-point locking for enhanced stability and anti-twist
-

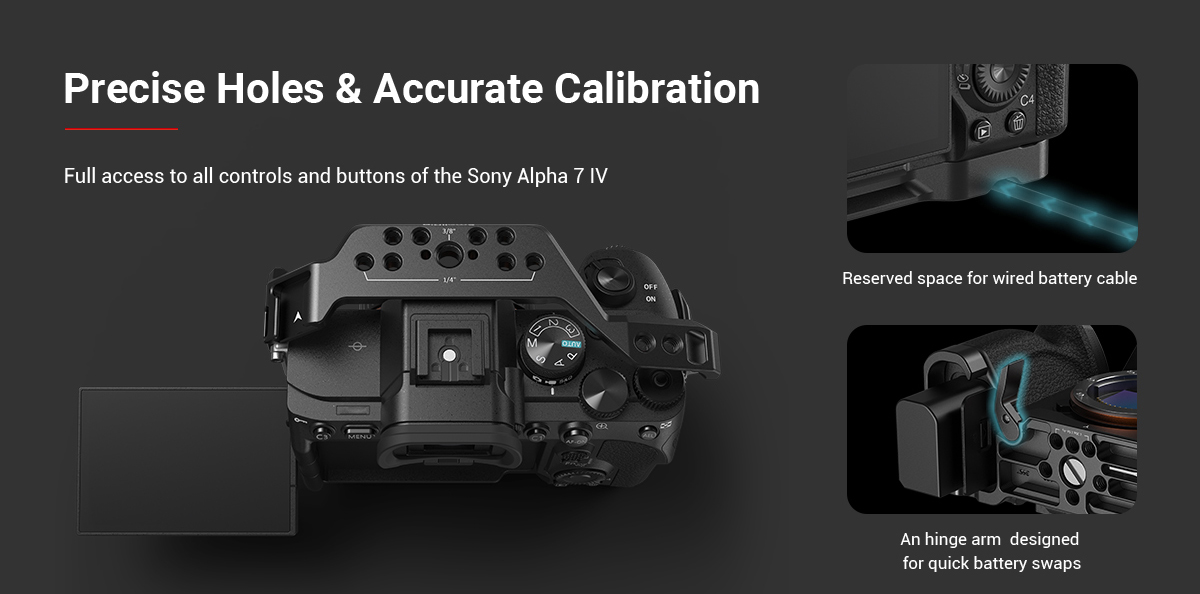

A hinged arm at the battery door fits camera curve and enhances grip experience
-

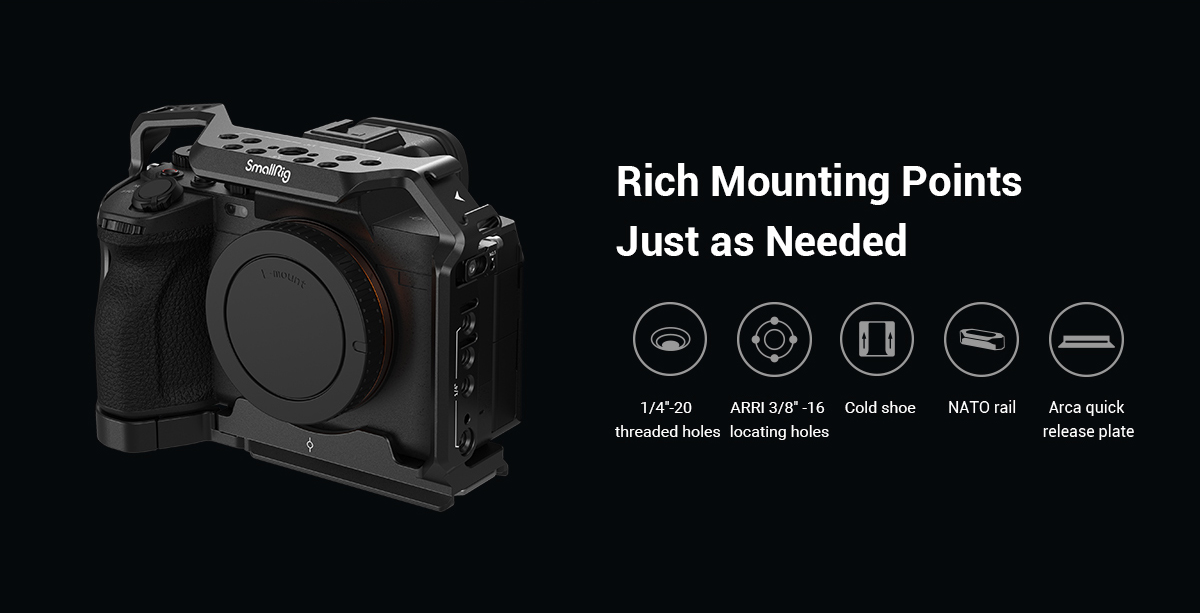

Multiple mounting points: 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoe mounts, QD socket and NATO rails support handles, microphones, LED lights, monitors, etc.
-
Ergonomically designed top handle and side handle increase comfort and stability
-
HDMI cable clamp protects interfaces and ensures stable signal transmission
Introduction:

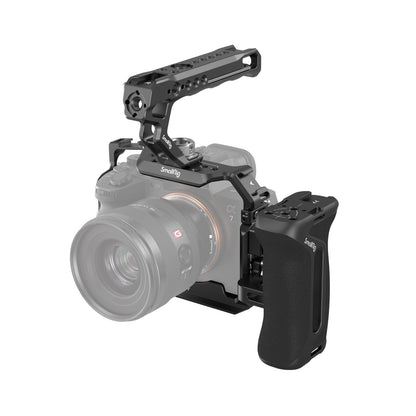

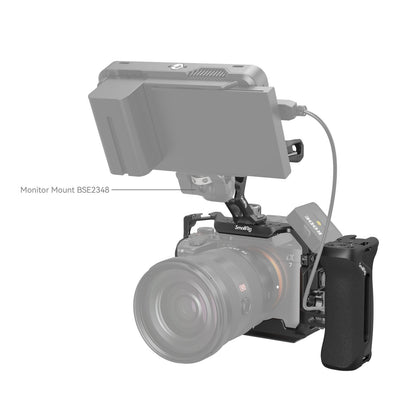

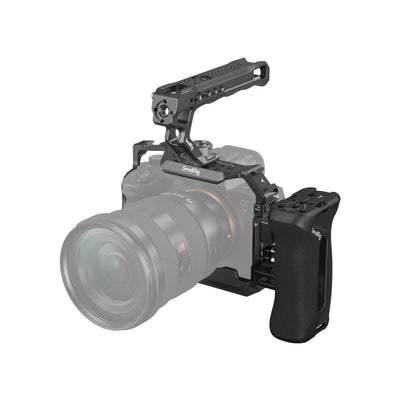

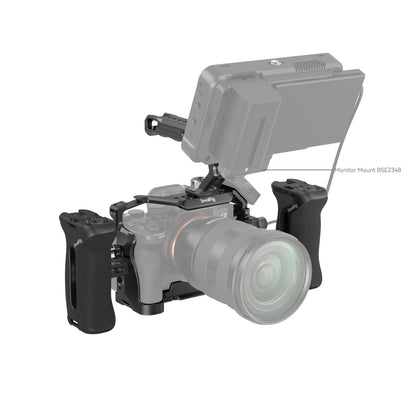

SmallRig Advanced Cage Kit for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III 3669C is designed to reduce arm load and increase stability during handheld shooting, while offering a wide range accessory mounts. It includes a cage, a HDMI cable clamp, a top handle and a side handle. The top handle feels comfortable and enables easy carrying and at low-angle shot. The side grip features a silicone insert for better grip and more stable two-handed shooting. 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoes and NATO rails support monitor mount 2294, microphones, LED lights, monitor mount 2903, NATO accessories. The HDMI cable clamp, mounted onto the left side of the cage via one 1/4"-20 screw and two locating pins, prevents deflection and fixes cables with a thumbscrew to protect interfaces and ensure stable signal transmission. In addition, holes on both sides of the cage allow attaching hand straps. The cage comes with built-in magnetic flat-head screwdriver & hex spanner that facilitate disassembly and assembly.
Cage Installation Notes：

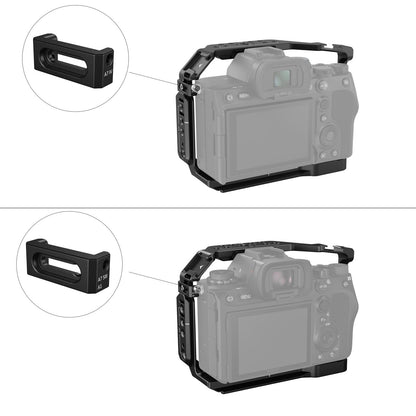

1.After fixing the 1/4"-20 screw at the bottom of the cage,remove the anti-deflection pin from the staging hole in the battery compartment position and fix it to the corresponding position.

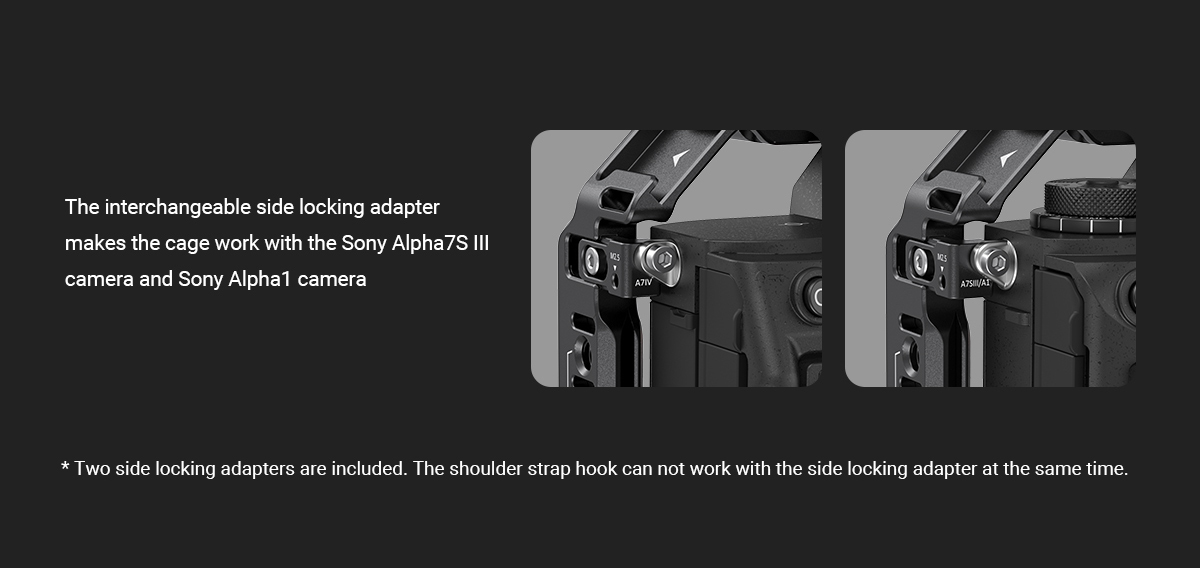

2.To use the side lock adapter of the cage, please remove the split ring on the left side of the camera first.
3.HDMI Cable Clamp interferes with the synchroterminal interface when used on the Alpha 7R V camera.
Compatibility:
-
Sony Alpha 7R V
-
Sony Alpha 7 IV
-
Sony Alpha 7S III
Specifications:
- Brand:SmallRig

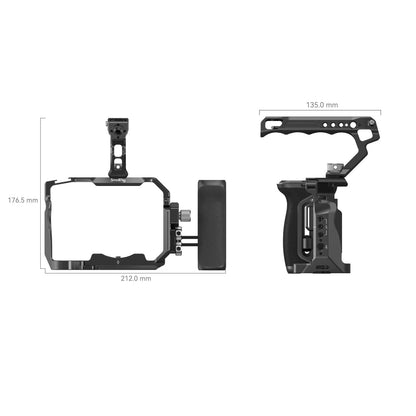

- Product Dimensions: 212×176.5×135mm
- Package Dimensions: 167x157.5x86mm
- Product Weight: 556±5g
- Package Weight: 700.5±5g
- Material(s): Aluminum Alloy, Stainless Steel, Silicone

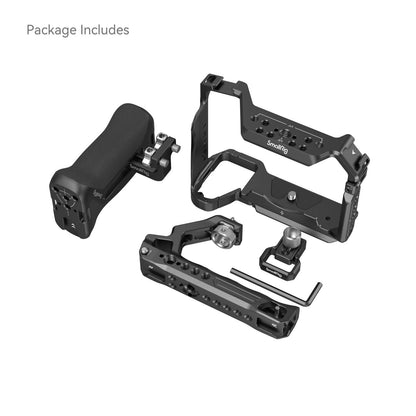

What's in the Box:
- 1 x Cage
- 1 x HDMI Cable Clamp 3000
- 1× Allen Wrench
- 1 x Handle
- 1 x Handle Adapter
